TOYOTA LAND CRUISER 2008 J200 Owners Manual

163
2−2. Instrument cluster
2
When driving

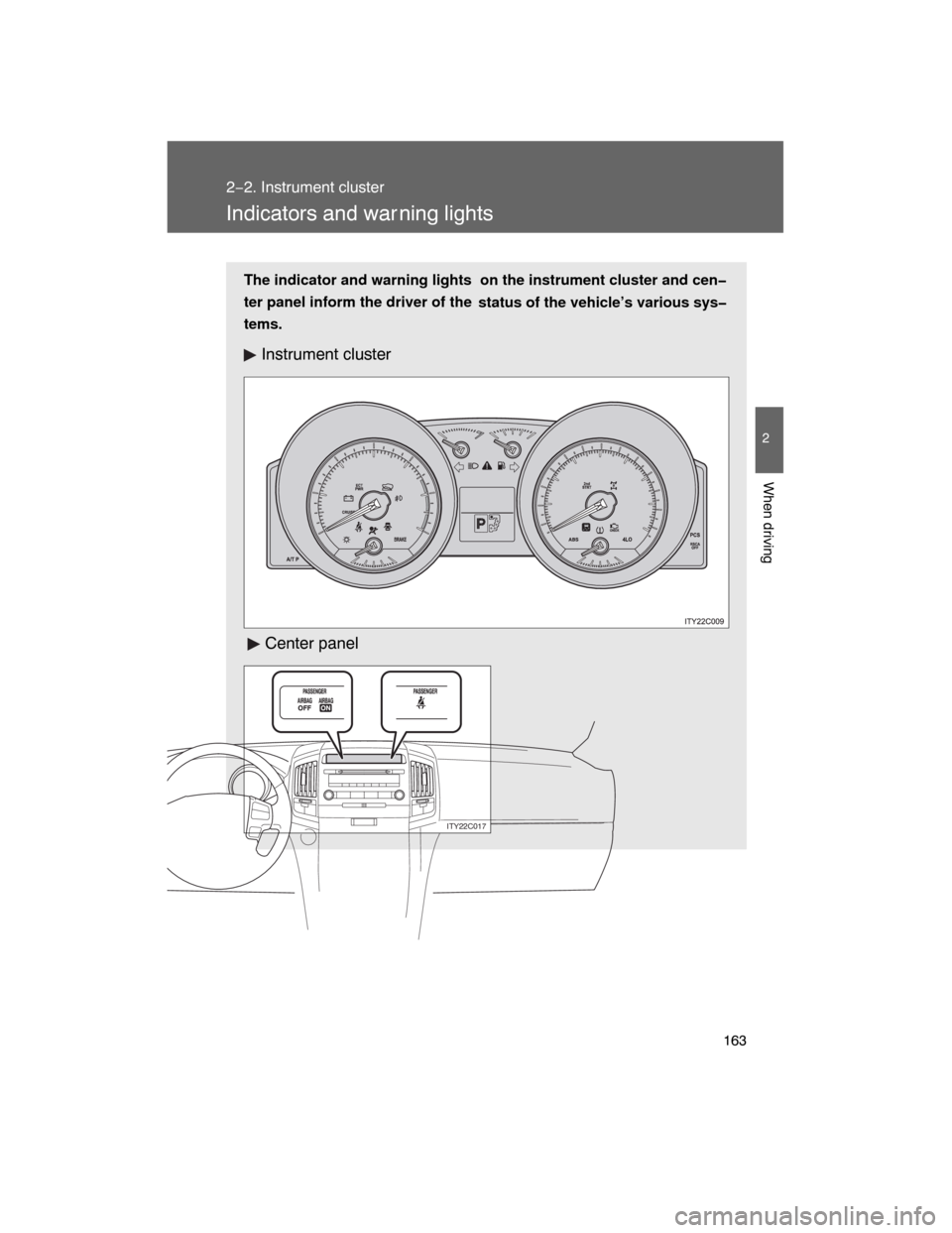

Indicators and war ning lights
The indicator and warning lights on the instrument cluster and cen
ter panel inform the driver of the
status of the vehicle’s various sys
tems.
Instrument cluster
Center panel
ITY22C017

164 2−2. Instrument cluster

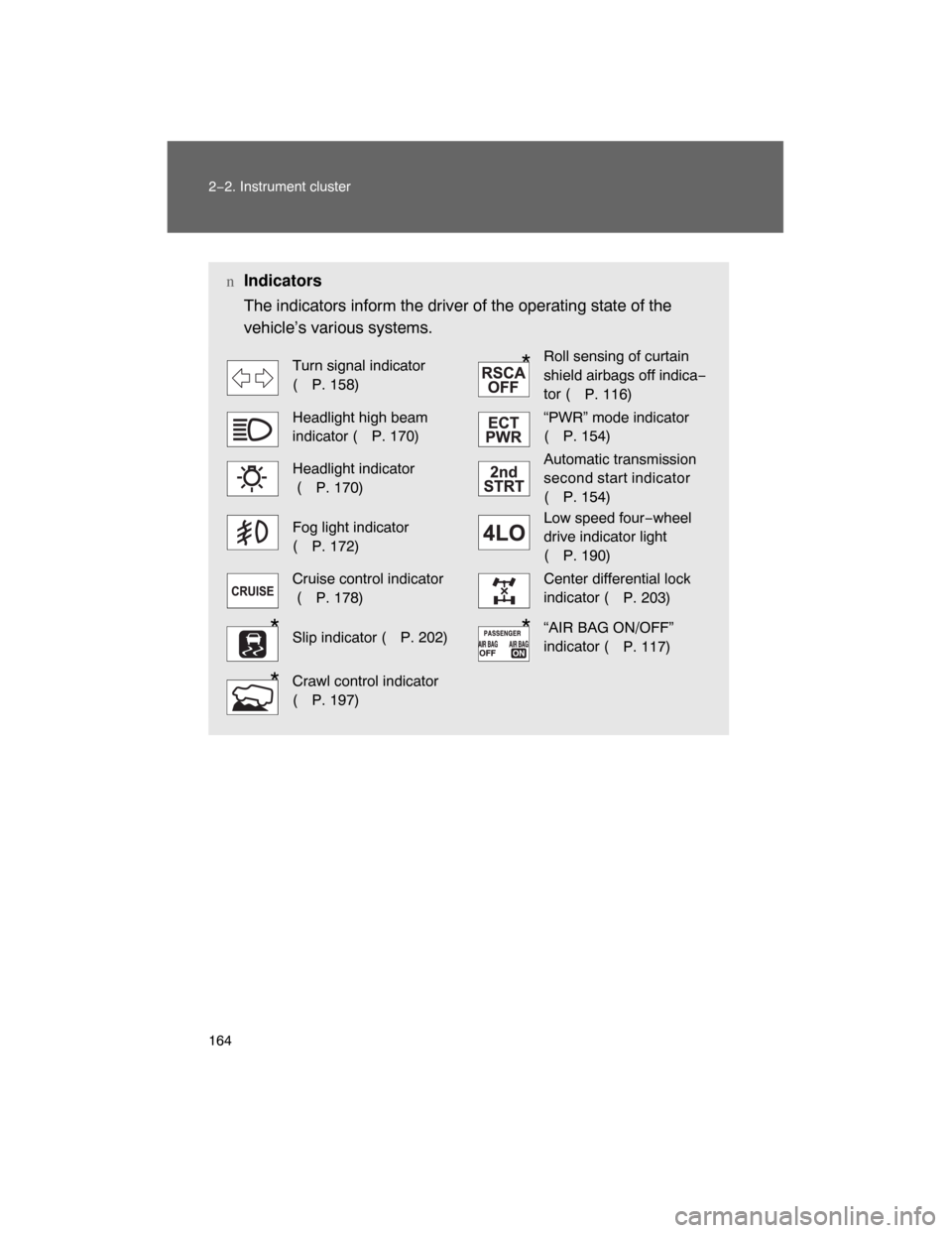

nIndicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(
P. 158)Roll sensing of curtain
shield airbags off indica−
tor (P. 116)
Headlight high beam
indicator (
P. 170)“PWR” mode indicator
(P. 154)
Headlight indicator
(
P. 170)Automatic transmission
second start indicator
(P. 154)
Fog light indicator
(
P. 172)Low speed four−wheel
drive indicator light
(P. 190)
Cruise control indicator
(
P. 178)Center differential lock
indicator (P. 203)
Slip indicator (
P. 202)“AIR BAG ON/OFF”
indicator (P. 117)
Crawl control indicator
(
P. 197)
*
**
*

165
2−2. Instrument cluster
2
When driving
CAUTION
nIf a safety system warning light does not come on
Should a safety system light such as Multi Terrain ABS and the SRS airbag
warning lights not come on when you start the engine, this could mean that
these systems are not available to help protect you in an accident, which
could result in death or serious injury. Have the vehicle inspected by your
Toyota dealer immediately if this occurs.

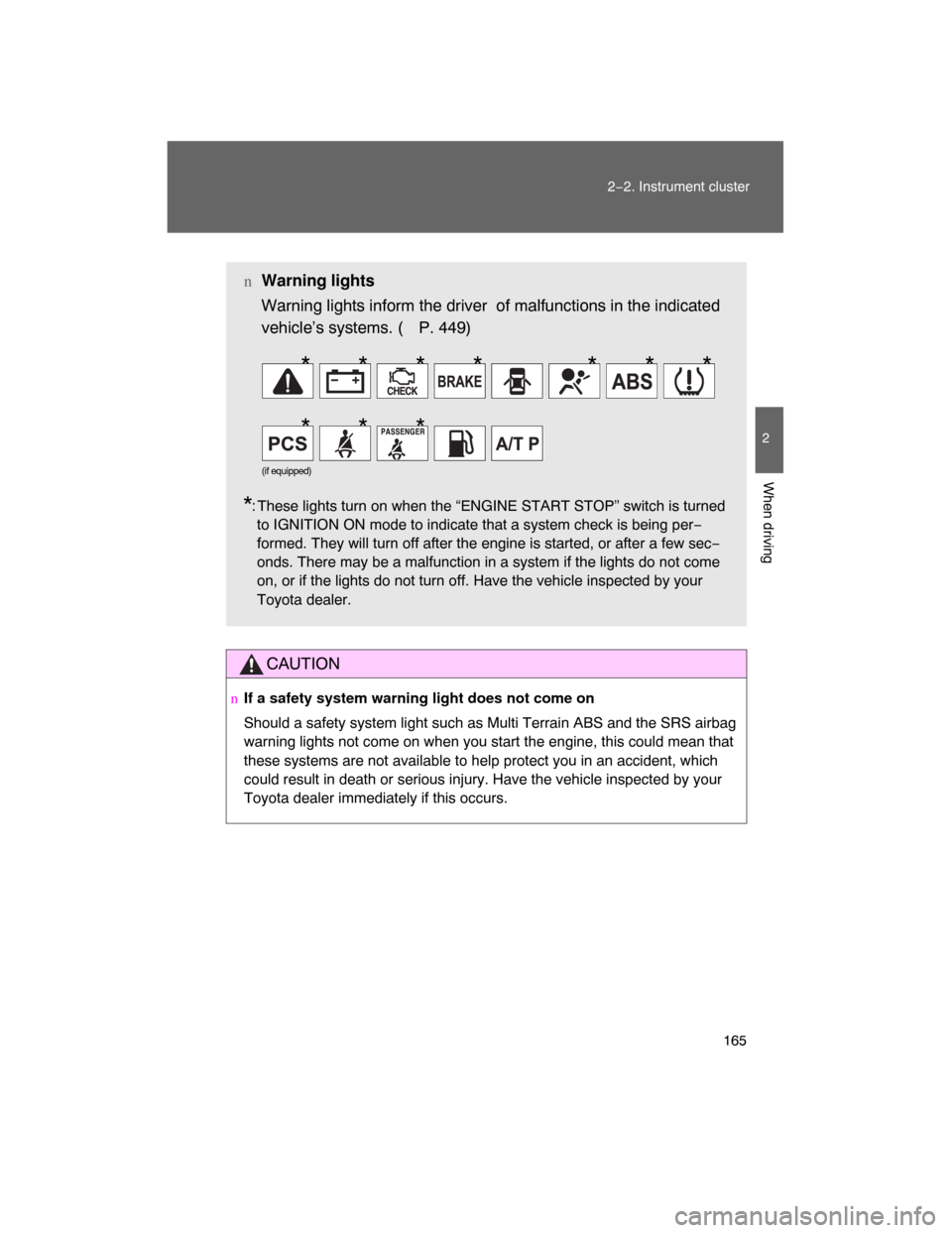

nWarning lights
Warning lights inform the driver
of malfunctions in the indicated
vehicle’s systems. ( P. 449)
*: These lights turn on when the “ENGINE START STOP” switch is turned
to IGNITION ON mode to indicate that a system check is being per−
formed. They will turn off after the engine is started, or after a few sec−
onds. There may be a malfunction in a system if the lights do not come
on, or if the lights do not turn off. Have the vehicle inspected by your
Toyota dealer.
(if equipped)
*******
***

166
2−2. Instrument cluster

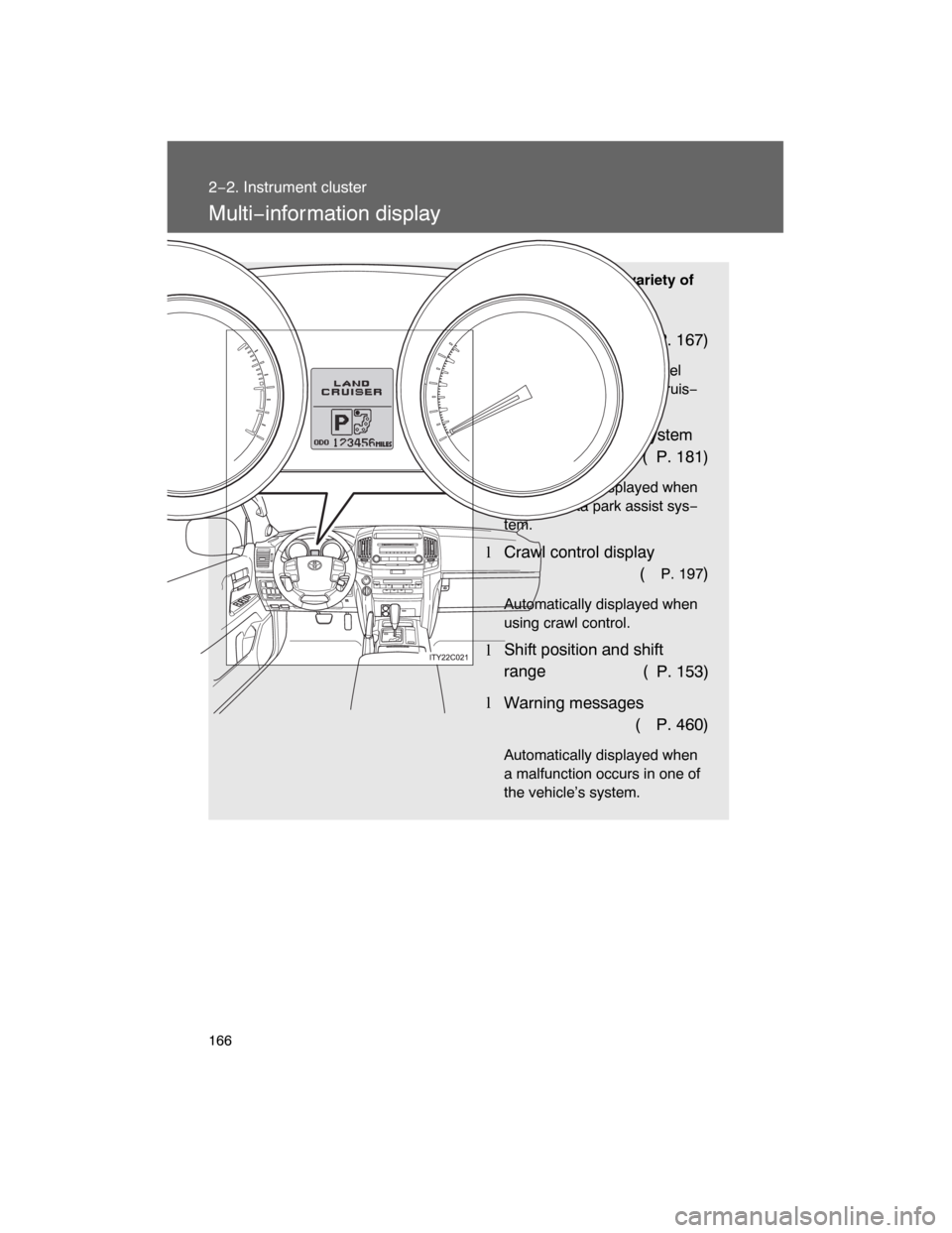

Multi−information display
The Multiinformation di splay presents the driver with a variety of
drivingrelated data.
lTrip information ( P. 167)
Displays driving range, fuel
consumption and other cruis−
ing−related information.
lToyota park assist system
display (
P. 181)
Automatically displayed when
using Toyota park assist sys−
tem.
lCrawl control display
(
P. 197)
Automatically displayed when
using crawl control.
lShift position and shift
range (
P. 153)
l
Warning messages
( P. 460)
Automatically displayed when
a malfunction occurs in one of
the vehicle’s system.

167
2−2. Instrument cluster
2
When driving
Switch the display
Display items can be switched
by pressing the “DISP” button.
Trip information
nCurrent fuel consumption
Displays the current rate
of fuel consumption.
nAverage fuel consumption
Displays the average fuel consum
ption since the vehicle was last
refueled.

168 2−2. Instrument cluster
nDriving range
Displays the estimated maximum di
stance that can be driven with
the quantity of fuel remaining.
lThis distance is computed based on your average fuel consumption. As
a result, the actual distance that can be driven may differ from that dis−
played.
lWhen only a small amount of fuel is added to the tank, the display may
not be updated.
nAverage vehicle speed
Displays the average vehicle speed since the engine was started.
nDriving distance
Displays the driving distance since the engine was started.
nTire inflation pressure (If equipped)
Displays inflation pressure of ea
ch tire. There is no correlation
between the order of the displayed values and the tire positions.
It may take a few minutes to display the tire inflation pressure after the
“ENGINE START STOP” switch is turned to IGNITION ON mode. It may
also take a few minutes to display the tire inflation pressure after inflation
pressure has been adjusted.

169
2−2. Instrument cluster
2
When driving
nSystem check display
After switching the “ENGINE START STOP” switch to IGNITION ON mode,
“LAND CRUISER” is displayed while system operation is checked. When the
system check is complete, the normal screen will return.
nTire inflation pressure
Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using other gauges.
nLiquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem to continue
using the display.
NOTICE
nThe multiinformation display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.

170
2−3. Operating the lights and wipers

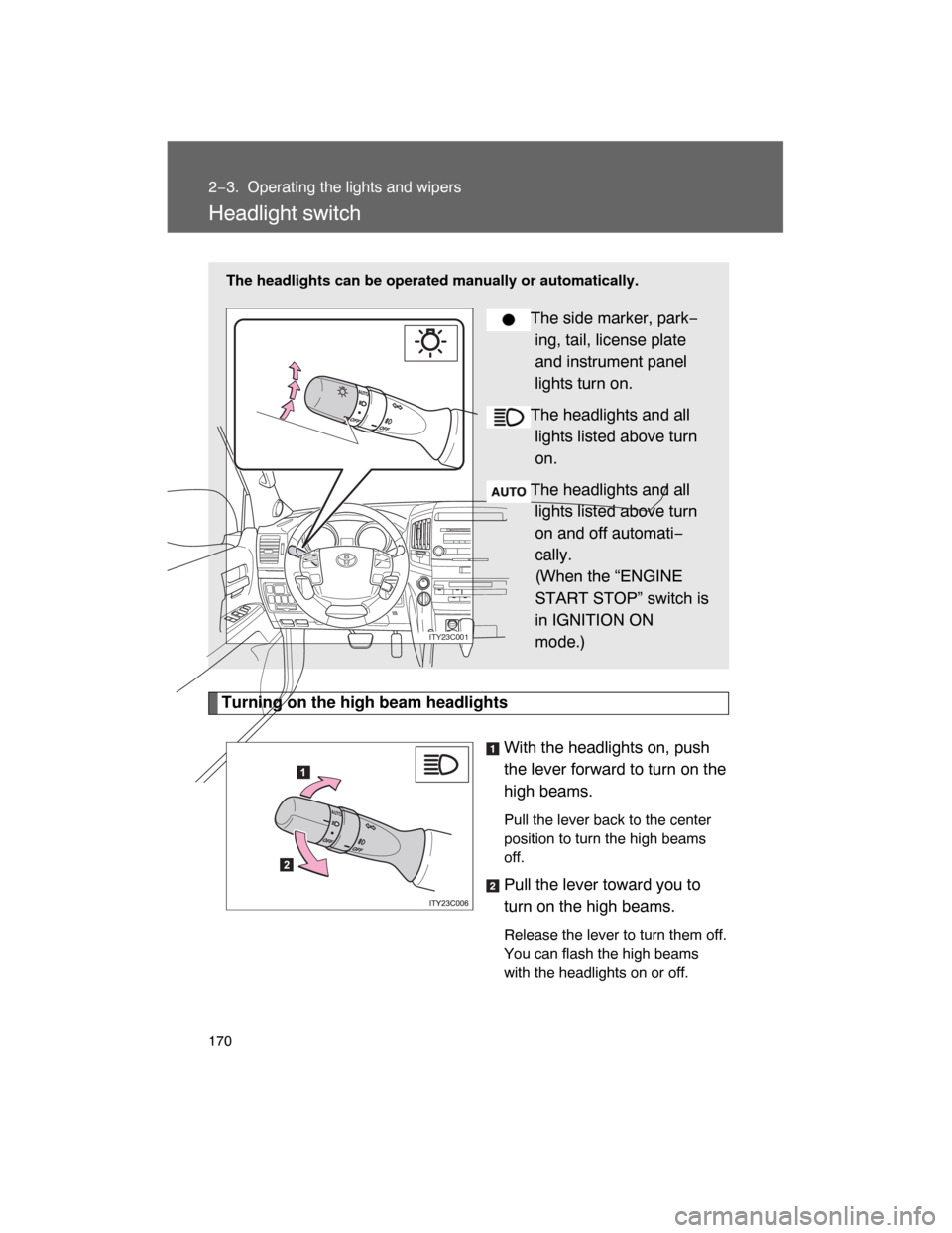

Headlight switch
Turning on the high beam headlights
With the headlights on, push
the lever forward to turn on the
high beams.
Pull the lever back to the center
position to turn the high beams
off.
Pull the lever toward you to
turn on the high beams.
Release the lever to turn them off.
You can flash the high beams
with the headlights on or off. The headlights can be operated manually or automatically.
The side marker, park−
ing, tail, license plate
and instrument panel
lights turn on.
The headlights and all
lights listed above turn
on.
The headlights and all
lights listed above turn
on and off automati−
cally.
(When the “ENGINE
START STOP” switch is
in IGNITION ON
mode.)
ITY23C001

171
2−3. Operating the lights and wipers
2
When driving
nDaytime running light system
To make your vehicle more visible to other drivers, the headlights turn on
automatically (at a reduced intensity) whenever the engine is started and the
parking brake is released. Daytime
running lights are not designed for use at
night.
n
Headlight control sensor
nAutomatic light off system
lWhen the headlights are on: The headlights and tail lights turn off 30 sec−
onds after a door is opened and closed if the “ENGINE START STOP”
switch has been switched to ACCESSORY or OFF mode.
lWhen only the tail lights are on: The tail lights turn off automatically if the
“ENGINE START STOP” switch is switched to ACCESSORY or OFF
mode and driver ’s door is opened.
To turn the lights on again, turn the “ENGINE START STOP” switch to IGNI−
TION ON mode, or turn the light switch off once and then back to the
or
position.
nCustomization
Settings (e.g. light sensor sensitivity) can be changed. (
P. 519)
NOTICE
nTo prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run−
ning.
The sensor may not function properly if
an object is placed on the sensor, or any−
thing that blocks the sensor is affixed to
the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys−
tem to malfunction.

172
2−3. Operating the lights and wipers

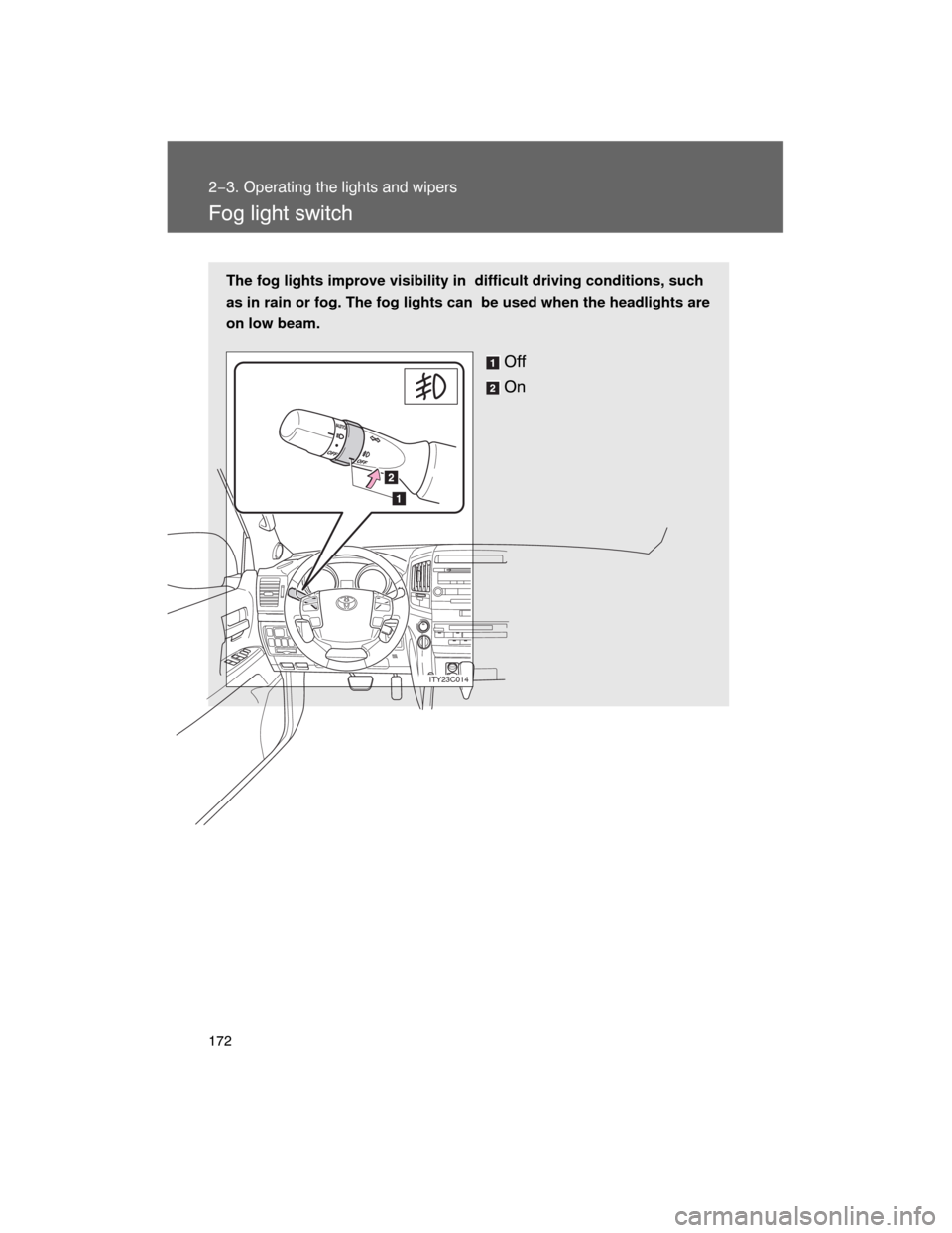

Fog light switch
The fog lights improve visibility in difficult driving conditions, such
as in rain or fog. The fog lights can be used when the headlights are
on low beam.
Off
On
ITY23C014
