2008 Land Cruiser Scheduled Maintenance Guide
120,000 Miles or 144 Months
Lubricate drive shaft bushingLubricate propeller shaftRe-torque propeller shaft boltReplace cabin air filterReplace engine air filterReplace engine oil and oil filter1
Replace spark plugs5
Rotate tires
Inspect the following: __ Automatic transmission fluid
__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
6
__ Drive belts
__ Drive shaft boots
__ Engine coolant
3
__ Exhaust pipes and mountings __ Front differential oil
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Radiator and condenser
__ Rear differential oil
__ Steering linkage and boots
__ Transfer case oil
Additional Maintenance Items for Special Operating Conditions2
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis
Driving while towing:
Replace automatic transmission fluidReplace front differential oilReplace rear differential oilReplace transfer case oilTighten nuts and bolts on chassis
D
EALERSERVICEVERIFICATION:
D
ATE:
M
ILEAGE:
MAINTENANCE LOG
21
1Reset the oil replacement reminder light ( MAINT REQD) or the messageOIL MAINTENANCE REQUIRED on the
multi-information display after engine oil replacement.
2Perform these service items only if you drive primarily under the conditions indicated.3Refer to Engine Coolant in theExplanation of Maintenance Items section in the back of this guide for more
information.
4Includes operating on roads which road salt has been applied.5Maintenance services of spark plugs are required under the terms of the Emissions Control Warranty.6Inspect thickness measurement and disc runout.

2008 Scheduled Maintenance GuideLAND CRUISER
PROPELLER SHAFT
Lubricate the propeller shaft spiders and slide yokes with lithium-base chassis grease and the
double cardan joint with molybdenum-disulfide lithium-base chassis grease. Only a qualified
technician should re-torque the bolt.
RADIATOR AND CONDENSER
Inspect for debris, corrosion and signs of damage. Have any problem repaired immediately by a
qualified technician.
SPARK PLUGS
Replace at specified intervals. Install new plugs of the same type as originally equipped. A
qualified technician should perform this operation.
STEERING LINKAGE AND BOOTS
With the vehicle stopped, check for excessive freeplay in the steering wheel. Inspect the linkage
for bending and damage and the dust boots for deterioration, cracks and damage. Replace any
damaged parts. A qualified technician should perform these operations.
TIRE ROTATION
Tires should be rotated according to the instructions in theOwner’s Manual. When rotating
tires, check for damage and uneven wear. Replace if necessary.
TRANSFER CASE OIL
Inspect or replace at specified intervals. When performing inspections, check for signs of
leakage. If you discover any leakage, have it repaired by a qualified technician immediately.

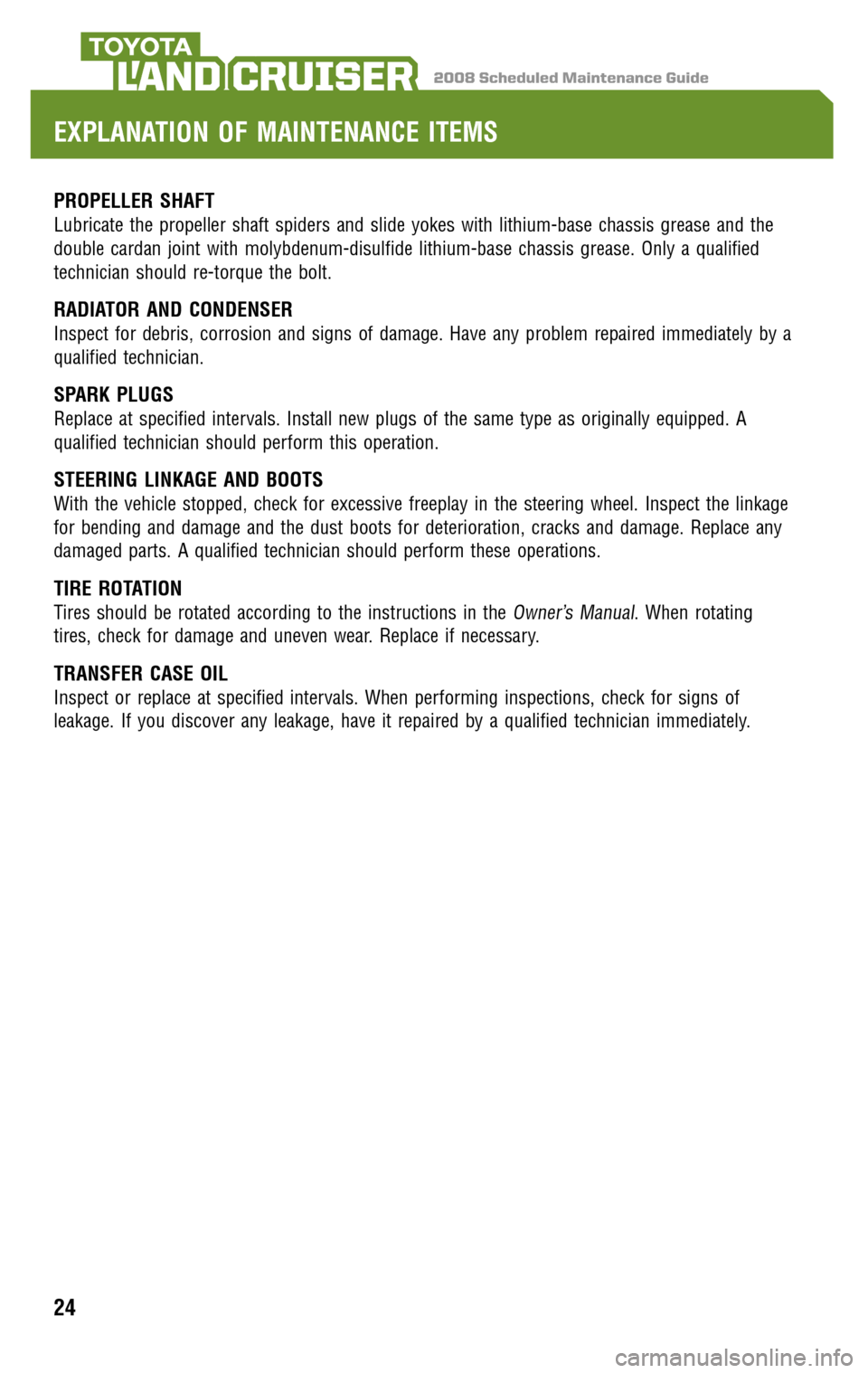

EXPLANATION OF MAINTENANCE ITEMS
24
