TOYOTA LAND CRUISER 2009 J200 Owners Manual

531
6-1. Specifications
6
Vehicle specifications
L/C200_U (OM60D97U)
*:Table 1  Occupant loading and distri
bution for vehicle normal load
for various designated seating capacities
Tire related termMeaning
Snow tire A tire that attains a traction index equal to or
greater than 110, compared to the ASTM E-
1136 Standard Reference Test Tire, when
using the snow traction test as described in
ASTM F-1805-00, Standard Test Method for
Single Wheel Driving Traction in a Straight Line
on Snow-and Ice-Covered Surfaces, and which
is marked with an Alpine Symbol ( ) on at
least one sidewall
Te s t r i m The rim on which a tire is fitted for testing, and
may be any rim listed as appropriate for use
with that tire
Tread That portion of a tire that comes into contact
with the road
Tread rib A tread section running circumferentially
around a tire
Tread separation Pulling away of the tread from the tire carcass
Treadwear indicators
(TWI) The projections within the principal grooves
designed to give a visual indication of the
degrees of wear of the tread
Wheel-holding fixture The fixture used to hold the wheel and tire
assembly securely
during testing

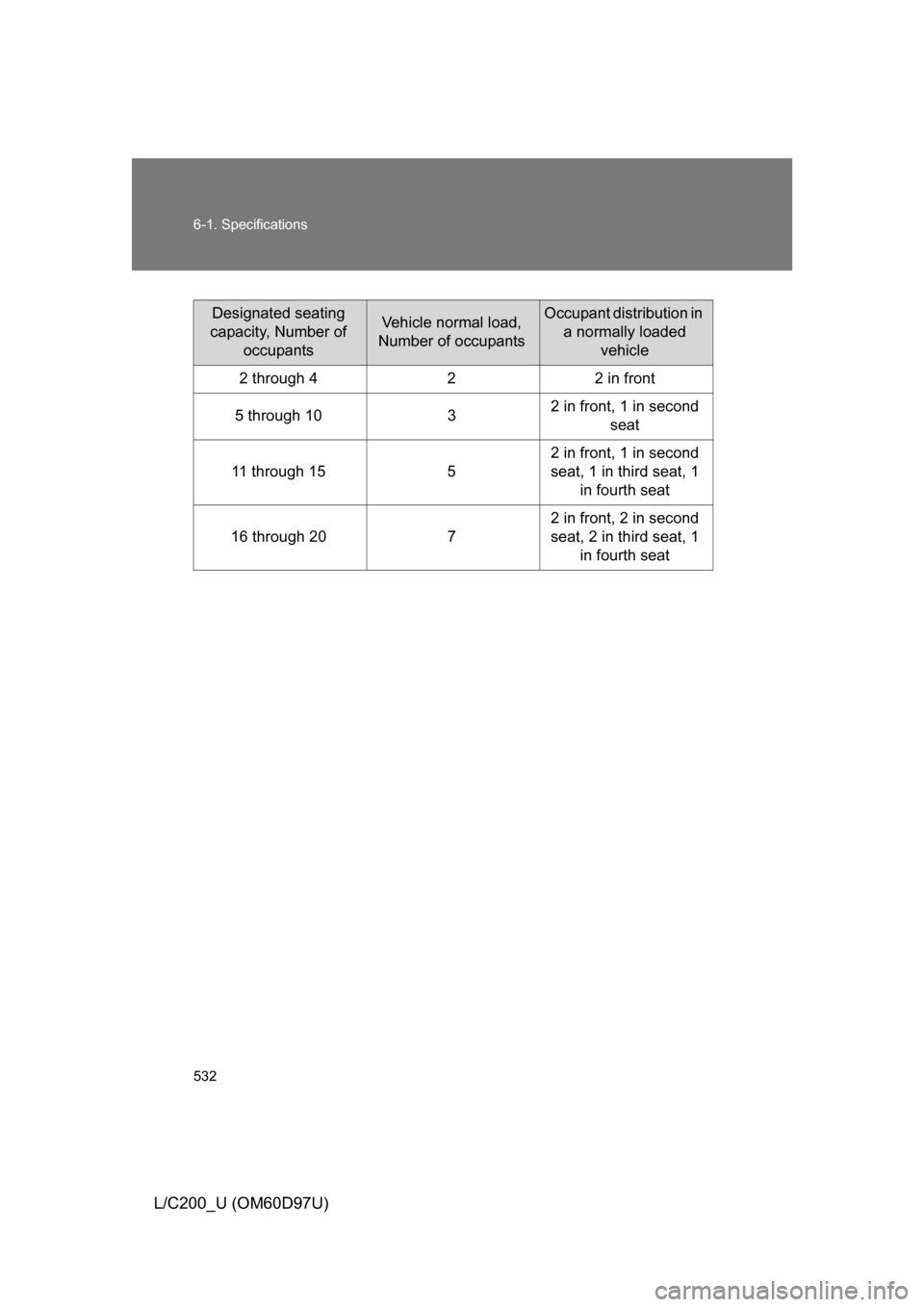

532 6-1. Specifications
L/C200_U (OM60D97U)
Designated seating
capacity, Number of occupantsVehicle normal load,
Number of occupantsOccupant distribution in a normally loaded vehicle
2 through 4 2 2 in front
5 through 10 3 2 in front, 1 in second
seat
11 through 15 5 2 in front, 1 in second
seat, 1 in third seat, 1
in fourth seat
16 through 20 7 2 in front, 2 in second
seat, 2 in third seat, 1
in fourth seat

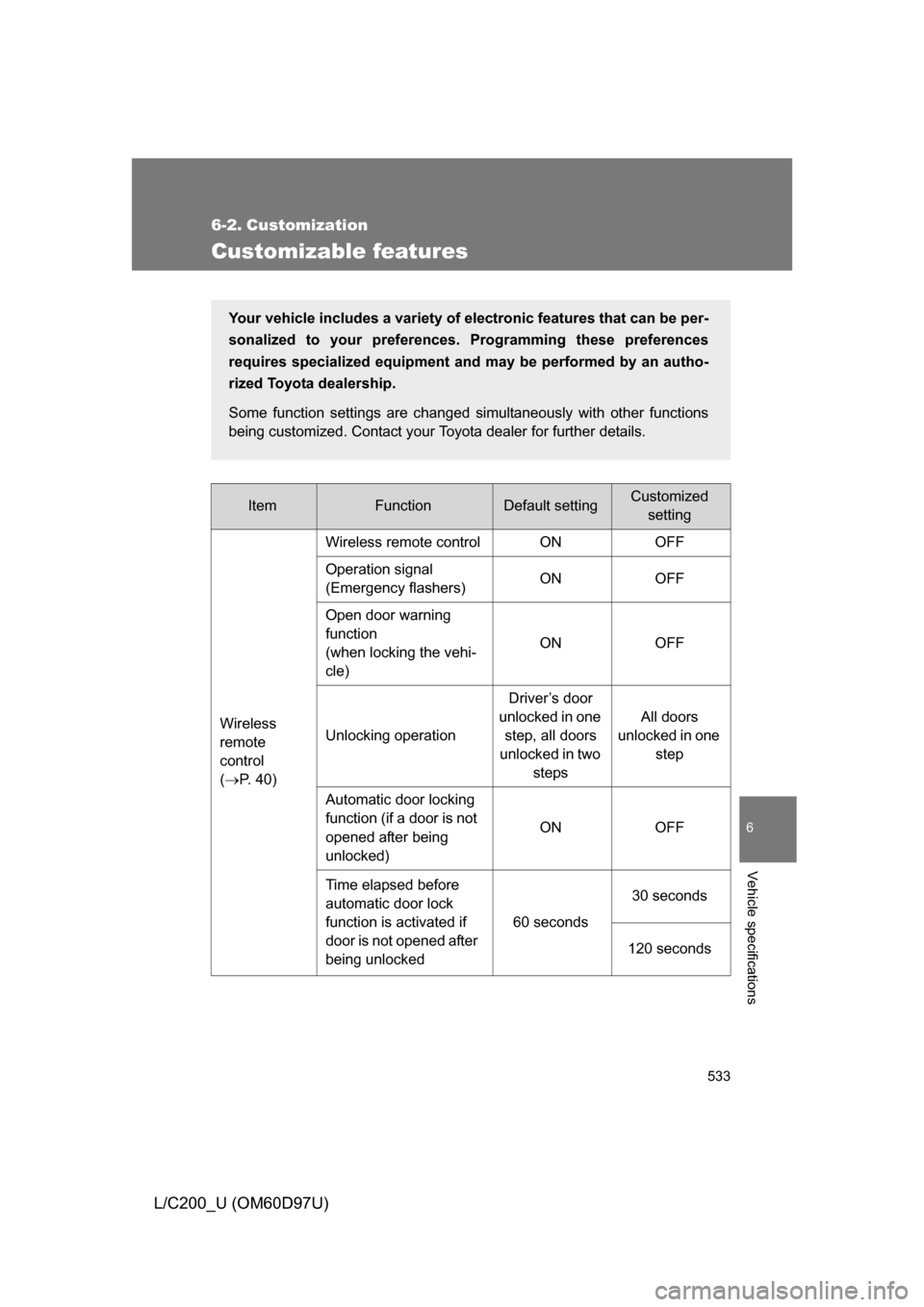

533
6
Vehicle specifications
L/C200_U (OM60D97U)
6-2. Customization
Customizable features
ItemFunctionDefault settingCustomizedsetting
Wireless
remote
control
( P. 40) Wireless remote control ON OFF
Operation signal
(Emergency flashers)
ON OFF
Open door warning
function
(when locking the vehi-
cle) ON OFF
Unlocking operation Driver’s door
unlocked in one step, all doors
unlocked in two steps All doors
unlocked in one step
Automatic door locking
function (if a door is not
opened after being
unlocked) ON OFF
Time elapsed before
automatic door lock
function is activated if
door is not opened after
being unlocked 60 seconds
30 seconds
120 seconds
Your vehicle includes a variety of electronic features that can be per-
sonalized to your preferences. Programming these preferences
requires specialized equipment and may be performed by an autho-
rized Toyota dealership.
Some function settings are changed simultaneously with other functions
being customized. Contact your Toyota dealer for further details.

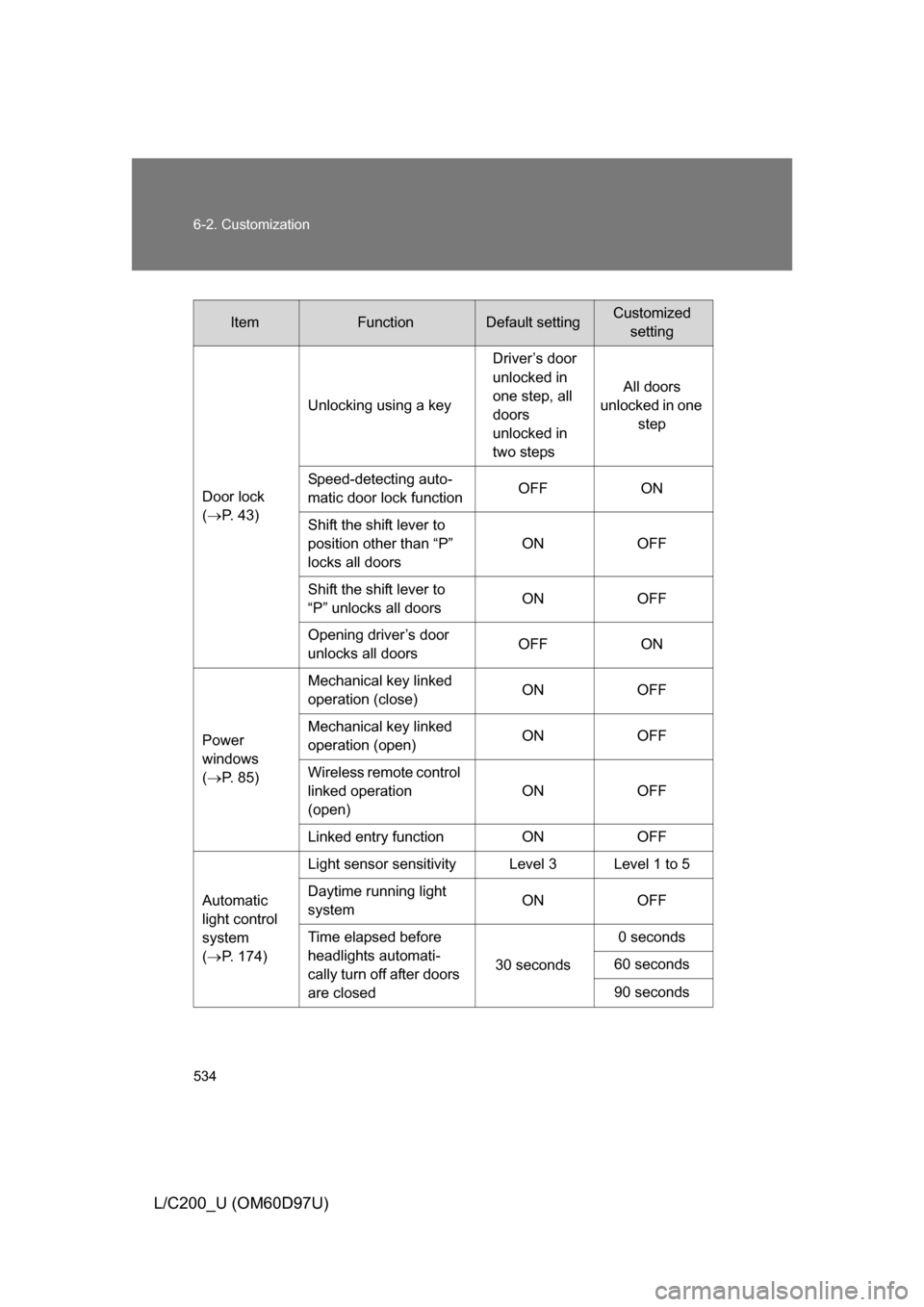

534 6-2. Customization
L/C200_U (OM60D97U)
ItemFunctionDefault settingCustomizedsetting
Door lock
( P. 43) Unlocking using a key
Driver’s door
unlocked in
one step, all
doors
unlocked in
two stepsAll doors
unlocked in one step
Speed-detecting auto-
matic door lock function OFF ON
Shift the shift lever to
position other than “P”
locks all doors ON OFF
Shift the shift lever to
“P” unlocks all doors ON OFF
Opening driver’s door
unlocks all doors OFF ON
Power
windows
( P. 85) Mechanical key linked
operation (close)
ON
OFF
Mechanical key linked
operation (open) ON
OFF
Wireless remote control
linked operation
(open) ON
OFF
Linked entry function ONOFF
Automatic
light control
system
( P. 174) Light sensor sensitivity Level 3 Level 1 to 5
Daytime running light
system
ON
OFF
Time elapsed before
headlights automati-
cally turn off after doors
are closed 30 seconds0 seconds
60 seconds
90 seconds

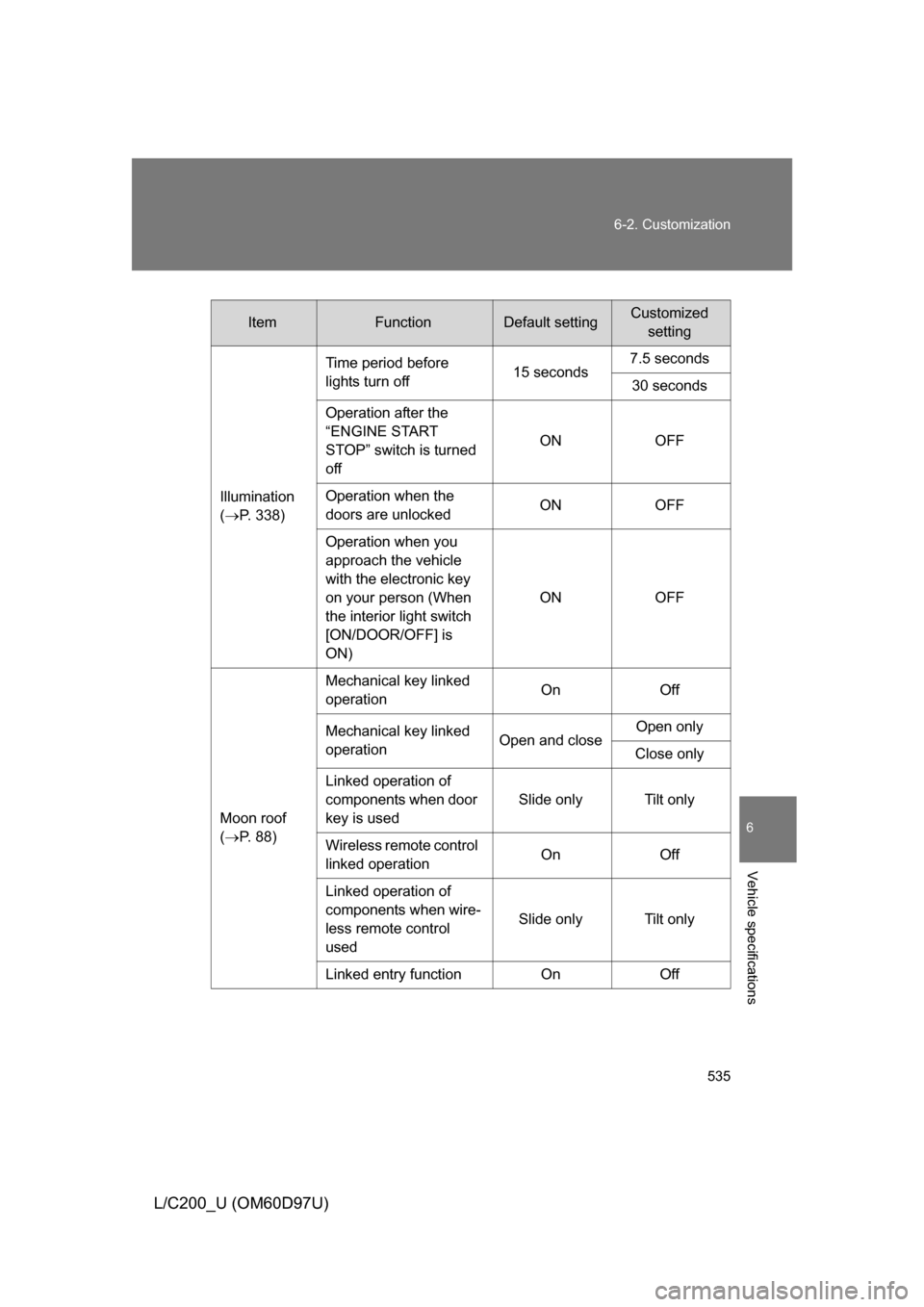

535
6-2. Customization
6
Vehicle specifications
L/C200_U (OM60D97U)
ItemFunctionDefault settingCustomized
setting
Illumination
( P. 338) Time period before
lights turn off
15 seconds7.5 seconds
30 seconds
Operation after the
“ENGINE START
STOP” switch is turned
off ON OFF
Operation when the
doors are unlocked ON OFF
Operation when you
approach the vehicle
with the electronic key
on your person (When
the interior light switch
[ON/DOOR/OFF] is
ON) ON OFF
Moon roof
( P. 88) Mechanical key linked
operation
On
Off
Mechanical key linked
operation Open and closeOpen only
Close only
Linked operation of
components when door
key is used Slide only Tilt only
Wireless remote control
linked operation On
Off
Linked operation of
components when wire-
less remote control
used Slide only Tilt only
Linked entry function OnOff

536 6-2. Customization
L/C200_U (OM60D97U)

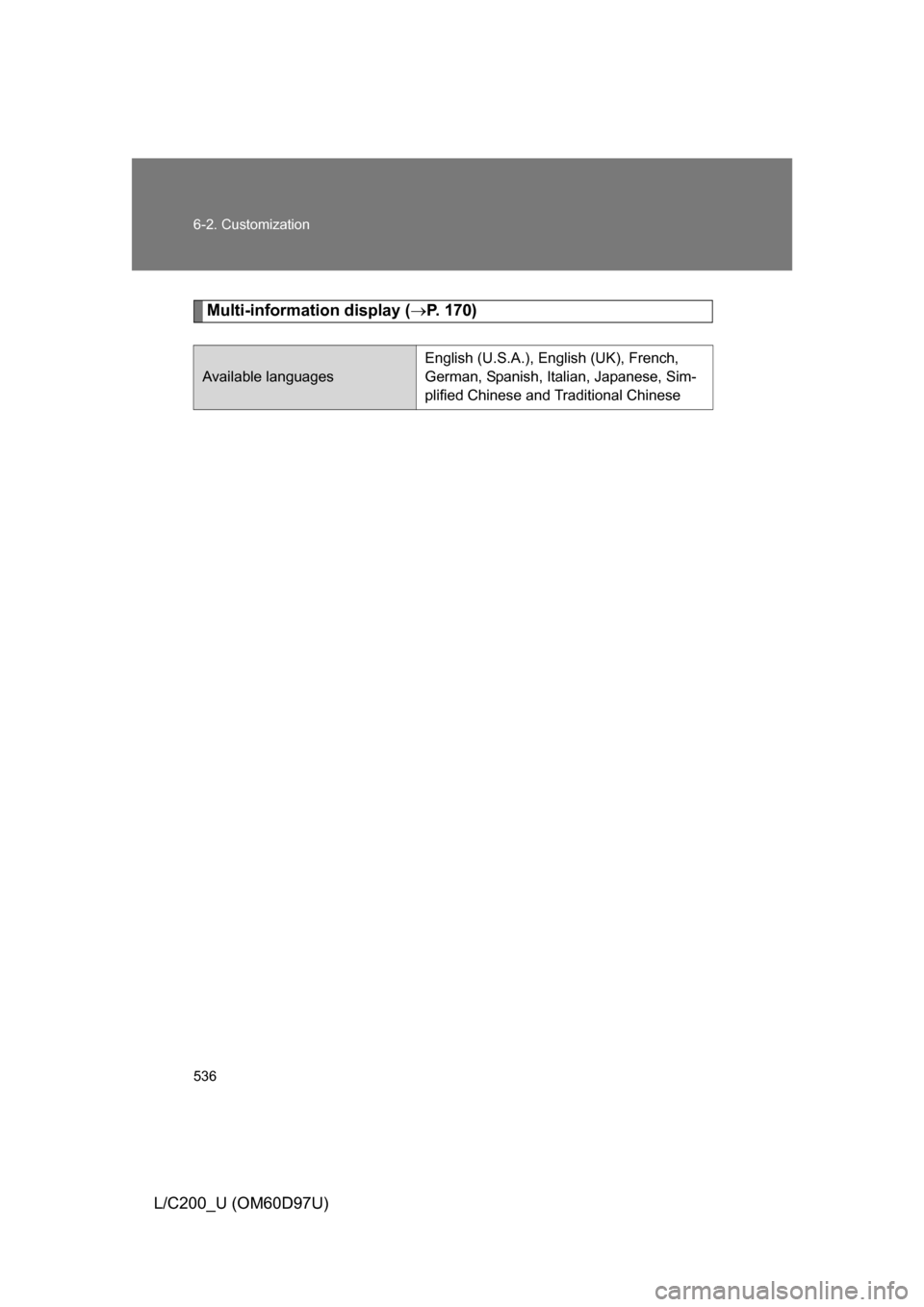

Multi-information display (P. 170)
Available languages
English (U.S.A.), English (UK), French,
German, Spanish, Italian, Japanese, Sim-
plified Chinese and Traditional Chinese

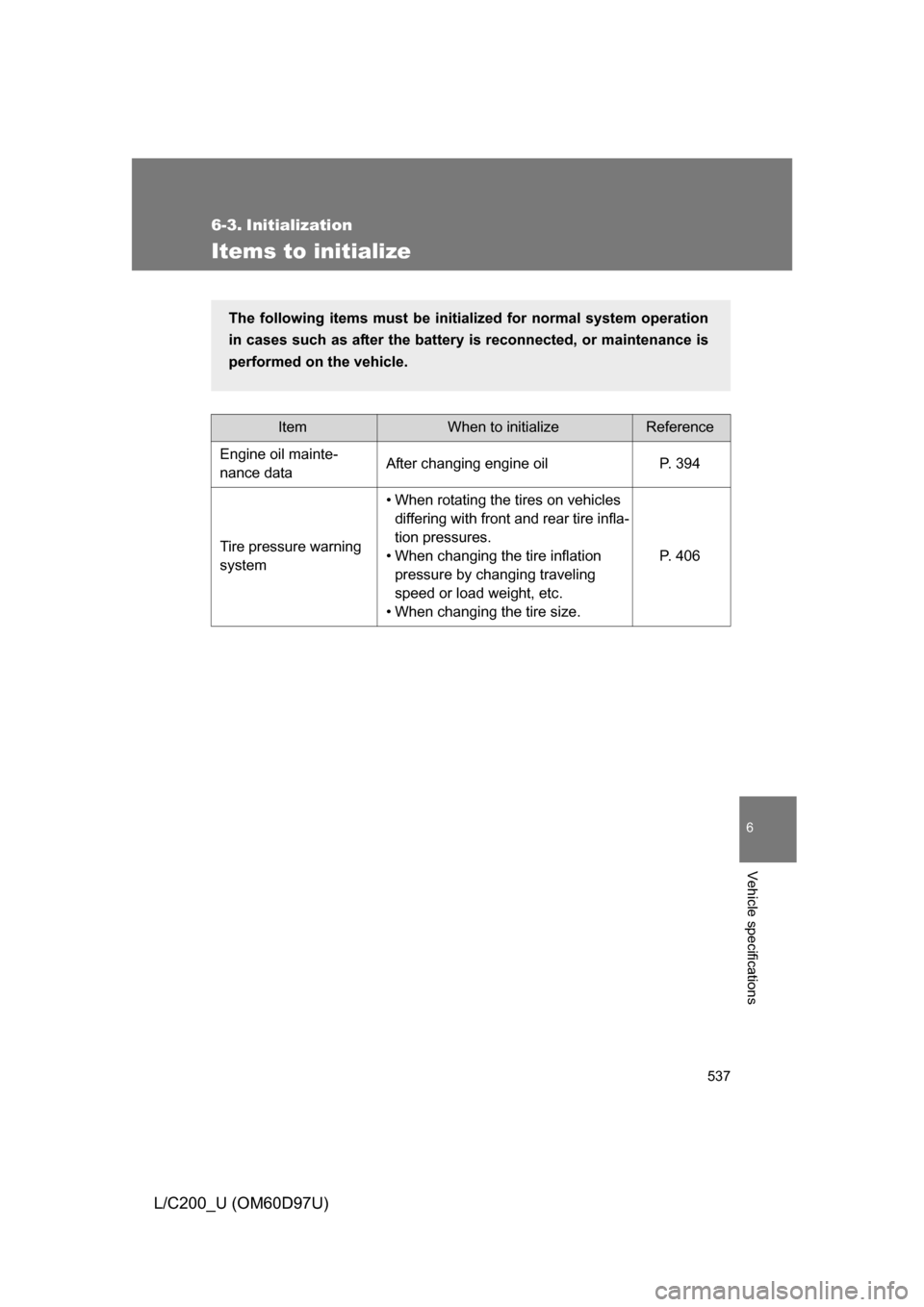

537
6
Vehicle specifications
L/C200_U (OM60D97U)
6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Engine oil mainte-
nance data After changing engine oil P. 394
Tire pressure warning
system • When rotating the tires on vehicles
differing with front and rear tire infla-
tion pressures.
• When changing the tire inflation pressure by changing traveling
speed or load weight, etc.
• When changing the tire size. P. 406
The following items must be init
ialized for normal system operation
in cases such as after the battery is reconnected, or maintenance is
performed on the vehicle.

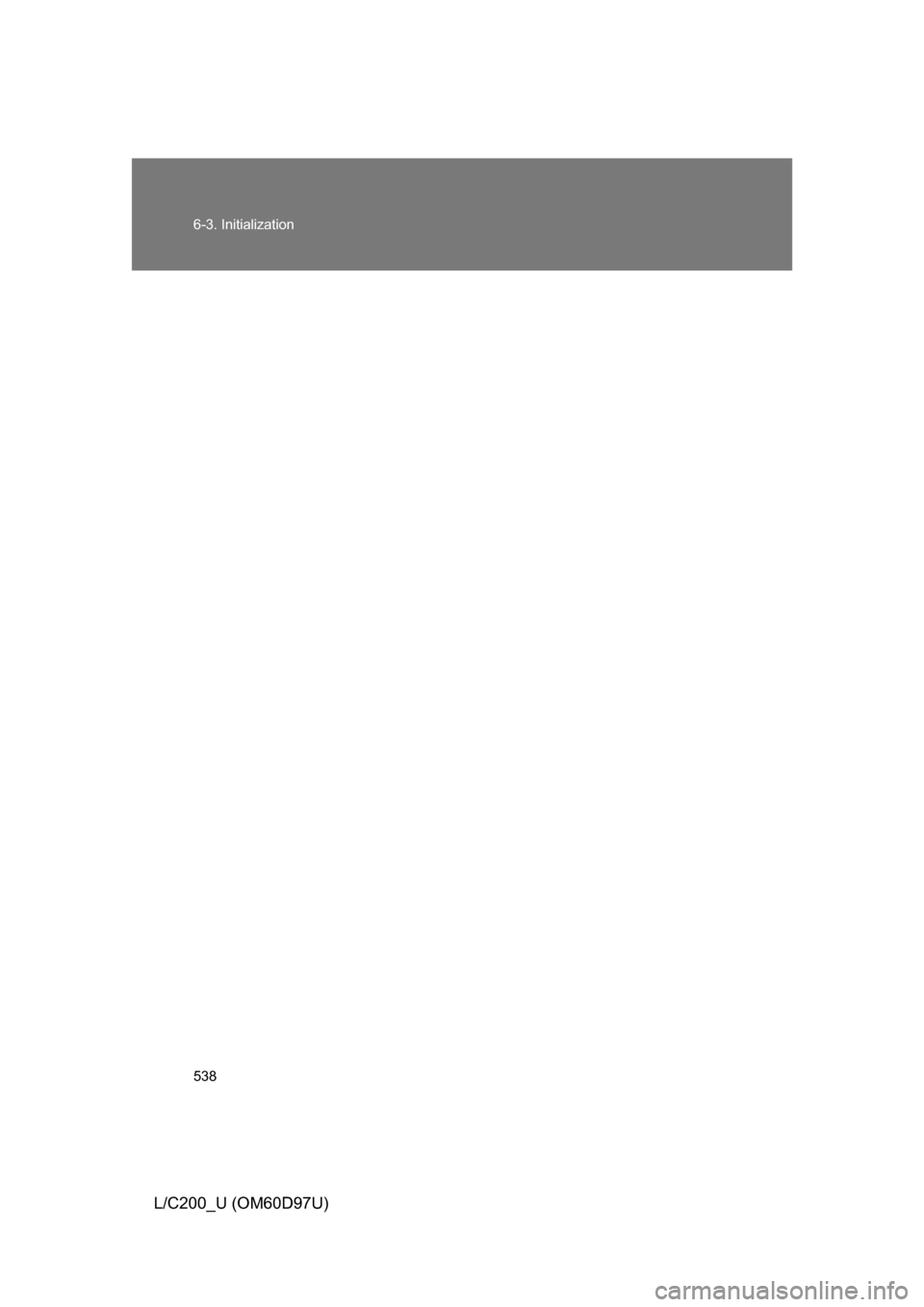

538 6-3. Initialization
L/C200_U (OM60D97U)

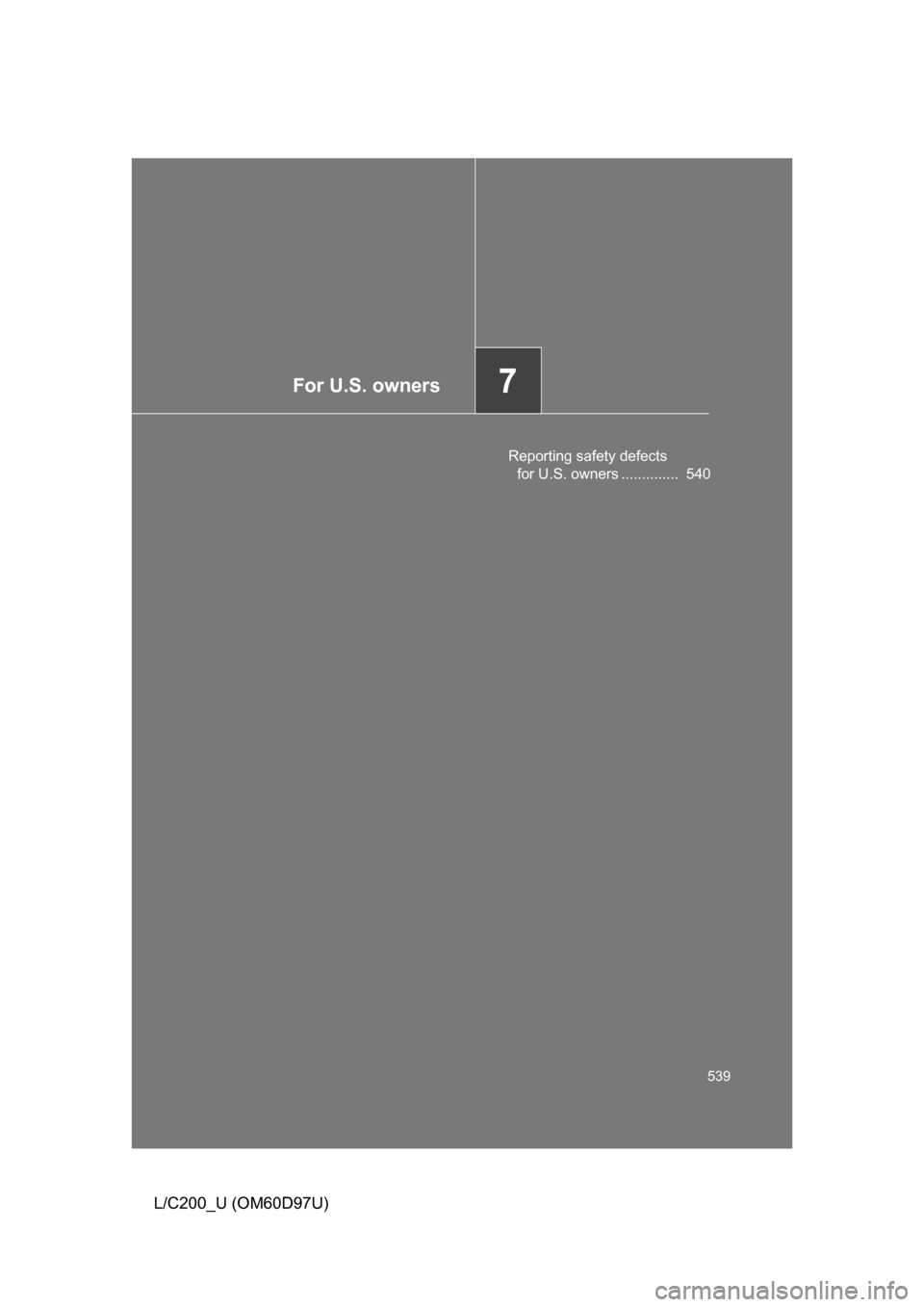

For U.S. owners7
539
L/C200_U (OM60D97U)
Reporting safety defects for U.S. owners .............. 540

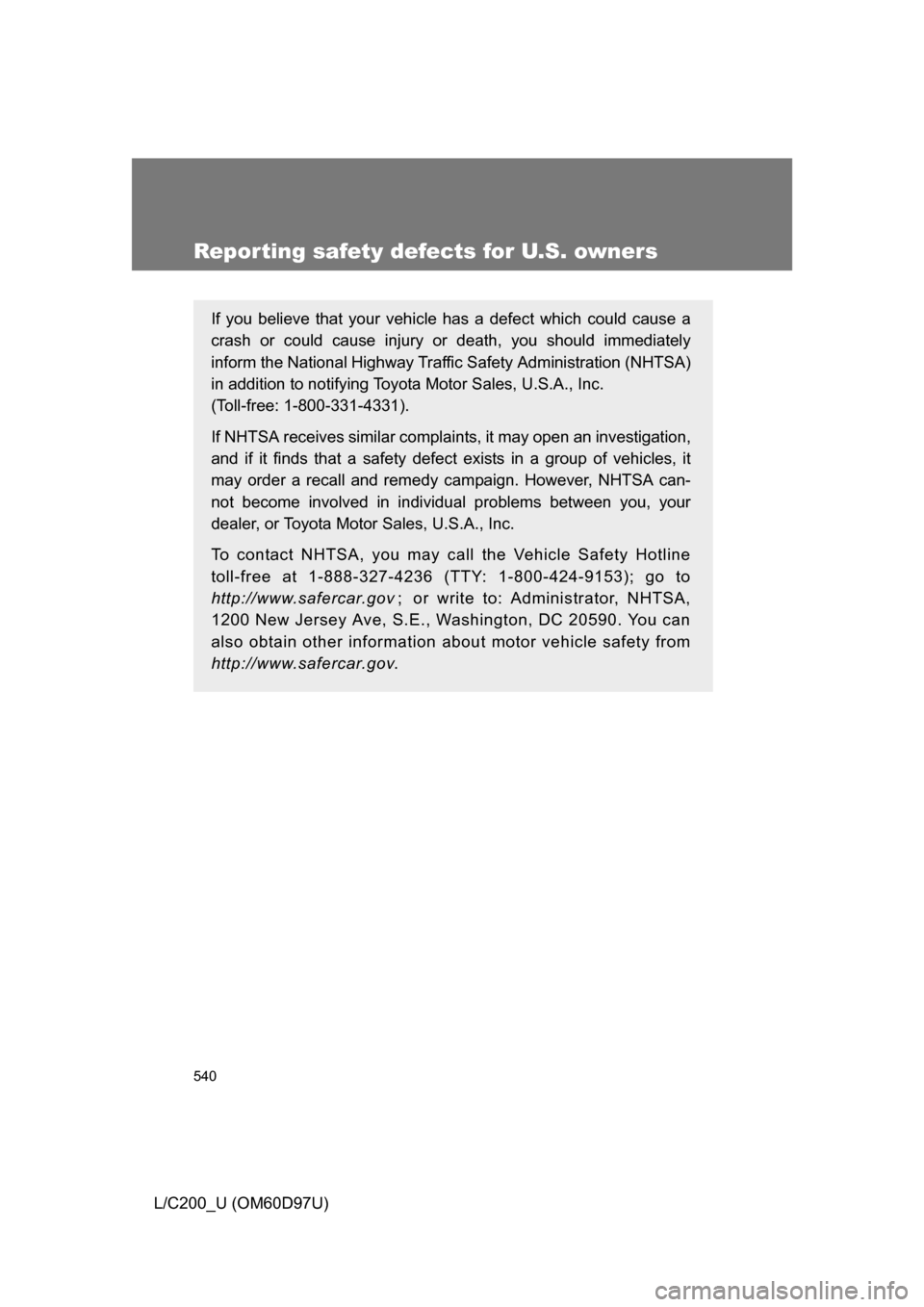

540
L/C200_U (OM60D97U)
Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffi c Safety Administration (NHTSA)
in addition to notifying Toyota Motor Sales, U.S.A., Inc.
(Toll-free: 1-800-331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defec t exists in a group of vehicles, it
may order a recall and remedy campaign. However, NHTSA can-
not become involved in individ ual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ; or write to: Administrator, NHTSA,
1200 New Jersey Ave, S.E., Washington, DC 20590. You can
also obtain other information about motor vehicle safety from
http://www.safercar.gov .
