1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance9Fuel tank door release and cap8Hood release 8Indicator symbols4-5Instrument cluster 4Instrument panel2-3Keyless entry16Light control-Instrument panel9
Smart Key system1,27
Air Conditioning/Heating18-19Audio 20-21Auto lock functions111Automatic Transmission 10Back door 17Clock 24Cool box 27Crawl control22Cruise control22Cup holders27Door locks 25Four-wheel drive11Garage door opener (HomeLink®)323Lights1& turn signals15Moonroof 17Multi-information display224Parking brake26Power outlets-12V DC 23Power outlets-115V AC23Rear seat entertainment system21Seat adjustments-Front 12Seat adjustments-Rear12Seat heaters 19Seats-Head restraints12Seats-Tumbling second row seats13Seats-Tumbling third row seats14-15Steering lock release 10Tilt and telescopic steering wheel 26Te l e p h o n e controls (Bluetooth®)25Windows-Power 16
Windshield wipers & washers 16
Doors-Child safety locks 29Seat belts28Seat belts-Shoulder belt anchor28Spare tire & tools29
Tire Pressure Monitoring (warning) System 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
M2.qxd 7/28/08 3:14 PM Page 1
Page 4 of 32
2
OVERVIEW
Instrument panel
Steering wheel audio controls1
Telephone controls1,2
Voice command button1
Multi-information display button
Headlight, turn signal and front fog light controls
Multi-information display
Wiper and washer controls
Audio system
2
“AIR BAG ON” and “AIR BAG OFF” indicator
Clock
Front passenger seat belt reminder light
Theft deterrent system/Engine immobilizer indicator
Emergency flasher button
Windshield wiper de-icer switch
1
Outside rearview mirrors/Rear window defogger button
Air Conditioning controls2
“ENGINE START STOP” switch
Steering wheel controls
(if equipped)
MODE
M2.qxd 7/28/08 3:14 PM Page 2
Page 6 of 32
4
OVERVIEW
Indicator symbols
Instrument cluster
Tachometer
Engine coolant temperature
Fuel gauge
Speedometer
Service indicator and reminder
Vo l t m e t e r
Multi-information display
Automatic Transmission shift range display
Odometer and two trip meters
Engine oil pressure gauge
Odometer/Trip meter and trip meter reset button
Charging system warning1
Brake system warningAIR BAG ON and AIR BAG OFF indicator
1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
Pre-Collision System warning light1
Malfunction/Check Engine indicator1
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2009
Owner’s Manual .
M2.qxd 7/28/08 3:14 PM Page 4
Page 7 of 32
5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

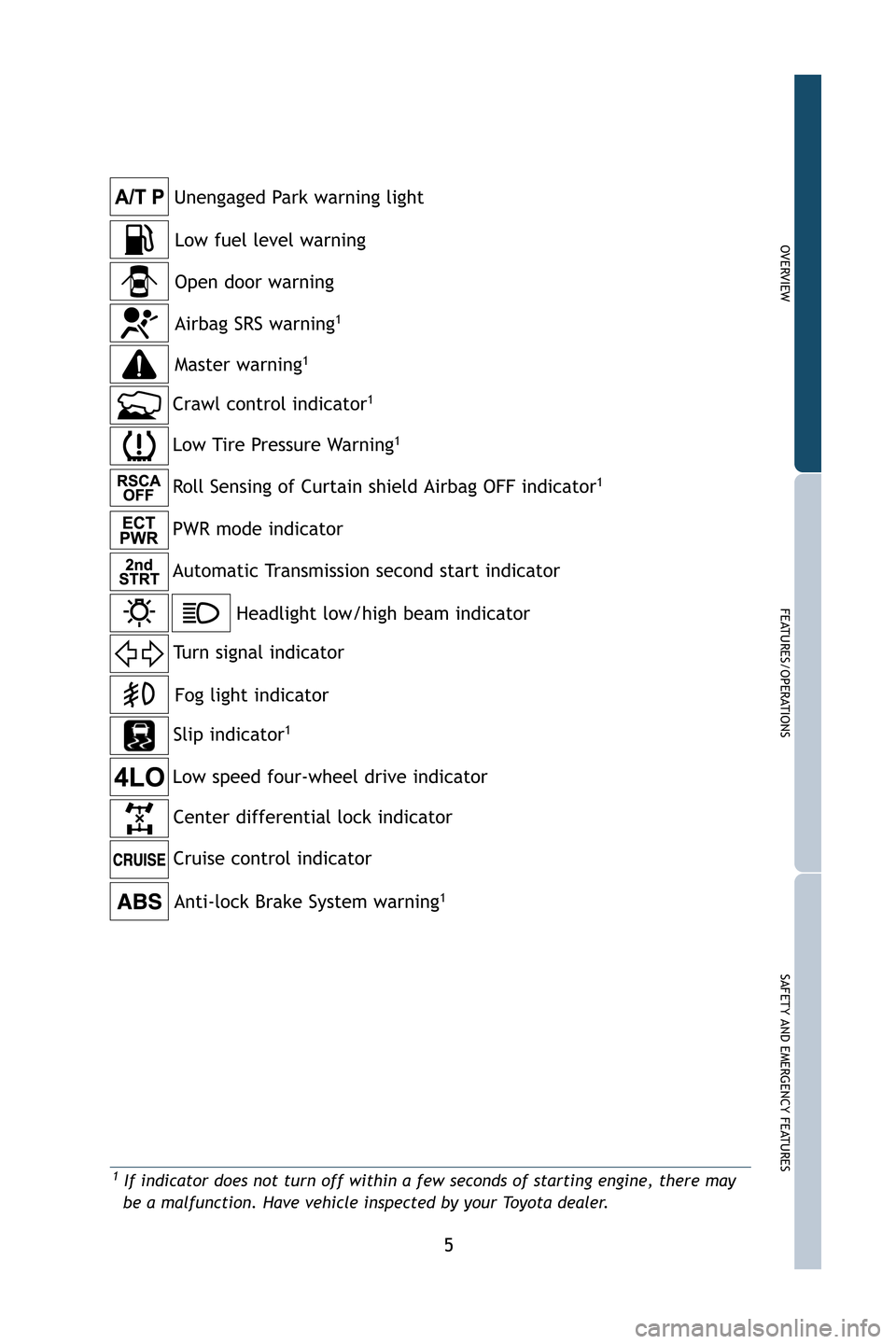

Anti-lock Brake System warning1
Headlight low/high beam indicator
Turn signal indicator
Slip indicator
1
Low speed four-wheel drive indicator
Center differential lock indicator
Cruise control indicator
Crawl control indicator1
Low Tire Pressure Warning1
Automatic Transmission second start indicator
Open door warning
Airbag SRS warning1
Master warning1
PWR mode indicator Unengaged Park warning light
Low fuel level warning
Roll Sensing of Curtain shield Airbag OFF indicator1
Fog light indicator
1If indicator does not turn off within a few seconds of starting engine, \
there may
be a malfunction. Have vehicle inspected by your Toyota dealer.
M2.qxd 7/28/08 3:14 PM Page 5
Page 9 of 32
7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Smart Key system
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE:Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedalCarrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:
Back door lock/unlock
* Driver door unlocking function can be programmed to unlock driver door\
only, or all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Push
Lock
Push
Unlock
Locking operationUnlocking operation
Carry remote to lock/unlockCarry remote to lock/unlock
Push
Front door lockFront door unlock*
Grasp
Carry remote
to lock/unlock
M2.qxd 7/28/08 3:14 PM Page 7
Page 10 of 32
8
Hood release
Pull up latch and
raise hood
Fuel tank door release and cap
NOTE:Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Pull Tu r n
Store
Pull
OVERVIEW
M2.qxd 7/28/08 3:14 PM Page 8
Page 11 of 32
9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

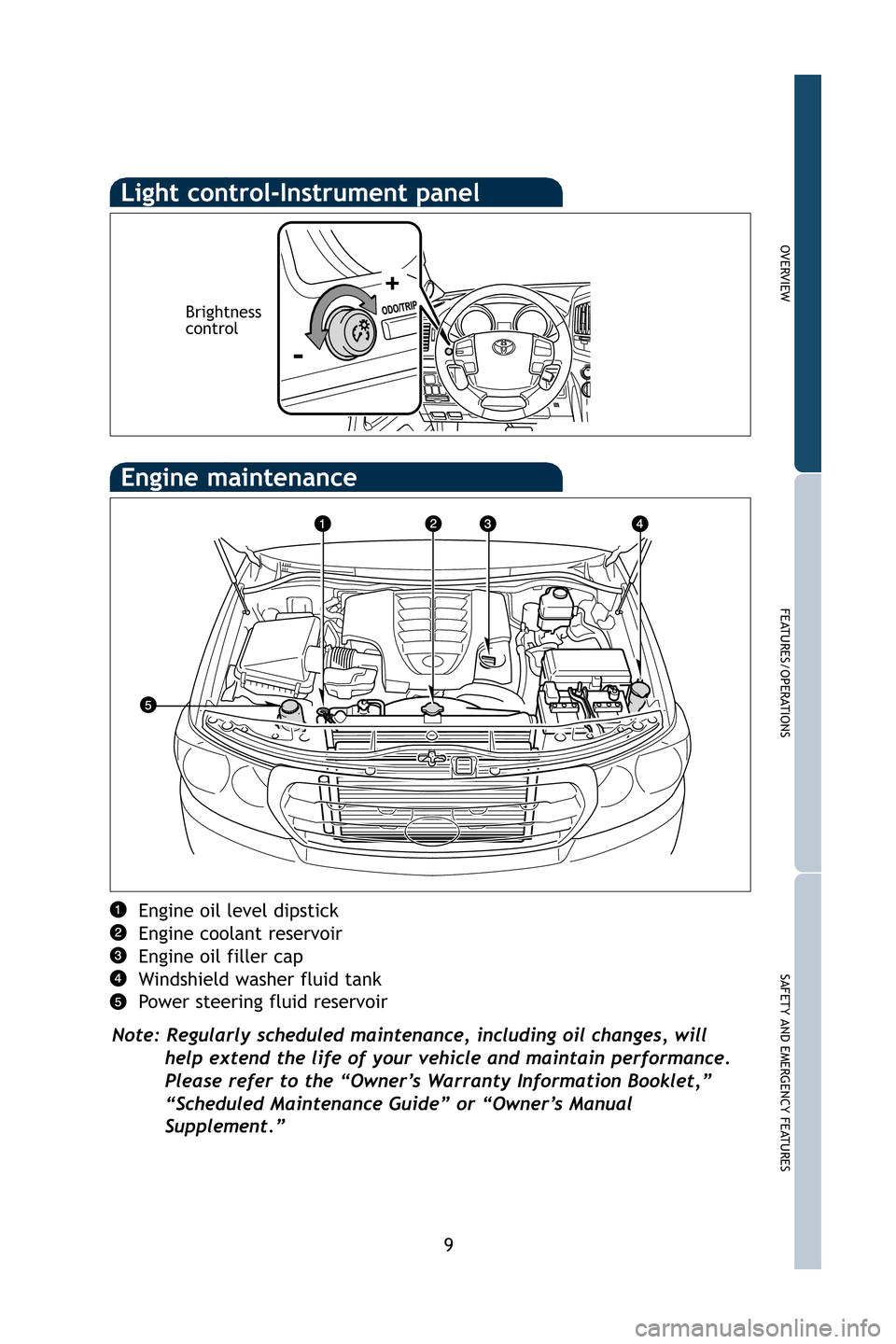

Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Windshield washer fluid tank
Power steering fluid reservoir
Note: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-
+
M2.qxd 7/28/08 3:14 PM Page 9
Page 12 of 32
10
FEATURES/OPERATIONS
Automatic Transmission
* The “ENGINE START STOP” switch must be in IGNITION ON mode and thebrake pedal depressed to shift from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always\
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
PRRNN
+-S -D
W
P
R D
N
2
ON
/
O F
F
S
P
E ED
Park*
Reverse
Neutral
Drive
“S” mode
“S” “D”
Steering lock release
Tu r n
Push
E
TCP W Rd
n
2
R
WPd
n
2
ECT
PWRE T
CP W Rd
n
22nd
STRT
R
W
Pd
n
2
Power modeSecond start mode
For powerful acceleration and driving
in mountainous regions.For starting on slippery surfaces, such
as snowy roads. Press “2nd” to return
to normal mode.
Push
Push
M2.qxd 7/28/08 3:14 PM Page 10
Page 13 of 32
11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Auto lock functions
Automatic door locks can be programmed to operate in two different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds afterturning the “ENGINE START STOP” switch OFF.
Refer to the Owner’s Manual for more details.
4
4
Four-wheel drive
High speed
Low speed
Shift to “N” position when stopped, then push and turn to “L4.”\
Lock the center differential when your vehicle’s wheels get stuck in a
ditch or when driving on a slippery or bumpy surface.
Tu r n
Four-wheel drive control switch
Push
Center differential lock/unlock switch
Push
M2.qxd 7/28/08 3:14 PM Page 11
Page 25 of 32
23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Power outlets-12V DC
The “ENGINE START STOP” switch must be in ACCESSORY or IGNITION ON
mode to be used.
Power outlets-115V AC
AC
115VAC11 5V100W
ON/OFF switch
The “ENGINE START STOP” switch must be in IGNITION ON mode to be used.
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, \
etc.
Refer to “Garage door opener,” Section 3-6 in the Owner’s Manualfor
more details.
* HomeLink®is a registered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®)*
M2.qxd 7/28/08 3:14 PM Page 23
