stop start TOYOTA LAND CRUISER 2009 J200 Quick Reference Guide

2
OVERVIEW
Instrument panel
Steering wheel audio controls1
Telephone controls1,2
Voice command button1
Multi-information display button
Headlight, turn signal and front fog light controls
Multi-information display
Wiper and washer controls
Audio system
2
“AIR BAG ON” and “AIR BAG OFF” indicator
Clock
Front passenger seat belt reminder light
Theft deterrent system/Engine immobilizer indicator
Emergency flasher button
Windshield wiper de-icer switch
1
Outside rearview mirrors/Rear window defogger button
Air Conditioning controls2
“ENGINE START STOP” switch
Steering wheel controls
(if equipped)
MODE
M2.qxd 7/28/08 3:14 PM Page 2

7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Smart Key system
Start function
Accessories such as the radio will operate.
Power ON; the engine not running.
All systems OFF.
ACCESSORY
ON
OFF
NOTE:Gear shift lever must be in Park and brake pedal depressed.
Push
Depress
brake pedalCarrying
Green indicator ON
Without depressing the brake pedal, pressing the “ENGINE START STOP”
switch will change the operation mode in succession from:
Back door lock/unlock
* Driver door unlocking function can be programmed to unlock driver door\

only, or all doors. Grasping passenger door handle will unlock all doors.
NOTE: Doors may also be locked/unlocked using remote.
Power (without starting engine)
Push
Lock
Push
Unlock
Locking operationUnlocking operation
Carry remote to lock/unlockCarry remote to lock/unlock
Push
Front door lockFront door unlock*
Grasp
Carry remote
to lock/unlock
M2.qxd 7/28/08 3:14 PM Page 7

10
FEATURES/OPERATIONS
Automatic Transmission
* The “ENGINE START STOP” switch must be in IGNITION ON mode and thebrake pedal depressed to shift from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always\
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
PRRNN
+-S -D
W
P
R D
N
2
ON
/
O F
F
S
P
E ED
Park*
Reverse
Neutral
Drive
“S” mode
“S” “D”
Steering lock release
Tu r n
Push
E
TCP W Rd
n
2
R
WPd
n
2
ECT
PWRE T
CP W Rd
n
22nd
STRT
R
W
Pd
n
2
Power modeSecond start mode
For powerful acceleration and driving
in mountainous regions.For starting on slippery surfaces, such
as snowy roads. Press “2nd” to return
to normal mode.
Push
Push
M2.qxd 7/28/08 3:14 PM Page 10

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

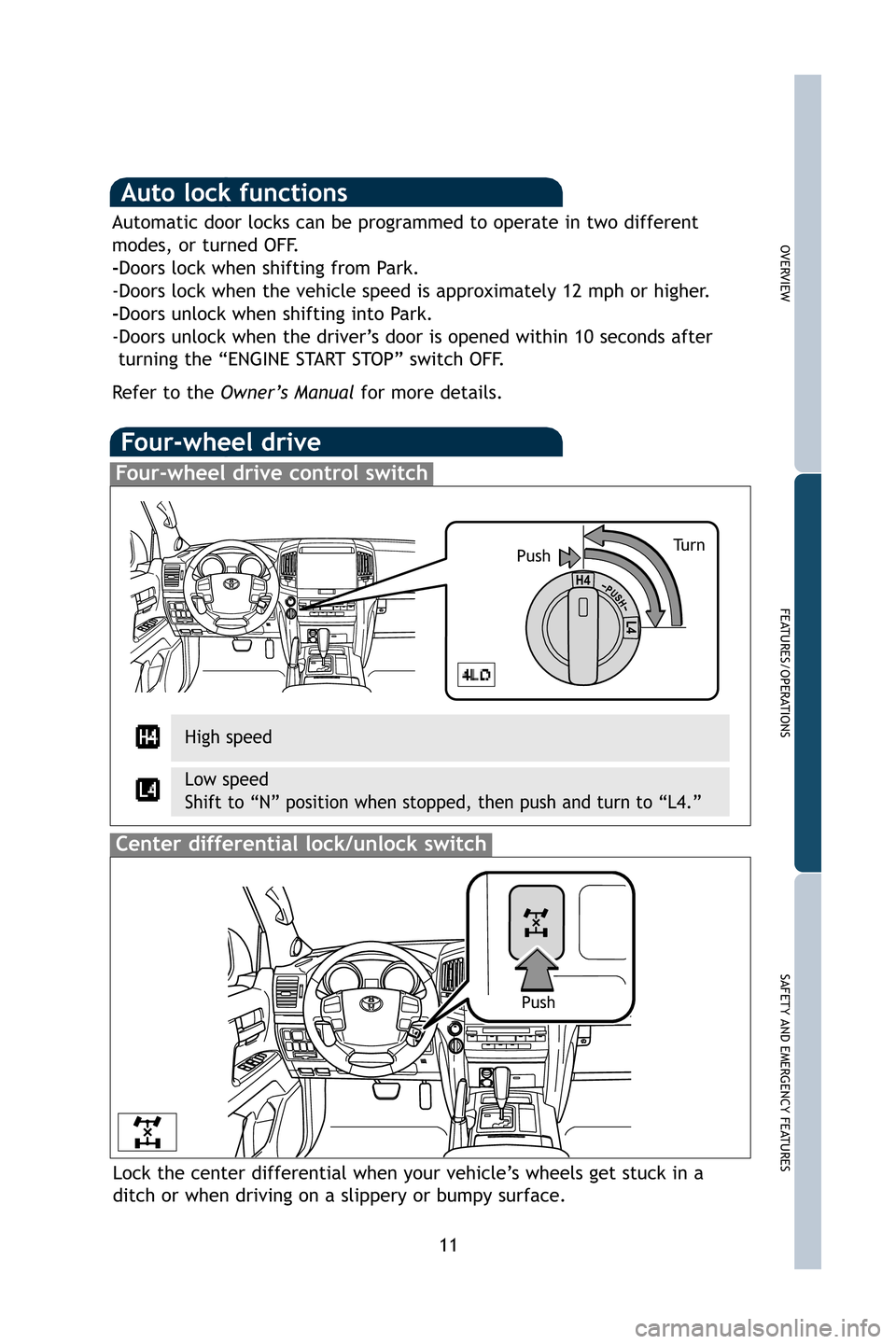

Auto lock functions
Automatic door locks can be programmed to operate in two different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds afterturning the “ENGINE START STOP” switch OFF.
Refer to the Owner’s Manual for more details.
4
4
Four-wheel drive
High speed
Low speed
Shift to “N” position when stopped, then push and turn to “L4.”\
Lock the center differential when your vehicle’s wheels get stuck in a
ditch or when driving on a slippery or bumpy surface.
Tu r n
Four-wheel drive control switch
Push
Center differential lock/unlock switch
Push
M2.qxd 7/28/08 3:14 PM Page 11

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Power outlets-12V DC
The “ENGINE START STOP” switch must be in ACCESSORY or IGNITION ON
mode to be used.
Power outlets-115V AC
AC
115VAC11 5V100W
ON/OFF switch
The “ENGINE START STOP” switch must be in IGNITION ON mode to be used.
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, \
etc.
Refer to “Garage door opener,” Section 3-6 in the Owner’s Manualfor
more details.
* HomeLink®is a registered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®)*
M2.qxd 7/28/08 3:14 PM Page 23
