NAVIGATION SYSTEM: BASIC FUNCTIONS
26
When the “ENGINE START STOP” switch
is in ACCESSORY or IGNITION ON
mode, the initial screen will be displayed
and the system will begin operating.
CAUTION
When the vehicle is stopped with the
engine running, always apply the
parking brake for safety.
After a few seconds, the “CAUTION”
screen will be displayed.
After about 5 seconds, the “CAUTION”
screen automatically switches to the map
screen. When the “MAP/VOICE” button
is also pushed, the map screen is dis-
played.
While the “CAUTION” screen is displayed,
the “DEST” or “SETUP” button cannot be
operated. And if the “Calendar” button on
the “Information” screen is touched, the
screen will change back to the “CAUTION”
screen. In about 5 seconds, or when the
“MAP/VOICE” button is pushed or the
“Show Map” is touched, the “CAUTION”
screen will change to the map screen.
Initial screen

NAVIGATION SYSTEM: DESTINATION SEARCH
63
INFORMATION
If there is no match for the tele-
phone number inputted, a list of
identical numbers with different
area codes will be displayed.
 To set an address book entry as a
destination using the phone num-
ber, the number must already be
registered. (See page 111.)
1. Push the “DEST” button.
2. Touch “Previous Destinations”
on
the “Destination” screen.
The previous starting point and up to 100
previously set destinations are displayed
on the screen.
3. Touch the button of the desired des-
tination.
“Delete”: To delete the previous destina-
tion. (To delete previous destinations, see
page 117.)
The screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 70.)
INFORMATION
The list of previous destinations can
also be deleted by touching “Delete
Previous Dest.” on the “Navigation
Settings” screen when the vehicle is
stopped. (See “— Deleting previous
destinations” on page 117.)
— Destination search by
“Previous Destinations”

NAVIGATION SYSTEM: DESTINATION SEARCH
70
The system searches for the guidance
route again, and displays the entire route.
INFORMATION
Set destinations can also be deleted
by touching “Route”. (See “— Delet-
ing destinations” on page 83.)
After inputting the destination, the screen
changes and displays the map location of
the selected destination and the route pref-
erence.
1. Scroll the map to the desired point.
“Adjust Location” : To adjust the position
in smaller increments.
When an arrow facing the desired point
is touched, the map scrolls in that di-
rection.
Releasing the finger from the arrow will
stop the scrolling.
2. Touch “Go to
”.
The system starts route search and dis-
plays recommended routes.
If there is already a set destination, “Go to
” and “Add to Route” are displayed.
“Go to
”: To delete the existing destina-
tions and set a new one.
“Add to Route”: To add a destination.
“Info.”: If this button is displayed on the
top of the screen, touch it to view items
such as name, address, and phone num-
ber.
Starting route guidance

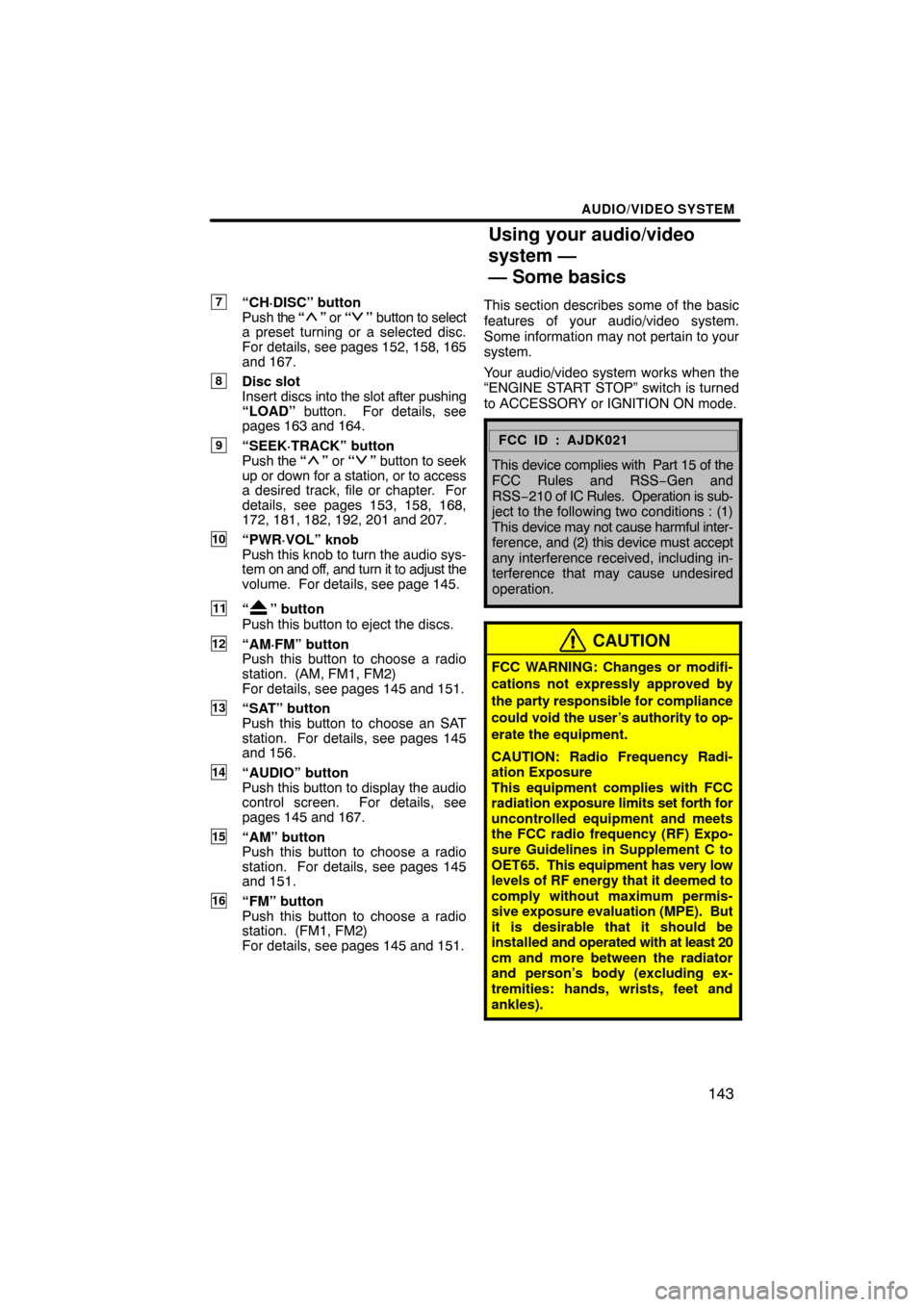

AUDIO/VIDEO SYSTEM
143
7“CH·DISC” button
Push the “” or “” button to select
a preset turning or a selected disc.
For details, see pages 152, 158, 165
and 167.
8Disc slot
Insert discs into the slot after pushing
“LOAD” button. For details, see
pages 163 and 164.
9“SEEK·TRACK” button
Push the “” or “” button to seek
up or down for a station, or to access
a desired track, file or chapter. For
details, see pages 153, 158, 168,
172, 181, 182, 192, 201 and 207.
10“PWR·VOL” knob
Push this knob to turn the audio sys-
tem on and off, and turn it to adjust the
volume. For details, see page 145.
11“” button
Push this button to eject the discs.
12“AM·FM” button
Push this button to choose a radio
station. (AM, FM1, FM2)
For details, see pages 145 and 151.
13“SAT” button
Push this button to choose an SAT
station. For details, see pages 145
and 156.
14“AUDIO” button
Push this button to display the audio
control screen. For details, see
pages 145 and 167.
15“AM” button
Push this button to choose a radio
station. For details, see pages 145
and 151.
16“FM” button
Push this button to choose a radio
station. (FM1, FM2)
For details, see pages 145 and 151. This section describes some of the basic
features of your audio/video system.
Some information may not pertain to your
system.
Your audio/video system works when the
“ENGINE START STOP” switch is turned
to ACCESSORY or IGNITION ON mode.
FCC ID : AJDK021
This
device complies with Part 15 of the
FCC Rules and RSS −Gen and
RSS−210 of IC Rules. Operation is sub-
ject to the following two conditions : (1)
This device may not cause harmful inter-
ference, and (2) this device must accept
any interference received, including in-
terference that may cause undesired
operation.
CAUTION
FCC WARNING: Changes or modifi-
cations not expressly approved by
the party responsible for compliance
could void the user’s authority to op-
erate the equipment.
CAUTION: Radio Frequency Radi-
ation Exposure
This equipment complies with FCC
radiation exposure limits set forth for
uncontrolled equipment and meets
the FCC radio frequency (RF) Expo-
sure Guidelines in Supplement C to
OET65. This e quipment has very low
levels of RF energy that it deemed to
comply without maximum permis-
sive exposure evaluation (MPE). But
it is desirable that it should be
installed and operated with at least 20
cm and more between the radiator
and person’s body (excluding ex-
tremities: hands, wrists, feet and
ankles).
Using your audio/video
system —
— Some basics

AUDIO/VIDEO SYSTEM
177
This screen appears when the video
screen is first displayed after “ENGINE
START STOP” switch is in ACCESSO-
RY or IGNITION ON mode. PLAYING A DVD DISC
Push the “AUDIO” button and touch
“CD/DVD” tab to display this screen.
Touch
“Settings” on “DVD” screen, then
touch “Wide” on “Settings” screen. The
screen mode can be changed.
If you touch “Full Screen” when the ve-
hicle is completely stopped and the park-
ing brake is applied, the video screen re-
turns.

AUDIO/VIDEO SYSTEM
192
DESCRIPTION OF VIDEO CD
CONTROLS
:Use this to pause the video
screen.
: Touch this to fast reverse during
playback.
: Touch this to stop the disc.
:Touch this to resume playing dur-
ing pause.
: Touch this to fast forward during
the playback and start playing frame by
frame during pause. SEARCHING BY TRACK
Enter the track numbers and touch
“OK”. The player starts playing video
for that title number.
You can select a track number by pushing
the
“
” or “” button of
“SEEK·TRACK” .
If you enter the wrong numbers, touch
to delete the numbers.
Touch
, and the previous screen re-
turns.

AUDIO/VIDEO SYSTEM
200

Reconnecting the portable player
If the portable player is disconnected with
a poor reception from the Bluetooth  net-
work when the “ENGINE START STOP”
switch is in ACCESSORY or IGNITION
ON mode, the system automatically re-
connects the portable player.
If the Bluetooth is disconnected on pur-
pose such as you turned your portable
player off, this does not happen.
Reconnect it by the following method.
Select the portable player again.
Enter the portable player. (b) Playing a Bluetooth
audio
Playing and pausing a Bluetooth
audio
Push the “AUX·USB” button or push
the “AUDIO” button to display this
screen and touch “BT” tab if the
Bluetooth  audio player is already
connected.
Touch
and the music will start playing.
Touch
and the music will pause.
Touch
and the music will start playing
again.
Depending on the portable player that is
connected to the system, the music may
start playing when touching
while it is
paused. On the other h and, the music may
pause when touching
while it is play-
ing.

AUDIO/VIDEO SYSTEM
233

Video CD
Push “OPTION” if no icons are shown
while watching a video CD, and following
screen appears.
“Settings”: Selecting this will display set-
ting screen.
“Hide Buttons”: Selecting this will turn off
the icons from the screen.
If “
” appears on the display when you
select a control, the operation is not per-
mitted. DESCRIPTION OF VIDEO CD
CONTROLS
:
Select this to fast rewind during
playback.
: Selecting this will stop the video
screen.
: Use this to pause/resume the vid-
eo screen.
: Select this to fast forward during
the playback and start playing frame by
frame during pause.

AIR CONDITIONING
251
The automatic air conditioning auto-
matically maintains the set tempera-
ture.
In the automatic operation mode, the air
conditioning selects the most suitable fan
speed, air flow, air intake and turns on− off
the air conditioning according to the tem-
perature.
The “ENGINE START STOP” switch must
be in the IGNITION ON mode.
“CLIMATE”: Push this button to display
touch−screen buttons for automatic air
conditioning controls.
NOTICE
To prevent battery discharge, do not
leave the air conditioning system on
longer than necessary when the en-
gine is stopped.
By pushing the switch above, you can
operate the speech command system.
For the operation of the speech command
system and the list of commands, see
pages 44 and 47.

APPENDIX
351
1. The “ENGINE START STOP”switch
must be set at ACCESSORY mode.
2. Open the glove box.
3. Push the “INFO/PHONE” button.
4. Touch “Map Data”.
5. Touch “ DVD”.
The glove box must be opened first, or the
disc will come into contact with the glove
box door and be reinserted.
— Changing the map
DVDROM
