TOYOTA LAND CRUISER 2010 J200 Quick Reference Guide

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Rear Air Conditioning
Temperature selector (left side)
Temperature selector (right side)
Climate control OFF
Airflow vent
Fan speed
Automatic climate control ON
Seat heaters
L
R
L
Front seats
Push
Tu r n
Push knob to pop the controller out. Turn clockwise for heater.
Push
Second seats (if equipped)
Driver’s seatFront passenger’s seat
AUTO TEMP
OFFTEMP
HI
LO
OFF
HI
LO
OFF
HI
LO
OFF
HI
LOLeft
second seatRight
second seat
ON

20
FEATURES/OPERATIONS

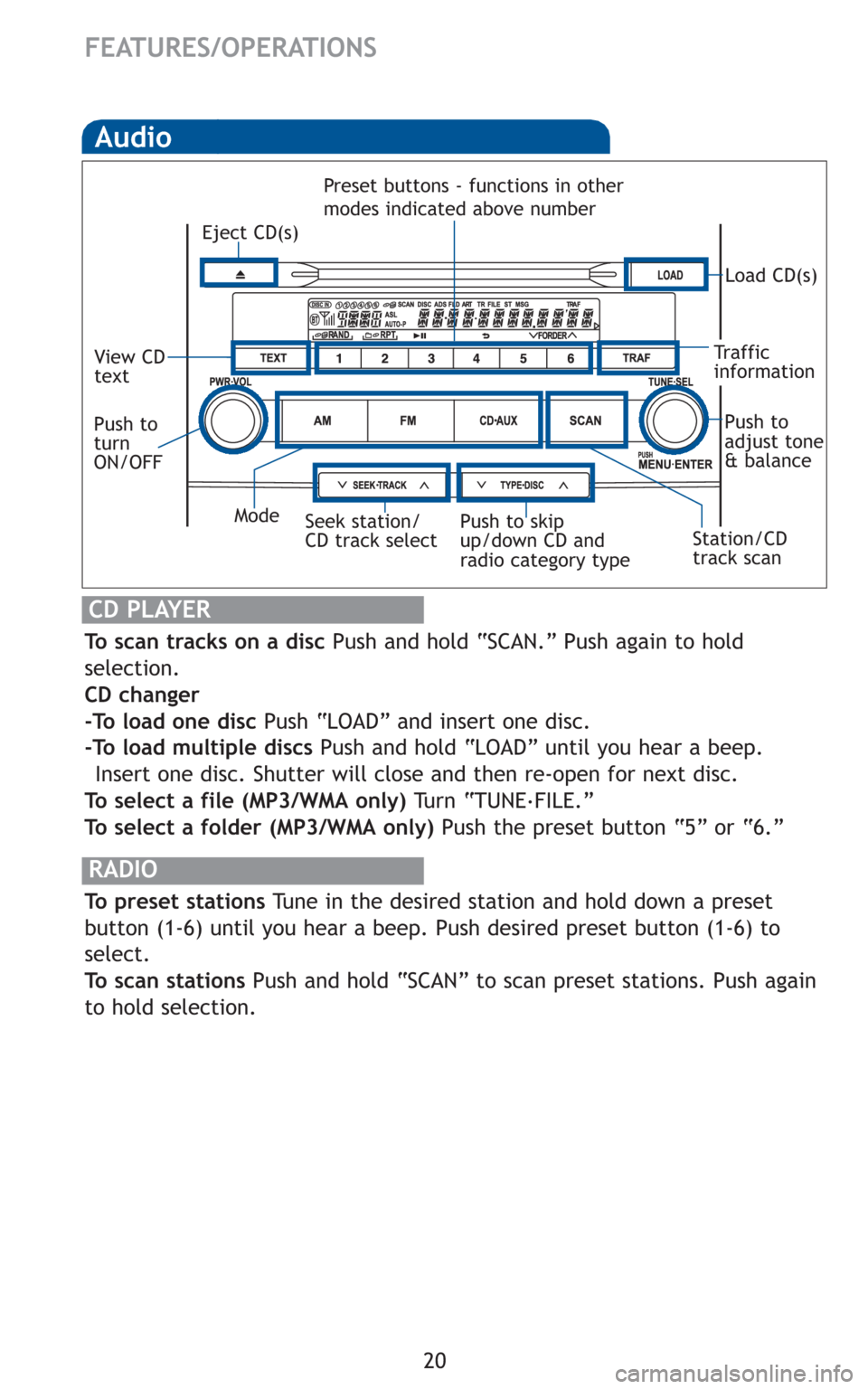

Audio
RADIO
To preset stations Tune in the desired station and hold down a preset
button (1-6) until you hear a beep. Push desired preset button (1-6) to
select.
To scan stations Push and hold “SCAN” to scan preset stations. Push again
to hold selection.
CD PLAYER
To scan tracks on a disc Push and hold “SCAN.” Push again to hold
selection.
CD changer
-To load one disc Push “LOAD” and insert one disc.
-To load multiple discs Push and hold “LOAD” until you hear a beep.
Insert one disc. Shutter will close and then re-open for next disc.
To select a file (MP3/WMA only) Turn “TUNE.
FILE.”
To select a folder (MP3/WMA only) Push the preset button “5” or “6.”

Eject CD(s)
Push to
turn
ON/OFFLoad CD(s)
Seek station/
CD track selectStation/CD
track scan Mode
Traffic
information Preset buttons - functions in other
modes indicated above number
View CD
text
Push to skip
up/down CD and
radio category type
Push to
adjust tone
& balance

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
“ ”
-In radio modePush to select a preset station; push and hold to seek
the next strong station.
-In CD modePush to skip up or down to next/previous track.
“MODE”
Push to turn audio ON and to select an audio mode. Push and hold to
turn audio system OFF.vv
AUX audio jack/USB adapter
Steering wheel switches
MODE
Volume control
AUX audio jack
By inserting a mini plug (not included) into the AUX audio jack, you can
listen to music from a portable audio device through the vehicle’s speaker
system while in AUX mode.
USB adapter
By connecting a USB memory or USB-compatible portable audio device to
the USB adapter, you can listen to music from the portable audio device or
USB memory through the vehicle’s speaker system.

22
FEATURES/OPERATIONS

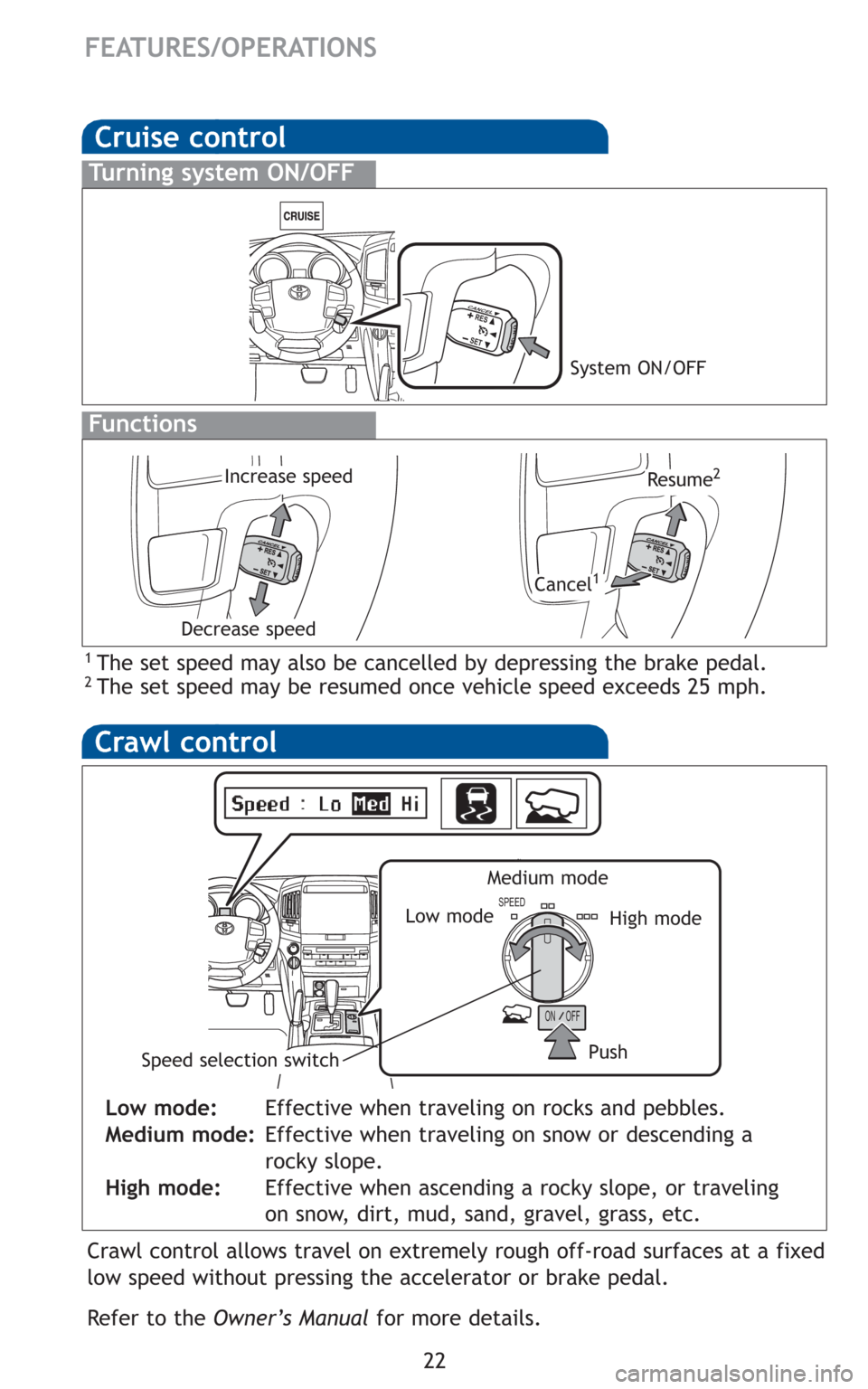

Crawl control
ON
SPEED
OFF
Low mode:Effective when traveling on rocks and pebbles.
Medium mode:Effective when traveling on snow or descending a
rocky slope.
High mode:Effective when ascending a rocky slope, or traveling
on snow, dirt, mud, sand, gravel, grass, etc.
Low modeHigh mode
Medium mode
PushSpeed selection switch
Crawl control allows travel on extremely rough off-road surfaces at a fixed
low speed without pressing the accelerator or brake pedal.
Refer to the Owner’s Manualfor more details.
Cruise control
1 The set speed may also be cancelled by depressing the brake pedal.2 The set speed may be resumed once vehicle speed exceeds 25 mph.
Turning system ON/OFF
S E RT E S
L E
C
N A C
Functions
System ON/OFF
Increase speed
Decrease speed
Cancel1
Resume2

23
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

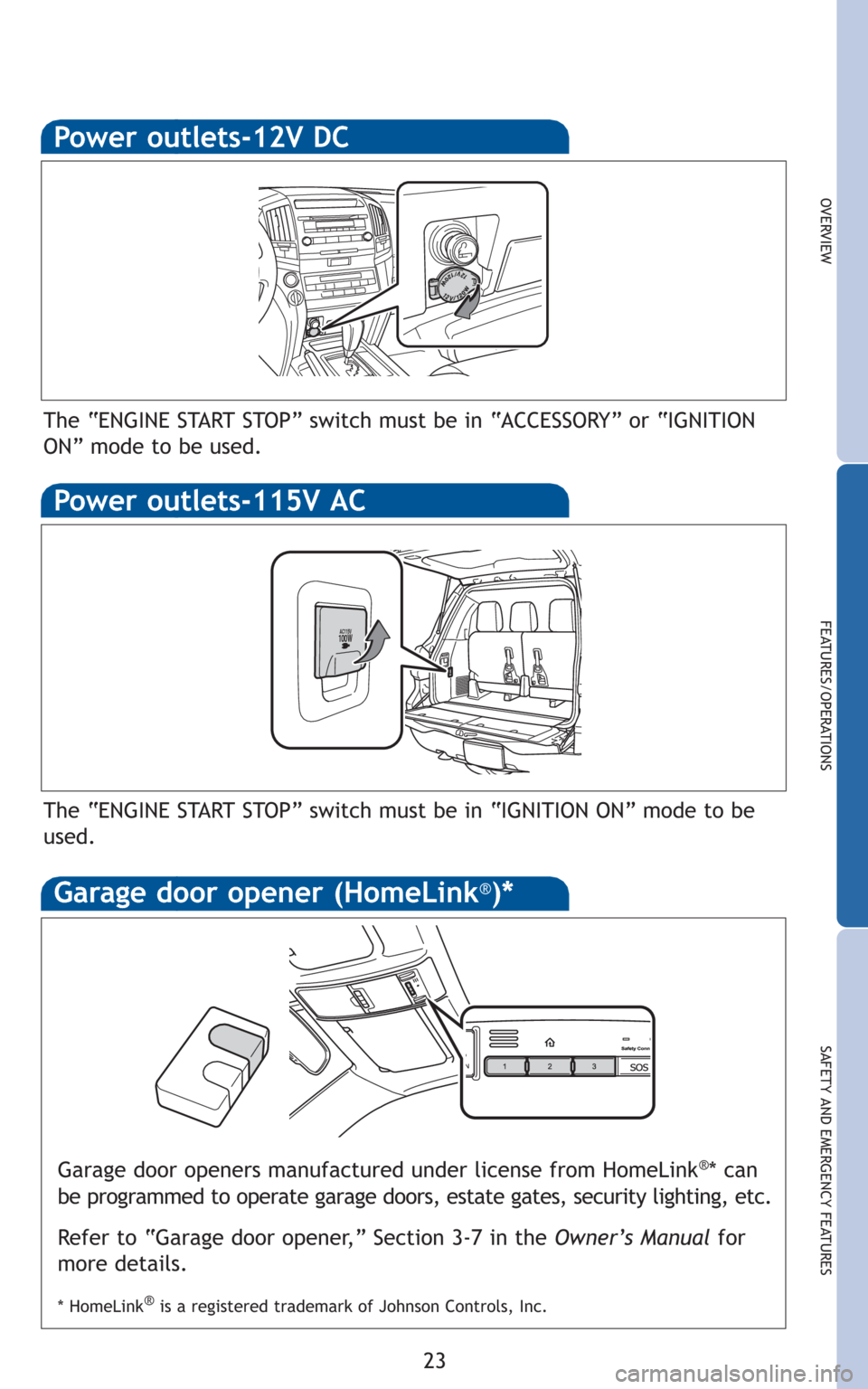

Power outlets-12V DC
The “ENGINE START STOP” switch must be in “ACCESSORY” or “IGNITION
ON” mode to be used.
Power outlets-115V AC
AC115V100W
The “ENGINE START STOP” switch must be in “IGNITION ON” mode to be
used.
Garage door openers manufactured under license from HomeLink®* can
be programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 3-7 in the Owner’s Manualfor
more details.
* HomeLink®is a registered trademark of Johnson Controls, Inc.
Garage door opener (HomeLink®)*

24
FEATURES/OPERATIONS
Multi-information display
Push “DISP” to change information in the following:
(1) Current gas mileage
(2) Average gas mileage after refueling
(3) Miles left on remaining fuel
(4) Average vehicle speed
(5) Running distance from engine start
(6) Tire inflation pressure (if equipped)
Clock
H-Hour set
M-Minute set
:00-round off minutes
Refer to the Owner’s Manualfor details on adjusting time.

25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the telephone
and the system.
Refer to “Hands-free system (for cellular phone),” Section 5 in the
Navigation System Owner’s Manualfor more details.
Telephone controls (Bluetooth®)
(if equipped)
MicrophoneDisplay
Steering wheel telephone switches
Start call
End call
Voice command button
Door locks
LockUnlock

26
FEATURES/OPERATIONS
Rear seat entertainment system
(if equipped)
PHONE VOL PHONE VIDEO MONOLVOLRAC1
15
V100W
Front audio system (DVD player)
DVD screen
Remote control
Headphone volume control and headphone jacks
A/V input adapter
115V AC Power outlet
For details, refer to the “Navigation System Owner’s Manual.”
Up
To w a r d
the
driver
Down
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Away
from the
driver
Control switch

27
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

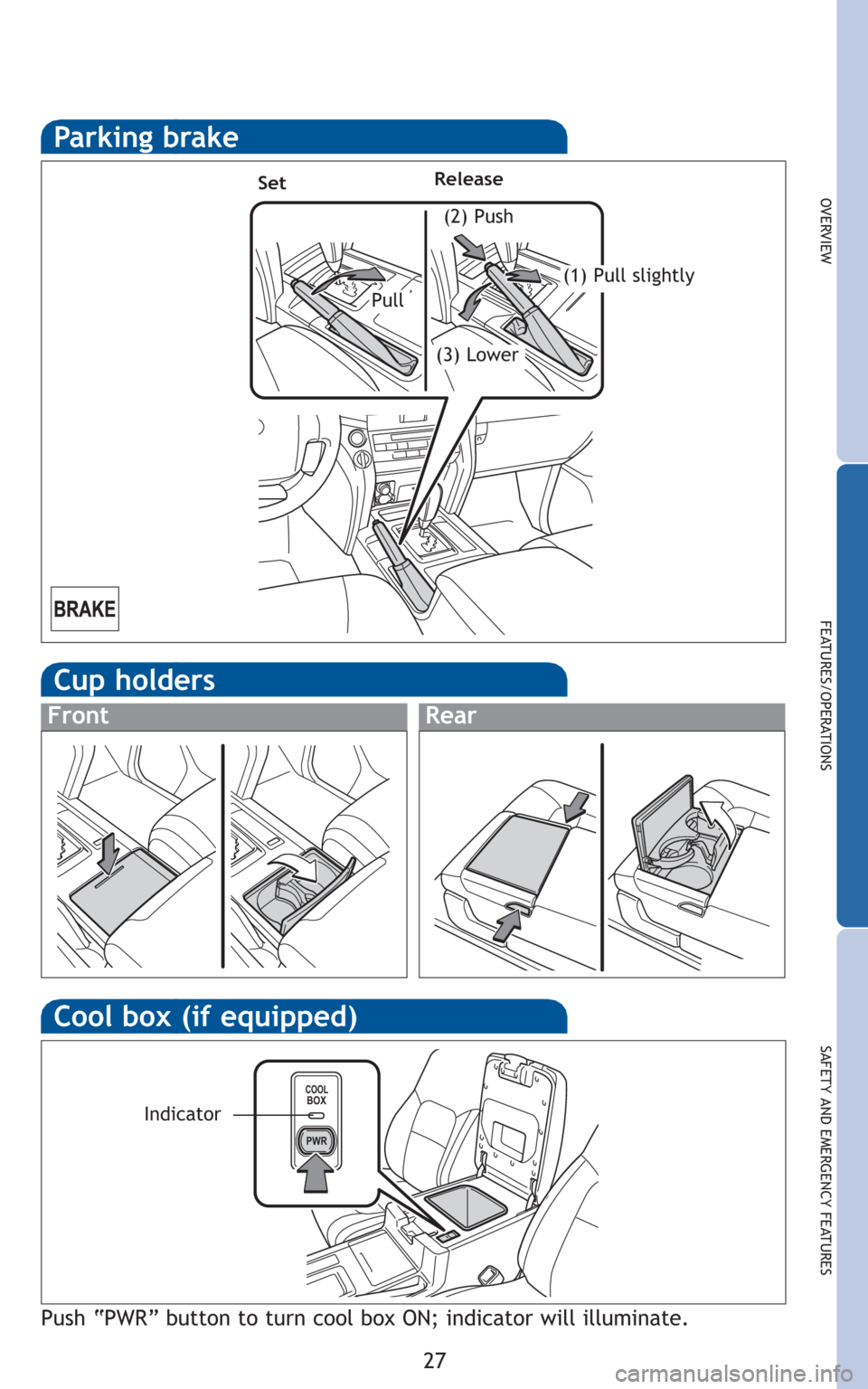

Cup holders
FrontRear
Parking brake
(2) Push
SetRelease
(1) Pull slightly
(3) Lower
Pull
COOLBOX
PWR
Cool box (if equipped)
Push “PWR” button to turn cool box ON; indicator will illuminate.
Indicator

28
SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seatbelts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Push up, or squeeze
lock release to lower
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait a few minutes to allow
initialization to complete.
Seatbelts-Shoulder belt anchor
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the “ENGINE START STOP” switch to ON and press and hold
the “ SET” button until indicator blinks three times. Let the vehicle sit
for a few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
NOTE:The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.
Tire Pressure Monitoring (warning)
System
