clock TOYOTA LAND CRUISER 2010 J200 Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance 9Fuel tank door release and cap 8Hood release 8Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3Keyless entry16Light control-Instrument panel 9
Smart Key system1,27
Air Conditioning/Heating 18-19Audio 20-21Auto lock functions110Automatic Transmission 10Back door 17Clock 24Cool box 27Crawl control 22Cruise control 22Cup holders 27Door locks 25Four-wheel drive 11Garage door opener (HomeLink®)323Lights1& turn signals 15Moonroof 17Multi-information display224Parking brake 27Power outlets-12V DC 23Power outlets-115V AC 23Rear seat entertainment system 26Seat adjustments-Front 12Seat adjustments-Rear 12Seat heaters 19Seats-Head restraints 12Seats-Tumbling second row seats 13Seats-Tumbling third row seats 14-15Steering lock release 11Tilt and telescopic steering wheel 26Telephone controls (Bluetooth®)25Windows-Power 16
Window wipers & washers 16
Doors-Child safety locks 29Seat belts 28Seat belts-Shoulder belt anchor 28Spare tire & tools 29
Tire Pressure Monitoring (warning) System 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

2
OVERVIEW
Instrument panel
Steering wheel audio controls
Telephone controls1,2
Voice command button1
Multi-information display button
Headlight, turn signal and front fog light controls
Multi-information display
Wiper and washer controls
Audio system
2
“AIR BAG ON” and “AIR BAG OFF” indicator
Clock
Front passenger seatbelt reminder light
Theft deterrent system/Engine immobilizer indicator
Emergency flasher button
Windshield wiper de-icer switch
1
Outside rearview mirrors/Rear window defogger button
Air Conditioning controls2
“ENGINE START STOP” switch
Steering wheel controls
(if equipped)
MODE

19
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

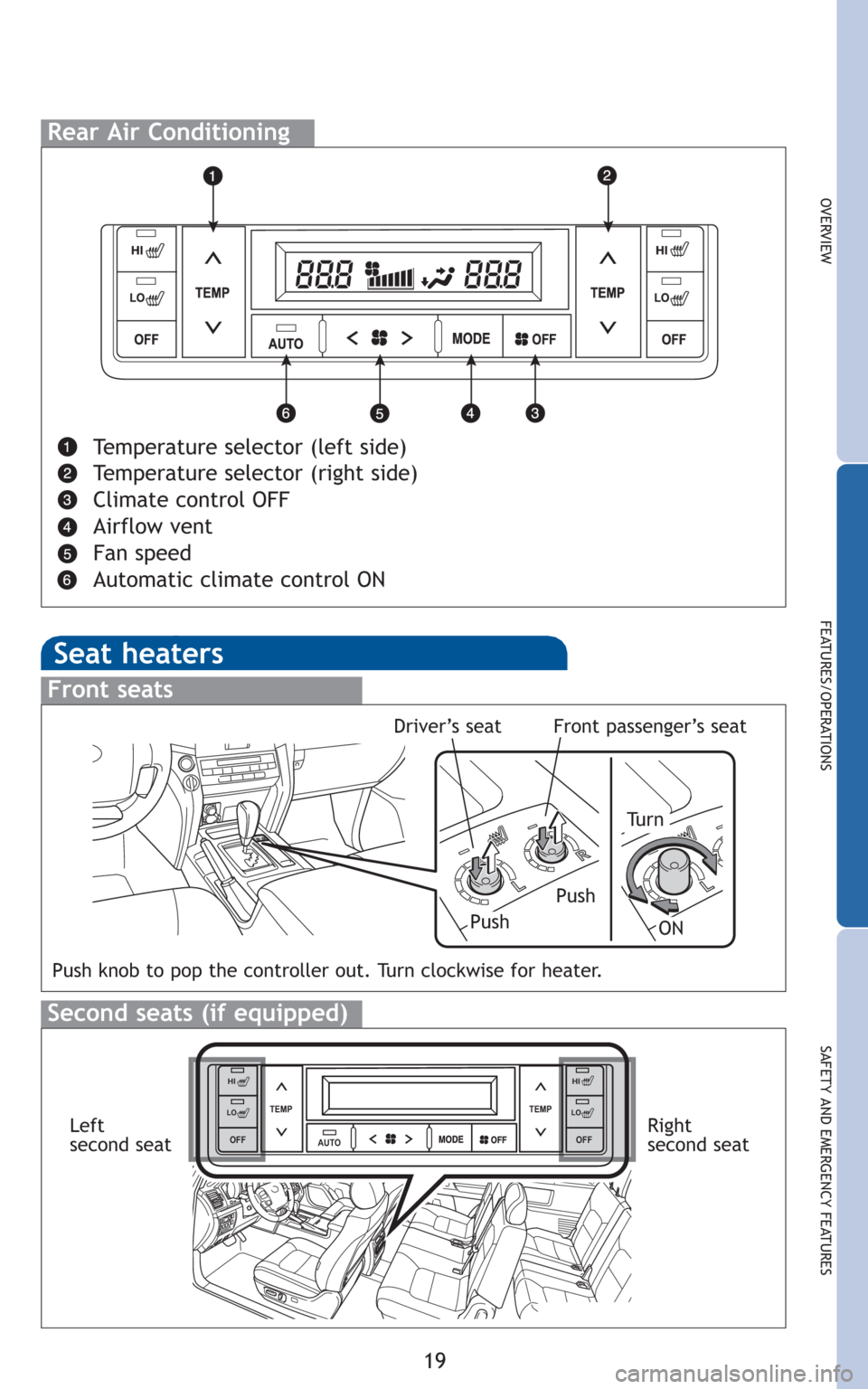

Rear Air Conditioning
Temperature selector (left side)
Temperature selector (right side)
Climate control OFF
Airflow vent
Fan speed
Automatic climate control ON
Seat heaters
L
R
L
Front seats
Push
Tu r n
Push knob to pop the controller out. Turn clockwise for heater.
Push
Second seats (if equipped)
Driver’s seatFront passenger’s seat
AUTO TEMP
OFFTEMP
HI
LO
OFF
HI
LO
OFF
HI
LO
OFF
HI
LOLeft
second seatRight
second seat
ON

24
FEATURES/OPERATIONS
Multi-information display
Push “DISP” to change information in the following:
(1) Current gas mileage
(2) Average gas mileage after refueling
(3) Miles left on remaining fuel
(4) Average vehicle speed
(5) Running distance from engine start
(6) Tire inflation pressure (if equipped)
Clock
H-Hour set
M-Minute set
:00-round off minutes
Refer to the Owner’s Manualfor details on adjusting time.
