start stop button TOYOTA LAND CRUISER 2010 J200 Quick Reference Guide

2
OVERVIEW
Instrument panel
Steering wheel audio controls
Telephone controls1,2
Voice command button1
Multi-information display button
Headlight, turn signal and front fog light controls
Multi-information display
Wiper and washer controls
Audio system
2
“AIR BAG ON” and “AIR BAG OFF” indicator
Clock
Front passenger seatbelt reminder light
Theft deterrent system/Engine immobilizer indicator
Emergency flasher button
Windshield wiper de-icer switch
1
Outside rearview mirrors/Rear window defogger button
Air Conditioning controls2
“ENGINE START STOP” switch
Steering wheel controls
(if equipped)
MODE

28

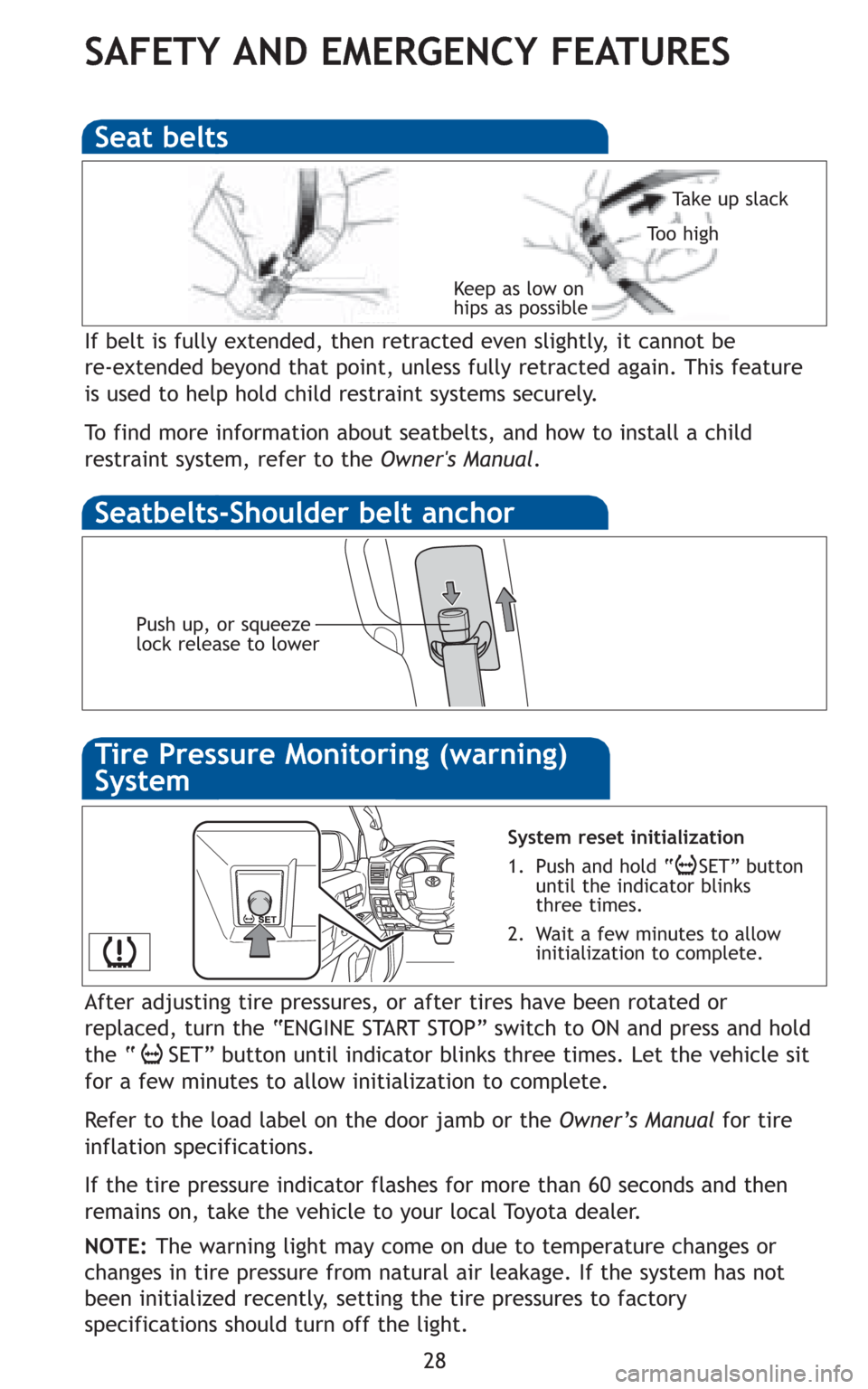

SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This feature
is used to help hold child restraint systems securely.
To find more information about seatbelts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
Seat belts
Push up, or squeeze
lock release to lower
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait a few minutes to allow
initialization to complete.
Seatbelts-Shoulder belt anchor
After adjusting tire pressures, or after tires have been rotated or
replaced, turn the “ENGINE START STOP” switch to ON and press and hold
the “ SET” button until indicator blinks three times. Let the vehicle sit
for a few minutes to allow initialization to complete.
Refer to the load label on the door jamb or the Owner’s Manualfor tire
inflation specifications.
If the tire pressure indicator flashes for more than 60 seconds and then
remains on, take the vehicle to your local Toyota dealer.
NOTE:The warning light may come on due to temperature changes or
changes in tire pressure from natural air leakage. If the system has not
been initialized recently, setting the tire pressures to factory
specifications should turn off the light.
Tire Pressure Monitoring (warning)
System
