steering wheel TOYOTA LAND CRUISER 2010 J200 Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
INDEX
Engine maintenance 9Fuel tank door release and cap 8Hood release 8Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3Keyless entry16Light control-Instrument panel 9
Smart Key system1,27
Air Conditioning/Heating 18-19Audio 20-21Auto lock functions110Automatic Transmission 10Back door 17Clock 24Cool box 27Crawl control 22Cruise control 22Cup holders 27Door locks 25Four-wheel drive 11Garage door opener (HomeLink®)323Lights1& turn signals 15Moonroof 17Multi-information display224Parking brake 27Power outlets-12V DC 23Power outlets-115V AC 23Rear seat entertainment system 26Seat adjustments-Front 12Seat adjustments-Rear 12Seat heaters 19Seats-Head restraints 12Seats-Tumbling second row seats 13Seats-Tumbling third row seats 14-15Steering lock release 11Tilt and telescopic steering wheel 26Telephone controls (Bluetooth®)25Windows-Power 16
Window wipers & washers 16
Doors-Child safety locks 29Seat belts 28Seat belts-Shoulder belt anchor 28Spare tire & tools 29
Tire Pressure Monitoring (warning) System 28
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

2
OVERVIEW
Instrument panel
Steering wheel audio controls
Telephone controls1,2
Voice command button1
Multi-information display button
Headlight, turn signal and front fog light controls
Multi-information display
Wiper and washer controls
Audio system
2
“AIR BAG ON” and “AIR BAG OFF” indicator
Clock
Front passenger seatbelt reminder light
Theft deterrent system/Engine immobilizer indicator
Emergency flasher button
Windshield wiper de-icer switch
1
Outside rearview mirrors/Rear window defogger button
Air Conditioning controls2
“ENGINE START STOP” switch
Steering wheel controls
(if equipped)
MODE

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Four-wheel drive control switch
VSC/TRAC OFF switch
Center differential lock/unlock switch
Cruise control
Tire Pressure Monitoring (warning) System reset
Power rearview mirror control
Instrument panel light control
Tilt and telescopic steering control
Roll Sensing of Curtain shield Airbag OFF switch
Intuitive park assist switch
1
Headlight cleaner1
1
If equipped2Vehicles with navigation system: for details, refer to the “Navigation
System Owner’s Manual.”
Without navigation system
With navigation system

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

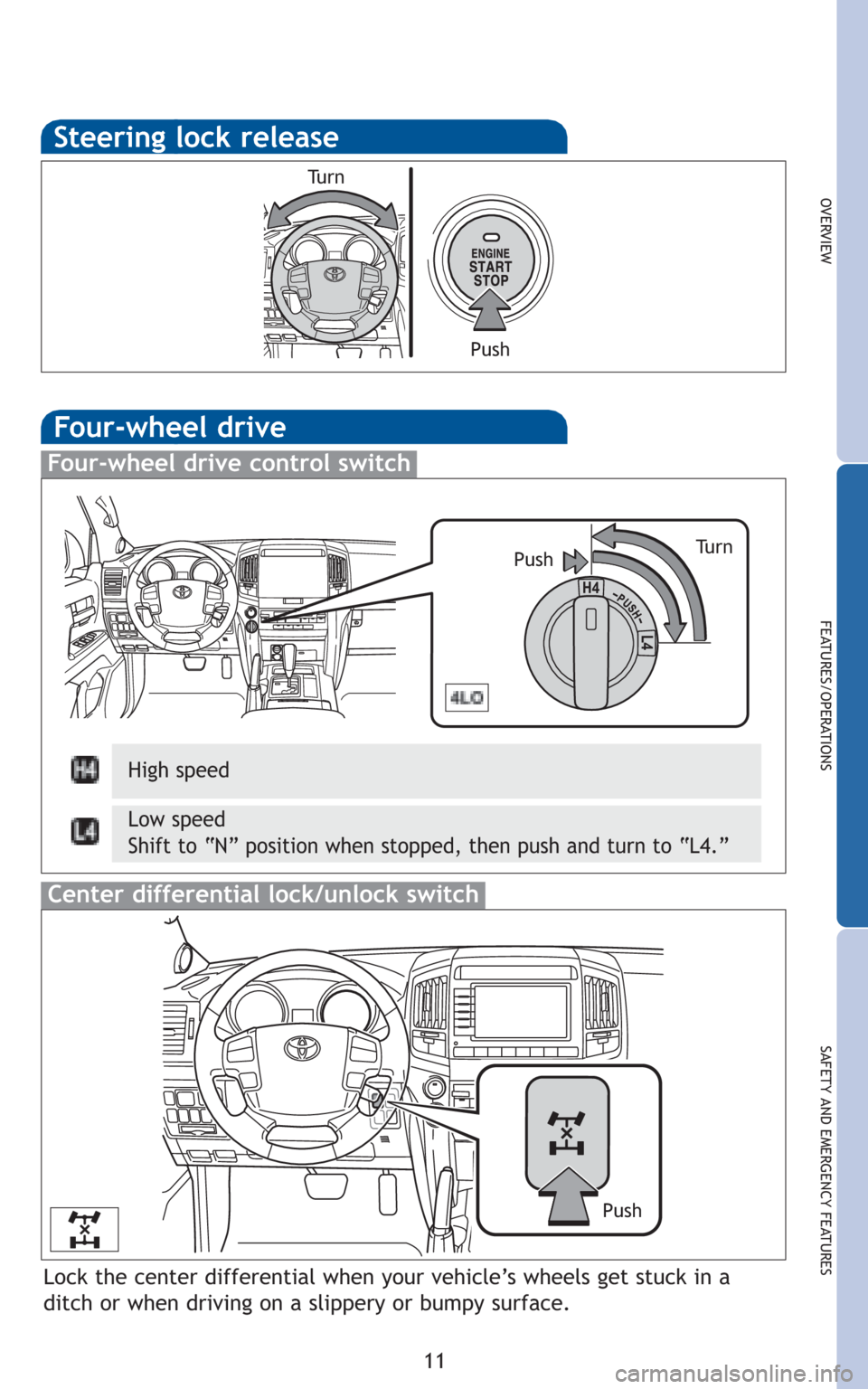

Steering lock release
Tu r n
Push
4
4
Four-wheel drive
High speed
Low speed
Shift to “N” position when stopped, then push and turn to “L4.”
Lock the center differential when your vehicle’s wheels get stuck in a
ditch or when driving on a slippery or bumpy surface.
Tu r n
Four-wheel drive control switch
Push
Center differential lock/unlock switch
Push

21
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
“ ”
-In radio modePush to select a preset station; push and hold to seek
the next strong station.
-In CD modePush to skip up or down to next/previous track.
“MODE”
Push to turn audio ON and to select an audio mode. Push and hold to
turn audio system OFF.vv

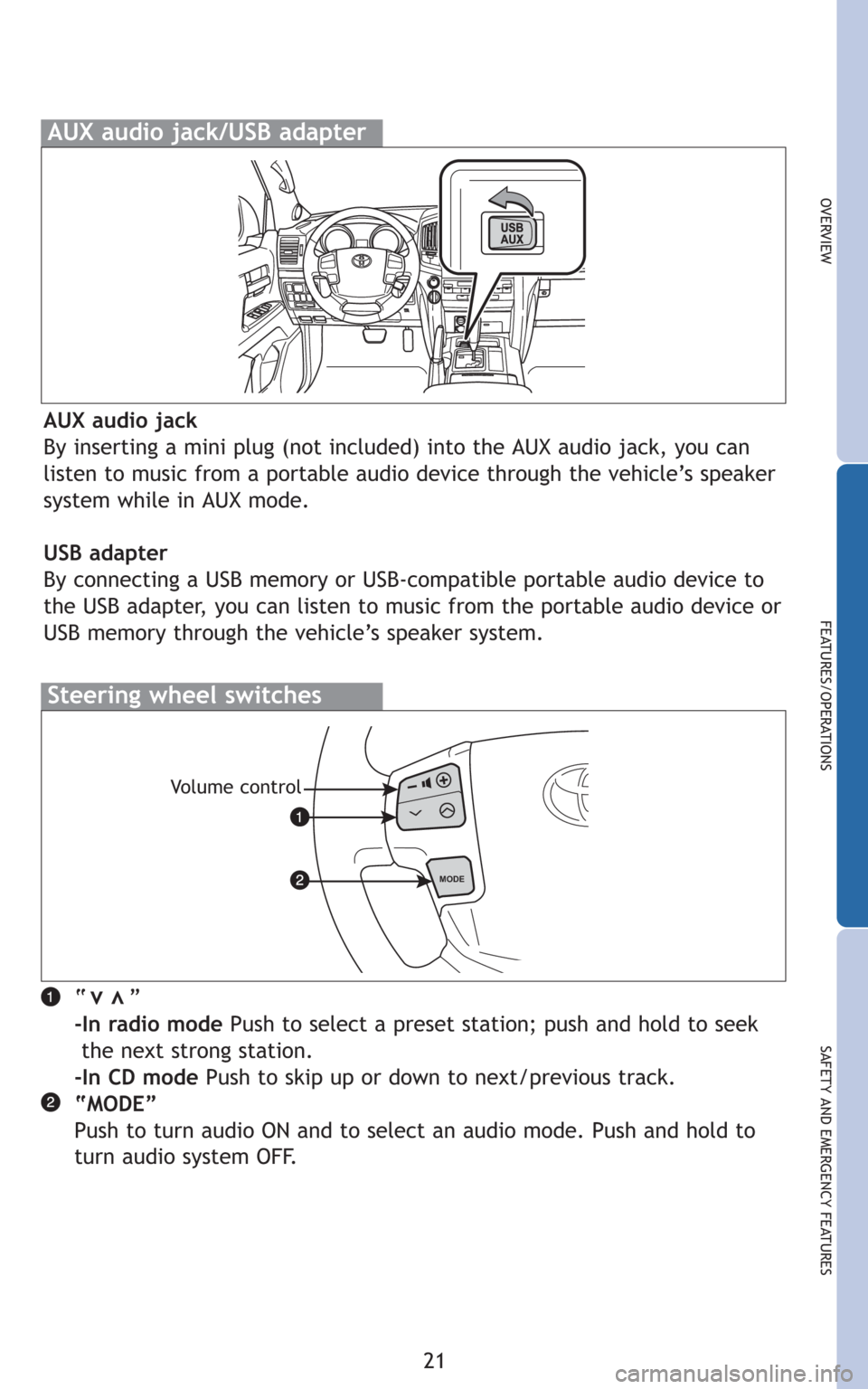

AUX audio jack/USB adapter
Steering wheel switches
MODE
Volume control
AUX audio jack
By inserting a mini plug (not included) into the AUX audio jack, you can
listen to music from a portable audio device through the vehicle’s speaker
system while in AUX mode.
USB adapter
By connecting a USB memory or USB-compatible portable audio device to
the USB adapter, you can listen to music from the portable audio device or
USB memory through the vehicle’s speaker system.

25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Bluetooth®technology allows dialing or receipt of calls without taking
hands from the steering wheel or using a cable to connect the telephone
and the system.
Refer to “Hands-free system (for cellular phone),” Section 5 in the
Navigation System Owner’s Manualfor more details.
Telephone controls (Bluetooth®)
(if equipped)
MicrophoneDisplay
Steering wheel telephone switches
Start call
End call
Voice command button
Door locks
LockUnlock

26
FEATURES/OPERATIONS

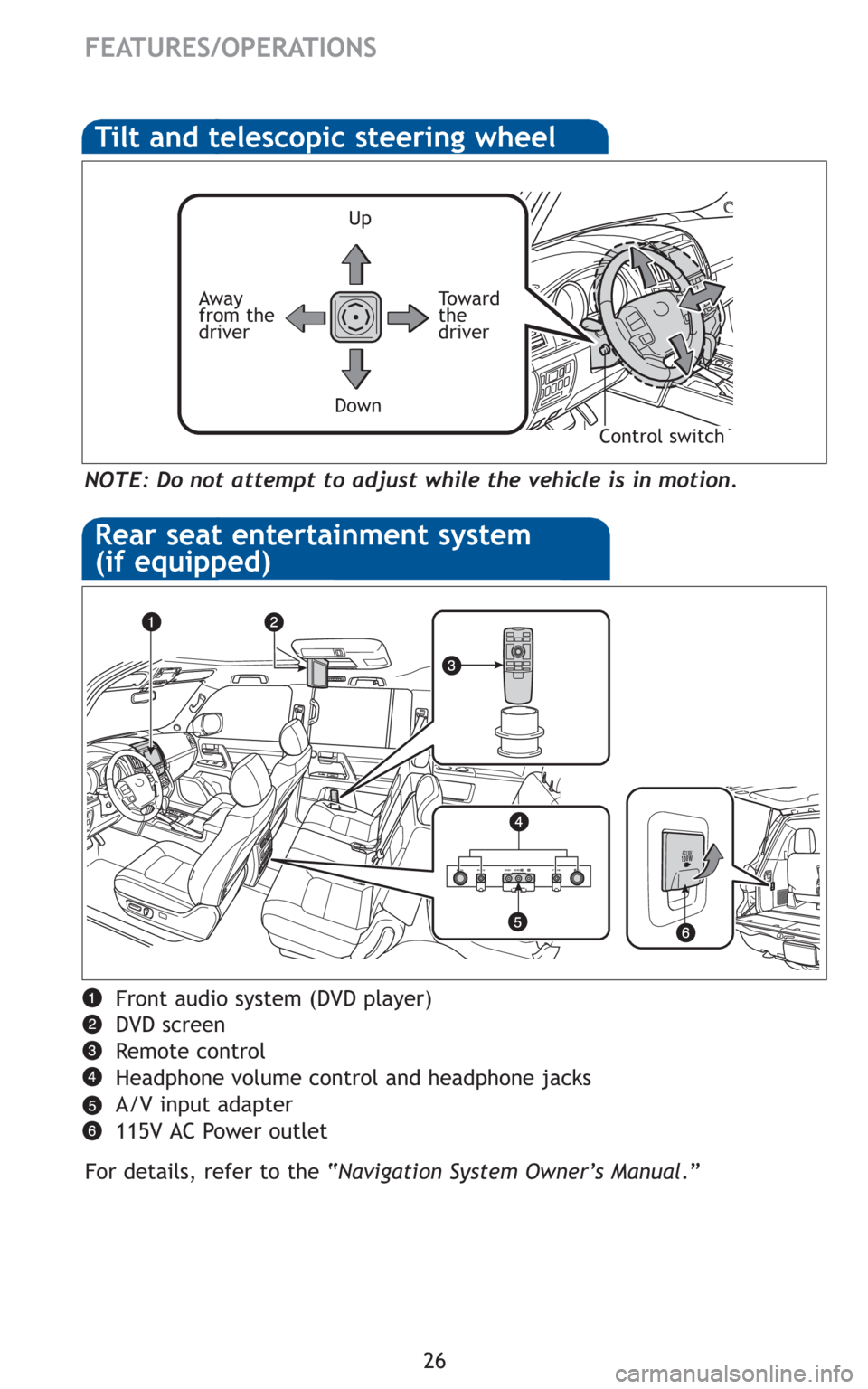

Rear seat entertainment system
(if equipped)
PHONE VOL PHONE VIDEO MONOLVOLRAC1
15
V100W
Front audio system (DVD player)
DVD screen
Remote control
Headphone volume control and headphone jacks
A/V input adapter
115V AC Power outlet
For details, refer to the “Navigation System Owner’s Manual.”
Up
To w a r d
the
driver
Down
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt and telescopic steering wheel
Away
from the
driver
Control switch
