tow TOYOTA LAND CRUISER 2010 J200 Quick Reference Guide

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES(1) Stow the seatbelt buckles and lower the head restraints.
(2) Hook the seatbelt to the seatbelt hangers.
(3) Fold down the seatback and swing the whole seat up and forward.
(4) Hook the holding strap to the assist grip and secure the seat.
(5) Install the seat hook covers on the seat hooks.
(1)
(5)
(3)
(2)

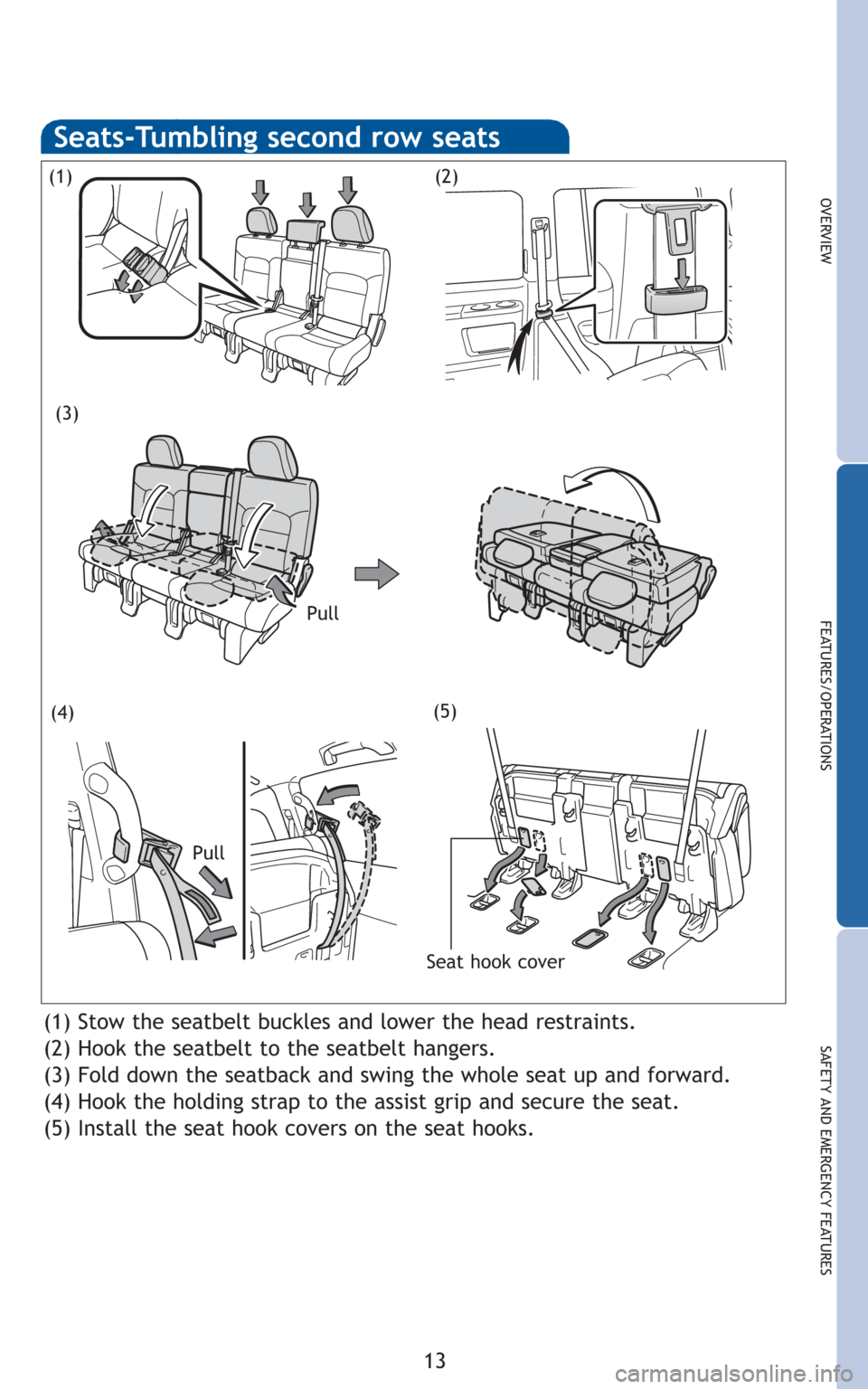

Seats-Tumbling second row seats
(4)
Pull
Seat hook cover
Pull

14
FEATURES/OPERATIONS
(1) Stow the seatbelt buckles.
(2) Stow the center head restraint.
(3) Hook the seatbelt to the seatbelt hangers.
(4) Fold down the outer head restraints.
(5) Fold the seats.
(6) Lift the seats sideward.
(7) Lock the seats.
(8) Install the seat hook covers on the seat hooks.
(1)
(5)
(3)
(2)

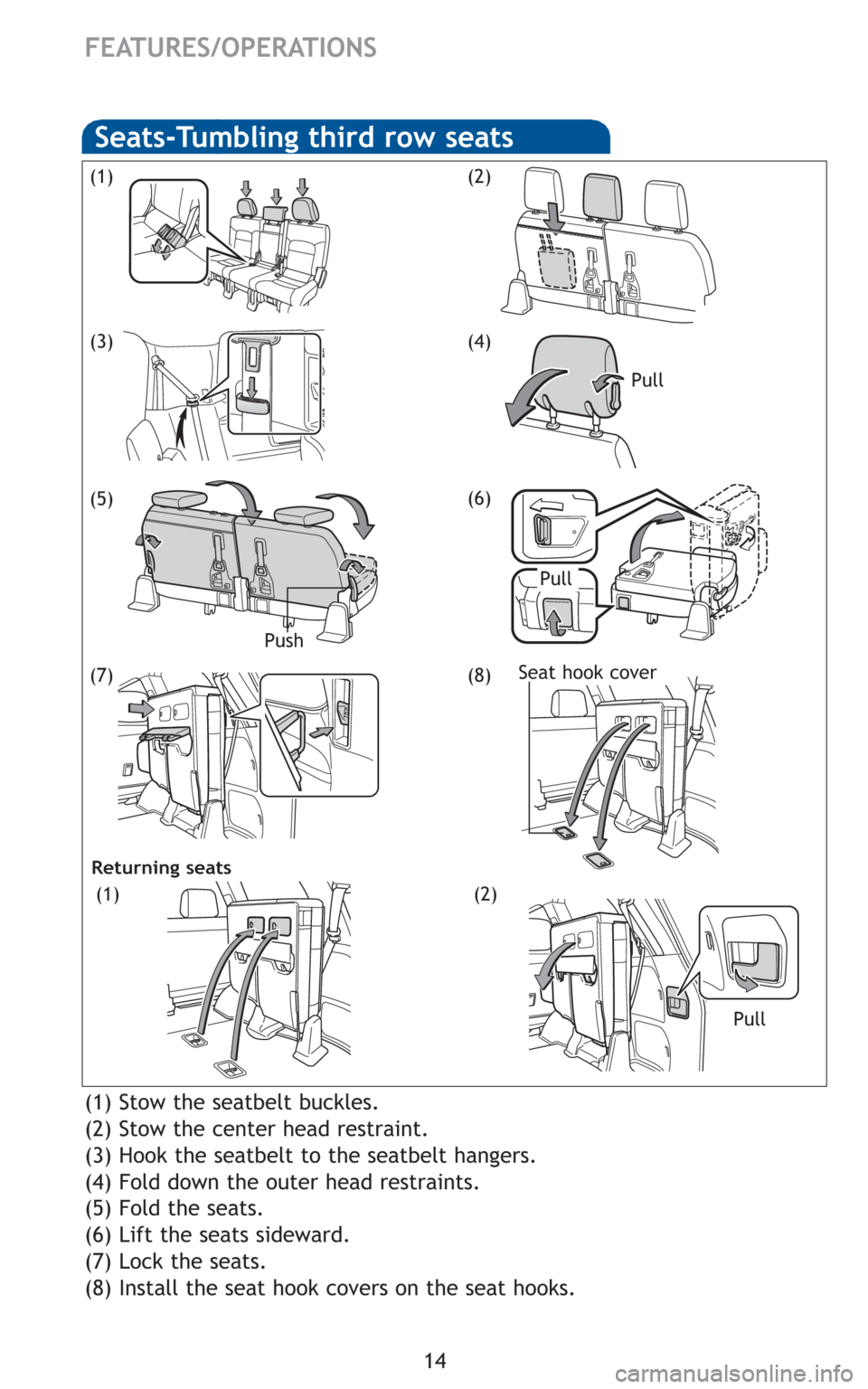

Seats-Tumbling third row seats
(4)
Push
(6)
Pull
(7)(8)Seat hook cover
Pull Pull
Returning seats
(1)(2)
