stop start TOYOTA LAND CRUISER 2014 J200 Navigation Manual

194
1. AUDIO/VIDEO SYSTEM OPERATION
L/C200_Navi_OM60L27U_(U)
13.06.03 19:41
2. SOME BASICS
This section describes some of the ba-
sic features of the audio/video system.
Some information may not pertain to
your system.
Your audio/video system works when
the “ENGINE START STOP” switch is
turned to ACCESSORY or IGNITION
ON mode.
CAUTION
●For vehicles sold in U.S.A.:
Part 15 of the FCC Rules
FCC WARNING: Changes or
modifications not expressly approved by
the party responsible for compliance
could void the user’s authority to operate
the equipment.
CAUTION
●Laser products
• USE OF CONTROL OR
ADJUSTMENT OR PERFORMANCE
OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS
RADIATION EXPOSURE.
• THE USE OF OPTICAL
INSTRUMENTS WITH THIS
PRODUCT WILL INCREASE EYE
HAZARD.
NOTICE
●To prevent the battery from being dis-
charged, do not leave the audio/video
system on longer than necessary when
the engine is not running.

215
1. AUDIO/VIDEO SYSTEM OPERATION
5
AUDIO/VIDEO SYSTEM
L/C200_Navi_OM60L27U_(U)
13.06.03 19:41
7. DVD PLAYER OPERATION
1Insert a disc into the disc slot.
After insertion, the disc is automatically
loaded.
1Press the “” button and remove the
disc.
For safety reasons, the DVD video
discs can only be viewed when the fol-
lowing conditions are met:
(a)The vehicle is completely stopped.
(b)The “ENGINE START STOP”
switch is in ACCESSORY or IGNI-
TION ON mode.
(c)The parking brake is applied.
While driving in DVD video mode, only
the DVD’s audio can be heard.
INSERTING A DISC
EJECTING A DISC
INFORMATION
●If a disc is inserted with the label facing
down, it cannot be played.

222
1. AUDIO/VIDEO SYSTEM OPERATION
L/C200_Navi_OM60L27U_(U)
13.06.03 19:41
1Press the “AUDIO” button if a disc has
already been loaded in the disc slot.
2Touch the “DISC” tab or press the
“AUDIO” button repeatedly until the
“DISC” tab is selected.
Touch “Options” on the “DVD” screen,
then touch “Wide” on the “DVD Options”
screen. The screen mode can be
changed.
If “Full Screen” is touched when the vehi-
cle is completely stopped and the parking
brake is applied, the video screen returns.
PRECAUTIONS ON DVD VIDEO
DISC
When recording with a DVD video, au-
dio tracks may not record in some cas-
es while the menu is displayed. As
audio will not play in this case, verify
that the video tracks are playing and
then activate playback.
When playback of a disc is completed:
If an audio CD or MP3/WMA disc is
playing, the first track or file starts.
If a DVD video is playing, playback will
stop or the menu screen will be dis-
played.
The title/chapter number and playback
time display may not appear while
playing back certain DVD video discs.
CAUTION
●Conversational speech on some DVDs
is recorded at a low volume to empha-
size the impact of sound effects. If you
adjust the volume assuming that the
conversations represent the maximum
volume level that the DVD will play, you
may be startled by louder sound effects
or when you change to a different audio
source. The louder sounds may have a
significant impact on the human body or
pose a driving hazard. Keep this in mind
when you adjust the volume.
PLAYING A DVD DISC

242
1. AUDIO/VIDEO SYSTEM OPERATION
L/C200_Navi_OM60L27U_(U)
13.06.03 19:41
Playing iPod music and video (Vehicles
with A/V input port)
1Open the cover and connect iPod us-
ing an iPod cable or an iPod A/V cable.
Turn on the power of the iPod if it is not
turned on.
2Open the cover of the A/V input port
and connect an iPod using an iPod A/V
cable.
3Press the “AUDIO” button.
When the vehicle is completely stopped
and the parking brake is applied, iPod
video can be displayed on models that are
iPod video compatible.
1Press the “AUDIO” button if an iPod
has already been connected.
2Touch the “iPod” tab or press the
“AUDIO” button repeatedly until the
“iPod” tab is selected.
: Touch to start playing the music.
: Touch to pause the music.
To start playing the music again, touch
.
Touch “Video” to display the iPod video
control screen. (Vehicles with A/V input
port)
PLAYING iPod MUSIC
PLAYING AND PAUSING iPod

252
1. AUDIO/VIDEO SYSTEM OPERATION
L/C200_Navi_OM60L27U_(U)
13.06.03 19:41
The portable player will be automatically
connected under the following conditions:
• The “ENGINE START STOP” switch is in
either ACCESSORY or IGNITION ON
mode.
• When “Bluetooth* Power” is switched
from off to on.
• When the portable player is discon-
nected for some reason.
1Touch “Connect”.
2Touch the desired portable player.
3When the connection is completed,
this screen is displayed. It is now pos-
sible to use the portable player.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
CONNECTING A Bluetooth®
AUDIO PLAYER
To use the Bluetooth® audio system, it
is necessary to register a portable
player with the system. Once the porta-
ble player has been registered, it is
possible to listen to the music.
Once the portable player has been reg-
istered, it is possible to listen to music
through the navigation system. (See
“REGISTERING A Bluetooth
® DE-
VICE” on page 179.)
INFORMATION
●For operating the portable player, see
the instruction manual that comes with
it.
WHEN “Bluetooth* Power” IS
ON
WHEN “Bluetooth* Power” IS
OFF
Manually connect the portable player
in accordance with the following proce-
dure.

253
1. AUDIO/VIDEO SYSTEM OPERATION
5
AUDIO/VIDEO SYSTEM
L/C200_Navi_OM60L27U_(U)
13.06.03 19:41
If the Bluetooth® device is disconnected
on purpose, such as it was turned off, this
does not happen. Reconnect the portable
player manually.
1Press the “AUDIO” button if a
Bluetooth
® audio player has already
been connected.
2Touch the “BT Audio” tab or press the
“AUDIO” button repeatedly until the
“BT Audio” tab is selected.
: Touch to start playing the music.
: Touch to pause the music.
To start playing the music again, touch
.
Depending on the portable player that is
connected to the system, the music may
start playing when touching while it is
paused. Conversely, the music may pause
when touching while it is playing.
*: Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
INFORMATION
●Touching “Connect Portable Player”
on the “Bluetooth*” screen also connects
a Bluetooth
® audio player. (See page
184.)
●When none of the selectable portable
players have been registered, a screen
confirming registration is displayed.
Registration method is the same as
phone registration. (See page 138.)
●When the currently connected portable
player is selected, a screen confirming
the selected player’s disconnection is
displayed. (See page 185.)
●If connection fails once, a changing con-
nection method confirmation screen is
displayed. If connection fails 2 or more
times, a message will be displayed.
When this message is displayed, try
again.
RECONNECTING THE
PORTABLE PLAYER
If the portable player is disconnected
due to poor reception from the
Bluetooth
® network when the
“ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode,
the system automatically reconnects
the portable player.
PLAYING Bluetooth® AUDIO
PLAYING AND PAUSING
Bluetooth® AUDIO

258
1. AUDIO/VIDEO SYSTEM OPERATION
L/C200_Navi_OM60L27U_(U)
13.06.03 19:41
11. VTR OPERATION*
1Open the cover and connect audio/vid-
eo device.
The A/V input port is composed of 3 input
ports.
Turn on the power of the audio/video
device if it is not turned on.
Users can enjoy watching videos by
connecting an audio/video device to
the A/V input port.
For safety reasons, the videos can only
be viewed when the following condi-
tions are met:
(a)The vehicle is completely stopped.
(b)The “ENGINE START STOP”
switch is in ACCESSORY or IGNI-
TION ON mode.
(c)The parking brake is applied.
While driving in VTR mode, only the
VTR’s audio can be heard.
NOTICE
●When the A/V input port is not in use,
keep the A/V input port cover closed.
Inserting anything other than an appro-
priate plug may cause electrical failure
or a short circuit.
CONNECTING AUDIO/VIDEO
DEVICE
ColorFunction
YellowVideo input port
WhiteLeft channel audio input port
RedRight channel audio input port
*: Vehicles with A/V input port

260
1. AUDIO/VIDEO SYSTEM OPERATION
L/C200_Navi_OM60L27U_(U)
13.06.03 19:41

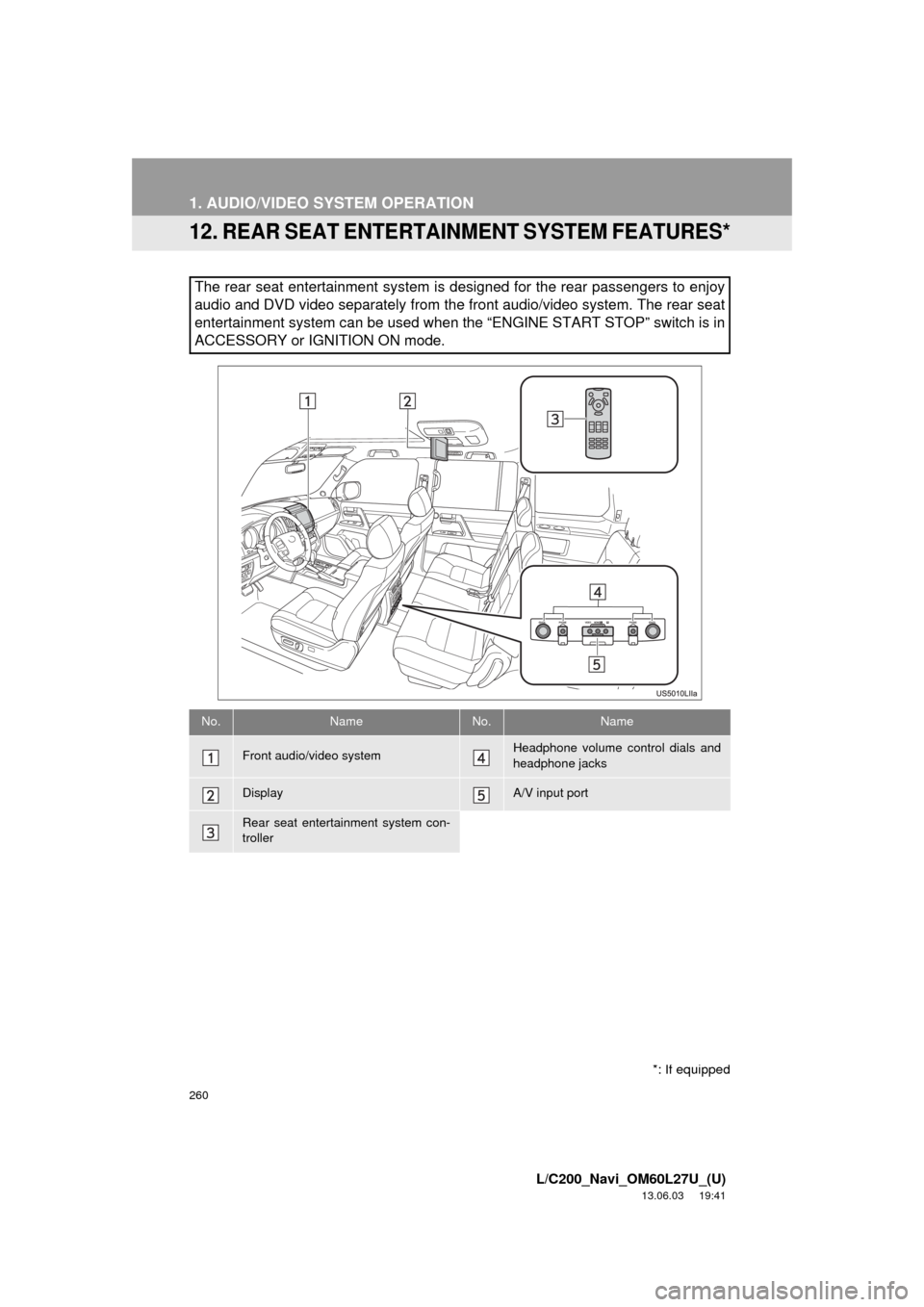

12. REAR SEAT ENTERTAINMENT SYSTEM FEATURES*
The rear seat entertainment system is designed for the rear passengers to enjoy
audio and DVD video separately from the front audio/video system. The rear seat
entertainment system can be used when the “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode.
No.NameNo.Name
Front audio/video systemHeadphone volume control dials and
headphone jacks
DisplayA/V input port
Rear seat entertainment system con-
troller
*: If equipped

263
1. AUDIO/VIDEO SYSTEM OPERATION
5
AUDIO/VIDEO SYSTEM
L/C200_Navi_OM60L27U_(U)
13.06.03 19:41
1To open the display, press the
“OPEN”, “SOURCE” or “DISC” but-
ton. To close the display, press the
“OPEN” or button.
If the display is closed with an image
shown, the image will automatically turn
off. (When you press the “OPEN” button,
the sound will not be turned off.)
1Press the “SETTING” button on the
controller.
2Select “TILT” tab.
3Select or .
This screen appears for a few seconds
when the rear display is opened. During
this time, only “OPEN/CLOSE” can be
operated.
OPENING AND CLOSING THE
DISPLAY
Opening and closing operations can be
performed from the front audio system.
(See page 266.)
JAM PROTECTION
The display will stop closing and return
to its previous position if something
gets in the way of it closing.
TILTING THE DISPLAY
INFORMATION
●The display angle is memorized and will
be recalled when the “ENGINE START
STOP” switch is turned to ACCESSORY
or IGNITION ON mode again.
CAUTION SCREEN

280
1. AUDIO/VIDEO SYSTEM OPERATION
L/C200_Navi_OM60L27U_(U)
13.06.03 19:41
1Press the “SETTING” button on the
controller.
2Select “TILT” tab.
3Select “Auto Close”.
If “Auto Close” is on, the display will
automatically close when the “ENGINE
START STOP” switch is turned OFF.
AUTOMATIC CLOSING OF THE
REAR DISPLAY
INFORMATION
●The display will automatically open
when the “ENGINE START STOP”
switch is turned to ACCESSORY or
IGNITION ON mode.
