display TOYOTA LAND CRUISER 2014 J200 Navigation Manual

TABLE OF CONTENTS
8
L/C200_Navi_OM60L27U_(U)
13.06.03 19:56
1. INFORMATION DISPLAY ............. 324
FUEL CONSUMPTION ........................ 324
MAP DATABASE VERSION AND
COVERAGE AREA ........................... 325
2. XM FUNCTION-OVERVIEW .......... 327
XM SERVICES .................................... 327
3. XM FUNCTION OPERATION ........ 330
XM Sports ............................................ 330
XM Stocks ............................................ 333
XM Fuel Prices..................................... 336
XM NavWeather™ ............................... 339
XM NavTraffic
®.................................... 342
4. SETUP ........................................... 345
XM SETTINGS..................................... 345
1. ENTUNE-OVERVIEW .................... 348
ENTUNE SERVICE ............................. 348
BEFORE USING ENTUNE .................. 350
2. ENTUNE OPERATION .................. 352
ACTIVATING “APPS” .......................... 352
LINKING “APPS” AND NAVIGATION
LOCAL FUNCTION ........................... 355
INPUTTING KEYWORD
OPERATION ..................................... 357
1. REAR VIEW MONITOR
SYSTEM ...................................... 360
REAR VIEW MONITOR SYSTEM ....... 360
REAR VIEW MONITOR SYSTEM
PRECAUTIONS ................................. 362
THINGS YOU SHOULD KNOW ........... 364
2. TOYOTA PARKING ASSIST
MONITOR .................................... 365
TOYOTA PARKING ASSIST
MONITOR .......................................... 365
PERPENDICULAR PARKING
(ESTIMATED COURSE LINE
DISPLAY MODE)............................... 371
PERPENDICULAR PARKING
(PARKING ASSIST GUIDE LINE
DISPLAY MODE)............................... 373
PARALLEL PARKING .......................... 375
TOYOTA PARKING ASSIST
MONITOR PRECAUTIONS ............... 382
THINGS YOU SHOULD KNOW ........... 387
ALPHABETICAL INDEX ................... 390
8INFORMATION
9APPS
10PERIPHERAL MONITORING
SYSTEM
INDEX

10
L/C200_Navi_OM60L27U_(U)
13.06.03 19:43
1. NAVIGATION OPERATION
1. OVERVIEW BUTTON AND GUIDANCE SCREEN
No.NameFunctionPage
North-up or
heading-up sym-
bolThis symbol indicates whether the map orienta-
tion is set to north-up or heading-up. Touching
this symbol changes the map orientation. Both
north-up and heading-up symbols display the ve-
hicles direction as a letter (e.g. N for north).
42
Scale indicatorThis figure indicates the map scale.41
“GPS” mark (Glo-
bal Positioning
System)Whenever the vehicle is receiving signals from
the GPS, this mark is displayed.128
XM indicatorThis mark is displayed when XM information is re-
ceived.341, 343
Distance and
time to destina-
tionTouch to display the distance, estimated travel
and arrival time to the destination.86
“Map Mode”Touch to display the “Map Mode” screen.38
Zoom out buttonTouch to reduce the map scale.41
“Off”
Touch to obtain a broader view. Some of the but-
tons on the screen will not be displayed. They are
displayed again by touching “On”.
11 8

11
1. NAVIGATION OPERATION
1
QUICK GUIDE
L/C200_Navi_OM60L27U_(U)
13.06.03 19:43
*: Press and hold the “PWR·VOL” knob for 3 seconds or more to turn off the screen and restart the
navigation system. Do this when the vehicle-mounted device response is extremely slow.
“Mark”Touch to register the current position or the cur-
sor position as an address book entry.34
“Route”Touch to change the route.87, 89
“Show on Map”
Touch to browse information about guidance
route, to set the POI (Point of Interest) icons to be
displayed on the screen, to record the route, etc.
94, 343
Zoom in buttonTouch to magnify the map scale.41
Foot print map
buttonTouch to display the foot print map and the build-
ing information.41
“SETUP” buttonPress to display the “Setup” screen.
22, 31, 44,
54, 98, 114,
122, 156,
178, 293,
345
“INFO” buttonPress to display the “Information” screen.
24, 324,
325, 330,
333, 336,
339, 342,
352, 355
“DEST” buttonPress to display the “Destination” screen.12, 14, 16,
17, 20, 58
“MAP/VOICE”
buttonPress to repeat a voice guidance, cancel the
screen scroll, start guidance, and display the cur-
rent position.
33
No.NameFunctionPage

12
1. NAVIGATION OPERATION
L/C200_Navi_OM60L27U_(U)
13.06.03 19:43
2. REGISTERING HOME
Press the “DEST” button.
Touch “Go Home”.
If a home address has not been regis-
tered, it can be registered by touching
“Go Home”.
Touch “Yes”.There are 4 different methods to
search your home. (See “DESTI-
NATION SEARCH” on page 58.)
Touch “Enter”.
The “Edit Home” screen is displayed.
1
2
3
4
5

14
1. NAVIGATION OPERATION
L/C200_Navi_OM60L27U_(U)
13.06.03 19:43
3. REGISTERING PRESET DESTINATIONS
Press the “DEST” button.
Touch one of the preset destina-
tion buttons.
A preset destination can be set to any
preset destination button that has not
yet been set.
Touch “Yes”.There are 4 different methods to
search preset destinations. (See
“DESTINATION SEARCH” on
page 58.)
Touch “Enter”.
The “Edit Preset Destination” screen is
displayed.
1
2
3
4
5

16
1. NAVIGATION OPERATION
L/C200_Navi_OM60L27U_(U)
13.06.03 19:43
4. OPERATION FLOW: GUIDING THE ROUTE
Press the “DEST” button.
There are 10 different methods to
search destinations. (See “DES-
TINATION SEARCH” on page 58.)
Page 1
Page 2Touch “Go to ”.
The navigation system performs a
search for the route.
Touch “OK”, and start driving.
Routes other than the one recommend-
ed can also be selected. (See “START-
ING ROUTE GUIDANCE” on page 76.)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
1
2
3
4

17
1. NAVIGATION OPERATION
1
QUICK GUIDE
L/C200_Navi_OM60L27U_(U)
13.06.03 19:43
5. SETTING HOME AS THE DESTINATION
Press the “DEST” button.
Touch “Go Home”.
“Go Home” can be used if your home
address has been registered. (To regis-
ter home, see “REGISTERING HOME”
on page 99.)
Your home address is set as the desti-
nation. The navigation system performs
a search for the route.
Touch “OK”, and start driving.
Routes other than the one recommend-
ed can also be selected. (See “START-
ING ROUTE GUIDANCE” on page 76.)
Guidance to the destination is displayed
on the screen and can be heard via
voice guidance.
1
2
3

18
L/C200_Navi_OM60L27U_(U)
13.06.03 19:43
2. FUNCTION INDEX

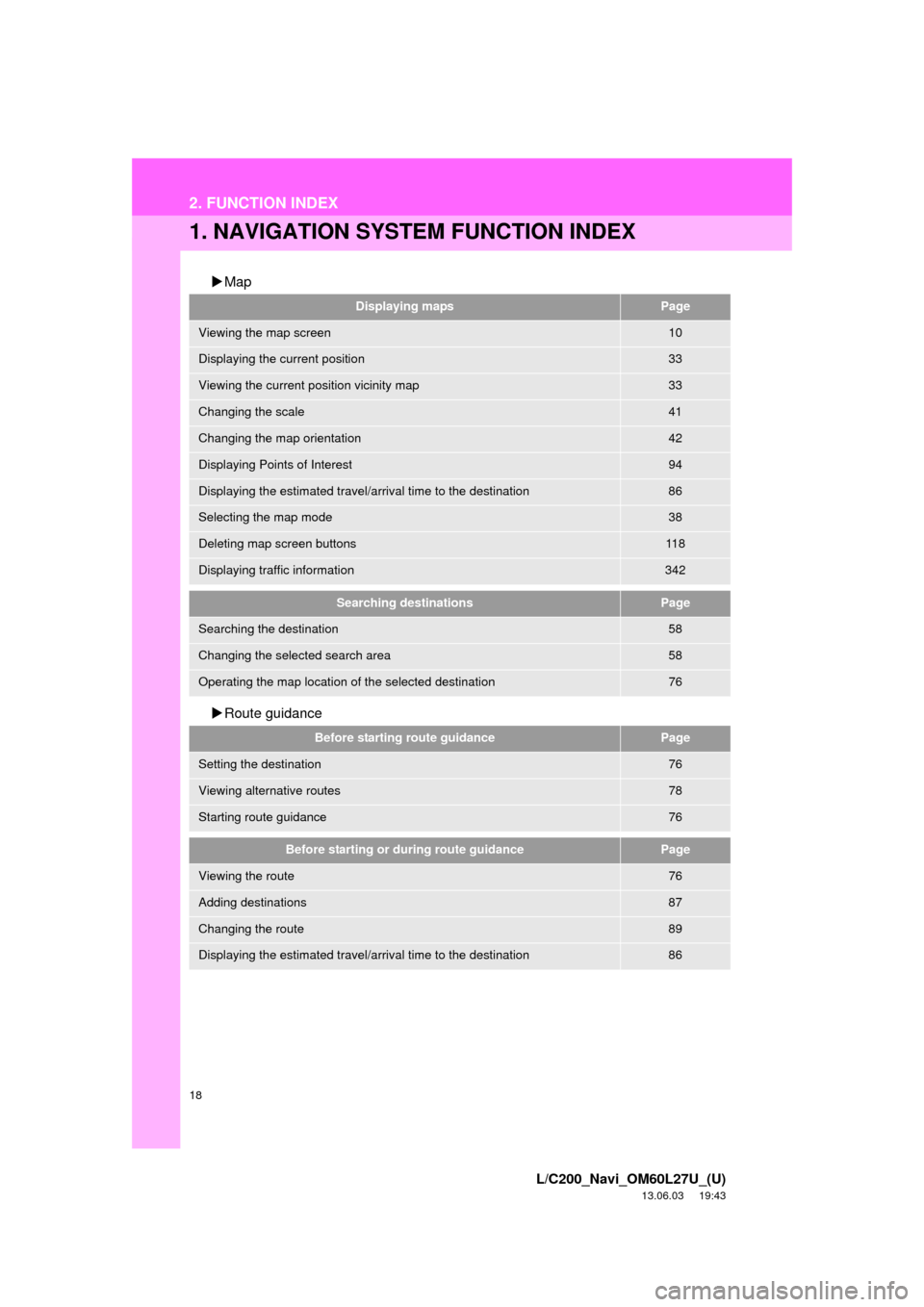

1. NAVIGATION SYSTEM FUNCTION INDEX
Map
Route guidance
Displaying mapsPage
Viewing the map screen10
Displaying the current position33
Viewing the current position vicinity map33
Changing the scale41
Changing the map orientation42
Displaying Points of Interest94
Displaying the estimated travel/arrival time to the destination86
Selecting the map mode38
Deleting map screen buttons11 8
Displaying traffic information342
Searching destinationsPage
Searching the destination58
Changing the selected search area58
Operating the map location of the selected destination76
Before starting route guidancePage
Setting the destination76
Viewing alternative routes78
Starting route guidance76
Before starting or during route guidancePage
Viewing the route76
Adding destinations87
Changing the route89
Displaying the estimated travel/arrival time to the destination86

19
2. FUNCTION INDEX
1
QUICK GUIDE
L/C200_Navi_OM60L27U_(U)
13.06.03 19:43

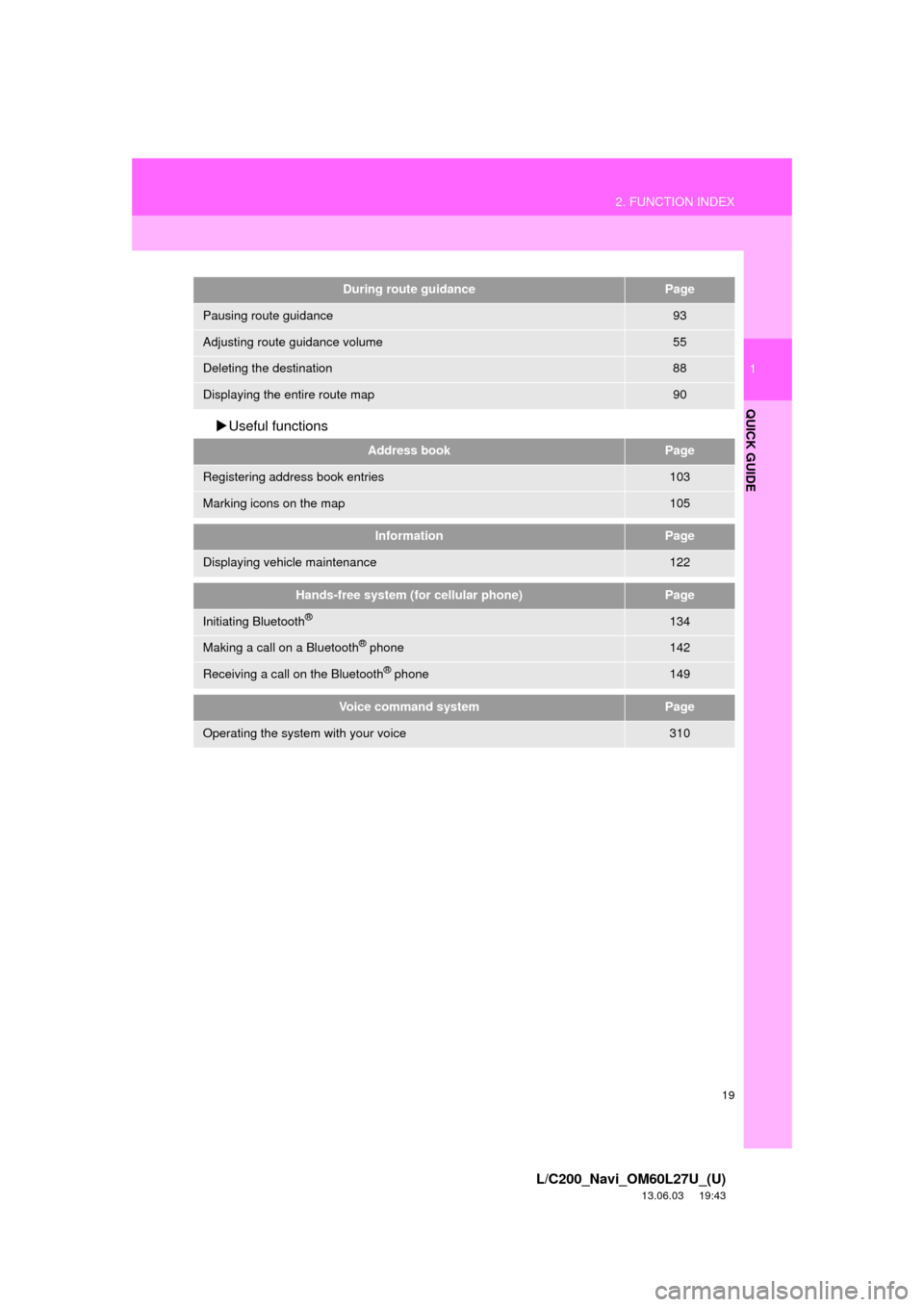

Useful functions
During route guidancePage
Pausing route guidance93
Adjusting route guidance volume55
Deleting the destination88
Displaying the entire route map90
Address bookPage
Registering address book entries103
Marking icons on the map105
InformationPage
Displaying vehicle maintenance122
Hands-free system (for cellular phone)Page
Initiating Bluetooth®134
Making a call on a Bluetooth® phone142
Receiving a call on the Bluetooth® phone149
Voice command systemPage
Operating the system with your voice310

20
L/C200_Navi_OM60L27U_(U)
13.06.03 19:43
3. QUICK REFERENCE

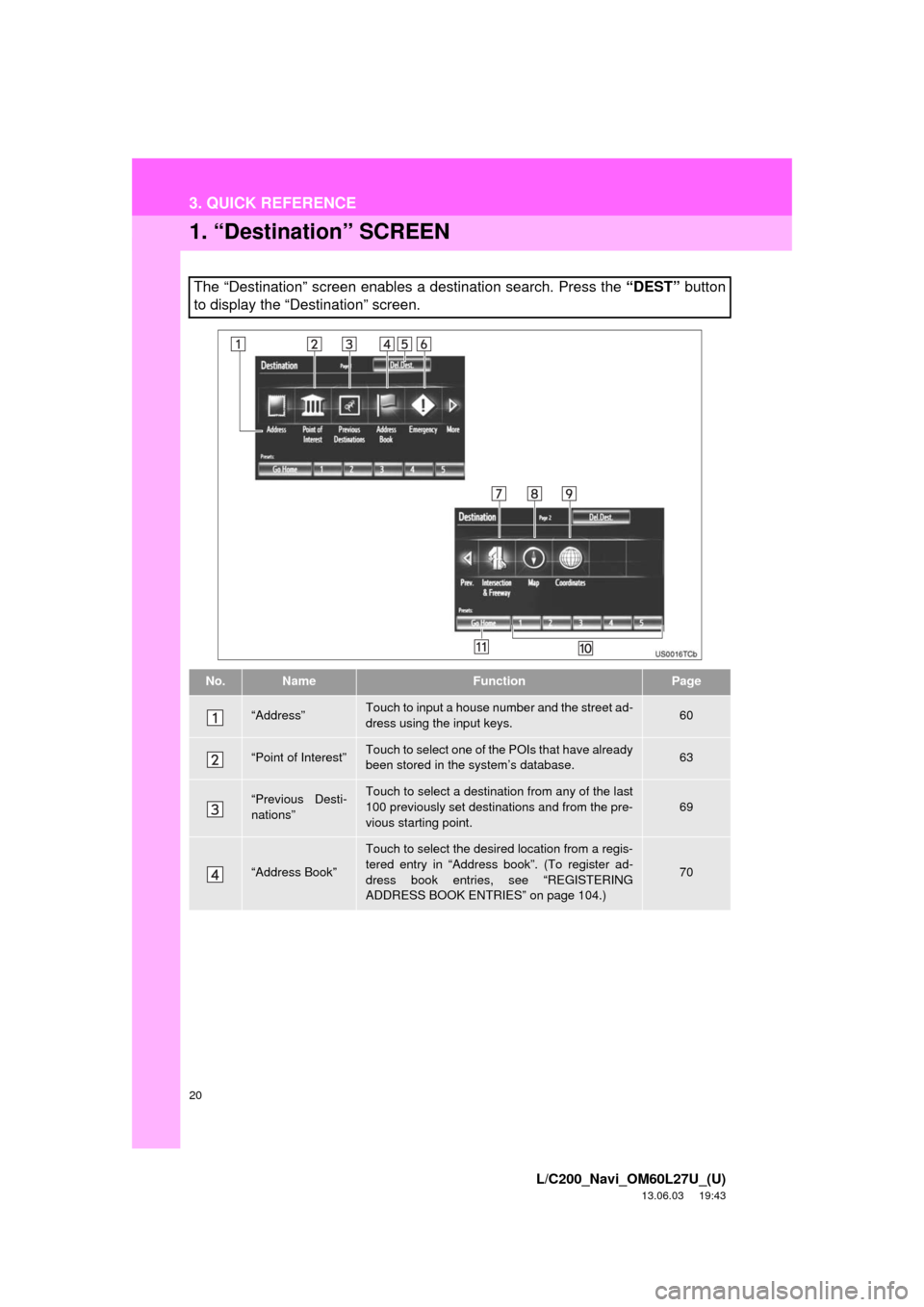

1. “Destination” SCREEN
The “Destination” screen enables a destination search. Press the “DEST” button
to display the “Destination” screen.
No.NameFunctionPage
“Address”Touch to input a house number and the street ad-
dress using the input keys.60
“Point of Interest”Touch to select one of the POIs that have already
been stored in the system’s database.63
“Previous Desti-
nations”Touch to select a destination from any of the last
100 previously set destinations and from the pre-
vious starting point.69
“Address Book”
Touch to select the desired location from a regis-
tered entry in “Address book”. (To register ad-
dress book entries, see “REGISTERING
ADDRESS BOOK ENTRIES” on page 104.)
70
