Installation with LATCH system

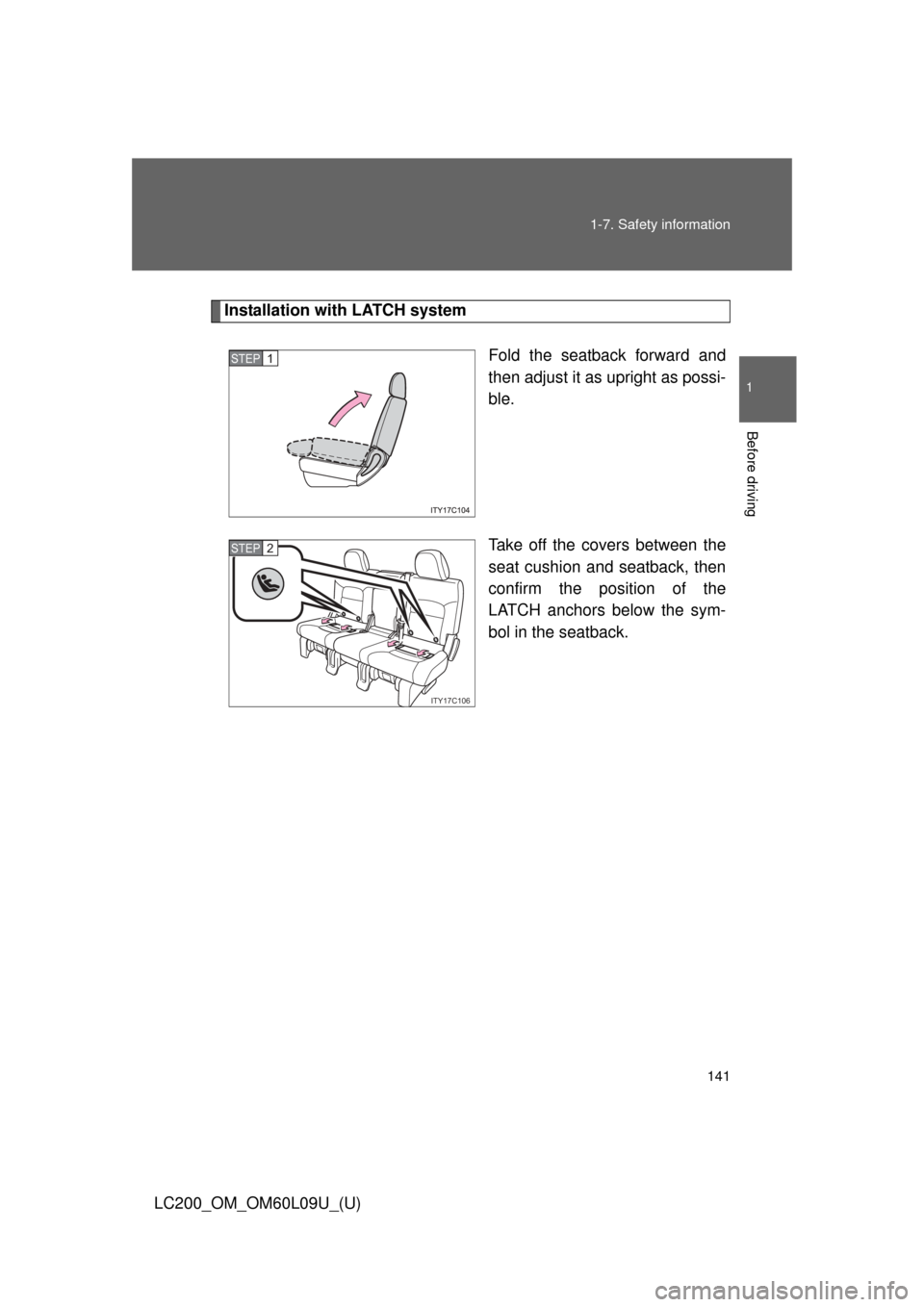

Fold the seatback forward and
then adjust it as upright as possi-
ble.
Take off the covers between the
seat cushion a nd seatback, then
confirm the position of the
LATCH anchors below the sym-
bol in the seatback.
STEP1
ITY17C106
STEP2

142 1-7. Safety information
LC200_OM_OM60L09U_(U)Type A

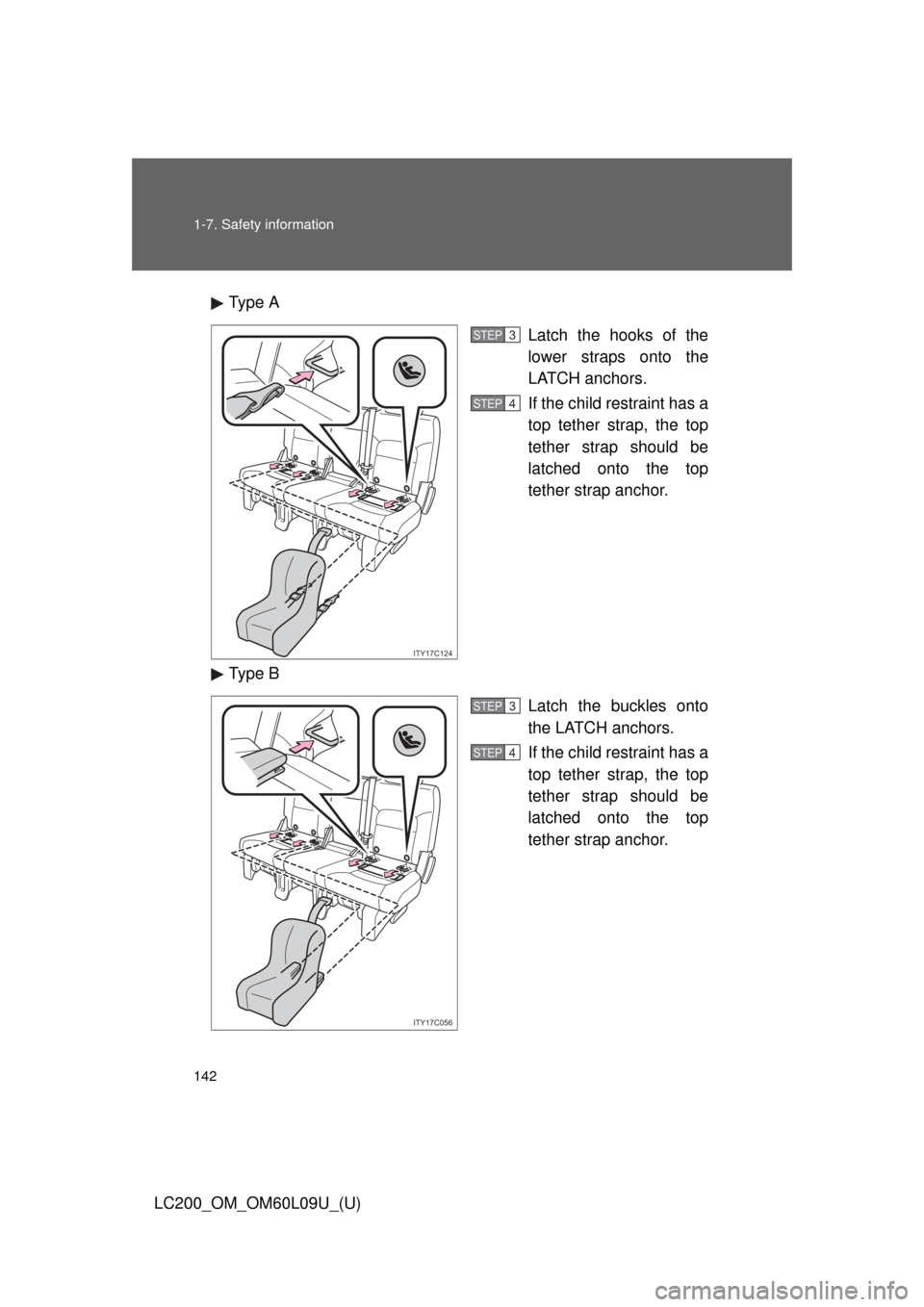

Latch the hooks of the
lower straps onto the
LATCH anchors.
If the child restraint has a
top tether strap, the top
tether strap should be
latched onto the top
tether strap anchor.
Type B Latch the buckles onto
the LATCH anchors.
If the child restraint has a
top tether strap, the top
tether strap should be
latched onto the top
tether strap anchor.
ITY17C124
STEP3
STEP4
ITY17C056
STEP3
STEP4

143
1-7. Safety information
1
Before driving
LC200_OM_OM60L09U_(U)
Installing child restraints using a
seat belt (child restraint lock
function belt)
■ Rear-facing  Infant seat/convertible seat
Fold the seatback while pulling
the seatback angle lever.
Return the seatback and secure
it at the first lock position.
( P. 59)
Place the child restraint system
on the second or third seat fac-
ing the rear of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
STEP1
STEP2
STEP3

144 1-7. Safety information
LC200_OM_OM60L09U_(U)Fully extend the shoulder belt
and then allow it to retract
slightly in order to activate the
ALR lock mode.
Lock mode allows the seat belt to
retract only.
While pushing the child restraint
system down into the seat, allow
the shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
STEP4
STEP5

145
1-7. Safety information
1
Before driving
LC200_OM_OM60L09U_(U)
■
Forward-facing Convertible seat
Fold the seatback while pulling
the seatback angle lever.
Return the seatback and secure
it at the first lock position.
( P. 59)
Place the child restraint system
on the second or third seat fac-
ing the front of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
STEP1
STEP2
STEP3

146 1-7. Safety information
LC200_OM_OM60L09U_(U)Fully extend the shoulder strap
and then allow it to retract
slightly into the ALR lock mode.
Lock mode allows the seat belt to
retract only.
While pushing the child restraint
system into the seat, allow the
shoulder belt to retract until the
child restraint system is securely
in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint system has a top tether strap, the top
tether strap should be latched onto the top tether strap
anchor. (
P. 141)
STEP4
STEP5
STEP6

147
1-7. Safety information
1
Before driving
LC200_OM_OM60L09U_(U)
■
Booster seat
Fold the seatback while pulling
the seatback angle lever.
Return the seatback and secure
it at the first lock position.
( P. 59)
Place the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in th e child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instruc-
tions and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible.
( P. 76)
STEP1
STEP2
STEP3

148 1-7. Safety information
LC200_OM_OM60L09U_(U)
Removing a child restraint system installed with a seat beltPress the buckle release button
and fully retract the seat belt.
Child restraint systems with a top tether strapSecure the child restraint system using a seat belt or LATCH
anchors, and do the following.
Outside
Adjust the head restraint to the
upmost position.
Center Lower the head restraint to the
lowest position.
STEP1
STEP1
ITY17C099

149
1-7. Safety information
1
Before driving
LC200_OM_OM60L09U_(U)
Open the anchor bracket cover, latch the hook onto the
anchor bracket and tighten
the top tether strap.
Outside
Make sure the top tether strap is
securely latched.
Center
Outside only: Adjust the head
restraint to the downmost posi-
tion.
STEP2
ITY17C058
STEP3

150 1-7. Safety information
LC200_OM_OM60L09U_(U)
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225.
Child restraint systems conforming to FMVSS213 specifications can be
used.
This vehicle is designed to conform to the SAE J1819.
CAUTION
■When installing a booster seat
Do not fully extend the shoulder belt to prevent the belt from going to ALR
lock mode: ( P. 80)
ALR mode causes the belt to tighten only which could cause injury or dis-
comfort to the child.
