4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L09U_(U)
Remove the light bulb.
When installing, reverse the steps listed.
ITY43C054
STEP4
STEP5

592 4-3. Do-it-yourself maintenance
LC200_OM_OM60L09U_(U)■
Rear turn signal light
Open the back door and remove
the bolts and lamp assembly.
Use a cloth to prevent scratches.
Unclip the connector wire.
Turn the bulb bases counter-
clockwise.
STEP1
STEP2
STEP3

593
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L09U_(U)
Remove the light bulb.
When installing, reverse the steps listed.
STEP4
STEP5

594 4-3. Do-it-yourself maintenance
LC200_OM_OM60L09U_(U)■
License plate light
Open the back door and remove
the license plate light unit.
Turn the bulb base counterclock-
wise.
Remove the light bulb.
When installing, reverse the steps listed.
STEP1
ITY43C067
STEP2
ITY43C068
STEP3
STEP4

595
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L09U_(U)
■
Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Toyota
dealer replace it.
● Headlight low beam
● Parking light
● Side turn signal light
● Stop/tail lights
● Tail lights
● High mounted stoplight
● Rear side marker lights
■Discharge headlights
If voltage to the discharge bulbs is insufficient, the bulbs may not come on,
or may go out temporarily. The discharge bulbs will come on when normal
power is restored.
■ Condensation build-up on th e inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction. Contact your Toyota dealer for more information
in the following situations:
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED lights
The parking light, side turn signal light, stop/tail lights, tail lights, high
mounted stoplight and rear side marker lights consist of a number of LEDs. If
any LEDs burn out, take your vehicle to your Toyota dealer to have the light
replaced.

596 4-3. Do-it-yourself maintenance
LC200_OM_OM60L09U_(U)
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately
after turning off the headlights.
The bulbs become very hot and may cause burns.
● Do not touch the glass portion of the light bulb with bare hands. When i\
t is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
● Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
●While the low beam headlights are
turned on, and for a short time after
they have been turned off, metal com-
ponents at the rear of the headlight
assembly will be extremely hot.
To prevent burns, do not touch these
metal components until you are certain
they have cooled down.
Metal
components

597
4-3. Do-it-yourself maintenance
4
Maintenance and care
LC200_OM_OM60L09U_(U)
CAUTION
■
Discharge headlights
●Contact your Toyota dealer before replacing high-intensity discharge
headlights (including light bulbs).
● Do not touch the high-intensity discharge headlight’s high voltage socket
when the headlights are turned on.
An extremely high voltage of 30000 V will be discharged and could result
in serious injury or death by electric shock.
● Do not attempt to take apart or repair the low beam discharge headlight
bulbs, connectors, power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.
■ To prevent damage or fire
Make sure bulbs are fully seated and locked.

598 4-3. Do-it-yourself maintenance
LC200_OM_OM60L09U_(U)

When trouble arises5
599
LC200_OM_OM60L09U_(U)

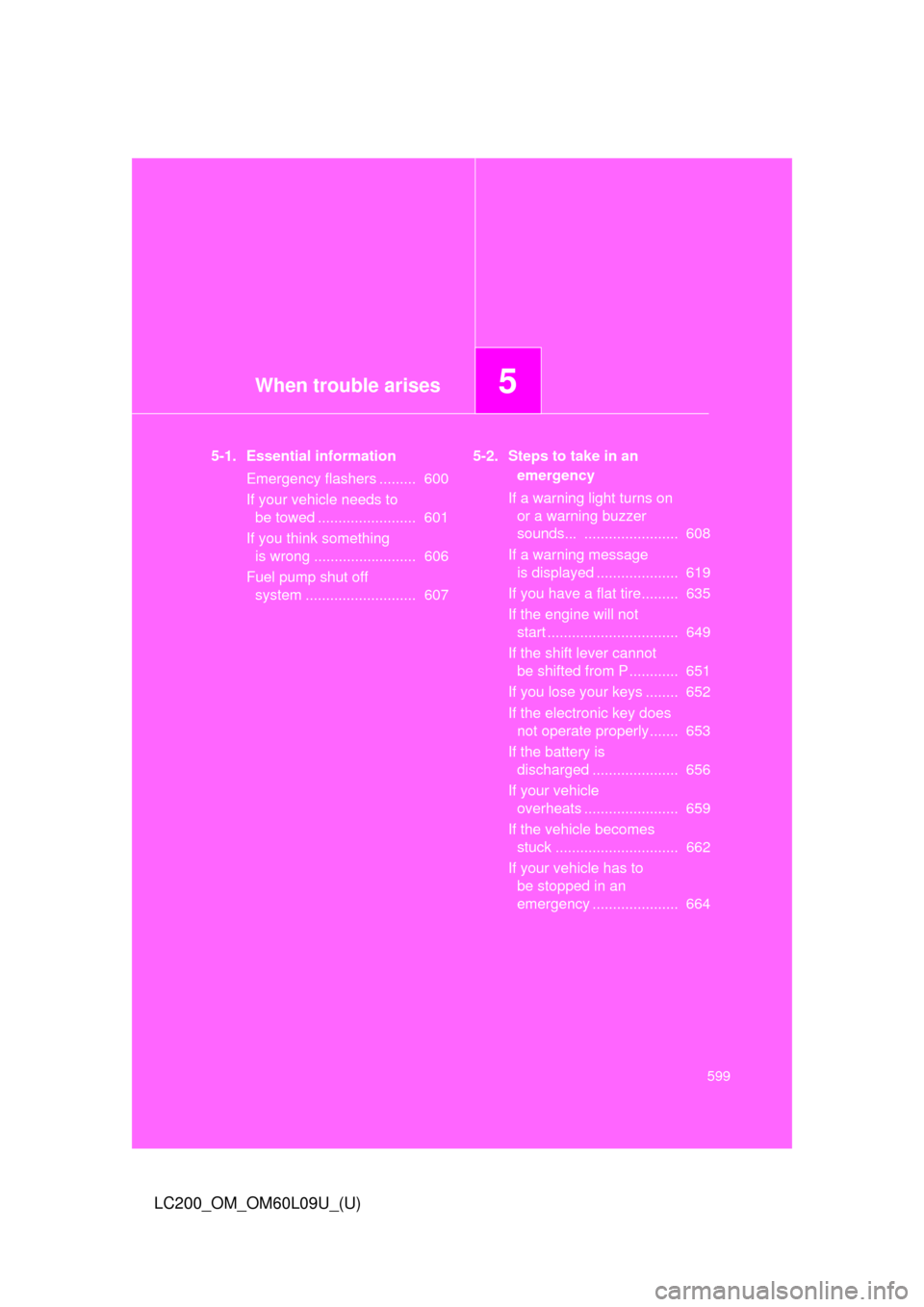

5-1. Essential informationEmergency flashers ......... 600
If your vehicle needs to be towed ........................ 601
If you think something is wrong ......................... 606
Fuel pump shut off system ........................... 607 5-2. Steps to take in an
emergency
If a warning light turns on or a warning buzzer
sounds... ....................... 608
If a warning message is displayed .................... 619
If you have a flat tire......... 635
If the engine will not start ................................ 649
If the shift lever cannot be shifted from P............ 651
If you lose your keys ........ 652
If the electronic key does not operate properly....... 653
If the battery is discharged ..................... 656
If your vehicle overheats ....................... 659
If the vehicle becomes stuck .............................. 662
If your vehicle has to be stopped in an
emergency ..................... 664

600
LC200_OM_OM60L09U_(U)
5-1. Essential information
Emergency flashers
■Emergency flashers
If the emergency flashers are used for a long time while the engine is not
operation, the battery may discharge.
The emergency flashers are used to warn other drivers when the
vehicle has to be stopped in the road due to a breakdown, etc.
Press the switch.
All the turn signal lights will
flash.
To turn them off, press the
switch once again.
