TOYOTA LAND CRUISER 2016 J200 Owners Manual

LC200_OM_OM60M88U_(U)
5818-2. Customization
8
Vehicle specifications

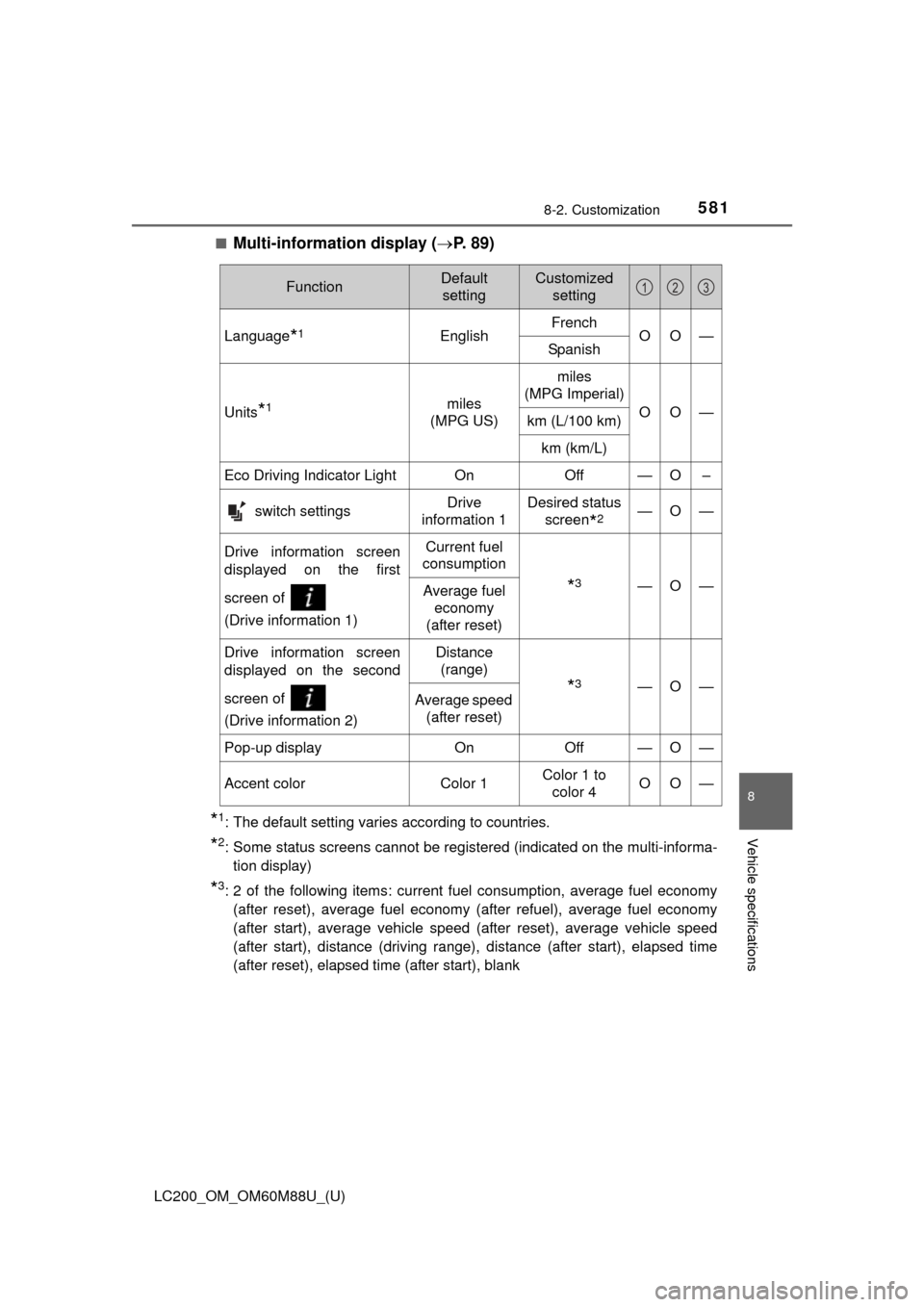

■Multi-information display (P. 89)
*1: The default setting varies according to countries.
*2: Some status screens cannot be registered (indicated on the multi-informa-
tion display)
*3: 2 of the following items: current fuel consumption, average fuel economy(after reset), average fuel economy (after refuel), average fuel economy
(after start), average vehicle speed (after reset), average vehicle speed
(after start), distance (driving range) , distance (after start), elapsed time
(after reset), elapsed time (after start), blank
FunctionDefault settingCustomized setting
Language*1EnglishFrenchOO—Spani sh
Units*1miles
(MPG US)
miles
(MPG Imperial)
OO—km (L/100 km)
km (km/L)
Eco Driving Indicator Light On Off — O –
switch settingsDrive
information 1Desired status screen
*2—O—
Drive information screen
displayed on the first
screen of
(Drive information 1)Current fuel
consumption
*3—O—Average fuel economy
(after reset)
Drive information screen
displayed on the second
screen of
(Drive information 2)Distance (range)
*3—O—Average speed (after reset)
Pop-up displayOnOff—O—
Accent colorColor 1Color 1 to
color 4OO—
123

582
LC200_OM_OM60M88U_(U)
8-2. Customization

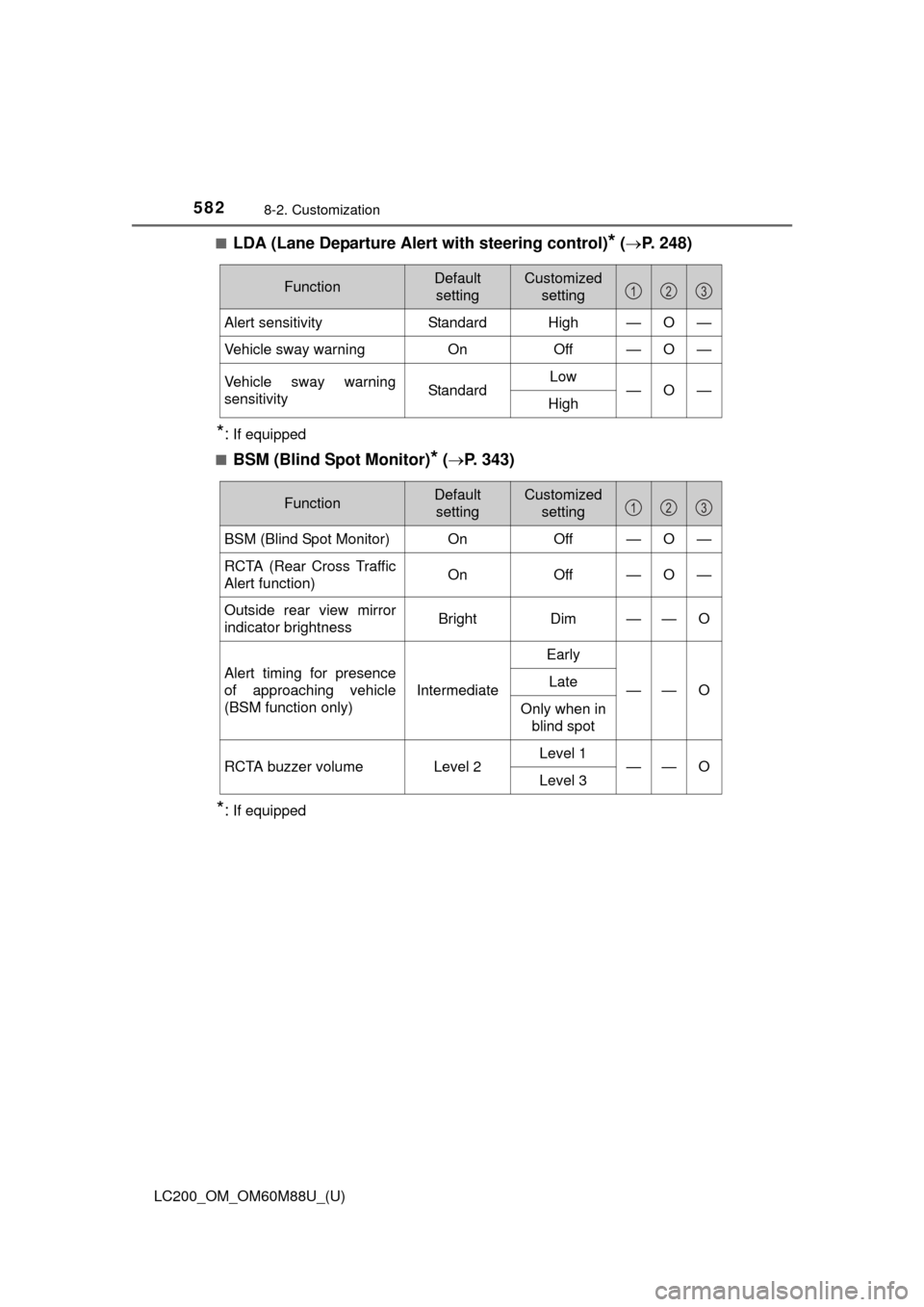

■LDA (Lane Departure Alert with steering control)* ( P. 248)
*:If equipped
■
BSM (Blind Spot Monitor)* (  P. 343)
*:If equipped
FunctionDefault
settingCustomized setting
Alert sensitivityStandardHigh—O—
Vehicle sway warningOnOff—O—
Vehicle sway warning
sensitivityStandardLow—O—High
123
FunctionDefault settingCustomized setting
BSM (Blind Spot Monitor)OnOff—O—
RCTA (Rear Cross Traffic
Alert function)OnOff—O—
Outside rear view mirror
indicator brightnessBrightDim——O
Alert timing for presence
of approaching vehicle
(BSM function only)
Intermediate
Early
——OLate
Only when in blind spot
RCTA buzzer volumeLevel 2Level 1——OLevel 3
123

LC200_OM_OM60M88U_(U)
5838-2. Customization
8
Vehicle specifications
■Vehicle customization
●If the smart key system is turned off, unlock door cannot be selected.
● If the doors are not opened after unlocking and are then automatically re-
locked, a signal will be given if “Operation signal (Emergency flashers)” or
“Operation signal (Buzzer)” are set to on.
■ When setting using the mu lti-information display (vehicles with naviga-
tion system)
When using the multi-information display to set an item that can also be set
using the navigation system, the item displayed on the navigation system will
not change immediately.
If the engine switch is first turned off, the screen display will change once the
engine switch is turned to IGNITION ON mode again.
■ When customizing usi ng the navigation system
Stop the vehicle in a safe place, apply the parking brake, and shift the shift
lever to P. Also, to prevent battery discharge, leave the engine running while
customizing the features.
WARNING
■ During customization
As the engine needs to be running during customization, ensure that the
vehicle is parked in a place with adequate ventilation. In a closed area such
as a garage, exhaust gases including harmful carbon monoxide (CO) may
collect and enter the vehicle. This may lead to death or a serious health
hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while cus-
tomizing features.

584
LC200_OM_OM60M88U_(U)

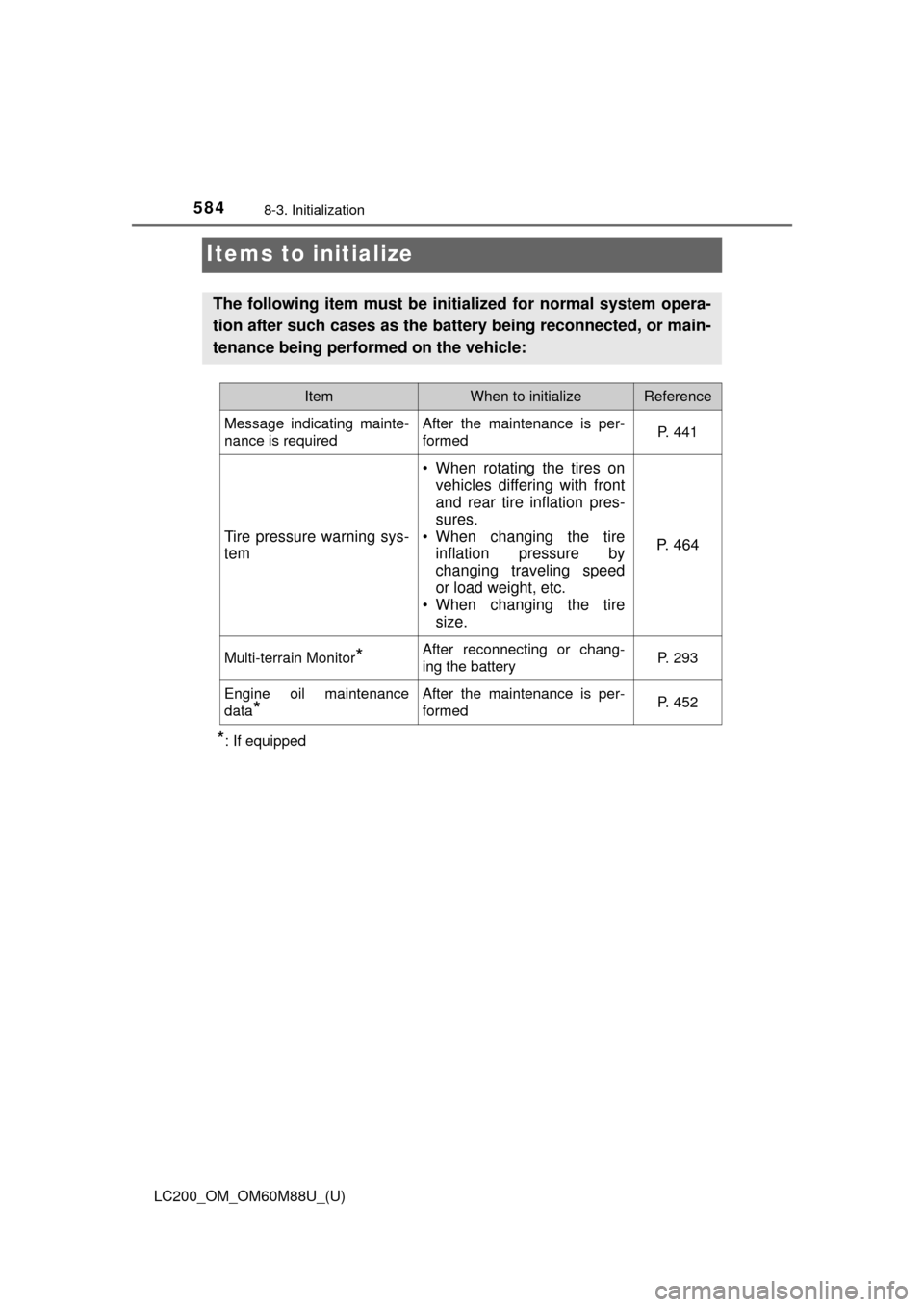

8-3. Initialization
Items to initialize
*: If equipped
The following item must be initialized for normal system opera-
tion after such cases as the battery being reconnected, or main-
tenance being performed on the vehicle:
ItemWhen to initializeReference
Message indicating mainte-
nance is requiredAfter the maintenance is per-
formedP. 441
Tire pressure warning sys-
tem
• When rotating the tires on vehicles differing with front
and rear tire inflation pres-
sures.
• When changing the tire inflation pressure by
changing traveling speed
or load weight, etc.
• When changing the tire
size.
P. 4 6 4
Multi-terrain Monitor*After reconnecting or chang-
ing the batteryP. 293
Engine oil maintenance
data
*
After the maintenance is per-
formedP. 452

585
LC200_OM_OM60M88U_(U)
9For U.S. owners
Reporting safety defects for U.S. owners ........................ 586

586
LC200_OM_OM60M88U_(U)

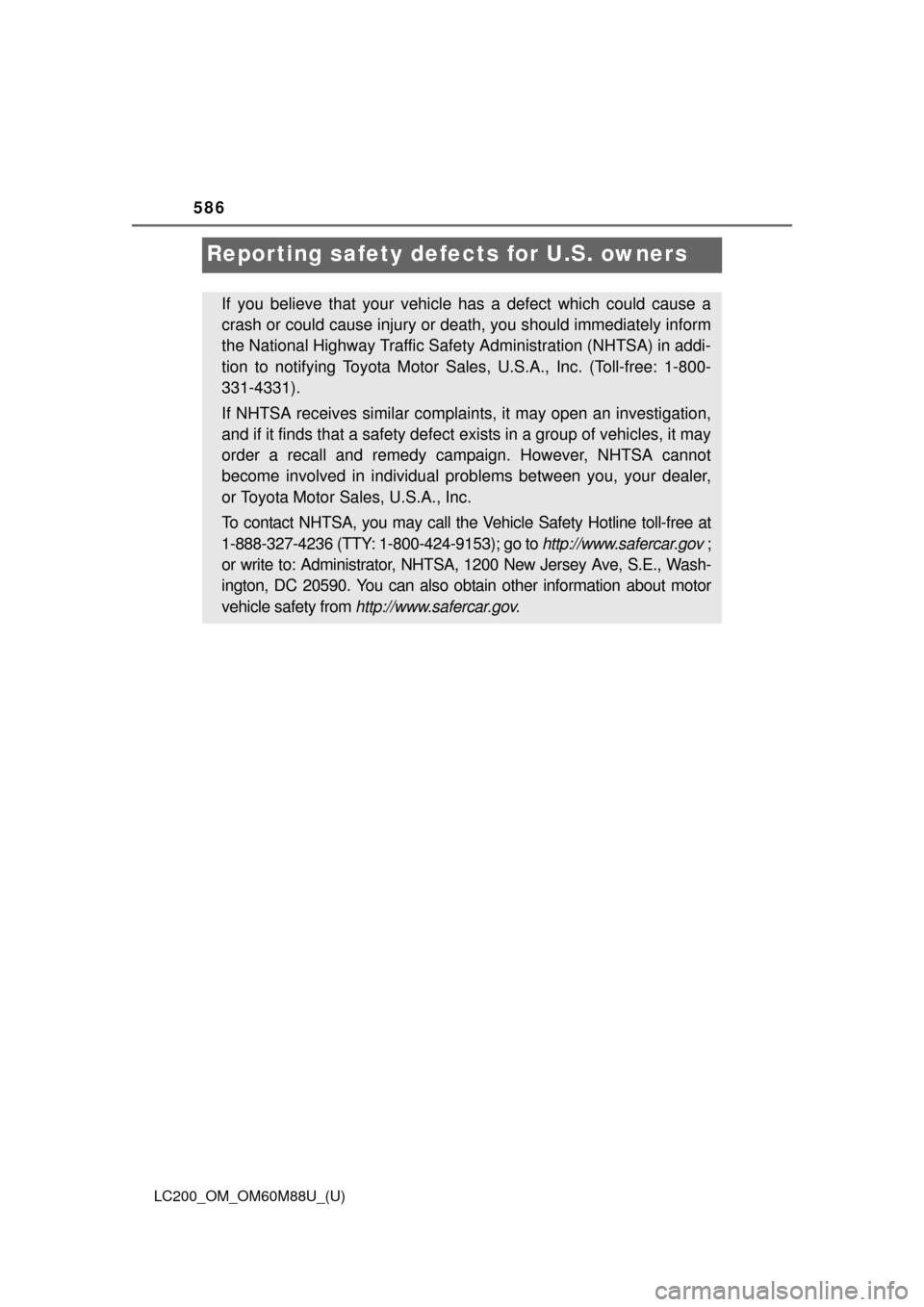

Reporting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sale s, U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives simila r complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual prob lems between you, your dealer,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at
1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov ;
or write to: Administrator, NHTSA, 1200 New Jersey Ave, S.E., Wash-
ington, DC 20590. You can also obtain other information about motor
vehicle safety from http://www.safercar.gov .

587
LC200_OM_OM60M88U_(U)
Index
What to do if... (Troubleshooting) .................... 588
Alphabetical index ..................... 592
For vehicles with a navigat ion system or a multimedia
system, refer to the “NAVIGATION SYSTEM OWNER’S
MANUAL” for information regarding the equipment listed
below.
• Navigation system
• Audio/video system
• Rear seat entertainment system
• Hands-free system (for cellular phone)

588What to do if... (Troubleshooting)
LC200_OM_OM60M88U_(U)
What to do if... (Troubleshooting)
●If you lose your mechanical keys, new genuine mechanical keys can be
made by your Toyota dealer. (P. 103)
●If you lose your electronic keys, the risk of vehicle theft increases signifi-
cantly. Contact your Toyota dealer immediately. ( P. 105)
●Is the electronic key battery weak or depleted? (P. 479)
●Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( P. 194)
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
●The function may not operate properly due to the condition of the radio
wave. (P. 122)
●Is the child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the child-protector
lock. (P. 109)
If you have a problem, check the following before contacting
your Toyota dealer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened

589What to do if... (Troubleshooting)
LC200_OM_OM60M88U_(U)
●Did you press the engine switch while firmly depressing the brake pedal?
( P. 193)
●Is the shift lever in P? ( P. 195)
●Is the electronic key anywhere detectable inside the vehicle? ( P. 121)
●Is the steering wheel unlocked? (P. 196)
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. ( P. 541)
●Is the battery discharged? (P. 543)
●Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode ( P. 539)
●It is locked automatically to prevent theft of the vehicle. ( P. 196)
●Is the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. (P. 150)
If you think something is wrong
The engine does not start
The shift lever cannot be shifted from P even if you depress
the brake pedal
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches

590What to do if... (Troubleshooting)
LC200_OM_OM60M88U_(U)
●The auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. (P. 195)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
( P. 512)
●The parking brake indicator is on
Is the parking brake released? ( P. 204)
Depending on the situation, other types of warning buzzer may also sound.
(  P. 510, 519)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 76)
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine.
The engine switch is tu rned off automatically
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
