Audio/visual system
4
1714. Rear seat entertainment system operation
■Other settings
1Display the settings screen. (P.169)
2Select the “Settings” tab.
3Select the item to be set.
If “Check DISC” appears on the screen:
It indicates t hat the disc is dirty, damaged,
or it was inserted upside down. Clean the
disc or insert it correctly.
If “Region code error” appears on the
screen : It indicates that the DVD region
code is not set properly . Insert a disc with
a region code of “ALL” or “1”.
If “DISC error” appears on the screen :
The following causes are possible:
• There is a problem inside the system. Eject the disc.
• The inside of the player unit may be too hot due to a very high ambient tempera-
ture. Eject the disc and allow the player
to cool down.
If “No supported data.” appears on the
screen : It indicates that the iPod or USB
has no playable data. If a disc which is not
playable is inserted, “No supported data.”
will also appear on the screen. For appro-
priate discs for the player: P.180
If the malfunction is not rectified : Take
your vehicle to your Toyota dealer.
No.Function
Select to turn the screen off.
To turn the screen back on, press a
remote control button such as
“DISC” and “INPUT” . The selected
screen appears.
Select to turn on/off the “LCD AI”.
The “LCD AI” automatically deter-
mines the tone of the video image
and sets the contrast to an optimum
level, displaying a sharp image.
Select to turn on/off the “Super Res-
olution” .
The “Super Resolution” is a func-
tion that improves resolution by en-
larging the display while still
reproducing the sharpness of the in-
put image.
Select to switch between NTSC/PAL
input format. (PAL: indicator on,
NTSC: indicator off)
If the rear seat entertainment
system malfunctions
If the rear seat entertainment system
malfunctions, the system will display a
messages.
These are described below.

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
1725. Audio/visual remote controls
“ ” switch
Steering switches
Some parts of the audio/visual system
can be adjusted using the switches on
the steering wheel.
No.Switch
“ ” switch
Volume control switch
“MODE” switch
Mode
OperationFunction
AM/FM Radio
PressPreset station up/
down
Press and hold
(0.8 sec. or
more)Seek up/down contin-
uously while the
switch is being
pressed
SAT
PressPreset channel up/
down
Press and hold
(0.8 sec. or
more)Type seek up/down
Press and hold
(1.5 sec. or
more)
Fast up/down
CD
PressTrack up/down
Press and hold
(0.8 sec. or
more)
Fast forward/rewind
MP3/WMA/AAC disc
PressFile up/down
Press and hold
(0.8 sec. or
more)
Fast forward/rewind
DVD
PressChapter up/down
USB
PressFile/Track up/down
Press and hold
(0.8 sec. or
more)
Fast forward/rewind
iPod
PressTrack/File up/down

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
Audio/visual system
4
1735. Audio/visual remote controls
 Volume control switch
 “MODE” switch
BT audio
PressTrack up/down
Press and hold
(0.8 sec. or
more)
Fast forward/rewind
Mode
OperationFunction
All
PressVolume up/down
Press and hold
(0.8 sec. or
more)Volume up/down con-
tinuously
Mode
OperationFunction
AM, FM, SAT, AUX, VTR
PressChange audio modes
Press and hold
(0.8 sec. or
more)
Mute
CD, MP3/WMA/AAC disc, DVD, USB, iPod,
BT audio, APPS
PressChange audio modes
Press and hold
(0.8 sec. or
more)
Pause
INFORMATION
● In the APPS mode, some operation may
be done on the screen depend on the
selected APPS.
Mode
OperationFunction

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
1746. Setup
1Press the “SETUP” button.
2Select “Audio” .
3Select the items to be set.
Audio settings
Detailed audio settings can be pro-
grammed.
Audio settings screen
No.FunctionPage
Select to set the iPod audio
signal input settings.175
Select to set the video sig-
nal format settings.175
Select to change the num-
ber of preset radio stations
displayed on the screen.175
Select to set detailed cover
art settings.176
*Select to set detailed DVD
settings.176
*: Only in DVD video mode

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
Audio/visual system
4
1756. Setup
1Display the audio setting screen.
(P.174)
2Select “iPod Settings” .
3Select “Video Sound Input” .
4Select a screen button for the desired
setting.
1Display the audio setting screen.
(P.174)
2Select “External Video Settings” .
3Select “Video Signal Switch” .
4Select a screen button for the desired
setting.
1Display the audio setting screen.
(P.174)
2Select “Number of Radio Presets” .
3Select the button with the desired num-
ber to be displayed.
“Default”: Select to default the settings.
iPod settingsExternal video settings
Setting the number of radio
presets

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
1766. Setup
1Display the audio setting screen.
(P.174)
2Select “Cover Art Settings” .
3Select the desired button to be set.
1Display the audio setting screen.
(P.174)
2Select “DVD Settings” .
Selecting “DVD Settings” on the DVD top
screen can also display “DVD Settings”
screen. ( P.135)
3Select the items to be set.
 When “Default” is selected, all menus are
initialized.
■Audio language
1Select “Audio Language” .
2Select the desired language to be
heard on the “Audio Language”
screen.
If the desired language to be heard cannot
be found on this screen, select “Other”
and enter a language code. ( P.177)
Cover art settings
No.Function
Select on/off to set the cover art dis-
play in DISC mode.
Select on/off to set the cover art dis-
play in USB mode.
Select on/off to set the priority of the
Gracenote database in USB mode.
Select on/off to set the cover art dis-
play in iPod mode.
Select on/off to set the priority of the
Gracenote database in iPod mode.
INFORMATION
● Images from the Gracenote database
displayed on the screen may be different
from the actual cover art.
DVD settings
The audio language can be changed.

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
Audio/visual system
4
1776. Setup
■Subtitle language
1Select “Subtitle Language” .
2Select the desired language to be read
on the “Subtitle Language” screen.
If the desired language to be read cannot
be found on this screen, select “Other”
and enter a language code. ( P.177)
■Menu language
1Select “Menu Language” .
2Select the desired language to be read
on the “Menu Language” screen.
If the desired language to be read cannot
be found on this screen, select “Other”
and enter a language code. ( P.177)
■Angle mark
1Select “Angle Mark”.
2Select “On” or “Off”.
■Parental lock
1Select “Parental Lock” .
2Enter the 4-digit personal code on the
“Key Code” screen.
3Select a parental level ( 1-8) on the
“Select Restricti on Level” screen.
■Auto start
1Select “Auto Start Playback” .
2Select “On” or “Off” .
■Sound dynamic range
1Select “Dynamic Range”.
2Select “MAX” , “STD” or “MIN”.
■Enter audio/subtitle/menu lan-
guage code
1Enter the 4-digit language code.
2Select “OK”.
The subtitle language can be changed.
The language on the DVD video menu
can be changed.
The multi-angle mark can be turned on
or off on the screen while discs that are
multi-angle compatible are being
played.
The level of viewer restrictions can be
changed.Discs that are inserted while the vehi-
cle is in motion will automatically start
playing. Certain discs may not play.
The difference between the lowest vol-
ume and the highest volume can be
adjusted.
If “Other” on the “Audio Language”
screen, “Subtitle Language” screen or
“Menu Language” screen is selected,
the desired language to be heard or
read can be selected by entering a lan-
guage code.

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
1786. Setup

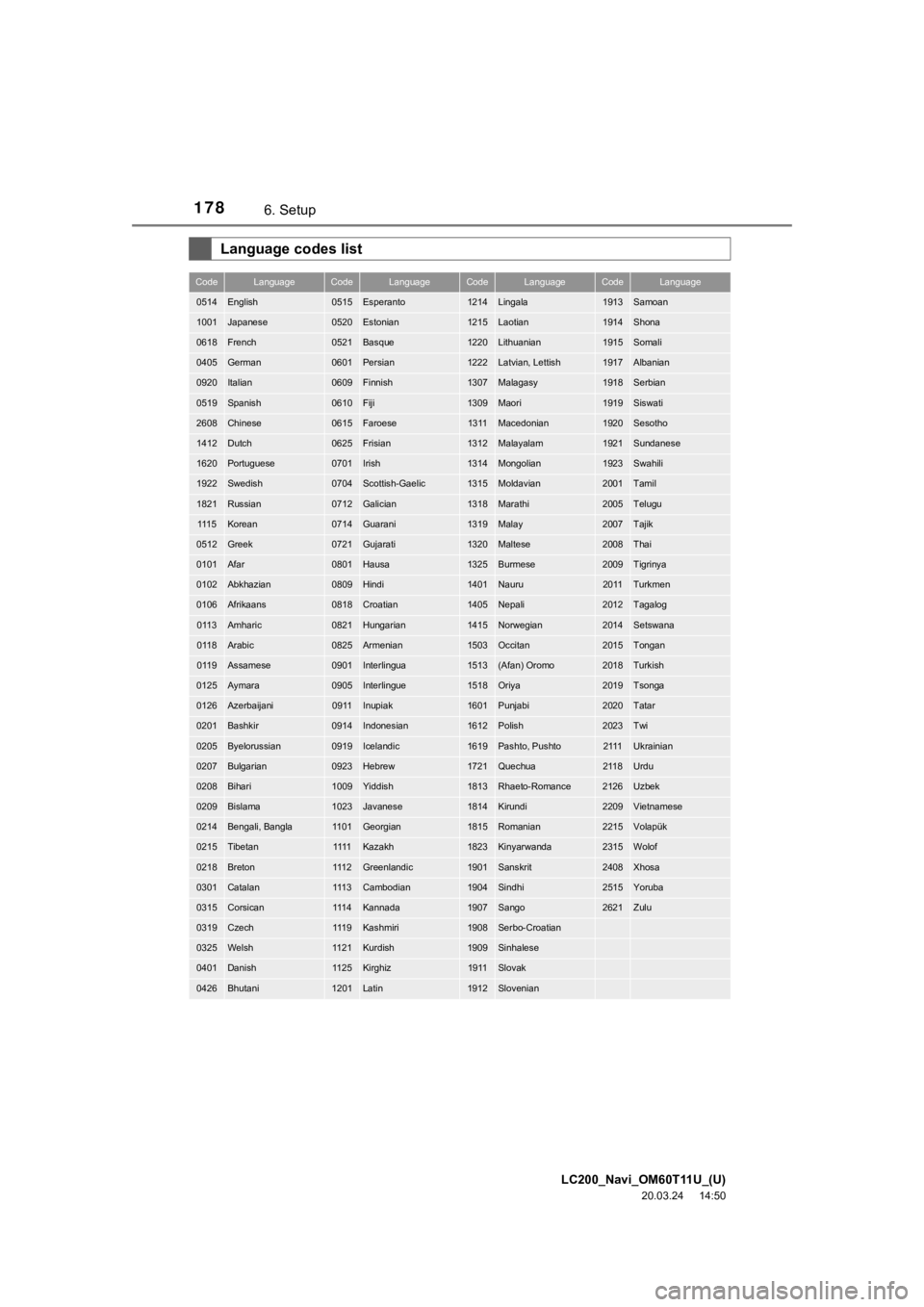

Language codes list
CodeLanguageCodeLanguageCodeLanguageCodeLanguage
0514English0515Esperanto1214Lingala1913Samoan
1001Japanese0520Estonian1215Laotian1914Shona
0618French0521Basque1220Lithuanian1915Somali
0405German0601Persian1222Latvian, Lettish1917Albanian
0920Italian0609Finnish1307Malagasy1918Serbian
0519Spanish0610Fiji1309Maori1919Siswati
2608Chinese0615Faroese1311Macedonian1920Sesotho
1412Dutch0625Frisian1312Malayalam1921Sundanese
1620Portuguese0701Irish1314Mongolian1923Swahili
1922Swedish0704Scottish-Gaelic1315Moldavian2001Tamil
1821Russian0712Galician1318Marathi2005Telugu
111 5Korean0714Guarani1319Malay2007Tajik
0512Greek0721Gujarati1320Maltese2008Thai
0101Afar0801Hausa1325Burmese2009Tigrinya
0102Abkhazian0809Hindi1401Nauru2011Turkmen
0106Afrikaans0818Croatian1405Nepali2012Tagalog
0113Amharic0821Hungarian1415Norwegian2014Setswana
0118Arabic0825Armenian1503Occitan2015Tongan
0119Assamese0901Interlingua1513(Afan) Oromo2018Turkish
0125Aymara0905Interlingue1518Oriya2019Tsonga
0126Azerbaijani0911Inupiak1601Punjabi2020Tatar
0201Bashkir0914Indonesian1612Polish2023Twi
0205Byelorussian0919Icelandic1619Pashto, Pushto2111Ukrainian
0207Bulgarian0923Hebrew1721Quechua2118Urdu
0208Bihari1009Yiddish1813Rhaeto-Romance2126Uzbek
0209Bislama1023Javanese1814Kirundi2209Vietnamese
0214Bengali, Bangla11 0 1Georgian1815Romanian2215Volapük
0215Tibetan1111Kazakh1823Kinyarwanda2315Wolof
0218Breton111 2Greenlandic1901Sanskrit2408Xhosa
0301Catalan111 3Cambodian1904Sindhi2515Yoruba
0315Corsican111 4Kannada1907Sango2621Zulu
0319Czech111 9Kashmiri1908Serbo-Croatian
0325Welsh11 2 1Kurdish1909Sinhalese
0401Danish11 2 5Kirghiz1911Slovak
0426Bhutani1201Latin1912Slovenian

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
Audio/visual system
4
1797. Tips for operating the audio/visual systemFading and drifting stations: Generally, the
effective range of FM is about 25 miles (40
km). Once outside this range, you may no-
tice fading and drifti ng, which increase with
the distance from the radio transmitter.
They are often accompanied by distortion.
Multi-path: FM signals are reflective, mak-
ing it possible for 2 signals to reach the ve-
hicle’s antenna at the same time. If this
happens, the signals will cancel each other
out, causing a momentar y flutter or loss of
reception.
Static and fluttering: These occur when
signals are blocked by buildings, trees or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping: If the FM signal being
listened to is interrupted or weakened, and
there is another str ong station nearby on
the FM band, the radio may tune in the
second station until the original signal can
be picked up again.
Operating information
NOTICE
● To avoid damage to the audio/visual
system:
• Be careful not to spill beverages over
the audio/visual system.
• Do not put anything other than an appropriate disc into the disc slot.
INFORMATION
● The use of a cellular phone inside or
near the vehicle may cause a noise from
the speakers of the audio/visual system
which you are listening to. However, this
does not indicate a malfunction.
Radio
Usually, a problem with radio reception
does not mean there is a problem with
the radio — it is just the normal result
of conditions outside the vehicle.
For example, nearby buildings and ter-
rain can interfere with FM reception.
Power lines or phone wires can inter-
fere with AM signals. And of course, ra-
dio signals have a limited range. The
farther the vehicle is from a station, the
weaker its signal will be. In addition, re-
ception conditions change constantly
as the vehicle moves.
Here, some common reception prob-
lems that probably do not indicate a
problem with the radio are described.
FM

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
1807. Tips for operating the audio/visual system
Fading: AM broadcasts are reflected by
the upper atmosphere — especially at
night. These reflected signals can interfere
with those received directly from the radio
station, causing the radio station to sound
alternately strong and weak.
Station interference: When a reflected sig-
nal and a signal received directly from a ra-
dio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
Static: AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening or electrical
motors. This results in static.
 Cargo loaded on the roof luggage carrier,
especially metal objects, may adversely
affect the reception of XM Satellite Radio.
 Alternation or modifications carried out
without appropriate authorization may
invalidate the user’s right to operate the
equipment.
 This DVD player is intended for use with
4.7 in. (12 cm). discs only.
 Extremely high temperatures can keep the
DVD player from working. On hot days,
use the air conditioning system to cool the
inside of the vehicle before using the
player.
 Bumpy roads or other vibrations may
make the DVD player skip.
 If moisture gets into the DVD player, the
discs may not be able to be played.
Remove the discs from the player and
wait until it dries.
AMXM
DVD player and disc
WA R N I N G
●DVD players use an invisible laser beam
which could cause hazardous radiation
exposure if directed outside the unit. Be
sure to operate the player correctly.
