TOYOTA LAND CRUISER 2021 Accessories, Audio & Navigation (in English)

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
Navigation system
3
813. Route guidance
1Select the route information bar ( ) or
the route information button ( ) to
change the display of the route infor-
mation bar.
Route guidance screen
During the route guidance, various
types of guidance screens can be dis-
played depending on conditions.
Screen for route guidance
No.Information
Distance to the next turn and an ar-
row indicating the turning direction
Guidance route
Current position
Current street name or route infor-
mation
INFORMATION
●If the vehicle goes off the guidance
route, the route is searched again.
● For some areas, the roads have not
been completely digitized in our data-
base. For this reason, the route guid-
ance may select a road that should not
be traveled on.
● When arriving at the set destination the
destination name will be displayed on
the upper part of the screen.
Changing route information bar
When the vehicle is on the guidance
route, the route information bar dis-
plays the current street name or the
distance with the estimated travel/ar-
rival time to the destination.
No.Information
Select to change the display be-
tween the estimated travel time and
the estimated arrival time.
Select to change the display be-
tween the current street name and
the distance with the estimated trav-
el/arrival time.
INFORMATION
● When the vehicle is on the guidance
route, the distance measured along the
route is displayed. Travel time and
arrival time are calculated based on the
average speed for the specified speed
limit.
● When the vehicle gets off the guidance
route, the arrow facing the destination is
displayed instead of the estimated
travel/arrival time.
● The route information bar fills from left to
right as the vehicle progresses on the
route.

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
823. Route guidance
1Select the route information bar.
2Check that the list of the distance and
time is displayed.
By selecting one of the number buttons,
the desired route information is displayed.
1Select “Options” on the map screen.
2Select “Route Overview” .
3Check that the entire route map is dis-
played.
For details about this screen: P. 7 8
Distance and time to
destination
When driving on the guidance route
with more than 1 destination set, a list
of the distance with estimated travel/
arrival time from the current position to
each destination is displayed.Route overview
The entire route from the current posi-
tion to the destination can be displayed
during the route guidance.

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
Navigation system
3
833. Route guidance
During freeway driving
During freeway driving, the freeway
exit information screen will be dis-
played.
No./
IconInformation/Function
Distance and time from the current
position to the road traffic facilities.
Name of the road traffic facilities.
POIs that are close to a freeway exit
Select to display the selected map of
the exit vicinity.
Select to scroll to farther road traffic
facilities.
Select to scroll to closer road traffic
facilities.
When approaching freeway exit
or junction
When the vehicle approaches an exit
or junction, the freeway guidance
screen will be displayed.
No.Information/Function
Next exit or junction name
Distance from the current position to
the exit or junction
Select to hide the freeway guidance
screen. To return to the freeway
guidance screen, select .
Bar showing the remaining distance
to the guidance point.

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
843. Route guidance
Tollgate guidance
When the vehicle approaches a toll-
gate, the tollgate view will be dis-
played.
No.Information/Function
Distance from the current position to
the tollgate
Select to hide the tollgate guidance
screen. To return to the tollgate
guidance screen, select .
Bar showing the remaining distance
to the guidance point.
Real freeway junction view
When the vehicle approaches a junc-
tion, the junction view with signage will
be displayed.
No.Information/Function
Next junction or street name
Select to hide the real freeway junc-
tion view. To return to the real free-
way junction view, select .
Distance from the current position to
the next junction
Bar showing the remaining distance
to the guidance point.

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
Navigation system
3
853. Route guidance
1Select “Turn List” on the “Map Mode”
screen. ( P.58)
2Check that the turn list screen is dis-
played.
When approaching intersection
When the vehicle approaches an inter-
section, the intersection guidance
screen will be displayed.
No.Information/Function
Next street name
Select to hide the intersection guid-
ance screen. To return to the inter-
section guidance screen, select .
Distance to the intersection
Bar showing the remaining distance
to the guidance point.
Turn list screen
No.Information
Turn direction
Distance between turns
Next street or destination name

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
863. Route guidance
1Select “Turn-by-Turn Arrow” on the
“Map Mode” screen. ( P.58)
2Check that the turn-by-turn arrow
screen is displayed.
Turn-by-turn arrow screen
On this screen, information about the
next turn on the guidance route can be
displayed.
No.Information
Exit number or street name
Turn direction
Distance to the next turn
Typical voice guidance
prompts
As the vehicle approaches an intersec-
tion, or point, where maneuvering the
vehicle is necessary, the system’s
voice guidance will provide various
messages.
WA R N I N G
● Be sure to obey the traffic regulations
and keep the road condition in mind
especially when you are driving on IPD
roads (roads that are not completely dig-
itized in our database). The route guid-
ance may not have the updated
information such as the direction of a
one way street.
INFORMATION
●If a voice guidance command cannot be
heard, select on the map screen
to hear it again.
● To adjust the voice guidance volume:
P. 4 9
● Voice guidance may be made early or
late.
● If the system cannot determine the cur-
rent position correctly, you may not hear
voice guidance or may not see the mag-
nified intersection on the screen.

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
Navigation system
3
873. Route guidance
1Press the “NAV” button.
2Select “Options”.
3Select “Edit Route” .
4Select the item to be set.
5Check that the entire route map is dis-
played. (P.78)
1Display the “Route” screen. ( P.87)
2Select “Add”.
3Search for an additional destination in
the same way as a destination search.
(P.68)
4Select “Add Destination Here” to in-
sert the new destinat ion into the route.
Editing routeNo.FunctionPage
Select to add destinations.87
Select to delete destina-
tions.88
Select to reorder destina-
tions.88
Select to set route prefer-
ences.88
Select to change route
type.88
Select to set detours.89
Select to start from adja-
cent road.89
Adding destinations

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
883. Route guidance
1Display the “Route” screen. (P.87)
2Select “Reorder” .
3Select the desired destination and se-
lect “Move Up” or “Move Down” to
change the arrival order. Then select
“OK” .
1Display the “Route” screen. ( P.87)
2Select “Delete” .
3Select “Yes” when the confirmation
screen appears.
 When more than 1 destination has been
set, a list will be displayed on the screen.
Select the item(s) to be deleted.
“Delete All” : Select to delete all destina-
tions on the list.
 If more than 1 destination has been set,
the system will recalculate the route(s) to
the set destination(s) as necessary.
1Display the “Route” screen. ( P.87)
2Select “Preferences” .
3Select the desired route preferences
and select “OK”.
When set to on, the indicator will illumi-
nate.
1Display the “Route” screen. ( P.87)
2Select “Route Type” .
3Select the desired route type and se-
lect “OK” .
During driving, the route guidance starts
after selecting the desired route type.
Reordering destinations
When more than 1 destination has
been set, the arrival order of the desti-
nations can be changed.
Deleting destinations
Setting route preferences
The conditions to determine the route
can be selected from various choices
such as freeways, toll roads, ferries,
etc.
Selecting route type

LC200_Navi_OM60T11U_(U)
20.03.24 14:50
Navigation system
3

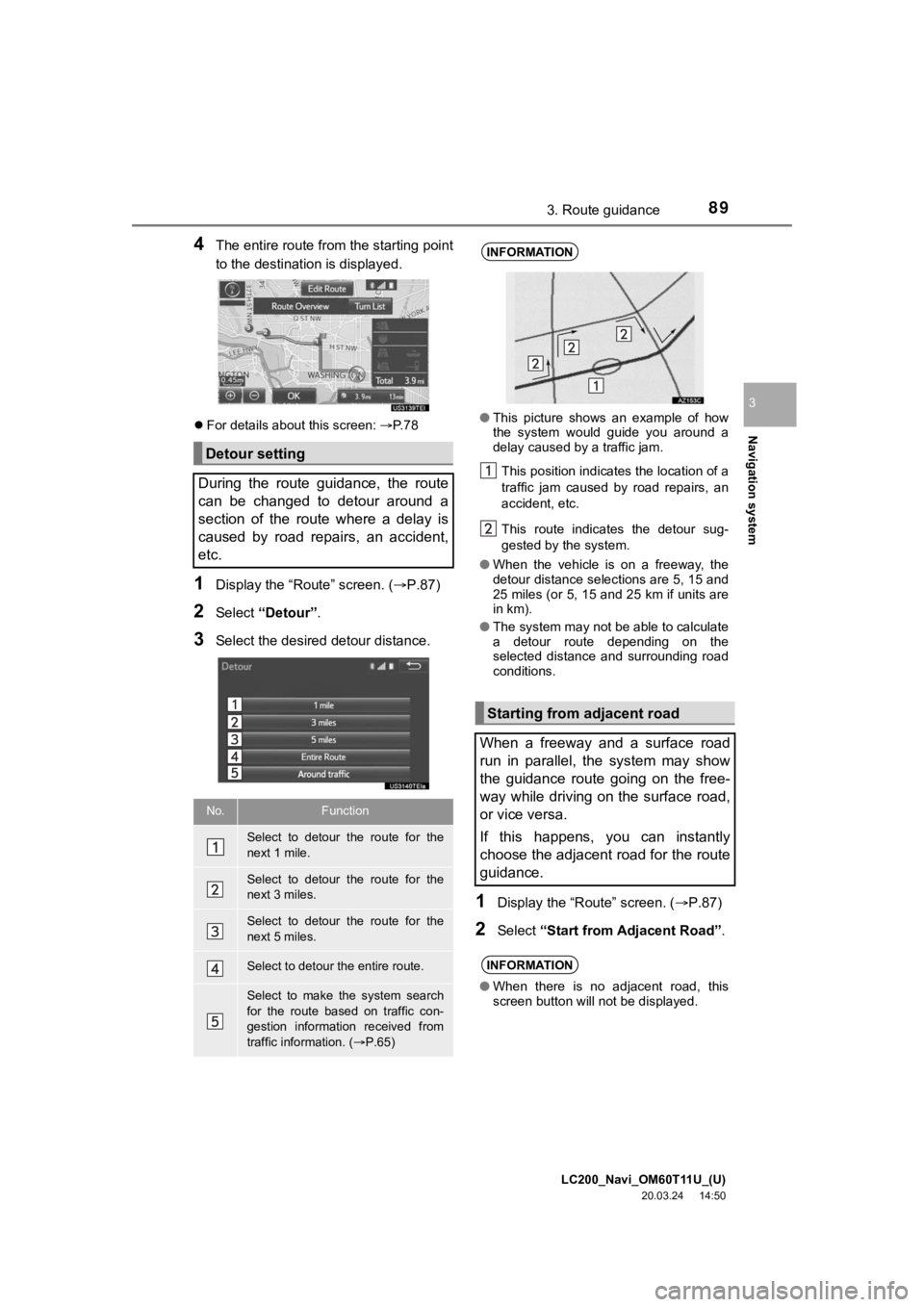

893. Route guidance
4The entire route from the starting point
to the destination is displayed.
For details about this screen: P. 7 8
1Display the “Route” screen. ( P.87)
2Select “Detour” .
3Select the desired detour distance.
1Display the “Route” screen. ( P.87)
2Select “Start from Adjacent Road” .
Detour setting
During the route guidance, the route
can be changed to detour around a
section of the route where a delay is
caused by road repairs, an accident,
etc.
No.Function
Select to detour the route for the
next 1 mile.
Select to detour the route for the
next 3 miles.
Select to detour the route for the
next 5 miles.
Select to detour the entire route.
Select to make the system search
for the route based on traffic con-
gestion information received from
traffic information. ( P.65)
INFORMATION
● This picture shows an example of how
the system would guide you around a
delay caused by a traffic jam.
This position indicates the location of a
traffic jam caused by road repairs, an
accident, etc.
This route indicates the detour sug-
gested by the system.
● When the vehicle is on a freeway, the
detour distance selections are 5, 15 and
25 miles (or 5, 15 and 25 km if units are
in km).
● The system may not be able to calculate
a detour route depending on the
selected distance and surrounding road
conditions.
Starting from adjacent road
When a freeway and a surface road
run in parallel, the system may show
the guidance route going on the free-
way while driving on the surface road,
or vice versa.
If this happens, you can instantly
choose the adjacent road for the route
guidance.
INFORMATION
● When there is no adjacent road, this
screen button will not be displayed.

LC200_Navi_OM60T11U_(U)
20.03.24 14:50

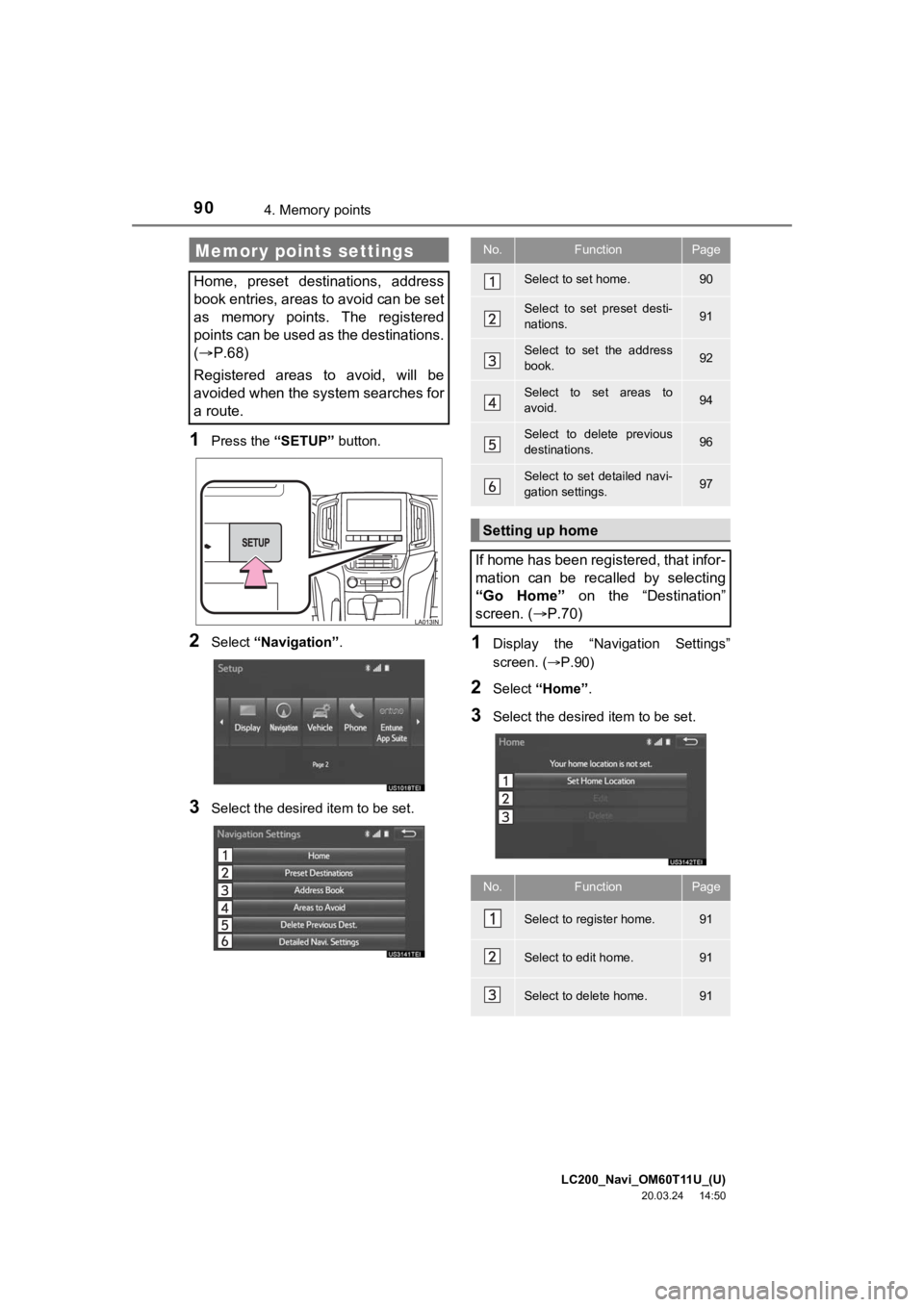

904. Memory points
1Press the “SETUP” button.
2Select “Navigation” .
3Select the desired item to be set.
1Display the “Navigation Settings”
screen. (P.90)
2Select “Home” .
3Select the desired item to be set.
Memory points settings
Home, preset destinations, address
book entries, areas to avoid can be set
as memory points. The registered
points can be used as the destinations.
( P.68)
Registered areas to avoid, will be
avoided when the system searches for
a route.
No.FunctionPage
Select to set home.90
Select to set preset desti-
nations.91
Select to set the address
book.92
Select to set areas to
avoid.94
Select to delete previous
destinations.96
Select to set detailed navi-
gation settings.97
Setting up home
If home has been registered, that infor-
mation can be recalled by selecting
“Go Home” on the “Destination”
screen. ( P.70)
No.FunctionPage
Select to register home.91
Select to edit home.91
Select to delete home.91
