TOYOTA LAND CRUISER 2021 (in English) Owner's Guide

29
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

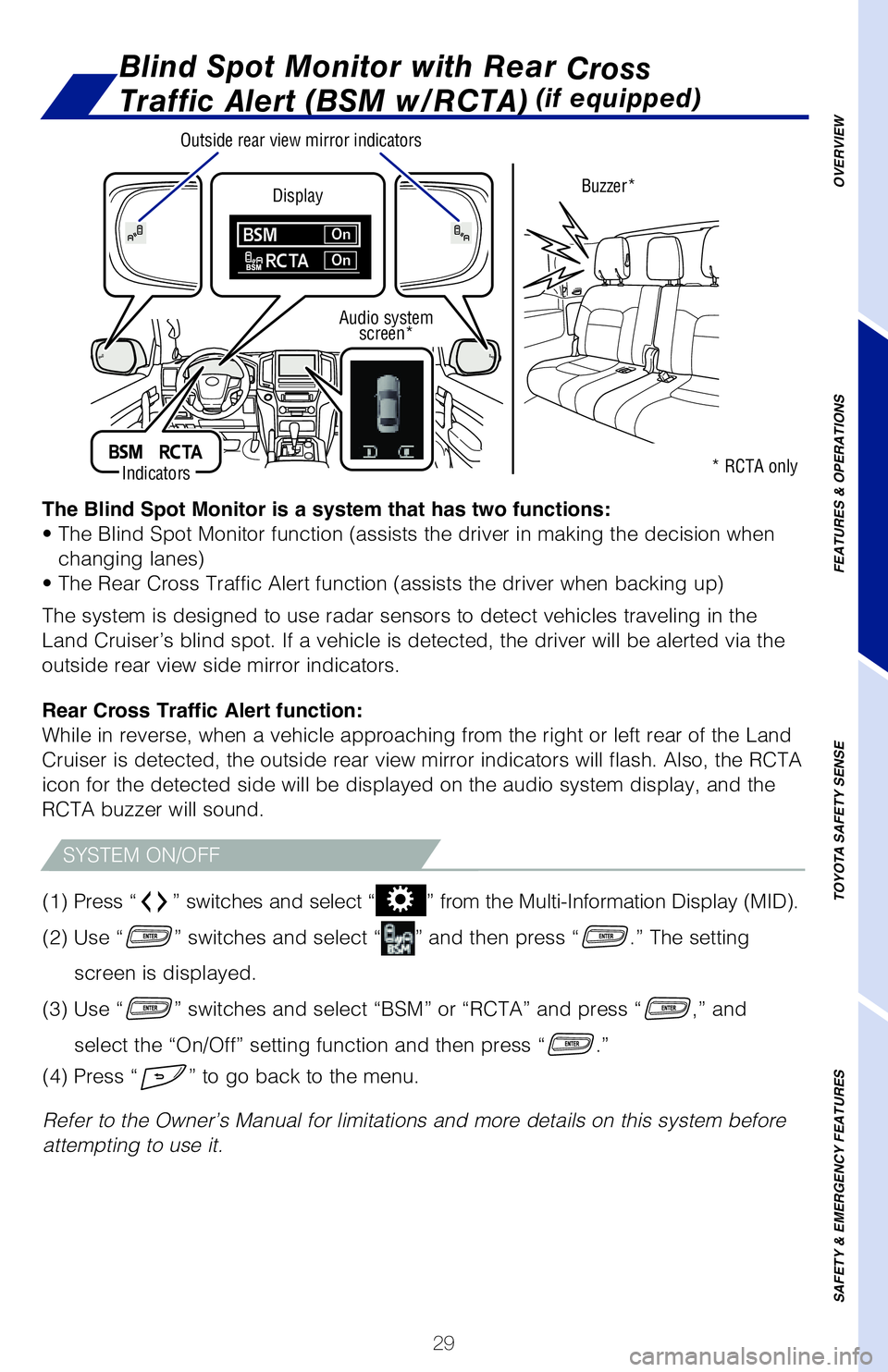

The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the decision when
changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing up)
The system is designed to use radar sensors to detect vehicles traveling\
in the
Land Cruiser’s blind spot. If a vehicle is detected, the driver will \
be alerted via the
outside rear view side mirror indicators.
Rear Cross Traffic Alert function:
While in reverse, when a vehicle approaching from the right or left rear\
of the Land
Cruiser is detected, the outside rear view mirror indicators will flash.\
Also, the RCTA
icon for the detected side will be displayed on the audio system display\
, and the
RCTA buzzer will sound.
Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA)
(if equipped)
Indicators
Display
Audio system screen* Buzzer*
* RCTA only
Outside rear view mirror indicators
SYSTEM ON/OFF
(1)
Press “” switches and select “” from the Multi-Information Display (MID).
(2) Use “
” switches and select “” and then press “.” The setting
screen is displayed.
(3) Use “
” switches and select “BSM” or “RCTA” and press “,” and
select the “On/Off” setting function and then press “
.”
(4) Press “
” to go back to the menu.
Refer to the Owner’s Manual for limitations and more details on this \
system before
attempting to use it.

30

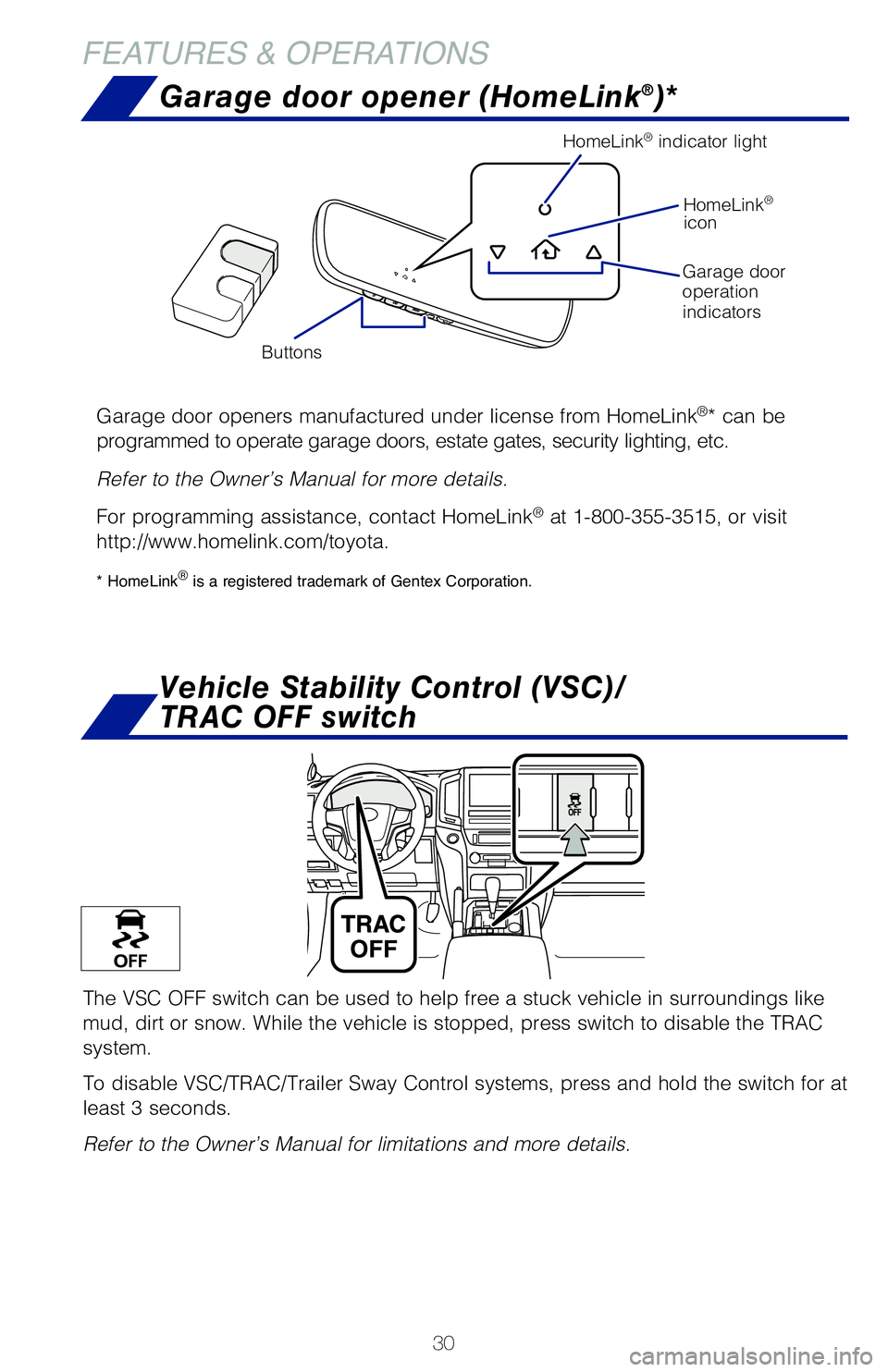

FEATURES & OPERATIONSGarage door opener (HomeLink
®)*
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to the Owner’s Manual for more details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com/toyota.
* HomeLink® is a registered trademark of Gentex Corporation.
HomeLink® indicator light
HomeLink
®
icon
Buttons Garage door
operation
indicators
Vehicle Stability Control (VSC)/
TRAC OFF switch
The VSC OFF switch can be used to help free a stuck vehicle in surroundi\
ngs like
mud, dirt or snow. While the vehicle is stopped, press switch to disable\
the TRAC
system.
To disable VSC/TRAC/Trailer Sway Control systems, press and hold the swi\
tch for at
least 3 seconds.
Refer to the Owner’s Manual for limitations and more details.

31
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

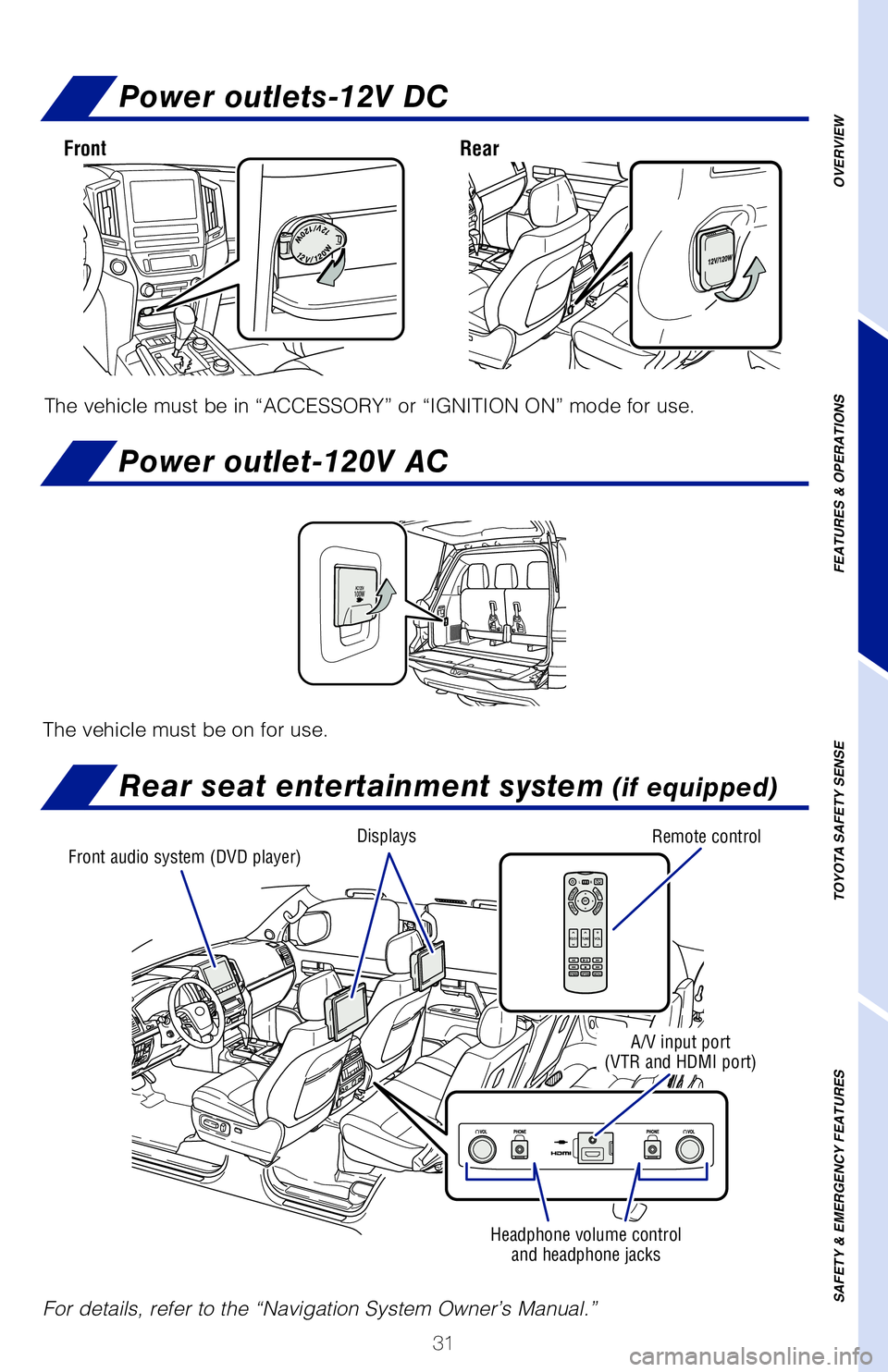

Rear seat entertainment system (if equipped)
Front audio system (DVD player) Displays
Remote control
Headphone volume control and headphone jacks
A/V input port
(VTR and HDMI port)
For details, refer to the “Navigation System Owner’s Manual.”
Power outlets-12V DC
The vehicle must be in “ACCESSORY” or “IGNITION ON” mode for\
use.
FrontRear
Power outlet-120V AC
The vehicle must be on for use.

32

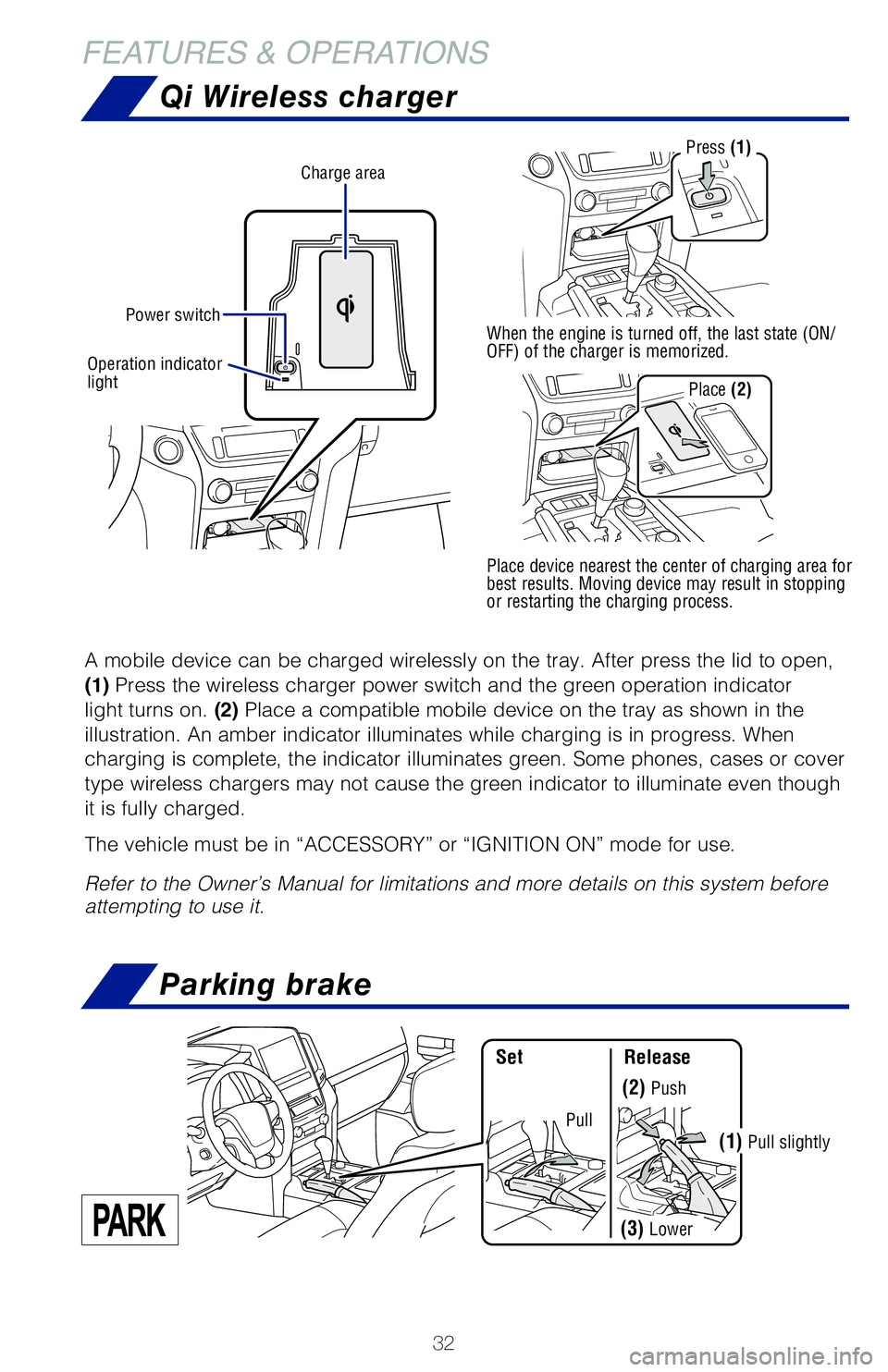

Qi Wireless charger
Parking brake
FEATURES & OPERATIONS
(2) Push
SetRelease
(1) Pull slightly
(3) Lower
Pull
A mobile device can be charged wirelessly on the tray. After press the l\
id to open,
(1) Press the wireless charger power switch and the green operation indicat\
or
light turns on. (2) Place a compatible mobile device on the tray as shown in the
illustration. An amber indicator illuminates while charging is in progre\
ss. When
charging is complete, the indicator illuminates green. Some phones, case\
s or cover
type wireless chargers may not cause the green indicator to illuminate e\
ven though
it is fully charged.
The vehicle must be in “ACCESSORY” or “IGNITION ON” mode for\
use.
Refer to the Owner’s Manual for limitations and more details on this \
system before
attempting to use it.
Power switch
Charge area
Operation indicator
light
Press (1)
When the engine is turned off, the last state (ON/
OFF) of the charger is memorized.
Place device nearest the center of charging area for
best results. Moving device may result in stopping
or restarting the charging process.
Place (2)

33

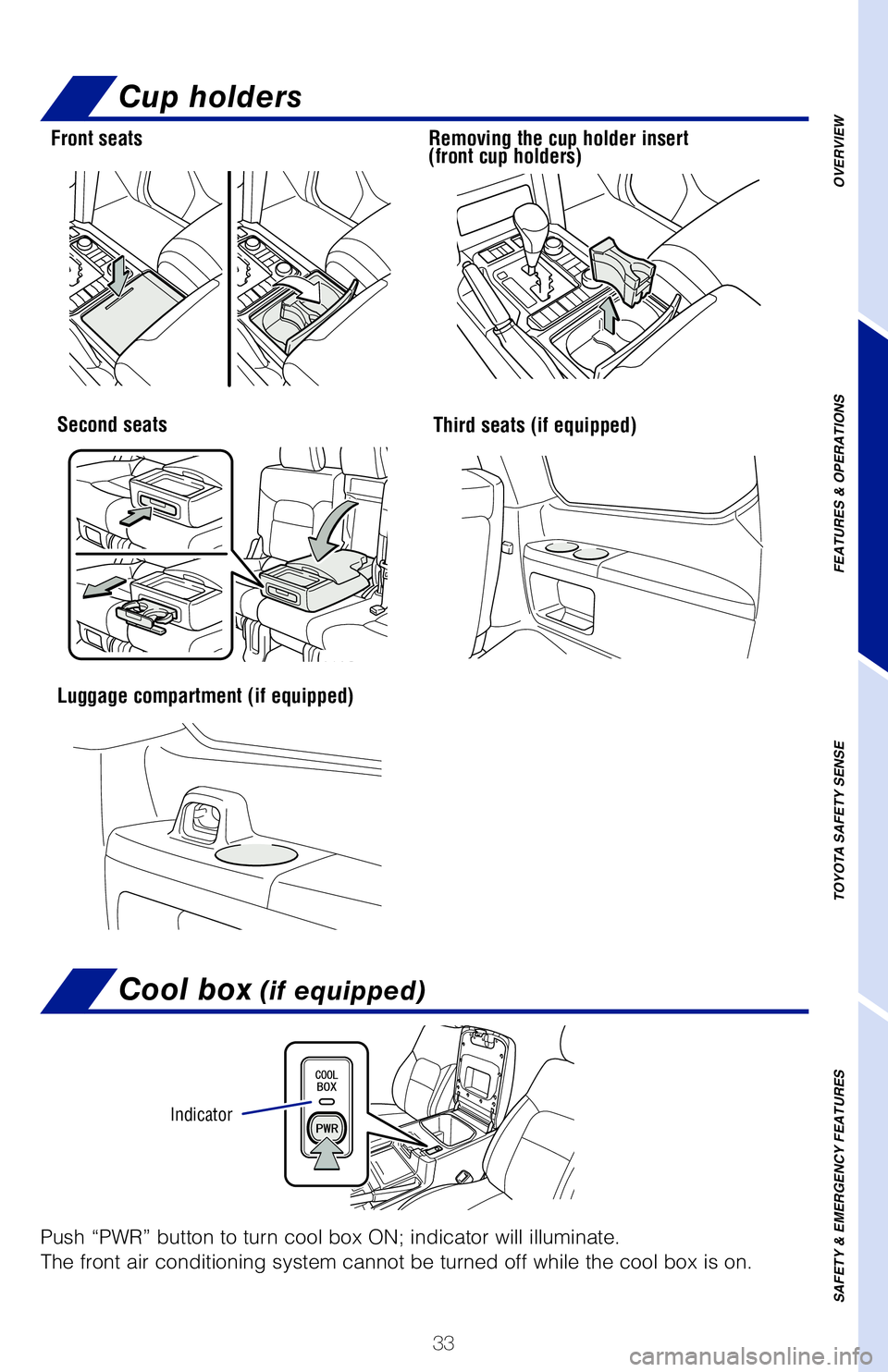

Cup holders
Cool box (if equipped)
Push “PWR” button to turn cool box ON; indicator will illuminate.
The front air conditioning system cannot be turned off while the cool bo\
x is on.
Indicator
Front seats
Third seats (if equipped)Second seats
Luggage compartment (if equipped)
Removing the cup holder insert
(front cup holders)
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

34
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to http://www.toyota.com/safety-sense.
Pre-Collision System with Pedestrian Detection (PCS w/PD)
PCS w/PD is designed to provide alert, mitigation, and/or avoidance
support in certain conditions, when the system detects a potential
collision with a preceding vehicle is likely to occur.
The advanced grille-mounted radar system is designed to work with
the forward-facing camera to help recognize a preceding pedestrian,
and provide an alert, mitigation and/or avoidance support in certain
conditions.
Lane Departure Alert (LDA)
LDA is designed to provide notification when the system detects an
unintended lane departure.Automatic High Beams (AHB)
AHB is designed to detect the headlights of oncoming vehicles and the
tail lights of preceding vehicles and switch between high beams and
low beams as appropriate.
Dynamic Radar Cruise Control (DRCC)
DRCC is designed to help maintain a pre-set distance to a preceding
vehicle when the preceding vehicle is traveling at a lower speed.

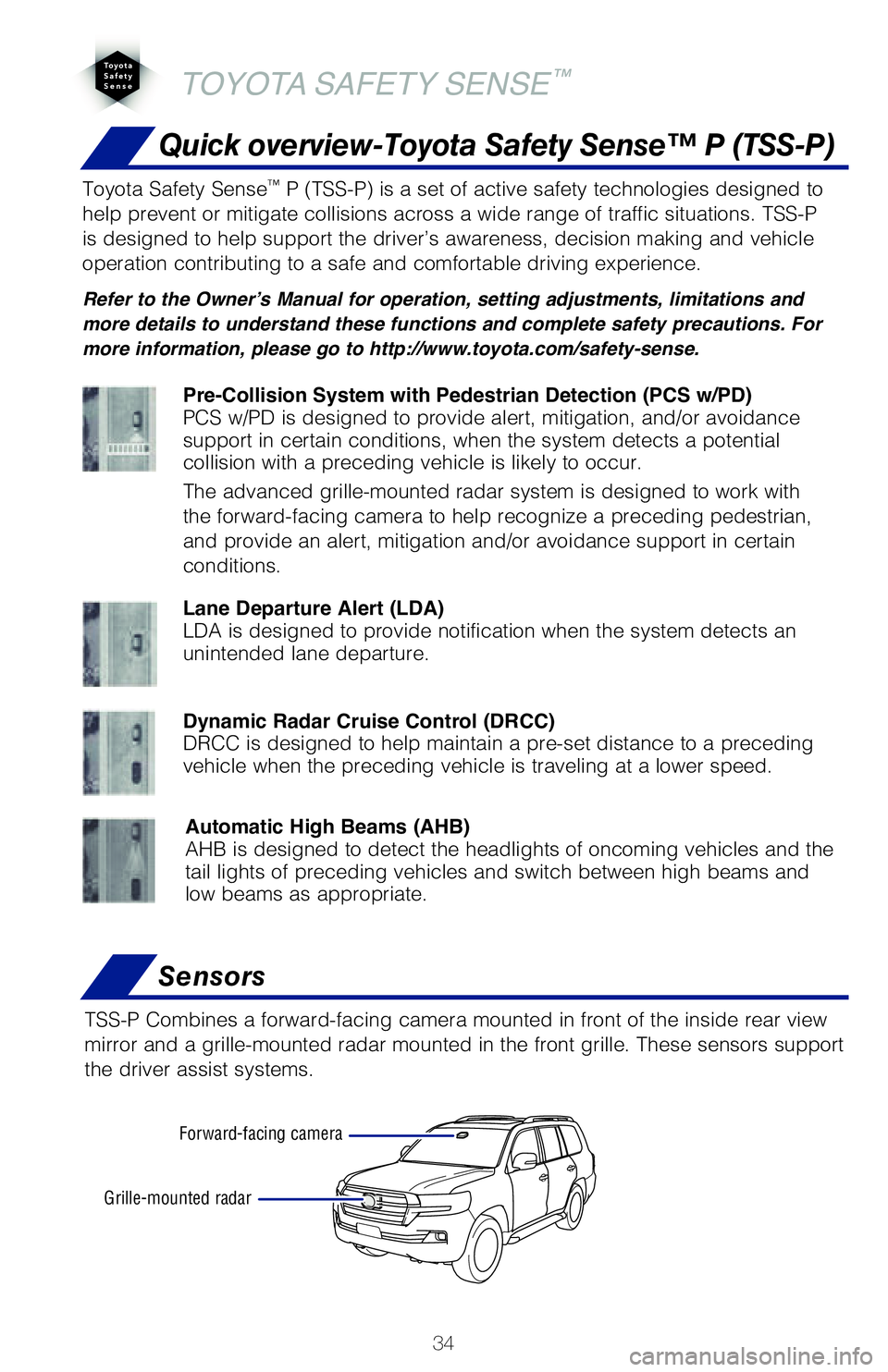

Quick overview-Toyota Safety Sense™ P (TSS-P)
Sensors
Toyota Safety Sense™ P (TSS-P) is a set of active safety technologies designed to
help prevent or mitigate collisions across a wide range of traffic situa\
tions. TSS-P
is designed to help support the driver’s awareness, decision making a\
nd vehicle
operation contributing to a safe and comfortable driving experience.
TSS-P Combines a forward-facing camera mounted in front of the inside re\
ar view
mirror and a grille-mounted radar mounted in the front grille. These sen\
sors support
the driver assist systems.
Grille-mounted radar Forward-facing camera
TOYOTA SAFETY SENSE™

35
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

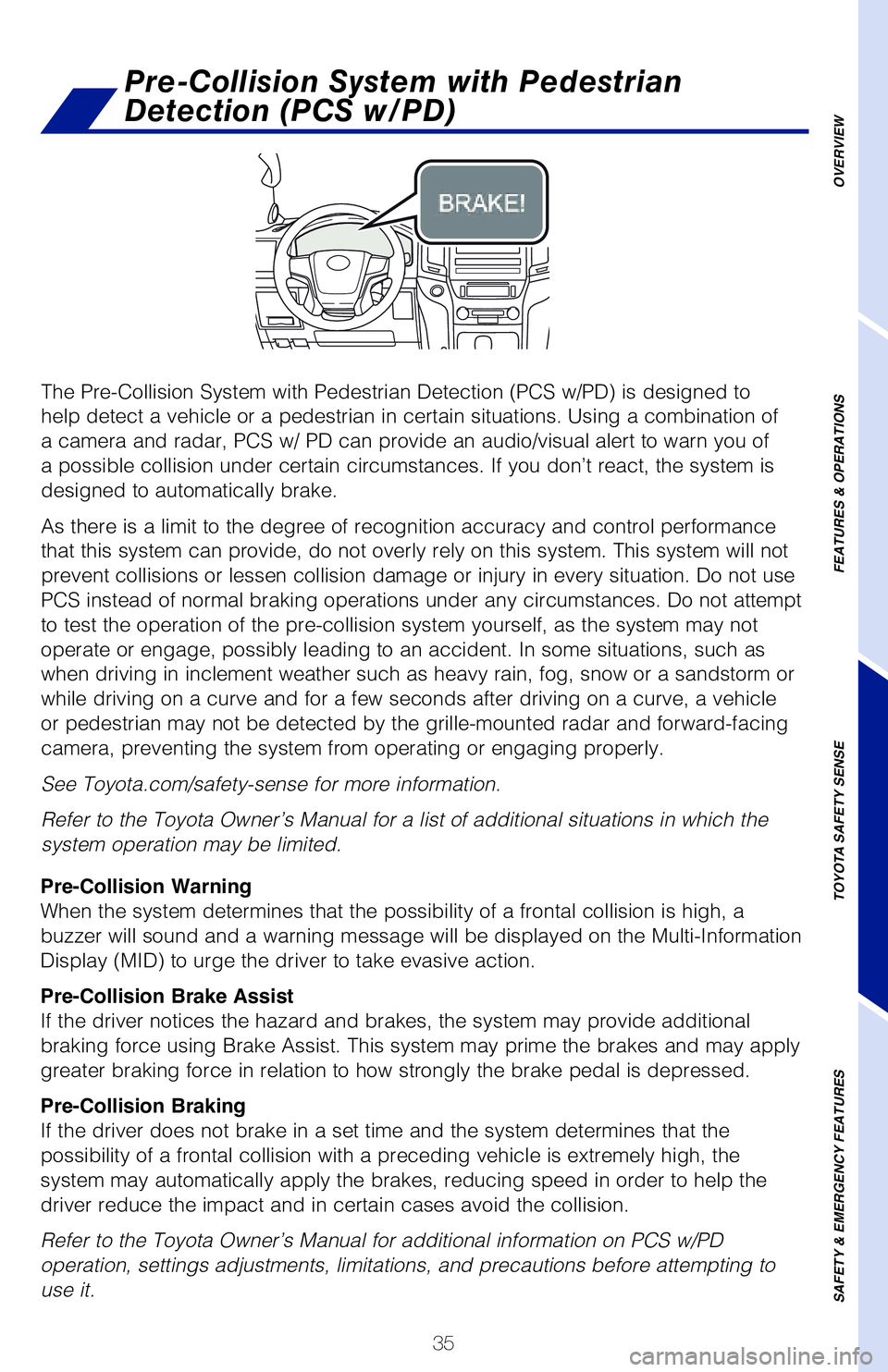

The Pre-Collision System with Pedestrian Detection (PCS w/PD) is designed to
help detect a vehicle or a pedestrian in certain situations. Using a com\
bination of
a camera and radar, PCS w/ PD can provide an audio/visual alert to warn \
you of
a possible collision under certain circumstances. If you don’t react,\
the system is
designed to automatically brake.
As there is a limit to the degree of recognition accuracy and control pe\
rformance
that this system can provide, do not overly rely on this system. This sy\
stem will not
prevent collisions or lessen collision damage or injury in every situati\
on. Do not use
PCS instead of normal braking operations under any circumstances. Do not\
attempt
to test the operation of the pre-collision system yourself, as the syste\
m may not
operate or engage, possibly leading to an accident. In some situations, \
such as
when driving in inclement weather such as heavy rain, fog, snow or a san\
dstorm or
while driving on a curve and for a few seconds after driving on a curve,\
a vehicle
or pedestrian may not be detected by the grille-mounted radar and forwar\
d-facing
camera, preventing the system from operating or engaging properly.
See Toyota.com/safety-sense for more information.
Refer to the Toyota Owner’s Manual for a list of additional situation\
s in which the
system operation may be limited.
Pre-Collision Warning
When the system determines that the possibility of a frontal collision i\
s high, a
buzzer will sound and a warning message will be displayed on the Multi-I\
nformation
Display (MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide addi\
tional
braking force using Brake Assist. This system may prime the brakes and m\
ay apply
greater braking force in relation to how strongly the brake pedal is dep\
ressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines tha\
t the
possibility of a frontal collision with a preceding vehicle is extremely\
high, the
system may automatically apply the brakes, reducing speed in order to he\
lp the
driver reduce the impact and in certain cases avoid the collision.
Refer to the Toyota Owner’s Manual for additional information on PCS \
w/PD
operation, settings adjustments, limitations, and precautions before att\
empting to
use it.
Pre-Collision System with Pedestrian
Detection (PCS w/PD)

36
TOYOTA SAFETY SENSE™

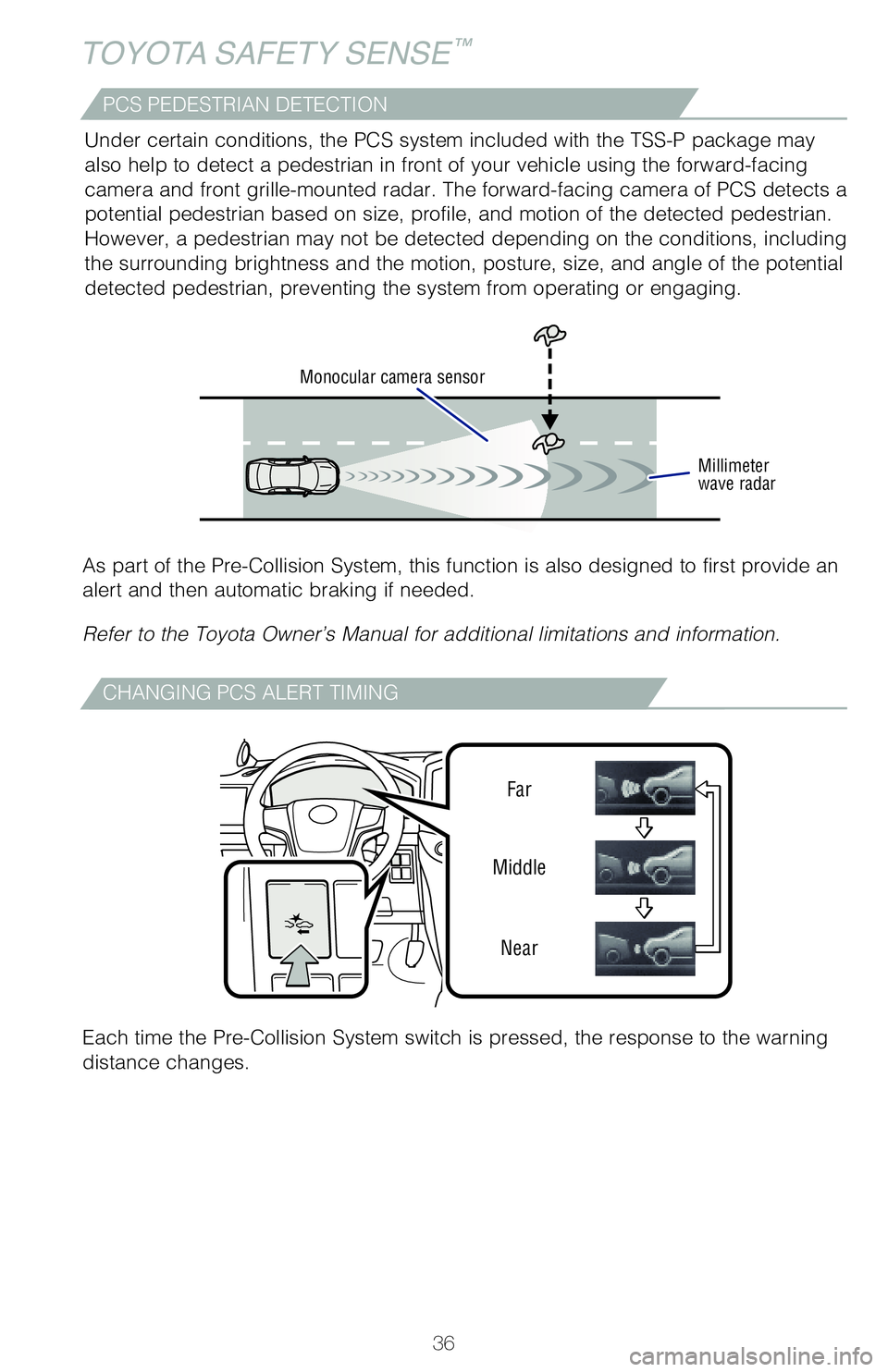

CHANGING PCS ALERT TIMING
Each time the Pre-Collision System switch is pressed, the response to th\
e warning
distance changes.Far
Middle
Near
Monocular camera sensor
Millimeter
wave radar
As part of the Pre-Collision System, this function is also designed to f\
irst provide an
alert and then automatic braking if needed.
Refer to the Toyota Owner’s Manual for additional limitations and inf\
ormation.Under certain conditions, the PCS system included with the TSS-P package\
may
also help to detect a pedestrian in front of your vehicle using the forw\
ard-facing
camera and front grille-mounted radar. The forward-facing camera of PCS \
detects a
potential pedestrian based on size, profile, and motion of the detected \
pedestrian.
However, a pedestrian may not be detected depending on the conditions, i\
ncluding
the surrounding brightness and the motion, posture, size, and angle of t\
he potential
detected pedestrian, preventing the system from operating or engaging.
PCS PEDESTRIAN DETECTION

37

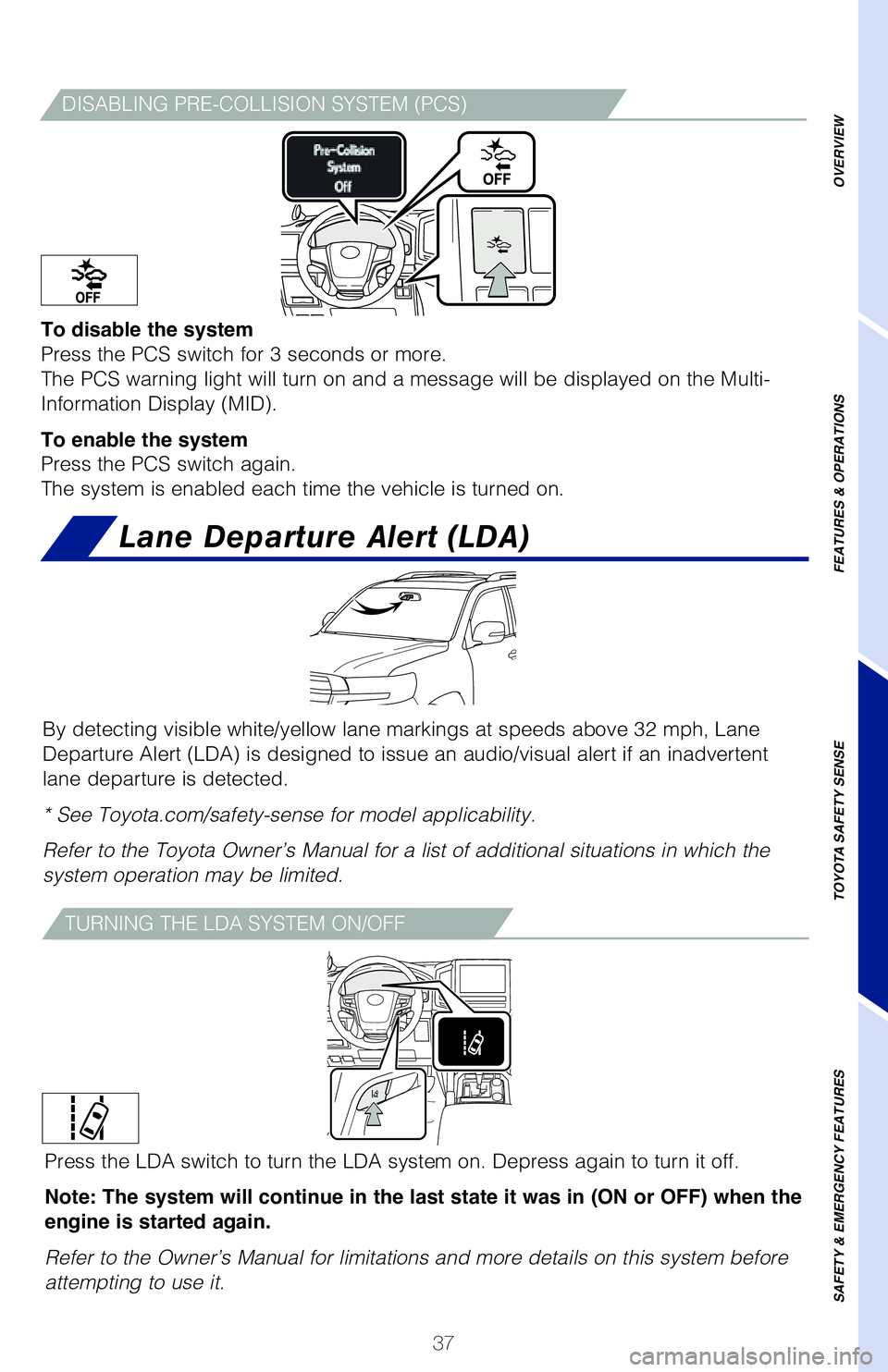

DISABLING PRE-COLLISION SYSTEM (PCS)
To disable the system
Press the PCS switch for 3 seconds or more.
The PCS warning light will turn on and a message will be displayed on th\
e Multi-
Information Display (MID).
To enable the system
Press the PCS switch again.
The system is enabled each time the vehicle is turned on.
Lane Departure Alert (LDA)
TURNING THE LDA SYSTEM ON/OFF
Press the LDA switch to turn the LDA system on. Depress again to turn it\
off.
Note: The system will continue in the last state it was in (ON or OFF) when the
engine is started again.
Refer to the Owner’s Manual for limitations and more details on this \
system before
attempting to use it.
By detecting visible white/yellow lane markings at speeds above 32 mph, \
Lane
Departure Alert (LDA) is designed to issue an audio/visual alert if an inadvertent
lane departure is detected.
* See Toyota.com/safety-sense for model applicability.
Refer to the Toyota Owner’s Manual for a list of additional situation\
s in which the
system operation may be limited.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

38
TOYOTA SAFETY SENSE™

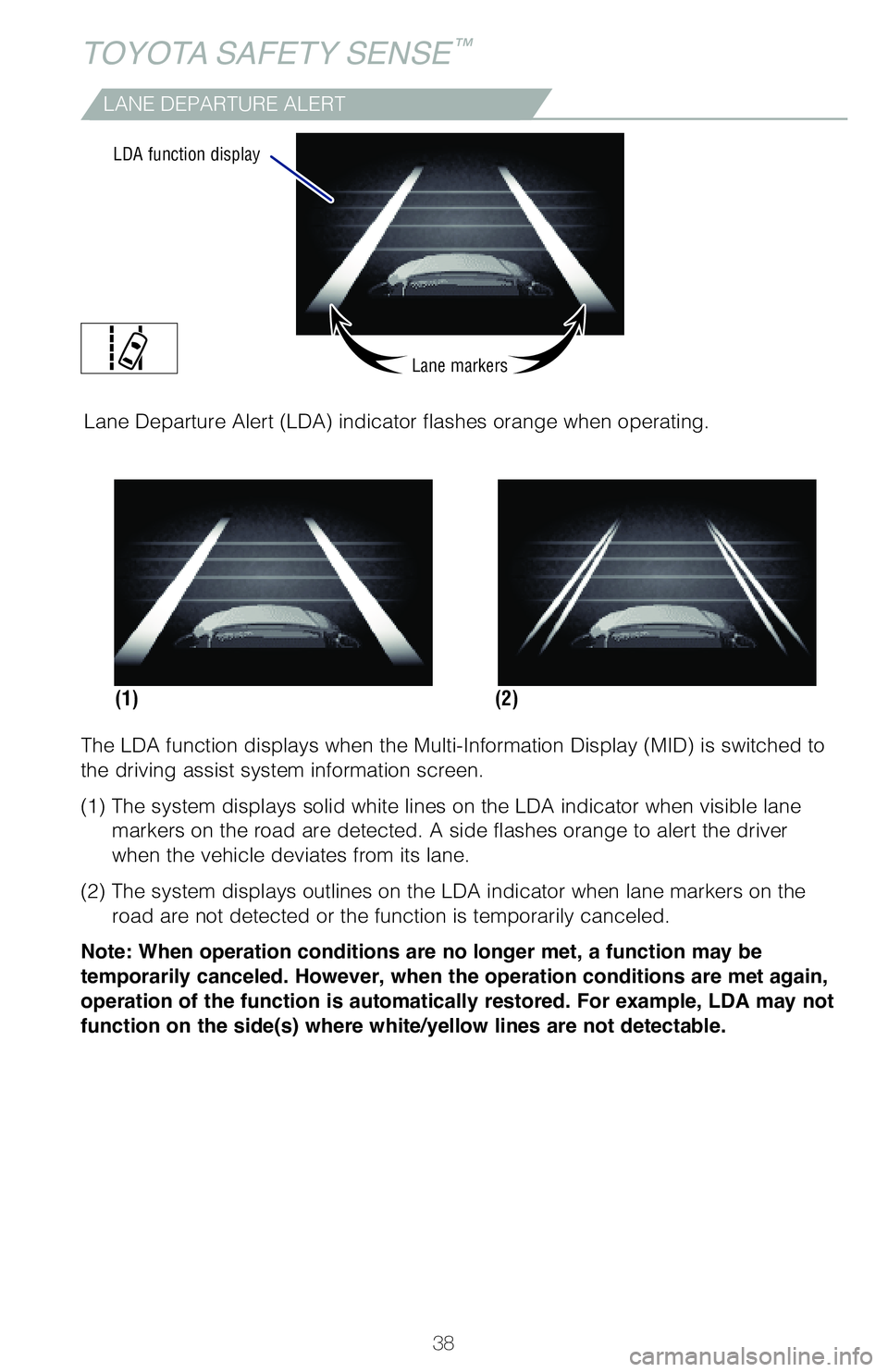

LANE DEPARTURE ALERT
The LDA function displays when the Multi-Information Display (MID) is switched to
the driving assist system information screen.
(1) The system displays solid white lines on the LDA indicator when visible lane markers on the road are detected. A side flashes orange to alert the dri\
ver
when the vehicle deviates from its lane.
(2) The system displays outlines on the LDA indicator when lane markers on the road are not detected or the function is temporarily canceled.
Note: When operation conditions are no longer met, a function may be
temporarily canceled. However, when the operation conditions are met again,
operation of the function is automatically restored. For example, LDA may not
function on the side(s) where white/yellow lines are not detectable. (2)
(1)
Lane Departure Alert (LDA) indicator flashes orange when operating.
LDA function display
Lane markers
