7. By “Previous start point”: Yo u c a n
enter a point where the system has
started to guide last time. See page 22
for the detailed steps.
8. By “Freeway Ent./Exit”: You can enter
the name of the freeway (interstate)
entrance or exit. See page 20 for the
detailed steps.
9. By “Map selection”: You can select a
destination simply by selecting the
location on the displayed map. See
page 22 for the detailed steps.
10. By “Preset destination (
1~5)”: Yo u
can choose the destination by selecting
one of the preset destination switch. In
this case, it is necessary to register
your desired destination beforehand.
See page 23 for the detailed steps.
11 . B y “
(home)”: You can select
your own home without entering the
address each time. In this case, it is
necessary to register your home be-
forehand. See page 23 for the detailed
steps.
INFORMATION
 When inputting the destination, the
response to the switch may be slow.
 “Points of interest” are mainly reg-
istered in “Detailed map coverage
areas”. The registration is made
based on the NavTech “Standard
POI Inclusion List”.
 If there is no point registered,
switches such as “Marked points”,
“Home”, “Previous destination” and
“Previous starting point” are
dimmed and not available.
 The route for returning may not be
the same as that for going.
 The route guidance to the destina-
tion may not be the shortest route
or a route without traffic conges-
tion.
 Route guidance may not be avail-
able if there is no road data for the
specified location.
 When setting the destination, you
should use the map on a scale of
one half mile or smaller.
To select an “Address”, “Point of
interest”, “Freeway Ent./Exit” or “In-
tersection” in a different region, a
search area’s change is necessary.
CAUTION
While you are driving, be sure to fol-
low traffic regulations and keep the
road condition in mind. If a traffic
sign on the road has been changed,
the route guidance may provide
wrong information.

Corolla_MATRIX_Navi_U (L/O 0208)
232003 MY COROLLA MATRIX (OM12774U)
Select the “ (home)” switch on
the “Destinations” screen.
The screen changes and displays the
map location of your home and the
route preference. (See “Entering des-
tination” on page 23.)
The screen changes to display the map
location of your home about 3 seconds,
and then the system starts to search the
way to your home.
If you have not registered your home yet,
you cannot set the destination by the
“ (home)” switch.
For the steps to register or delete your
home, see page 35 for details.
1NAN105
Select one of the 1~5 switch on the
“Destinations” screen. The screen
changes and displays the map location
of your desired preset destination. In
this case, it is necessary to register
your desired preset destination before-
hand. (Refer to pages 56 through 57 ,
“Registering”, “Editing” or “Deleting”
preset destination.) After you input the destination by one
of the 11 methods, the screen changes
and displays the map location of the
selected destination and the route pref-
erence.
1NAN042
Select the “Map scroll” switch on
the screen to move the cursor
.
You can move and set the cursor
at
a desired point. (For the method of how
to move the cursor, see page 4.)
“Change”: Selecting this switch can
change “Route preference”.
When you select the
“Enter” switch,
the system starts searching for a route to
your destination using the conditions en-
tered.
Destination input by Home Destination input by Pr
eset
destination Entering destination

492003 MY COROLLA MATRIX (OM12774U)
ADVANCED FUNCTIONS
Descriptions of functions for more effective use
Marked points50
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Preset destinations 56
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . .
Area to avoid 58
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . .
Current position calibration 61
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Edit route 62
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . .
Setting a preferred road 65
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Search condition 67
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Route overview 68
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Route preview 68
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION II

Corolla_MATRIX_Navi_U (L/O 0208)
562003 MY COROLLA MATRIX (OM12774U)
You can set up to 5 destinations before-
hand.1.
Push the “MENU” button to dis-
play the “Menu” screen and select
the
“Marked points” switch.
2NAN021
2. Select the “Register” switch of
“Preset dest.”.
2NAN022
3. Select the “1~5” switch to register
the preset destination you want.
If you have already registered the preset
destination, you can overwrite on the pres-
ent registered destination.
2NAN069
4. Input the preset destination in the same way as the destination inputs.
(See page 4.)
Preset destinations (a) Registering preset
destinations

Corolla_MATRIX_Navi_U (L/O 0208)
572003 MY COROLLA MATRIX (OM12774U)
1. Push the “MENU” button to dis-
play the “Menu” screen and select
the
“Marked points” switch.
2NAN024
2. Select the “Edit” switch of “Preset
dest.”.
2NAN025
3. Select the switch that you want
to edit.
2NAN026
You can change the name, location and
phone No. of the preset destination.
Select the
“Change” switch. (See
page 52.) 1. Push the
“MENU” button to dis-
play the “Menu” screen and select
the
“Marked points” switch.
2NAN027
2. Select the “Delete” switch of “Pre-
set dest.”.
(b) Editing preset destinations (c) Deleting preset
destinations

Corolla_MATRIX_Navi_U (L/O 0208)
582003 MY COROLLA MATRIX (OM12774U)
2NAN028
3. Select the preset destination thatyou want to delete and select the
switch.
Messages appear depending on the type
of deletion. If you want to delete, select
the
“Yes” switch. To cancel the deletion,
select the
“No” switch. Any areas you want to avoid due to
traffic jams, construction work or other
reasons can be registered as avoid
areas.
Push the
“MENU” button to display
the “Menu” screen and then select the
“Marked points” switch to display
the following screen.
2NAN029
INFORMATION
If the route calculation cannot be
made without running through the
area to avoid, a route passing
through the area to avoid may be
shown.
1. Select the “Register” switch of
the “Areas to avoid”.
2NAN070
2. Enter the location in the same way
as you input any destination or dis-
play the map of the area you want
to avoid. (See pages 8 through 23.)
INFORMATION
Only 10 points can be registered as
point to avoid. If there are 10 points
already registered, the message “Un-
able to register additional points. Per-
form operation again after deleting
unnecessary points.” appears on the
screen.
Area to avoid (a) Registering area to avoid

Corolla_MATRIX_Navi_U (L/O 0208)
792003 MY COROLLA MATRIX (OM12774U)
1. Push the “SETUP” button.
3NAN025
2. Push the “Maintenance” button
to display the “Maintenance” screen.
3NAN026
3. Select your desired icon and input the conditions.
3NAN027
“Date”: Input the next maintenance date.
“Distance”: Input the driving distance un-
til the next maintenance check.
When you select the
! switch on the
“Maintenance” screen, the screen changes
to display the “Change name” screen. Se-
lect the keys to input your desired name
and then input the conditions. After you input that information, select the
“OK” switch. The screen then returns to
the “Maintenance“ screen. The icon’s color
will change to light blue after the date or
driving distance is inputted. The icon’s
color will change to orange when your ve-
hicle needs to be serviced. The following
switches appear on the screen.
“Del. All”: Cancel all conditions which
have been inputted.
“Reset all”: Reset all items which satisfy
either condition.
Select the
“Off” switch at the top of the
“Maintenance” screen, and the “Informa-
tion” screen will no longer be displayed.
INFORMATION
 For scheduled maintenance informa-
tion, please refer to the “Scheduled
Maintenance Guide” or “Owner’s
Manual Supplement”.
 Depending on your driving or the
road conditions, the system may
have a timelag between the data
which has been inputted and the ac-
tual date and driving distance.

Corolla_MATRIX_Navi_U (L/O 0208)
962003 MY COROLLA MATRIX (OM12774U)
EQ (Equalization) presets: This function
is designed to select the preset EQ set-
tings. Settings consist of the treble, mid −
range and bass control positions which
can be stored in the custom setting.
To use a preset EQ setting: Push the
“
” button when the radio or the com-
pact disc player is on. You can choose
from 5 presets and custom setting using
the buttons: “EQ1”, “EQ2”, “EQ3”, “EQ4”,
“EQ5” and “CUSTOM”. In radio mode,
pressing the selected preset button for 2
seconds or more after selecting an EQ
setting will store the EQ setting for each
station.
To set “CUSTOM”: Push the “
” button
and the “CUSTOM” button. Then you can
manually adjust the treble, mid −range or
bass using the select and scroll lever.
This will overwrite any previous custom
setting that was saved with a station pre-
set. When a tuner preset is saved, the EQ
preset name is saved along with the tun-
er settings. Additionally, the current EQ
setting is saved with the current mode
(AM, FM1, FM2 or CD).
(c) Your radio antenna
Your vehicle has a mast type antenna.
To remove the antenna, carefully turn it
counterclockwise.
NOTICE
To prevent damage to the antenna,
make sure it is removed before driv-
ing your vehicle through an automat-
ic car wash.
(d) Your compact disc player
When you insert a compact disc, insert
it with the label side up. The compact
disc player will play from track 1 through
the end of the disc. Then it will play from
track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
The player is intended for use with 12
cm (4.7 in.) discs only.

Corolla_MATRIX_Navi_U (L/O 0208)
972003 MY COROLLA MATRIX (OM12774U)
5NAN015

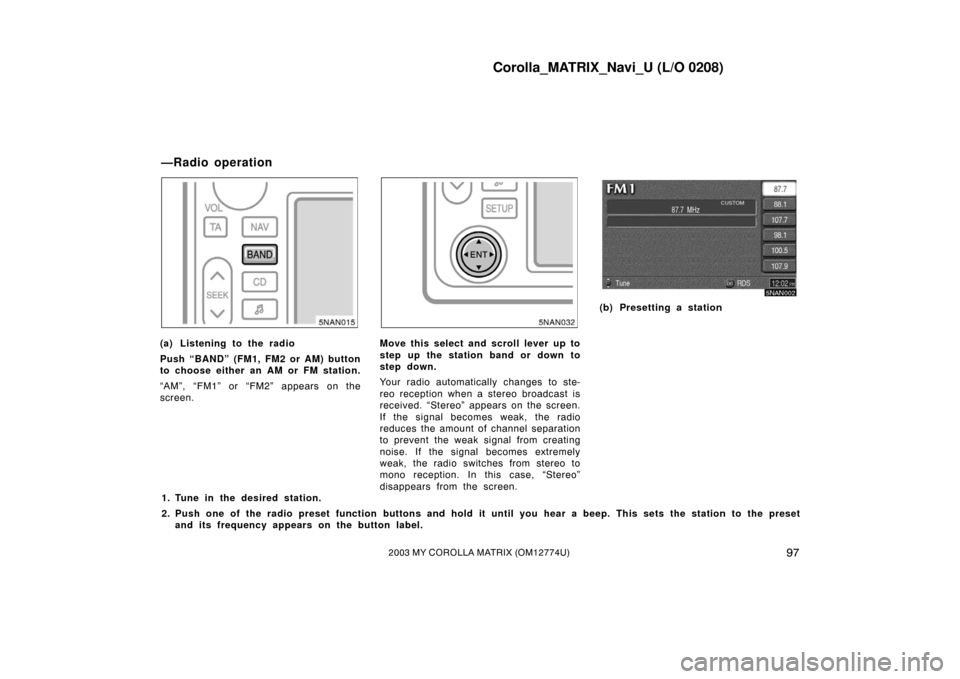

(a) Listening to the radio
Push “BAND” (FM1, FM2 or AM) button
to choose either an AM or FM station.
“AM”, “FM1” or “FM2” appears on the
screen.
5NAN032
Move this select and scroll lever up to
step up the station band or down to
step down.
Your radio automatically changes to ste-
reo reception when a stereo broadcast is
received. “Stereo” appears on the screen.
If the signal becomes weak, the radio
reduces the amount of channel separation
to prevent the weak signal from creating
noise. If the signal becomes extremely
weak, the radio switches from stereo to
mono reception. In this case, “Stereo”
disappears from the screen.
5NAN002
(b) Presetting a station
1. Tune in the desired station.
2. Push one of the radio preset function buttons and hold it until you hear a beep. This sets the station to the preset
and its frequency appear s on the button label.
—Radio operation

Corolla_MATRIX_Navi_U (L/O 0208)
982003 MY COROLLA MATRIX (OM12774U)
At the same time, the current EQ setting
is stored. When the preset station is an
RDS station, the program name may ap-
pear.
Each radio mode (AM, FM1 or FM2) can
store up to 6 stations. To change the
preset station to a different one, follow
the same procedure.
5NAN016
(c) Selecting a station
Tune in the desired station using one of
the following methods.
Preset tuning: Push the function button
for the station you want. The station fre-
quency appears on the screen.
Seek tuning: Push either side of the
“SEEK” button for less than 2 seconds.
The radio will begin seeking up or down
for a station of the nearest frequency and
will stop on reception. Each time you
push the button, stati ons will be searched
out one after another. To scan all frequencies:
Push and hold
either side of the “SEEK” button for more
than 2 seconds and less than 4 seconds
until you hear a beep. “SCAN” appears
on the screen. The radio will find the
next station and stay there for a few
seconds, and then scan again. To select
a station, push the “SEEK” button again.
To scan preset stations: Push and hold
either side of the “SEEK” button for more
than 4 seconds until you hear two beeps.
“P.SCAN” appears on the screen. The ra-
dio will tune in the next preset station,
stay there for a few seconds, and then
move to the next preset station. To select
a station, push the “SEEK” button again.
