This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
TURNING THE SYSTEM ON AND OFF
Push “PWR/VOL” or “PWR” to turn the
audio system on and off.
You can turn on each player by inserting
a cassette tape or compact disc.
The audio system will change to the radio
mode when a cassette or a compact disc
is ejected during play.
SWITCHING BETWEEN FUNCTIONS
Push “AM/FM”, “CD/AUX” or “CD/TAPE” if
the system is already on but you want to
switch from one function to another.TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange and bass levels. In
fact, different kinds of music and vocal
programs usually sound better with differ-
ent mixes of treble, midrange and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.YOUR RADIO ANTENNA
Your vehicle has a mast type antenna.
To remove the antenna, carefully turn it
counterclockwise.
NOTICE
To prevent damage to the antenna,
make sure it is removed before driv-
ing your Toyota through an automatic
car wash.
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should face to the right.
NOTICE
Do not oil any part of the player and
do not insert anything other than cas-
sette tapes into the slot, or the tape
player may be damaged.
Using your audio system—
—Some basics

’03 MATRIX_U (L/O 0201)
1082003 MY COROLLA MATRIX_U (OM12767U)
YOUR COMPACT DISC PLAYER
(type 1 and type 2)
When you insert a disc, gently push it in
with the label side up. (The player will
automatically eject a disc if the label side
is down.) The compact disc player will
play from track 1 through the end of the
disc. Then it will play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything except a compact
disc into the slot.
The player is intended for use with 12 cm
(4.7 in.) discs only.YOUR COMPACT DISC AUTO CHANGER
(type 3)
When you insert a disc, push the “LOAD”
button, wait for the load/eject status light
to turn green, then gently push the disc
in with the label side up. (The player will
automatically eject a disc if the label side
is down.) The compact disc auto changer
will play from track 1 through the end of
the disc. Then it will play from track 1 of
the next disc.
The changer is intended for use with 12
cm (4.7 in.) discs only.
NOTICE

Do not stack up two discs for in-
sertion, or it will cause damage to
the compact disc auto changer. In-
sert only one compact disc into slot
at a time.
 Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything except a com-
pact disc into the slot.

’03 MATRIX_U (L/O 0201)
1092003 MY COROLLA MATRIX_U (OM12767U)
Details of specific buttons, controls, and
features are described in the alphabetical
listing that follows.
—Controls and features

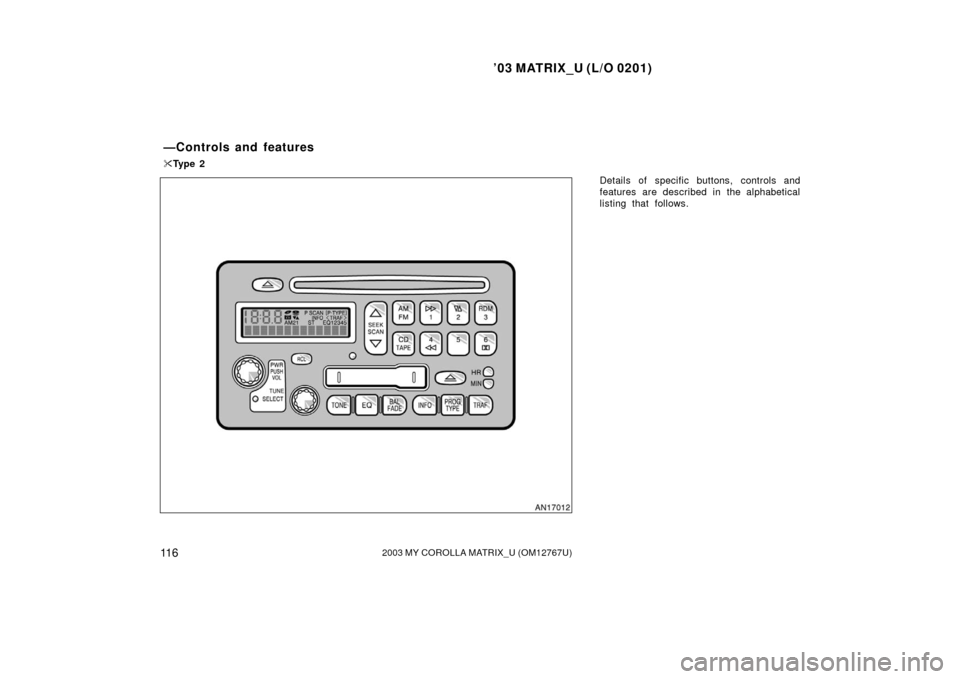

Ty p e 1

’03 MATRIX_U (L/O 0201)
11 02003 MY COROLLA MATRIX_U (OM12767U)
1 2 3 4 5 6 (Preset buttons)
These buttons are used to preset and
tune in radio stations.
To preset a station to a button:1. Tune in the desired station. (See “TUNE” or “SEEK” or “SCAN”.)
If you desire to select the equalization
that best suits the type of station se-
lected. (See “EQ”.)
2. Push and hold the preset button until you hear a beep—this will set the sta-
tion and EQ setting to the button. The
preset number will appear on the dis-
play.
3. Repeat the above steps for each but- ton.
To tune to a preset station: Push the but-
ton for the station you want. The button
number and station frequency will appear
on the display.
RDS stations will be preset to the buttons
when any of RDS stations is received in
the FM mode. To preset a program type to a button:
1. Push the “AM/FM” button to select “FM1” or “FM2”.
2. Push “PROG TYPE” button to activate the program type mode. “PTYPE” will
appear on the display.
3. Turn the select knob to select the de- sired program type.
4. Push and hold the preset button until you hear a beep—this will set the pro-
gram type to the preset button.
5. Repeat the above steps for each but- ton.
To tune to a station with a desired pro-
gram type: While in a program type mode,
push the preset button for the program
type you want. The program type will ap-
pear on the display and the radio will tune
the station with strongest signal and the
desired program type.
Each button can store one AM and two
FM stations, and two RDS program types.
(The display will show “AM”, “FM1” or
“FM2” when you push the “AM/FM” but-
ton.) (Eject button)
Push the compact disc eject button to
eject a compact disc.
If the disc is not removed after 25 sec-
onds, the disc will be automatically pulled
back into the receiver.
/ (Reverse/Fast forward buttons)
Push and hold the “
” button to fast
forward within a track. “FDW >>” and
elapsed time will appear on the display.
Push and hold the “
” button to reverse
within a track. “REW <<” and elapsed
time will appear on the display.
When you release the button, the compact
disc player will resume playing.
AM/FM
Push the “AM/FM” button to switch be-
tween the AM and FM band. “AM”, “FM1”
or “FM2” will appear on the display.
Also, push this button to switch from the
compact disc operation to the radio.

’03 MATRIX_U (L/O 0201)
1112003 MY COROLLA MATRIX_U (OM12767U)
Alternate Frequency
To turn the AF mode on, push and hold
the “AM/FM” button until you hear a beep.
“AF ON” will appear on the display.
When reception condition worsen, the au-
dio system will select the RDS station
which has the same PI (Program Identifi-
cation) code.
To turn the AF mode off, push and hold
the “AM/FM” button again until you hear
a beep. “AF OFF” will appear on the dis-
play.
BAL/FADE (Sound balance adjustment
function)
This button is used to adjust the sound
balance between the front and rear, and
the right and left speakers.
For front/rear adjustment, push the “BAL/
FADE” button repeatedly until “FAD” ap-
pears on the display. Then turn the
“TUNE/SELECT” knob to adjust the front/
rear balance.
For left/right adjustment, push the “BAL/
FADE” button repeatedly until “BAL” ap-
pears on the display. Then turn the
“TUNE/SELECT” knob to adjust the left/
right balance.To return to the middle position balances,
push and hold the “BAL/FADE” button for
two seconds.
CD/AUX (Compact Disc/Auxiliary)
Push the “CD/AUX” button to switch from
radio to compact disc operation. A disc
must already be loaded in the player.
Error codes
If the player malfunctions, your audio sys-
tem will display the following error mes-
sages.
“CHECK CD”:
The road is too rough. The disc should
play when the road is smoother.
The disc is dirty, scratched, wet or
upside down.
The air is very humid. If so, wait about
an hour and try again.
If the disc is not playing correctly, for any
other reason, try a known good compact
disc.
“PLAYER ERROR”: There is trouble in-
side the system. Eject the disc. Set the
disc again.
If malfunction is not rectified, take your
vehicle to your Toyota dealer. EQ (Equalizer)
Your audio system can store five different
EQ settings so that you will not need to
readjust it every time you listen to a dif-
ferent program.
To use a preset setting:
Push the “EQ” button repeatedly until the
EQ number you want to use appears on
the display.
To change a preset EQ setting:
1. Use the “TONE” button and the “TUNE/SELECT” knob to select the
desired equalization. (For details, see
“TONE”.)
2. Push and hold the “EQ” button until “SELECT EQ #” appears on the dis-
play.
3. Push the “EQ” button repeatedly or turn the “TUNE/SELECT” knob to select
the desired preset EQ number.
4. Push and hold the “EQ” button until “EQ SAVED” appears on the display
and you hear a beep. This EQ setting
is saved to that number.
HR/MIN (Hours/minutes adjustment)
These buttons are used to adjust the
clock time. (For details, see “Clock” on
page 150 in Section 19.)

’03 MATRIX_U (L/O 0201)
11 22003 MY COROLLA MATRIX_U (OM12767U)
INFO (Information)
When an RDS radio station transmits a
text message, “INFO” will be displayed. At
this time, push the “INFO” button to view
the text message. If the whole message
does not appear on the display, part of
the message will appear every three sec-
onds until the message is completed. To
scroll through the message at your own
speed, push the “INFO” button consecu-
tively. When the whole message has been
displayed, the message will disappear.
The message display will be canceled if
any button that affects the display is
pushed. To view the message again, push
the “INFO” button again.
The RDS audio system saves a message
until a new message is received.
If the text message is not available when
you push “INFO” button, “NO INFO” will
appear on the display.PROG TYPE (Program Types)
To turn on the PTY mode, push the
“PROG TYPE” button while receiving an
RDS station. The current program type will
appear on the display.
You can select one of the following pro-
grams by turning the tune knob while the
PTY mode is on.
Any Type
News
Inform (Information)
Sports
Ta l k
Rock
Cls Rock (Classic rock)
Adlt Hit (Adult Hits)
Soft Rck
To p 4 0
Country
Oldies
Soft
Nostalga (Nostalgia)
Jazz
classicl (Classical)
R & B
Soft R & B
Language
Rel Musc (Religious Music)
Rel Talk (Religious Talk)
Persnlty (Personality)
Public
College
Weather
Interrupt function
If the radio in on the compact disc mode,
the radio will switch to the FM band with
the previous interrupt volume. The pro-
gram type and “Int” will appear. If the
radio in on the FM mode, the volume will
be adjusted to the previous interrupt vol-
ume. To cancel the interrupt function,
press “PROG TYPE” or the selected mode
button.
If the radio in on the PTY mode, program
types, except Any Type, may be selected
as interrupts. To set a program type as an
interrupt, push and hold “PROG TYPE”
while a program type is displayed until
you hear a beep. The asterisk will appear
when an interrupt is set.

’03 MATRIX_U (L/O 0201)
11 32003 MY COROLLA MATRIX_U (OM12767U)
To turn off an interrupt while the radio in
on the PTY mode, select the program type
marked with an asterisk. Push and hold
“PROG TYPE” until you hear a beep. The
asterisk will disappear.
Note: ALERT! is a special program type
interrupt that is always on. If an emergen-
cy broadcast is received during reception
of anything other than AM broadcasting,
“ALERT” appears on the display and the
system adjust the volume to the interrupt
volume.
Setting a PTY station
Program types can be stored to the preset
buttons. For details, see “1 2 3 4 5 6
(Preset buttons)”.
Seeking a PTY station
If the radio in on the PTY mode, it will
find and play the next station up or down
the station band within the same program
type. If no PTY station will be found,
“NOT FOUND” will appear on the display
and the radio will return to the previous
frequency.
For details, see “SEEK”.Scanning a PTY station
If the radio in on the PTY mode, it will
tune in the next station within the same
program type.
For details, see “SCAN”.
PWR/VOL (Power/Volume)
Push “PWR/VOL” to turn the audio system
on and off. Turn “PWR/VOL” to adjust the
volume.
RCL (Recall)
This button is designed to change the dis-
play in each mode.
You can also display the clock by pushing
this button when the ignition switch is off.
Radio
Push the “RCL” button to change the dis-
play among the frequency, program ser-
vice name and program type name when
RDS station is being received.
To change what is normally shown on the
display, push this button repeatedly until
you see the display you want, then hold
this button until the display flashes and
you hear a beep.Compact disc player
Push the “RCL” button to change the dis-
play between the track number and
elapsed time.
To change what is normally shown on the
display, push this button repeatedly until
you see the display you want, then hold
this button until the display flashes and
you hear a beep.
RDM (Random)
Push the “RDM” button to listen the tracks
on the disc in random order. “RDM” will
appear on the display. To turn off the
random feature, push this button again.
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold either side of the “SEEK/
SCAN” button for more than 4 seconds.
“P SCAN” will appear on the display and
you hear two beeps. The radio will tune
in the next preset station up the band,
stay there for 5 seconds, and then move
to the next preset station. To cancel scan
and remain on the current station, push
this button again.

’03 MATRIX_U (L/O 0201)
11 42003 MY COROLLA MATRIX_U (OM12767U)
To scan all the frequencies:
Push and hold either side of the “SEEK/
SCAN” button for two seconds. “SCAN”
appears on the display and you hear a
beep. The radio will find the next station
up the station band, stay there for 5 sec-
onds, and then scan again. To cancel
scan and remain on the current station,
push this button again.
The radio will scan in forward only.
You can also scan only to stations with
the types of programs you want to listen
to or traffic announcements. (See “PROG
TYPE”.)
Compact disc player
Push and hold either side of the “SEEK/
SCAN” button for more than two seconds.
“SCAN” will appear on the display and
you hear a beep. The disc will go to the
the next track and play for 10 seconds,
then go on the next track. To select a
track, push this button again.
The compact disc will scan in forward
only.SEEK (Seeking)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek a station, quickly push and re-
lease either side of the “SEEK/SCAN” but-
ton. If you hear a beep, the radio will
scan the stations. (See “SCAN”.) Do this
again to find another station.
You can also seek only to stations with
the types of programs you want to listen
to or traffic announcements. (See “PROG
TYPE”.)
Compact disc player
By using this button, you can skip up or
down to a different track.
Push either side of the “SEEK/SCAN” but-
ton repeatedly until the number of the
track you want to listen to appears on the
display. If you want to return to the begin-
ning of the current track, push the down
side of the button one time, quickly.
TONE (Manual tone adjustment function)
Push the “TONE” button to select the
bass, midrange or treble tone control posi-
tion. (“BASS”, “MID”, “TREB” will appear
on the display.) To adjust the tone, turn
the “TUNE/SELECT” knob.
“BASS”: Adjusts lowpitched tones. The
display ranges from 6 to +6.
“MID”: Adjusts midpitched tones. The dis-
play ranges from 6 to +6.
“TREB”: Adjusts highpitched tones. The
display ranges from 6 to +6.
To adjust all of the tone controls to the
middle position, push and hold the “TONE”
button for more than two seconds. “FLAT”
will appear on the display.
TRAF (Traffic)
This button turns the traffic announcement
(TA) feature on and off.
By pushing the “< >” button, “TRAF” ap-
pears on the display and the radio will
start seeking any traffic program station.
When a traffic program station is found,
“TRAF” will be displayed (). If no
traffic program stations are found, “No
Traffic” will appear on the display.

’03 MATRIX_U (L/O 0201)
11 52003 MY COROLLA MATRIX_U (OM12767U)
After the traffic announcement program is
over, the display returns to the previous
mode.
If no traffic program station is found, “No
Traffic” will appear on the display for 5
seconds and the display returns to the
previous mode. If the “TRAF” button is
pushed when the compact disc player is
on, the radio will start seeking traffic pro-
gram stations. Audio source will change
only if there is a traffic announcement.
When a “TA” is received, the radio stores
the volume of the previous mode and ad-
justs the volume to the previous interrupt
volume. During the traffic announcement,
you can adjust the volume using the
“PWR/VOL”.
The adjusted volume will be used as the
new default interrupt volume. The interrupt
volume has a minimum default setting.
The stored interrupt volume will be the
greater of the current volume and the
minimum default setting. After an interrupt,
the radio system will return to the volume
that was active before the interrupt.TUNE (Tuning)
Your Toyota has an electronic tuning radio
(ETR). Turn the knob clockwise to step up
the frequency. Turn the knob counterclock-
wise to step down the frequency.

’03 MATRIX_U (L/O 0201)
11 62003 MY COROLLA MATRIX_U (OM12767U)
Details of specific buttons, controls and
features are described in the alphabetical
listing that follows.
—Controls and features
Ty p e 2
