TOYOTA MATRIX 2003 E130 / 1.G Owner's Manual

’03 MATRIX_U (L/O 0201)
172003 MY COROLLA MATRIX_U (OM12767U)
CAUTION
To avoid serious personal injury, you
must do the following.
Always make sure the heads, hands
and other parts of the bodies of all
occupants are kept completely in-
side the vehicle before you close
the power windows. If someone’s
neck, head or hands get caught in
a closing window, it could result in
a serious injury. When anyone
closes the power windows, make
sure that he/she operates the win-
dows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the power window switches and
get trapped in a window. Unat-
tended children can be involved in
serious accidents.
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key clockwise.
If you turn the key fully clockwise, the
glass hatch will open. (See “Glass hatch”
on page 18 in this section.)
To unlock: Turn the key counterclockwise.
To open the back door, pull the lock re-
lease lever.
Operating the power door lock switch or
wireless remote control transmitter simul-
taneously locks or unlocks the back door.
(See “Side doors” on page 8 in this sec-
tion.)When closing the back door, use the
inside handle for easier reach to the
back door.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
See “Luggage stowage precautions” on
page 178 in Section 2 for precautions to
observe in loading luggage.
Back door

’03 MATRIX_U (L/O 0201)
182003 MY COROLLA MATRIX_U (OM12767U)
CAUTION
Keep the back door and glass hatch
closed while driving. This not only
keeps the luggage from being thrown
out but also prevents exhaust gases
from entering the vehicle.
NOTICE
To prevent damage to the back door
and glass hatch dampers, do not ap-
ply any force, paint or let any other
foreign matter on them.
OPENING THE GLASS HATCH WITH
THE KEY
Insert the key into the keyhole and turn
it fully clockwise (one step further than
the back door locking position).
The glass hatch can be opened with the
wireless remote control transmitter. See
“—Wireless remote control” on page 11 in
this section.OPENING THE GLASS HATCH WITH
THE GLASS HATCH OPENER SWITCH
Push the glass hatch opener switch
when the vehicle is stopped.
CAUTION
Do not open the glass hatch while
the vehicle is moving.
Glass hatch

’03 MATRIX_U (L/O 0201)
192003 MY COROLLA MATRIX_U (OM12767U)
If you do either of the followings, the
glass hatch cannot be opened with the
glass hatch opener switch.
Lock all the side doors and back door
with the key or wireless remote control
transmitter when the front doors are
closed.
Open the driver ’s door or front passen-
ger’s door and move the inside lock
knobs of both front doors to the lock
position, then close the front doors.
The glass hatch opener switch can be
reset in the following ways.
Turn the ignition key to “ON”.
Unlock all the doors with the key or
wireless remote control transmitter.
Unlock the driver’s door or front pas-
senger ’s door with the inside lock
knob, and then unlock all the doors
with the power door lock switch. CLOSING THE GLASS HATCH
Lower the glass hatch and push the
lower center of it until it is locked.
When you open the back door with the
glass hatch opened, the glass hatch will
be closed. After closing the back door,
you should check the glass hatch fully
closed.
See “Luggage stowage precautions” on
page 178 in Section 2 for precautions to
observe in loading luggage.
CAUTION
Keep the back door and glass hatch
closed while driving. This not only
keeps the luggage from being thrown
out but also prevents exhaust gases
from entering the vehicle.
NOTICE
To prevent damage to the back door
and glass hatch dampers, do not ap-
ply any force, paint or let any other
foreign matter on them.
TVIP is a theft deterrent system. If
someone attempts to damage or break
into your vehicle, the system sounds
the alarm while flashing the lights.
Toyota vehicle intrusion
protection system (TVIP)

’03 MATRIX_U (L/O 0201)
202003 MY COROLLA MATRIX_U (OM12767U)
SETTING THE SYSTEM
You can set the system as follows.1. Remove the key from the ignition switch.
2. Have all passengers get out of the vehicle.
3. Close all the side doors, back door and glass hatch securely.
4. Lock all the side doors and back door with the key or wireless remote control
transmitter. At this time, the TVIP indi-
cator light comes on.
The system will be set in 30 seconds.
When the system is set, the indicator
light will start to flash. 5. Make sure that the indicator light
flashes. Then you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system because unlocking
from the inside activates the alarm.
Activating the alarm
If the system detects a threat to the
vehicle, it sounds the alarm for one
minute while flashing headlights and
turn signal lights. Also, the interior
lights turn on when the interior light
dial is in the DOOR position.
The system detects a threat under any of
the following conditions:
Either of the front doors is unlocked by
means other than the key or wireless
remote control transmitter.
If the key is not in the ignition switch,
all the side doors and back door will
be automatically locked again.
Any of the side doors, back door or
glass hatch are forcibly opened.
The alarm will activate when the back
door is unlocked with a key. Cancel the
system before unlocking the back door.
The side windows are tapped or bro-
ken.
The battery terminal is disconnected
and then reconnected.
The ignition is hotwired.
After one minute, the alarm automatically
stops and the indicator light starts flashing
again.
Reactivating the alarm
Once set, until you cancel the system, the
system automatically resets the alarm af-
ter the alarm has stopped.
The alarm will activate again under the
same circumstances described in “Activat-
ing the alarm”.
Stopping the alarm
You can stop the alarm in either of the
following ways:
Unlock any of the side doors with the
key or wireless remote control transmit-
ter.
Place the ignition switch in the “ON”
position.

’03 MATRIX_U (L/O 0201)
212003 MY COROLLA MATRIX_U (OM12767U)
CANCELLING THE SYSTEM
You can cancel the system as described
in “Stopping the alarm”.
If you cancel the system by unlocking any
of the side doors but no door is opened
within 30 seconds, all the side doors and
back door lock automatically and the sys-
tem will be set again.
TESTING THE SYSTEM
You can check the system operation as
follows.1. Open all the windows.
2. Set the system as described in “SETTING THE SYSTEM”.
3. Unlock the driver’s door with the inside lock knob. The system should activate
and the alarm should sound.
4. Stop the alarm as described in “Stop- ping the alarm”.
5. Repeat steps 2 to 4 for the other doors. (For rear side doors, unlock and
then open the doors in step 3.)
If the system does not work properly,
have it checked by your Toyota dealer.

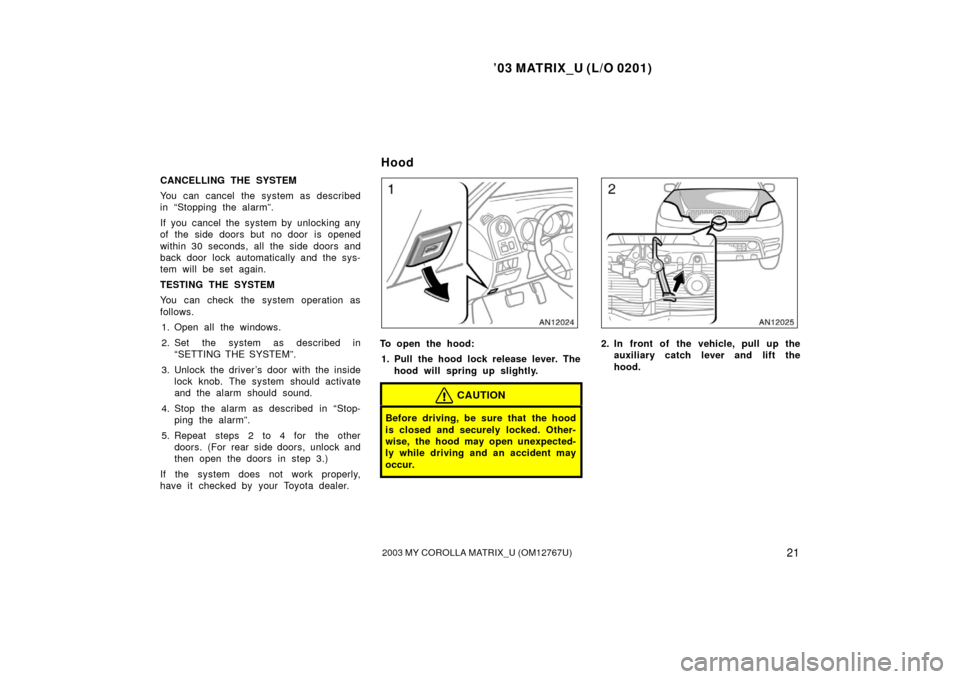

To open the hood: 1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up theauxiliary catch l ever and lift the
hood.
Hood

’03 MATRIX_U (L/O 0201)
222003 MY COROLLA MATRIX_U (OM12767U)

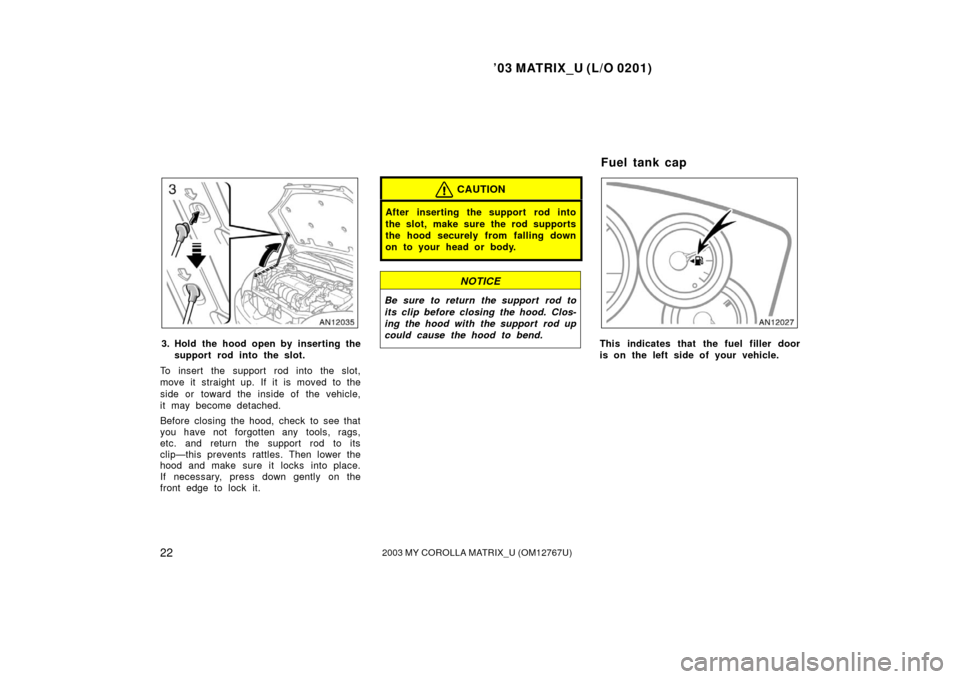

3. Hold the hood open by inserting thesupport rod into the slot.
To insert the support rod into the slot,
move it straight up. If it is moved to the
side or toward the inside of the vehicle,
it may become detached.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. and return the support rod to its
clip—this prevents rattles. Then lower the
hood and make sure it locks into place.
If necessary, press down gently on the
front edge to lock it.
CAUTION
After inserting the support rod into
the slot, make sure the rod supports
the hood securely from falling down
on to your head or body.
NOTICE
Be sure to return the support rod to
its clip before closing the hood. Clos-
ing the hood with the support rod up
could cause the hood to bend.
This indicates that the fuel filler door
is on the left side of your vehicle.
Fuel tank cap

’03 MATRIX_U (L/O 0201)
232003 MY COROLLA MATRIX_U (OM12767U)
1. To open the fuel filler door, pull thelever up.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.
When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turnthe cap slowly counterclockwise,
then pause slightly before removing
it. After removing the cap, hang it
on the cap hanger.
It is not unusual to hear a slight swoosh
when the cap is opened. When insta lling,
turn the cap clockwise till you hear a
click.
If the cap is not tightened securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION
Make sure the cap is tightened se-
curely to prevent fuel sp illage in
case of an accident.
Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.

’03 MATRIX_U (L/O 0201)
242003 MY COROLLA MATRIX_U (OM12767U)
Sliding operation
Tilting operation

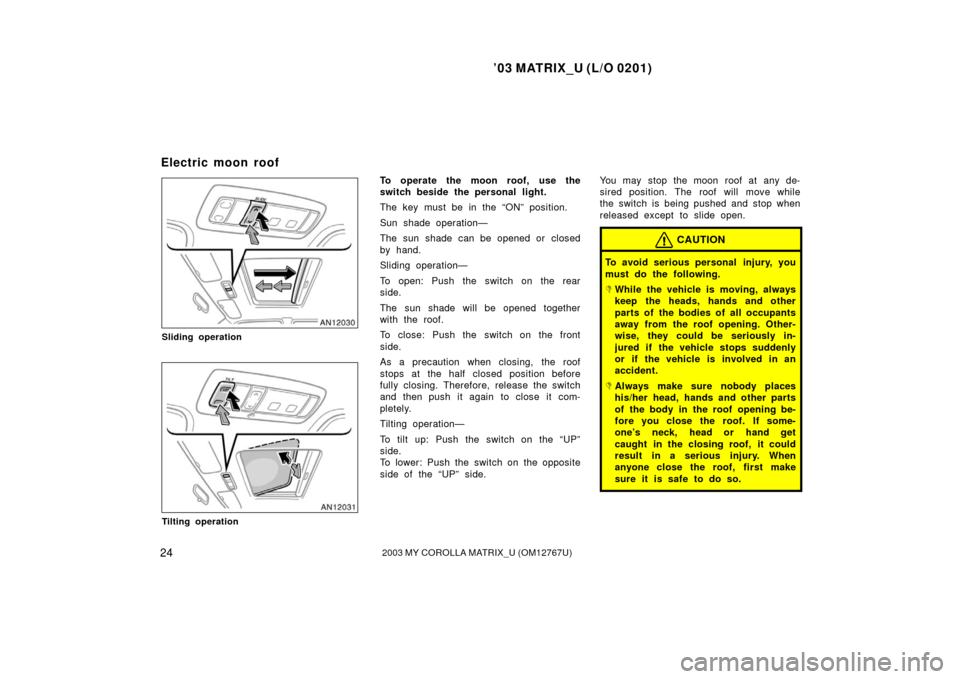

To operate the moon roof, use the
switch beside the personal light.
The key must be in the “ON” position.
Sun shade operation—
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push the switch on the rear
side.
The sun shade will be opened together
with the roof.
To close: Push the switch on the front
side.
As a precaution when closing, the roof
stops at the half closed position before
fully closing. Therefore, release the switch
and then push it again to close it com-
pletely.
Tilting operation—
To tilt up: Push the switch on the “UP”
side.
To lower: Push the switch on the opposite
side of the “UP” side.You may stop the moon roof at any de-
sired position. The roof will move while
the switch is being pushed and stop when
released except to slide open.
CAUTION
To avoid serious personal injury, you
must do the following.
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Other-
wise, they could be seriously in-
jured if the vehicle stops suddenly
or if the vehicle is involved in an
accident.
Always make sure nobody places
his/her head, hands and other parts
of the body in the roof opening be-
fore you close the roof. If some-
one’s neck, head or hand get
caught in the closing roof, it could
result in a serious injury. When
anyone close the roof, first make
sure it is safe to do so.
Electric moon roof

’03 MATRIX_U (L/O 0201)
252003 MY COROLLA MATRIX_U (OM12767U)
Never leave small children alone in
the vehicle, especially with the igni-
tion key still inserted. They could
use the moon roof switches and get
trapped in the roof opening. Unat-
tended children can be involved in
serious accidents.
Never sit on top of the vehicle
around the roof opening.

’03 MATRIX_U (L/O 0201)
262003 MY COROLLA MATRIX_U (OM12767U)
