Page 247 of 286
’03 MATRIX_U (L/O 0201)
2432003 MY COROLLA MATRIX_U (OM12767U)
ENGINE OIL SELECTION
Use API grade SL “Energy Conserving” or
ILSAC multigrade engine oil.

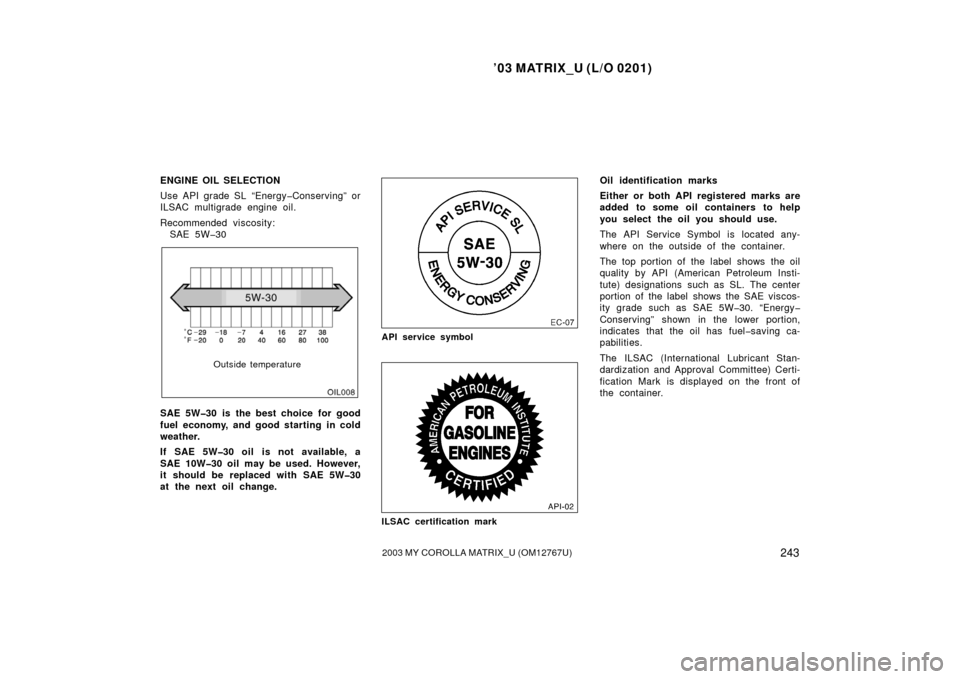

Recommended viscosity:SAE 5W 30
Outside temperature
SAE 5W 30 is the best choice for good
fuel economy, and good starting in cold
weather.
If SAE 5W 30 oil is not available, a
SAE 10W 30 oil may be used. However,
it should be replaced with SAE 5W 30
at the next oil change.
API service symbol
ILSAC certification mark
Oil identification marks
Either or both API registered marks are
added to some oil containers to help
you select the oil you should use.
The API Service Symbol is located any-
where on the outside of the container.
The top portion of the label shows the oil
quality by API (American Petroleum Insti-
tute) designations such as SL. The center
portion of the label shows the SAE viscos-
ity grade such as SAE 5W 30. “Energy
Conserving” shown in the lower portion,
indicates that the oil has fuel saving ca-
pabilities.
The ILSAC (International Lubricant Stan-
dardization and Approval Committee) Certi-
fication Mark is displayed on the front of
the container.
Page 273 of 286
’03 MATRIX_U (L/O 0201)
2692003 MY COROLLA MATRIX_U (OM12767U)
Fuel type:1ZZ FE engineUnleaded gasoline, Octane Rating 87
(Research Octane Number 91) or
higher
2ZZ GE engine Select premium unleaded gasoline with
an Octane Rating of 91 (Research Oc-
tane Number 96) or higher for opti-
mum engine performance
Fuel tank capacity, L (gal., lmp. gal.): Two wheel drive models50 L (13.2 gal., 11.0 lmp. gal.)
Four wheel drive models 45 L (11.9 gal., 9.9 lmp. gal.) ENGINE
Valve clearance (engine cold), mm (in.):
1ZZ FE engineIntake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
2ZZ GE engine (on a roller side) Intake 0.08—0.18 (0.003—0.007)
Exhaust 0.22—0.32 (0.009—0.013)
Spark plug type: 1ZZ FE engineDENSO SK16R11
NGK IFR5A11
2ZZ GE engine DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm (in.): 1.1 (0.043) ENGINE LUBRICATION
Oil capacity (drain and ref
ill),
L (qt., Imp. qt.):
1ZZ FE engineWith filter 3.7 (3.9, 3.3)
Without filter 3.5 (3.7, 3.1)
2ZZ GE engine With filter 4.4 (4.8, 4.0)
Without filter 4.2 (4.6, 3.8)
Oil grade: API grade SL “Energy Conserving” or
ILSAC multigrade engine oil is recom-
mended.

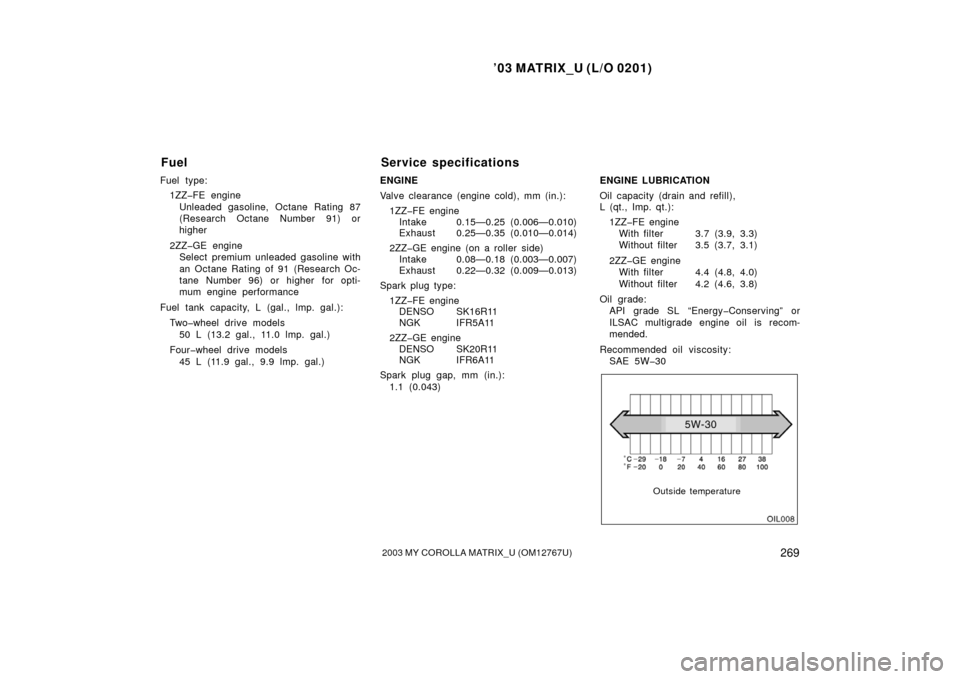

Recommended oil viscosity: SAE 5W 30
Outside temperature
Fuel Service specifications
Page 274 of 286
’03 MATRIX_U (L/O 0201)
2702003 MY COROLLA MATRIX_U (OM12767U)
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):1ZZ FE engine 6.5 (6.9, 5.7)
2ZZ GE engine 6.7 (7.0, 5.9)
Coolant type:
“TOYOTA Long Life Coolant” or equiva-
lent
With ethylene glycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
BATTERY
Open voltage
∗ at 20 C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max. CLUTCH
Pedal free play, mm (in.):
5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): 5 speed 1.9 (2.0, 1.7)
6 speed 2.3 (2.4, 2.0)
Oil type: Gear oil API GL 4 or GL 5
Recommended oil viscosity: SAE 75W 90
AUTOMATIC TRANSAXLE
Fluid capacity (drain and ref ill), L (qt.,
Imp. qt.):
1ZZ FE engineTwo wheel drive modelsUp to 3.1 (3.3, 2.7)
Four wheel drive models Up to 2.9 (3.1, 2.6)
2ZZ GE engine Up to 4.1 (4.3, 3.6) Fluid type:
Automatic transmission fluid Type T IV
Change automatic transmission fluid only
as necessary.
Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only Toyota Genuine ATF Type T IV
(ATF JWS3309 or NWS6500) to aid in
assuring optimum transaxle performance.
Notice: Using automatic transmission
fluid other than Toyota Genuine ATF
Type T IV may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle.
Page 275 of 286
’03 MATRIX_U (L/O 0201)
2712003 MY COROLLA MATRIX_U (OM12767U)
TRANSFER
(four wheel drive models)
Oil capacity, L (qt., Imp. qt.):0.8 (0.8, 0.7)
Oil type: Hypoid gear oil API GL 5
Recommended oil viscosity: Above 18 C (0 F)
SAE 90
Below 18 C (0 F)
SAE 80W or 80W 90
REAR DIFFERENTIAL
(four wheel drive models)
Oil capacity, L (qt., Imp. qt.): 0.5 (0.5, 0.4)
Oil type: Hypoid gear oil API GL 5
Recommended oil viscosity: Above 18 C (0 F)
SAE 90
Below 18 C (0 F)
SAE 80W or 80W 90 BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
70 (2.8)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf): 5—8 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III
