engine TOYOTA MATRIX 2003 E130 / 1.G Scheduled Maintenance Guide

1 Specific services apply to specific operating conditions. See page 16 for details.2 Required under the terms of the Emission Control Warranty.3 Applies to Corolla Matrix 4WD only.4 Do not replace if replaced at 112,500 miles.

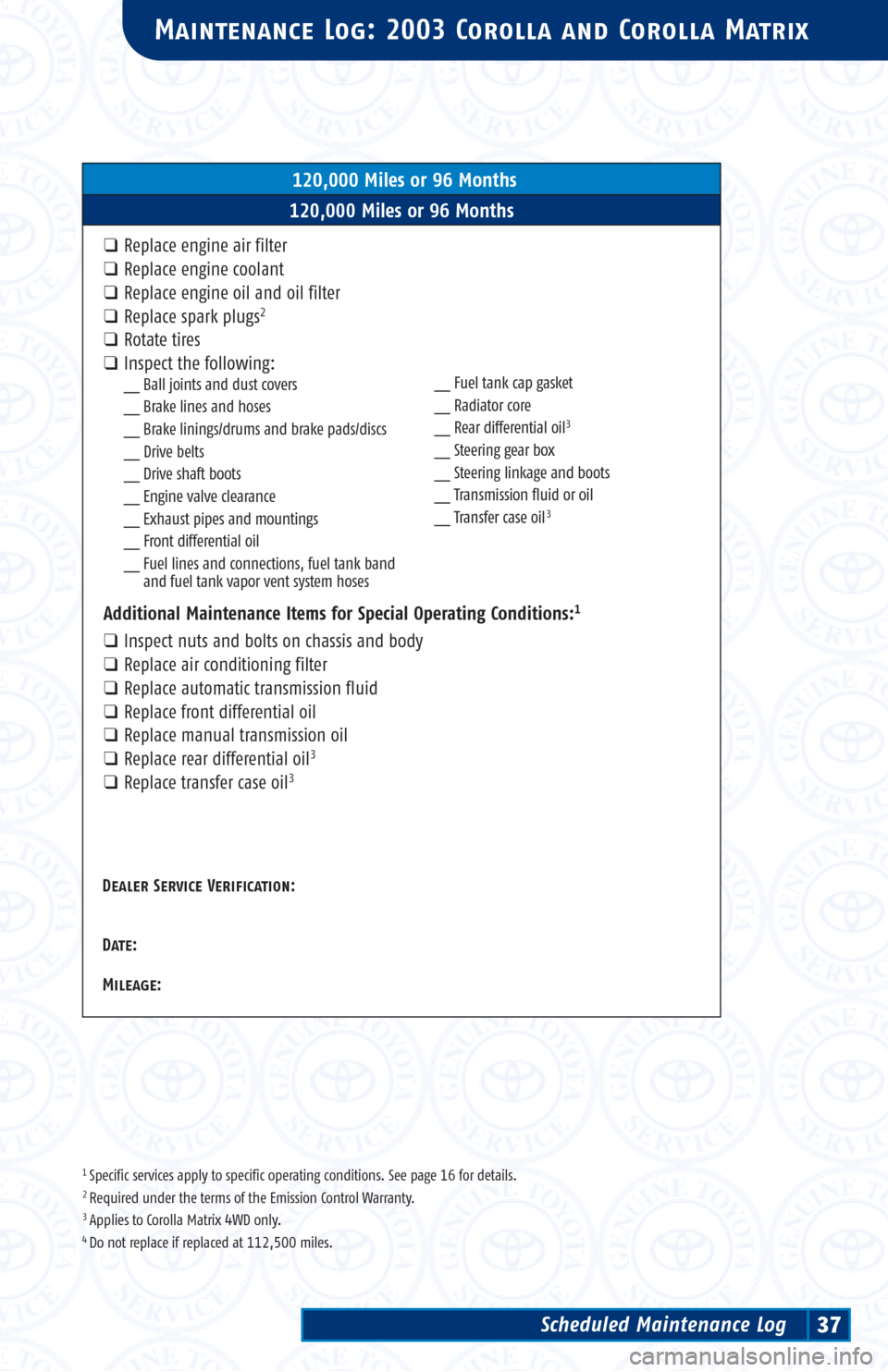

Maintenance Log: 2003 Corolla and Corolla Matrix
120,000 Miles or 96 Months
120,000 Miles or 96 Months
❑Replace engine air filter
❑Replace engine coolant
❑Replace engine oil and oil filter
❑Replace spark plugs2
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
__ Drive belts
__ Drive shaft boots
__ Engine valve clearance
__ Exhaust pipes and mountings
__ Front differential oil
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Additional Maintenance Items forSpecial Operating Conditions:1
❑Inspect nuts and bolts on chassis and body
❑Replace air conditioning filter
❑Replace automatic transmission fluid
❑Replace front differential oil
❑Replace manual transmission oil
❑Replace rear differential oil3
❑Replace transfer case oil3
Scheduled Maintenance Log37
Dealer Service Verification:
Date:
Mileage:
__ Fuel tank cap gasket
__ Radiator core
__ Rear differential oil
3
__ Steering gear box
__ Steering linkage and boots
__ Transmission fluid or oil
__ Transfer case oil
3
