Corolla_MATRIX_Navi_U (L/O 0305)
44
2004 COROLLA MATRIX Navigation from May. ’03 Prod. (OM12800U)

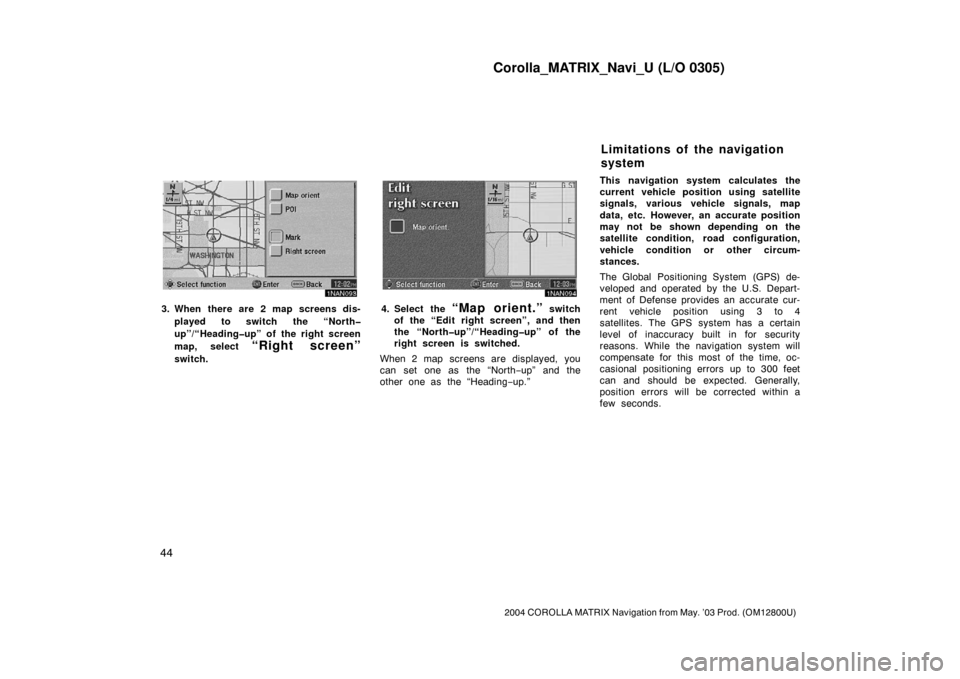

1NAN093
3. When there are 2 map screens dis-
played to switch the “North
up”/“Heading up” of the right screen
map, select
“Right screen”
switch.
1NAN094
4. Select the “Map orient.” switch
of the “Edit right screen”, and then
the “North up”/“Heading up” of the
right screen is switched.
When 2 map screens are displayed, you
can set one as the “North−up” and the
other one as the “Heading−up.”This navigation system calculates the
current vehicle position using satellite
signals, various vehicle signals, map
data, etc. However, an accurate position
may not be shown depending on the
satellite condition, road configuration,
vehicle condition or other circum-
stances.
The Global Positioning System (GPS) de-
veloped and operated by the U.S. Depart-
ment of Defense provides an accurate cur-
rent vehicle position using 3 to 4
satellites. The GPS system has a certain
level of inaccuracy built in for security
reasons. While the navigation system will
compensate for this most of the time, oc-
casional positioning errors up to 300 feet
can and should be expected. Generally,
position errors will be corrected within a
few seconds.
Limitations of the navigation
system
Corolla_MATRIX_Navi_U (L/O 0305)
63
2004 COROLLA MATRIX Navigation from May. ’03 Prod. (OM12800U)

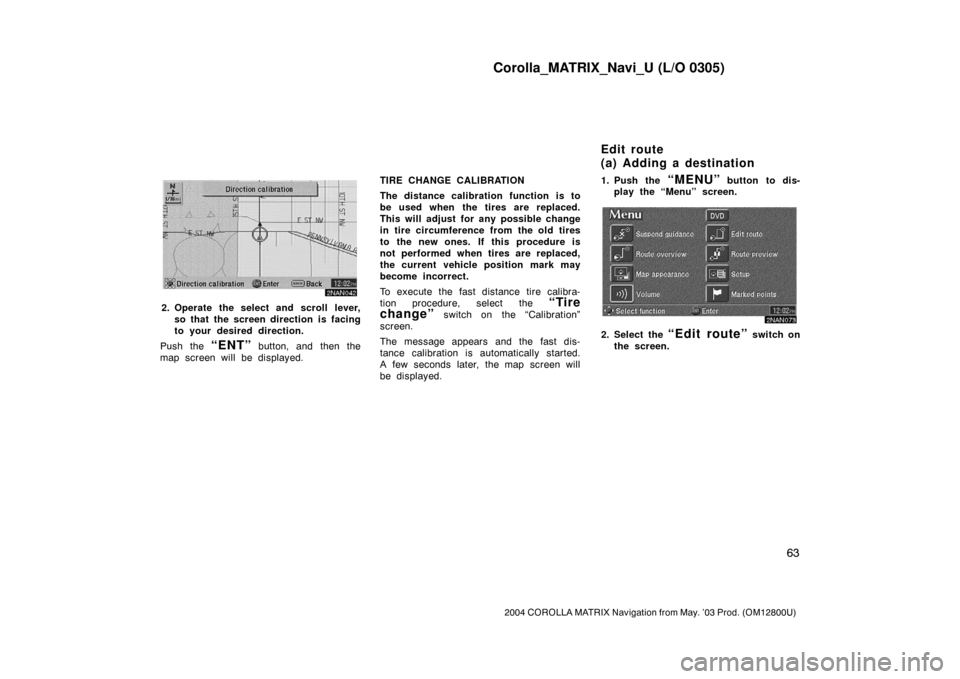

2NAN042
2. Operate the select and scroll lever,
so that the screen direction is facing
to your desired direction.
Push the
“ENT” button, and then the
map screen will be displayed.TIRE CHANGE CALIBRATION
The distance calibration function is to
be used when the tires are replaced.
This will adjust for any possible change
in tire circumference from the old tires
to the new ones. If this procedure is
not performed when tires are replaced,
the current vehicle position mark may
become incorrect.
To execute the fast distance tire calibra-
tion procedure, select the
“Tire
change”
switch on the “Calibration”
screen.
The message appears and the fast dis-
tance calibration is automatically started.
A few seconds later, the map screen will
be displayed.1. Push the
“MENU” button to dis-
play the “Menu” screen.
2NAN073
2. Select the “Edit route” switch on
the screen.
Edit route
(a) Adding a destination
