AUDIO SYSTEM
Audio system
Quick reference for your audio system92 . . . . . . . . . . . . . . . . . . . . . . . . .
Using your audio system93 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Car audio system operating hints108 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION V

Corolla_MATRIX_Navi_U (L/O 0305)
92
2004 COROLLA MATRIX Navigation from May. ’03 Prod. (OM12800U)
5NAN033
“BAND” button
Push this button to choose an audio control mode, FM1,
FM2 or AM station. For details, see pages 94 and 97.
Function buttons
Push the button on the
screen to control the radio
or compact disc player. For
details, see pages 97 and
102.
“ ” button
Push this button to display the sound control mode.
For details, see page 95.
“ENT” button/select and scroll lever
In case of selecting a function and letter or moving cursor,
move the lever. In case of deciding after selecting it on the
screen, push the lever. For details, see page 97.“PWR/VOL” knob
Push this knob to turn the
audio system on and off, and
turn it to adjust the volume.
For details, see page 93.
“TA” button
Push this button to seek a
station that broadcasts traffic
information regularly. For
details, see page 101.
“CD” button
Push this button to turn on the
compact disc player or
compact disc changer. For
details, see page 105.
“SEEK” button
Radio: Push either side of this
button to seek up or down for
a station, or scan for a
station. For details, see page
98.
Compact disc player: Push
either side of this button to
seek up or down for a track,
or scan for a track. For
details, see page 106.
Eject button
Push this button to
eject a compact disc.Compact disc slot
Push a compact disc
into the slot.
Quick reference for your audio system

Corolla_MATRIX_Navi_U (L/O 0305)
93
2004 COROLLA MATRIX Navigation from May. ’03 Prod. (OM12800U)
This section describes some of the basic
features of the Toyota audio system.
Some information may not pertain to your
system.
Your audio system works when the igni-
tion switch is in the “ACC” or “ON” posi-
tion.
NOTICE
To prevent the battery from being
discharged, do not leave the car au-
dio on longer than necessary when
the engine is not running.
5NAN030
(a) Turning the system on and off
POWER/VOL: Push this knob to turn the
audio system on and off. Turn this knob
to adjust the volume. The system turns
on in the last mode used.
5NAN014
Push “BAND” (FM1, FM2 or AM) or
“CD” button to turn on the desired
mode. The selected mode turns on im-
mediately and the screen turns to each
audio control mode.
Push these buttons if you want to switch
from one mode to another.
If a disc is not inserted, the compact disc
player does not start playing.
You can turn off the compact disc player
by ejecting the compact disc or pressing
“BAND” button. The previous audio mode
will come on again.
Using your audio system—
—Some basics

Corolla_MATRIX_Navi_U (L/O 0305)
95
2004 COROLLA MATRIX Navigation from May. ’03 Prod. (OM12800U)
(b) Tone and balance
How good an audio program sounds to
you is largely determined by the mix of
the treble, mid−range, and bass levels. In
fact, different kinds of music and vocal
programs usually sound better with differ-
ent mixes of treble, mid−range, and bass.
A good balance of the left and right ste-
reo channels and of the front and rear
sound levels is also important.
5NAN019
5NAN009

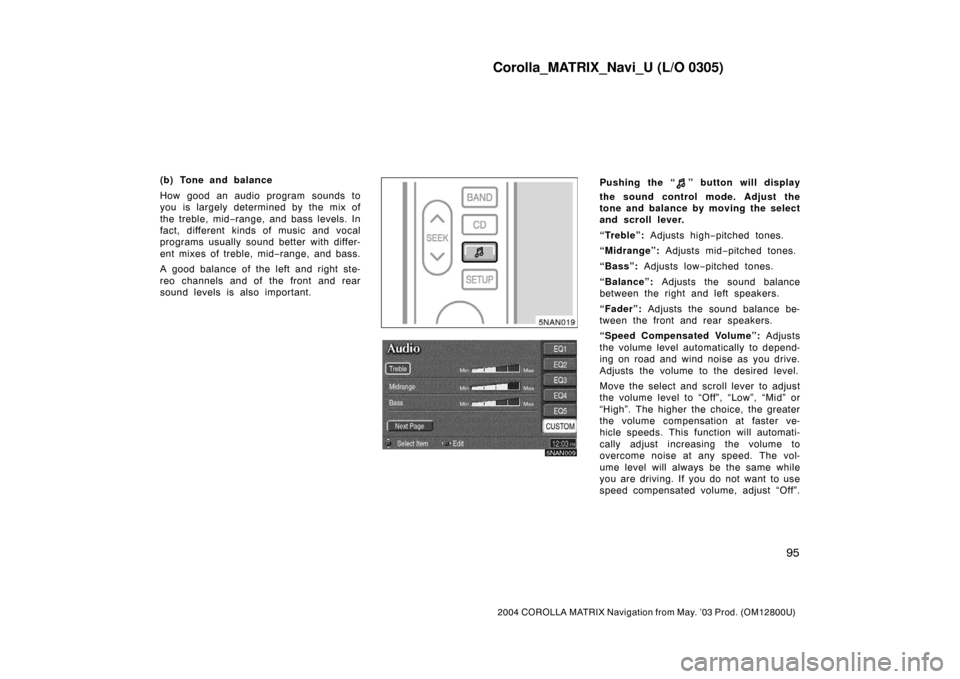

Pushing the “” button will display
the sound control mode. Adjust the
tone and balance by moving the select
and scroll lever.
“Treble”: Adjusts high−pitched tones.
“Midrange”: Adjusts mid−pitched tones.
“Bass”: Adjusts low−pitched tones.
“Balance”: Adjusts the sound balance
between the right and left speakers.
“Fader”: Adjusts the sound balance be-
tween the front and rear speakers.
“Speed Compensated Volume”: Adjusts
the volume level automatically to depend-
ing on road and wind noise as you drive.
Adjusts the volume to the desired level.
Move the select and scroll lever to adjust
the volume level to “Off”, “Low”, “Mid” or
“High”. The higher the choice, the greater
the volume compensation at faster ve-
hicle speeds. This function will automati-
cally adjust increasing the volume to
overcome noise at any speed. The vol-
ume level will always be the same while
you are driving. If you do not want to use
speed compensated volume, adjust “Off”.

Corolla_MATRIX_Navi_U (L/O 0305)
99
2004 COROLLA MATRIX Navigation from May. ’03 Prod. (OM12800U)
(d) Radio Data System
Your audio system is equipped with Radio
Data Systems (RDS). RDS mode pro-
vides you to receive text messages from
radio stations that utilize RDS transmit-
ters.
When RDS is on, the radio can
—select only stations of a particular pro-
gram type,
—display messages from radio stations,
—search for a stronger signal station,
—search for local stations broadcasting
the same network as the vehicle travels,
—receive announcements concerning lo-
cal and national emergencies (even if
RDS function is turned off).
RDS features are available for the use
only on FM stations which broadcast RDS
information.
5NAN005
5NAN006
“RDS SEEK”
This button allows you to search all avail-
able RDS stations out of the entire FM
band and sort them by program type
(See following “PTY” button for details on

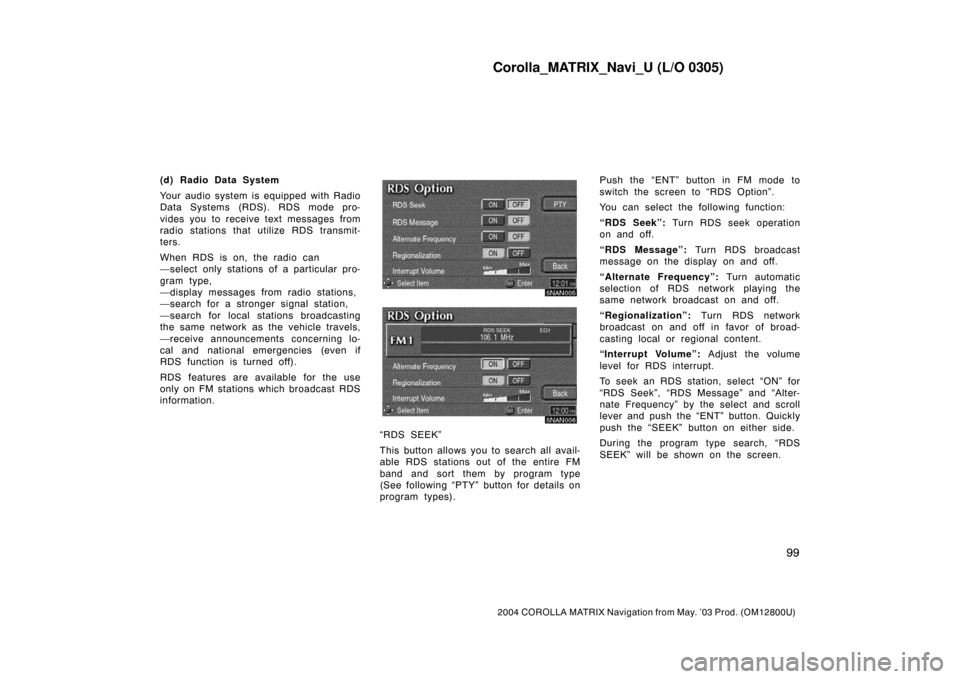

program types).Push the “ENT” button in FM mode to
switch the screen to “RDS Option”.
You can select the following function:
“RDS Seek”: Turn RDS seek operation
on and off.
“RDS Message”: Turn RDS broadcast
message on the display on and off.
“Alternate Frequency”: Turn automatic
selection of RDS network playing the
same network broadcast on and off.
“Regionalization”: Turn RDS network
broadcast on and off in favor of broad-
casting local or regional content.
“Interrupt Volume”: Adjust the volume
level for RDS interrupt.
To seek an RDS station, select “ON” for
“RDS Seek”, “RDS Message” and “Alter-
nate Frequency” by the select and scroll
lever and push the “ENT” button. Quickly
push the “SEEK” button on either side.
During the program type search, “RDS
SEEK” will be shown on the screen.

Corolla_MATRIX_Navi_U (L/O 0305)
101
2004 COROLLA MATRIX Navigation from May. ’03 Prod. (OM12800U)
5NAN017
5NAN008

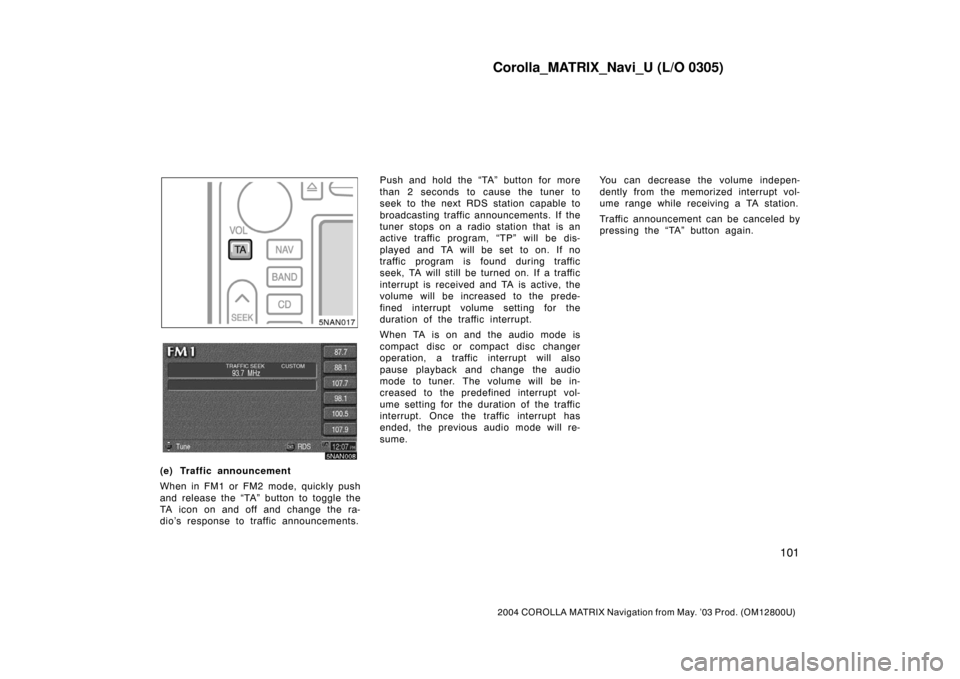

(e) Traffic announcement
When in FM1 or FM2 mode, quickly push
and release the “TA” button to toggle the
TA icon on and off and change the ra-
dio’s response to traffic announcements.Push and hold the “TA” button for more
than 2 seconds to cause the tuner to
seek to the next RDS station capable to
broadcasting traffic announcements. If the
tuner stops on a radio station that is an
active traffic program, “TP” will be dis-
played and TA will be set to on. If no
traffic program is found during traffic
seek, TA will still be turned on. If a traffic
interrupt is received and TA is active, the
volume will be increased to the prede-
fined interrupt volume setting for the
duration of the traffic interrupt.
When TA is on and the audio mode is
compact disc or compact disc changer
operation, a traffic interrupt will also
pause playback and change the audio
mode to tuner. The volume will be in-
creased to the predefined interrupt vol-
ume setting for the duration of the traffic
interrupt. Once the traffic interrupt has
ended, the previous audio mode will re-
sume.You can decrease the volume indepen-
dently from the memorized interrupt vol-
ume range while receiving a TA station.
Traffic announcement can be canceled by
pressing the “TA” button again.

Corolla_MATRIX_Navi_U (L/O 0305)
108
2004 COROLLA MATRIX Navigation from May. ’03 Prod. (OM12800U)
(g) If the player malfunctions
If the player does not operate, check that
the disc surface is not soiled or dam-
aged. If the disc is O.K., the following
causes are possible.
The temperature of the player’s inter-
nal mechanism may be raised be-
cause of high external temperature.
Remove the disc from the player to
cool it.
Compact disc changer—
Condensation may have occurred on
the internal mechanism of the auto-
matic changer. Open the cover to let
the air circulate.
The temperature of the player’s inter-
nal mechanism may be raised be-
cause of high external temperature.
Remove the magazine from the player
to cool it.
If the player still does not operate, have
it checked by your dealer.
NOTICE
To ensure the correct audio system
operation:
Be careful not to spill beverages
over the audio system.
Do not put anything other than a
Compact Disc into the slot.
The use of cellular phone inside or
near the vehicle may cause a noise
from the speakers of the audio
system which you are listening to.
However, this does not indicate a
malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range. The farther you are
from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves.Here are some common reception prob-
lems that probably do not indicate a
problem with your radio:
FM
Fading and drifting stations—Generally,
the effective range of FM is about 40 km
(25 miles). Once outside this range, you
may notice fading and drifting, which in-
crease with the distance from the radio
transmitter. They are often accompanied
by distortion.
Multi−path—FM signals are reflective,
making it possible for two signals to
reach your antenna at the same time. If
this happens, the signals will cancel each
other out, causing a momentary flutter or
loss of reception.
Static and fluttering—These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping—If the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again.
Car audio system operating
hints
