“NO CD”: The compact disc player is
empty. Insert a disc.
If the disc is not playing correctly, for any
other reason, try a known good disc.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
H/M (Hours/minutes adjustment)
These buttons are used to adjust the
clock time. For details, see “Clock” on
page 154 in Section 1 −10.
INFO (Information)
When an RDS radio station transmits a
text message, “INFO” will be displayed. At
this time, push the “INFO” button to view
the text message. If the whole message
does not appear on the display, part of
the message will appear every three sec-
onds until the message is completed. To
scroll through the message at your own
speed, push the “INFO” button consecu-
tively. When the whole message has been
displayed, the message will disappear.
The message display will be canceled if
any button that affects the display is
pushed. To view the message again, push
the “INFO” button again.
The RDS audio system saves a message
until a new message is received. If the text message is not available when
you push “INFO” button, “NO INFO” will
appear on the display.
LOAD
This button is used to load the compact
discs in the compact disc player which is
integrated with the radio. This compact
disc player can store up to 6 discs.
The key must be in the “ACC” or “ON”
position for the load function.
Loading one compact disc only—
To load one compact disc only, quickly
push and release the button. If you hold
the button too long, the mechanism will
change to the mode for loading multiple
compact discs. After pushing the button,
wait for the load/eject status light to turn
green then, insert a compact disc. After
the disc is loaded, the shutter of the slot
will close.
If no compact disc is inserted, the shutter
will close after 8 seconds.
If you push this button when the player is
full, three beeps will sound.
Loading multiple compact di
scs—
To load multiple compact discs, push and
hold the button until you hear two beeps.
When the load/eject status light turns
green, insert a disc. Wait for the load/
eject status light to turn green before in-
serting the next disc.
If no compact disc is inserted, the shutter
will close after 8 seconds.
If you push this button when the player is
full, three beeps will sound.
PWR/VOL (Power/Volume)
Push “PWR/VOL” to turn the audio system
on and off. Turn “PWR/VOL” to adjust the
volume.
P·TYPE (Program Types)
To turn on the PTY mode, push the
“P·TYPE” button while receiving an RDS
station. The current program type will ap-
pear on the display.
You can select one of the following pro-
grams by turning the tune (P·TYPE) knob
while the PTY mode is on.
Any Type
News
Inform (Information)
Sports

’04 MATRIX_U (L/O 0307)
134
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
Ta l k
Rock
Cls Rck (Classic Rock)
Adlt Hit (Adult Hits)
Soft Rck (Soft Rock)
To p 4 0
Country
Oldies
Soft
Nostalga (Nostalgia)
Jazz
classicl (Classical)
R & B
Soft R & B
Language
Rel Musc (Religious Music)
Rel Talk (Religious Talk)
Persnlty (Personality)
Public
College
WeatherInterrupt function
If the radio in on the compact disc mode,
the radio will switch to the FM band with
the previous interrupt volume. The pro-
gram type and “Int” will appear. If the
radio in on the FM mode, the volume will
be adjusted to the previous interrupt vol-
ume. To cancel the interrupt function,
press “P·TYPE” or the selected mode but-
ton.
If the radio in on the PTY mode, program
types, except Any Type, may be selected
as interrupts. To set a program type as an
interrupt, push and hold “P·TYPE” while a
program type is displayed until you hear
a beep. The asterisk will appear when an
interrupt is set.
To turn off an interrupt while the radio in
on the PTY mode, select the program type
marked with an asterisk. Push and hold
“P·TYPE” until you hear a beep. The as-
terisk will disappear.
NOTE: ALERT! is a special program type
interrupt that is always on. If an emergen-
cy broadcast is received during reception
of anything other than AM broadcasting,
“ALERT” appears on the display and the
system adjust the volume to the interrupt
volume. Setting a PTY station
Program types can be stored to the preset
buttons. For details, see “1 2 3 4 5 6
(Preset or disc selection buttons)”.
Seeking a PTY station
If the radio is in the PTY mode, it will find
and play the next station up or down the
station band within the same program
type. If no PTY station will be found,
“NOT FOUND” will appear on the display
and the radio will return to the previous
frequency.
For details, see “SEEK”.
Scanning a PTY station
If the radio is in the PTY mode, it will
tune in the next station within the same
program type.
For details, see “SCAN”.
RCL (Recall)
This button is designed to change the dis-
play in each mode. You can also display
the clock by pushing this button when the
ignition switch is off.

’04 MATRIX_U (L/O 0307)
135
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
Radio
Push the “RCL” button to change the dis-
play among frequency, program service
name, and program type while receiving
RDS stations. To change what is normally
shown on the display, push this button
until you see the display you want, then
push and hold this button until the display
flashes and you hear a beep.
Compact disc player
Push the “RCL” button to see how long
the current track has been playing. To
change what is normally shown on the
display (track number or elapsed time),
push this button until you see the display
you want, then push and hold this button
until the display flashes and you hear a
beep.RDM (Random)
There are two random features—You can
either listen to the tracks on all the com-
pact discs in the player in random order,
or only listen to the tracks on a specific
compact disc in random order.
To randomly play the tracks on a disc:
Push and hold the “RDM” button until
“RANDOM ONE” appears on the display
and you hear a beep. The disc you are
listening to will play in random order. To
turn off the random feature, push this but-
ton again.
To randomly play all the tracks in the
player:
Quickly push and release the “RDM” but-
ton. “RANDOM ALL” will appear on the
display and the player will perform all the
tracks on all the discs in the player in
random order. If you hear a beep, the
player will perform all the tracks on all the
discs in the player. To turn off the random
feature, push this button again.RPT (Repeat)
There are two repeat features—You can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release the “
” but-
ton while the track is playing. “REPEAT
TRACK” will appear on the display. If you
push and hold the button, the player will
repeat the whole disc. When the track
ends, it will automatically replay. To turn
off the repeat feature, push this button
again.
Repeating a disc:
Push and hold the “
” button until
“REPEAT CD” appears on the display. The
player will repeat all the tracks on the
disc you are listening to. When the disc
ends, the player will automatically go back
to the top track of the disc and replay. To
turn off the repeat feature, push this but-
ton again.

’04 MATRIX_U (L/O 0307)
136
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold either side of the “SEEK/
SCAN” button for more than 4 seconds
until “PRESET SCAN” appears on the dis-
play and you hear two beeps. The radio
will tune in the next preset station up the
band, stay there for 5 seconds, and then
move to the next preset station. To cancel
scan and remain on current station, push
this button again.
To scan all the frequencies:
Push and hold either side of the “SEEK/
SCAN” button for about two seconds until
“SC” appears on the display and you hear
a beep. The radio will find the next station
up the station band, stay there for 5 se-
conds, and then scan again to the next
preset. To cancel scan and remain on cur-
rent station, push this button again. If you
hear two beeps, the radio will scan the
preset stations.
You can also scan only to stations with
the types of programs you want to listen
to or traffic announcements. (See
“P·TYPE”.)Compact disc player
There are two scan features—You can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
player.
Scanning the tracks on a disc:
Push and hold either side of the “SEEK/
SCAN” button for about two seconds until
“SCAN” appears on the display and you
hear a beep. The player will scan all the
tracks on the disc you are listening to. If
you hear two beeps, the player will scan
the first track of all the discs in the play-
er. To select a track, push either side of
this button again.
Scanning the first track of all the discs in
the player:
Push and hold either side of the “SEEK/
SCAN” button for more than 4 seconds
until “DISC SCAN” appears on the display
and you hear two beeps. The player will
scan the first track of the next disc. To
select a disc, push either side of this
button again.
SEEK (Seeking)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release either side of the “SEEK/SCAN”
button. If you hear a beep, the radio will
scan the stations. (See “SCAN”.) Do this
again to find the station after that.
You can also seek only to stations with
the types of programs you want listen to
or traffic announcements. (See “P·TYPE”.)
Compact disc player
By using this button, you can skip up or
down to a different track.
Push either side of the “SEEK/SCAN” but-
ton repeatedly until the number of the
track you want to listen to appears on the
display. If you want to return to the begin-
ning of the current track, quickly push the
“
” button one time.

’04 MATRIX_U (L/O 0307)
137
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
SONG LIST
This integrated six−disc compact disc
player has a feature called song list. This
feature is capable of saving 20 track
selections.
To save tracks into the song list feature,
perform the following steps:
1. Turn the compact disc player on and load it with at least one disc. (See
“LOAD”.)
2. Make sure the disc player is not in song list mode. “S −LIST” should not
appear in the display. If “S −LIST” is
present, push the “SONG LIST” button
to turn it off.
3. Select the desired disc by pushing the numbered button and then use the right
side of the “SEEK/SCAN” button to lo-
cate the track you want to save. The
track will begin to play.
4. To save the track, push and hold the “SONG LIST” button until you hear two
beeps.
5. Repeat step 3 and 4 for saving other selections.
If you try to save more than 20 selec-
tions, “S −LIST FULL” will appear on the
display. To play the song list, push the “SONG
LIST” button. One beep will be heard and
“S
−LIST” will appear on the display. The
recorded tracks will begin to play in the
order that they were saved.
You may seek through the song list by
using the “SEEK/SCAN” button. Seeking
past the last saved track will return to the
first saved track.
To delete tracks from the song list, per-
form the following steps:
1. Turn the disc player on.
2. Push the “SONG LIST” button to turn the song list on. “S −LIST” will appear
on the display.
3. Push either side of the “SEEK/SCAN” button to select the desired track to be
deleted.
4. Push and hold the “SONG LIST” button for more than two seconds until you
hear a beep. After two seconds of
pushing the button continuously, two
beeps will be heard to confirm that the
track has been deleted.
After a track has been deleted, the re-
maining tracks are moved up the list.
When another track is added to the song
list, the tracks will be added to the end
of the list. To delete the entire song list, perform the
following steps:
1. Turn the disc player on.
2. Push the “SONG LIST” button to turn song list on. “S −LIST” will appear on
the display.
3. Push and hold the button for more than 4 seconds. A beep will be heard, fol-
lowed by two beeps after two seconds
and a final beep will be heard after 4
seconds. “S −LIST EMPTY” will appear
on the display indicating that the song
list has been deleted.
If a disc is ejected, and the song list
contains saved tracks from that disc,
those tracks are automatically deleted
from the song list. Any tracks saved to
the song list again are added to the bot-
tom of the list.
To end the song list mode, push the
“SONG LIST” button. One beep will be
heard and “S −LIST” will be removed from
the display.

’04 MATRIX_U (L/O 0307)
138
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
TRAF (Traffic)
This button turns the traffic announcement
(TA) feature on and off.
By pushing “< >” button, “TRAF” appears
on the display and the radio will start
seeking any traffic program station.
When a traffic program station is found,
“TRAF” will be displayed (). If no
traffic program stations are found, “No
Traffic” will appear on the display.
After the traffic announcement program is
over, the display returns to the previous
mode.
If no traffic program station is found, “No
Traffic” will appear on the display for 5
seconds and the display returns to the
previous mode. If the “TRAF” button is
pushed when the compact disc player is
on, the radio will start seeking traffic pro-
gram stations.
When a “TA” is received, the radio stores
the volume of the previous mode and ad-
justs the volume to the previous interrupt
volume. During the traffic announcement,
you can adjust the volume using the
“PWR/VOL”.The adjusted volume will be used as the
new default interrupt volume. The interrupt
volume has a minimum default setting.
The stored interrupt volume will be the
greater of the current volume and the
minimum default setting. After an interrupt,
the radio system will return to the volume
that was active before the interrupt.
TUNE (Tuning)
Turn the knob clockwise to step up the
frequency. Turn the knob counterclockwise
to step down the frequency.NOTICE
To ensure correct audio system op-
erations:

Be careful not to spill beverages
over the audio system.
 Do not put anything other than a
cassette tape or Compact Disc into
the slot.
 The use of a cellular phone inside
or near the vehicle may cause a
noise from the speakers of the au-
dio system which you are listening
to. However, this does not indicate
a malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range. The farther you are
from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves.
Car audio system operating
hints

’04 MATRIX_U (L/O 0307)
139
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
Here are some common reception prob-
lems that probably do not indicate a prob-
lem with your radio:
FM
Fading and drifting stations—Generally, the
effective range of FM is about 40 km (25
miles). Once outside this range, you may
notice fading and drifting, which increase
with the distance from the radio transmit-
ter. They are often accompanied by distor-
tion.
Multi−path—FM signals are reflective,
making it possible for two signals to reach
your antenna at the same time. If this
happens, the signals will cancel each oth-
er out, causing a momentary flutter or
loss of reception.
Static and fluttering—These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping—If the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again. AM
Fading—AM broadcasts are reflected by
the upper atmosphere–especially at night.
These reflected signals can interfere with
those received directly from the radio sta-
tion, causing the radio station to sound
alternately strong and weak.
Station interference—When a reflected sig-
nal and a signal received directly from a
radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
Static—AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.
CARING FOR YOUR CASSETTE PLAYER
AND TAPES
For the best performance for your cas-
sette player and tapes:
Clean the tape head and other parts regu-
larly.
A dirty tape head or tape path can
decrease sound quality and tangle your
cassette tapes. The easiest way to
clean them is by using a cleaning tape.
(A wet type is recommended.)Use high
−quality cassettes.
Low −quality cassette tapes can cause
many problems, including poor sound,
inconsistent playing speed, and
constant auto− reversing. They can also
get stuck or tangled in the cassette
player.
Do not use a cassette if it has been
damaged or tangled or if its label is
peeling off.
Do not leave a cassette in the player
if you are not listening to it, especially
if it is hot outside.
Store cassettes in their cases and out
of direct sunlight.
Avoid using cassettes with a total play-
ing time longer than 100 minutes (50
minutes per side). The tape used in
these cassettes is thin and could get
stuck or tangled in the cassette player.

’04 MATRIX_U (L/O 0307)
140
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
CARING FOR YOUR COMPACT DISC
PLAYER AND DISCS
The player is intended for use with 12
cm (4.7 in.) discs only.
Extremely high temperatures can keep
your compact disc player from working.
On hot days, use the air conditioning
to cool the vehicle interior before you
listen to a disc.
Bumpy roads or other vibrations may
make your compact disc player skip.
If moisture gets into your compact disc
player, you may not hear any sound
even though your compact disc player
appears to be working. Remove the
disc from the player and wait until it
dries.
CAUTION
Compact disc players use an invisible
laser beam which could cause hazard-
ous radiation exposure if directed
outside the unit. Be sure to operate
the player correctly.

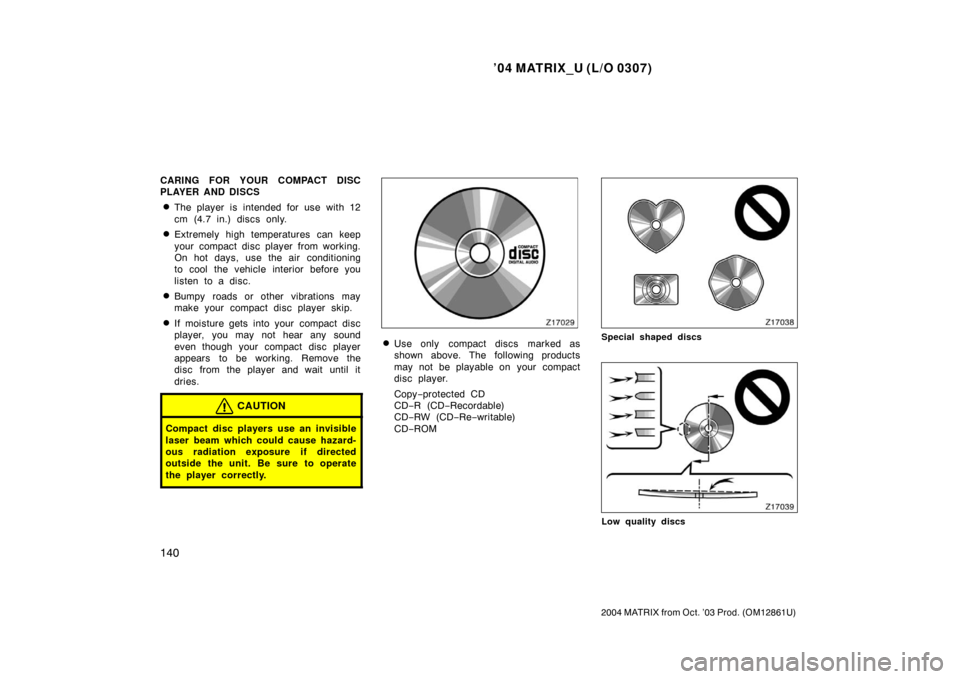

Use only compact discs marked as
shown above. The following products
may not be playable on your compact
disc player.
Copy−protected CD
CD− R (CD −Recordable)
CD− RW (CD −Re −writable)
CD− ROMSpecial shaped discs
Low quality discs

’04 MATRIX_U (L/O 0307)
141
2004 MATRIX from Oct. ’03 Prod. (OM12861U)

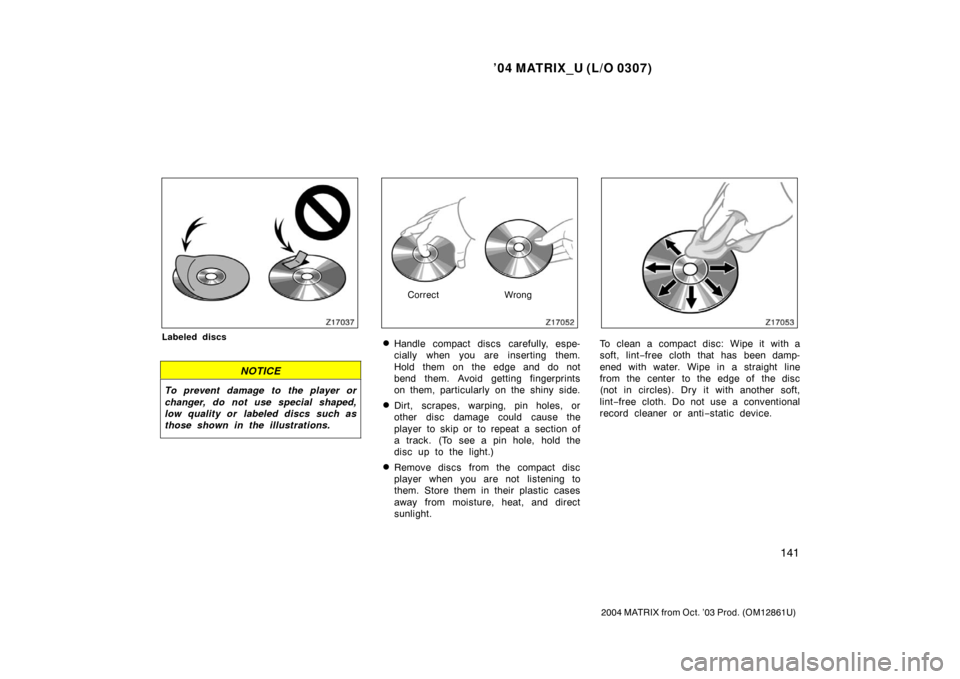

Labeled discs
NOTICE
To prevent damage to the player or
changer, do not use special shaped,
low quality or labeled discs such as
those shown in the illustrations.
CorrectWrong
Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny side.
Dirt, scrapes, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section of
a track. (To see a pin hole, hold the
disc up to the light.)
Remove discs from the compact disc
player when you are not listening to
them. Store them in their plastic cases
away from moisture, heat, and direct
sunlight.
To clean a compact disc: Wipe it with a
soft, lint−free cloth that has been damp-
ened with water. Wipe in a straight line
from the center to the edge of the disc
(not in circles). Dry it with another soft,
lint −free cloth. Do not use a conventional
record cleaner or anti −static device.

’04 MATRIX_U (L/O 0307)
142
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
