TVIP is a theft deterrent system. If
someone attempts to damage or break
into your vehicle, the system sounds
the alarm while flashing the lights.SETTING THE SYSTEM
You can set the system as follows.1. Remove the key from the ignition switch.
2. Have all passengers get out of the vehicle.
3. Close all the side doors, back door and glass hatch securely.
4. Lock all the side doors and back door with the key or wireless remote control
transmitter. At this time, the TVIP indi-
cator light comes on.
The system will be set in 30 seconds.
When the system is set, the indicator
light will start to flash. 5. Make sure that the indicator light
flashes. Then you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system because unlocking
from the inside activates the alarm.
Activating the alarm
If the system detects a threat to the
vehicle, it sounds the alarm for one
minute while flashing headlights and
turn signal lights. Also, the interior
lights turn on when the interior light
dial is in the door position.
The system detects a threat under any of
the following conditions:
Either of the front doors is unlocked by
means other than the key or wireless
remote control transmitter.
If the key is not in the ignition switch,
all the side doors and back door will
be automatically locked again.
Any of the side doors, back door or
glass hatch are forcibly opened.
The alarm will activate when the back
door is unlocked with a key. Cancel the
system before unlocking the back door.
Toyota vehicle intrusion
protection system (TVIP)

’04 MATRIX_U (L/O 0307)
21
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
The side windows are tapped or bro-
ken.
The battery terminal is disconnected
and then reconnected.
The ignition is hotwired.
After one minute, the alarm automatically
stops and the indicator light starts flashing
again.
Reactivating the alarm
Once set, until you cancel the system, the
system automatically resets the alarm af-
ter the alarm has stopped.
The alarm will activate again under the
same circumstances described in “Activat-
ing the alarm”.
Stopping the alarm
You can stop the alarm in either of the
following ways:
Unlock any of the side doors with the
key or wireless remote control transmit-
ter.
Place the ignition switch in the “ON”
position. CANCELLING THE SYSTEM
You can cancel the system as described
in “Stopping the alarm”.
If you cancel the system by unlocking any
of the side doors but no door is opened
within 30 seconds, all the side doors and
back door lock automatically and the sys-
tem will be set again.
TESTING THE SYSTEM
You can check the system operation as
follows.
1. Open all the windows.
2. Set the system as described in “SETTING THE SYSTEM”.
3. Unlock the driver’s door with the inside lock knob. The system should activate
and the alarm should sound.
4. Stop the alarm as described in “Stop- ping the alarm”.
5. Repeat steps 2 to 4 for the other doors. (For rear side doors, unlock and
then open the doors in step 3.)
If the system does not work properly,
have it checked by your Toyota dealer.
To open the hood: 1. Pull the hood lock release lever. The hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
Hood

’04 MATRIX_U (L/O 0307)
211
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
IN CASE OF AN EMERGENCY
In case of an emergency
If your vehicle will not start212
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your engine stalls while driving 215
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle overheats 215
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
If you have a flat tire 216
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . .
If your vehicle becomes stuck 228
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle needs to be towed 229
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you cannot shift automatic transmission selector lever 232
. . . . . . . .
If you lose your keys 233
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . .
If you lose your wireless remote control transmitter 233
. . . . . . . . . . . . .
SECTION 4

’04 MATRIX_U (L/O 0307)
295
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
Engine compartment
Instrument panel

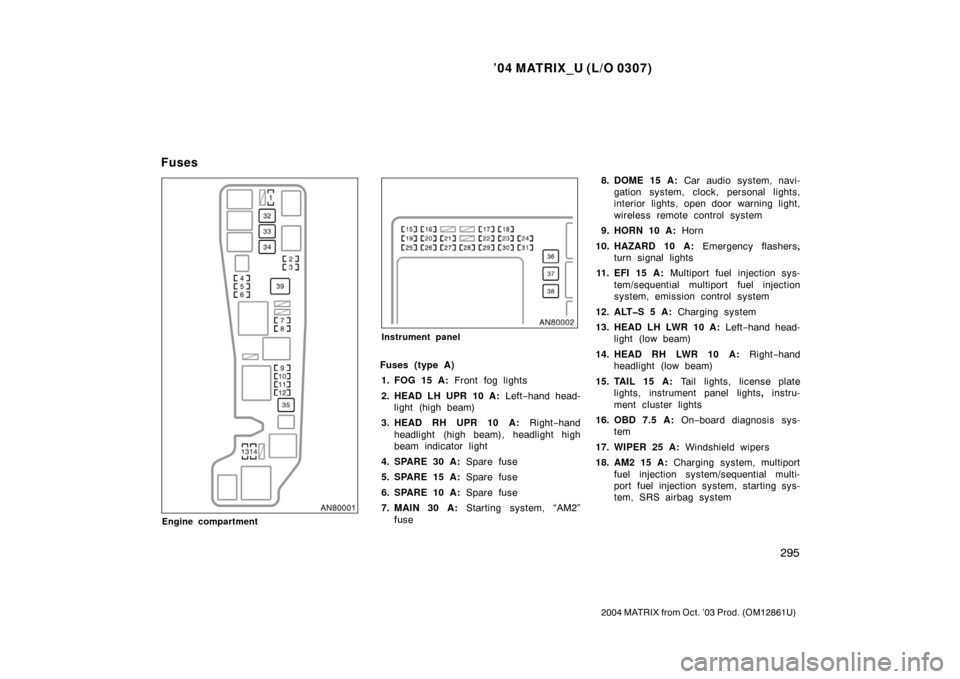

Fuses (type A)1. FOG 15 A: Front fog lights
2. HEAD LH UPR 10 A: Left−hand head-
light (high beam)
3. HEAD RH UPR 10 A: Right−hand
headlight (high beam), headlight high
beam indicator light
4. SPARE 30 A: Spare fuse
5. SPARE 15 A: Spare fuse
6. SPARE 10 A: Spare fuse
7. MAIN 30 A: Starting system, “AM2”
fuse 8. DOME 15 A:
Car audio system, navi-
gation system, clock, personal lights,
interior lights, open door warning light,
wireless remote control system
9. HORN 10 A: Horn
10. HAZARD 10 A: Emergency flashers ,
turn signal lights
11. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, emission control system
12. ALTS 5 A: Charging system
13. HEAD LH LWR 10 A: Left−hand head-
light (low beam)
14. HEAD RH LWR 10 A: Right−hand
headlight (low beam)
15. TAIL 15 A: Tail lights, license plate
lights, instrument panel lights , instru-
ment cluster lights
16. OBD 7.5 A: On−board diagnosis sys-
tem
17. WIPER 25 A: Windshield wipers
18. AM2 15 A: Charging system, multiport
fuel injection system/sequential multi-
port fuel injection system, starting sys-
tem, SRS airbag system
Fuses
