width TOYOTA MATRIX 2004 E130 / 1.G Owners Manual

’04 MATRIX_U (L/O 0307)
186
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
The “DOT” symbol certifies that the
tire conforms to applicable Federal
Motor Vehicle Safety Standards.
Ty p e A

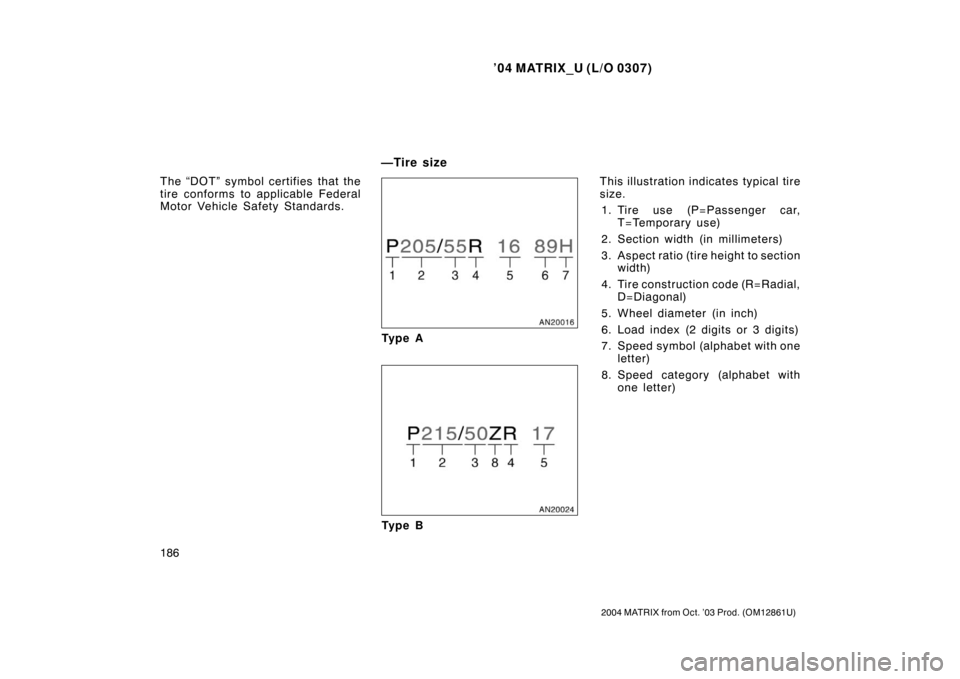

Ty p e BThis illustration indicates typical tire
size.
1. Tire use (P=Passenger car, T=Temporary use)
2. Section width (in millimeters)
3. Aspect ratio (tire height to section width)
4. Tire construction code (R=Radial, D=Diagonal)
5. Wheel diameter (in inch)
6. Load index (2 digits or 3 digits)
7. Speed symbol (alphabet with one letter)
8. Speed category (alphabet with one letter)
—Tire size

’04 MATRIX_U (L/O 0307)
187
2004 MATRIX from Oct. ’03 Prod. (OM12861U)

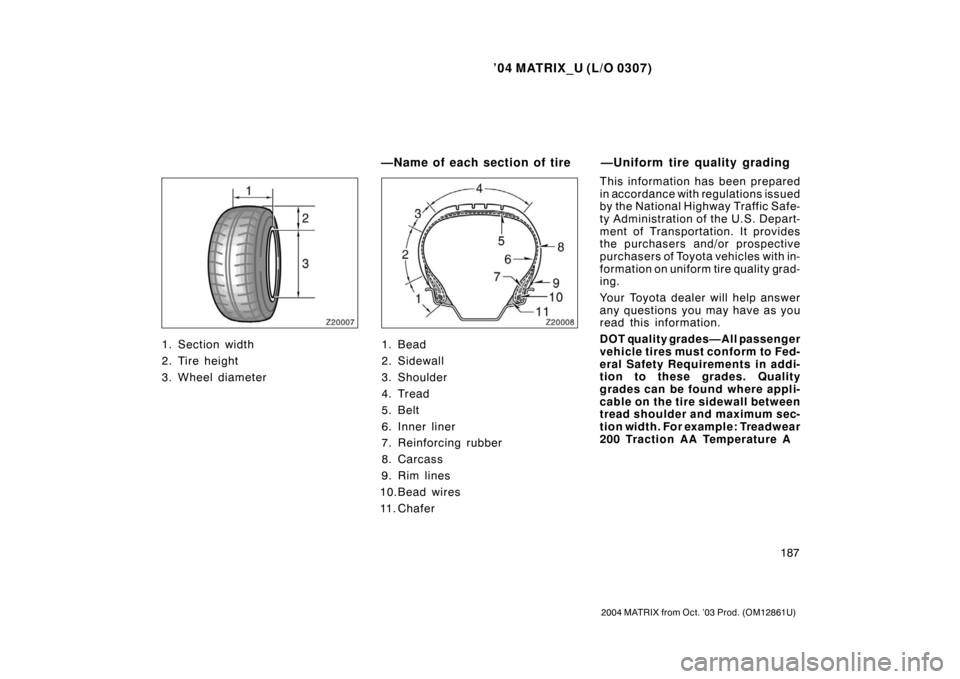

1. Section width
2. Tire height
3. Wheel diameter1. Bead
2. Sidewall
3. Shoulder
4. Tread
5. Belt
6. Inner liner
7. Reinforcing rubber
8. Carcass
9. Rim lines
10.Bead wires
11. Chafer This information has been prepared
in accordance with regulations issued
by the National Highway Traffic Safe-
ty Administration of the U.S. Depart-
ment of Transportation. It provides
the purchasers and/or prospective
purchasers of Toyota vehicles with in-
formation on uniform tire quality grad-
ing.
Your Toyota dealer will help answer
any questions you may have as you
read this information.
DOT quality grades—All passenger
vehicle tires must conform to Fed-
eral Safety Requirements in addi-
tion to these grades. Quality
grades can be found where appli-
cable on the tire sidewall between
tread shoulder and maximum sec-
tion width. For example: Treadwear
200 Traction AA Temperature A
—Name of each section of tire —Uniform tire quality grading

’04 MATRIX_U (L/O 0307)
190
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
Production options weight
The combined weight of those installed regular production options weighing
over 2.3 kg (5 lb.) in excess of those standard items which they replace,
not previously considered in curb weight or accessory weight, including
heavy duty brakes, ride levelers, roof rack, heavy duty battery, and special
trim
Vehicle capacity weight
(Total load capacity)The rated cargo and luggage load plus 68 kg (150 lb.) times the vehicle’s
designated seating capacity
Intended outboard sidewall
(A) The sidewall that contains a whitew all, bears white lettering or bears
manufacturer, brand, and/or model name molding that is higher or
deeper than the same molding on th e other sidewall of the tire, or
(B) The outward facing sidewall of an asymmetrical tire that has a particular side that must always face outward when mounted on a vehicle
Occupant distributionDistribution of occupants in a vehicle as specified in the third column of Table
1 that follows
RimA metal support for a tire or a tire and tube assembly upon which the tire beads
are seated
Rim diameter (Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry of manufacturer ’s designation for a rim by style or code
Rim widt hNominal distance between rim flanges
Vehicle maximum load on the tireThe load on an individual tire that is determined by distributing to each axle
its share of the maximum loaded vehicle weight and dividing by two

’04 MATRIX_U (L/O 0307)
272
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
TIRE CHAIN SELECTION
Use the tire chains of correct size and
type.
Use SAE Class “S” type radial tire chains
except radial cable chains or V−bar type
chains.
Regulations regarding the use of tire
chains vary according to location or
type of road, so always check the local
regulations before installing chains.
CHAIN INSTALLATION
Install the chains on the front tires as
tightly as possible. Do not use tire
chains on the rear tires. Retighten
chains after driving 0.5—1.0 km
(1/4—1/2 mile).
When installing chains on your tires, care-
fully follow the instructions of the chain
manufacturer.
If wheel covers are used, they will be
scratched by the chain band, so remove

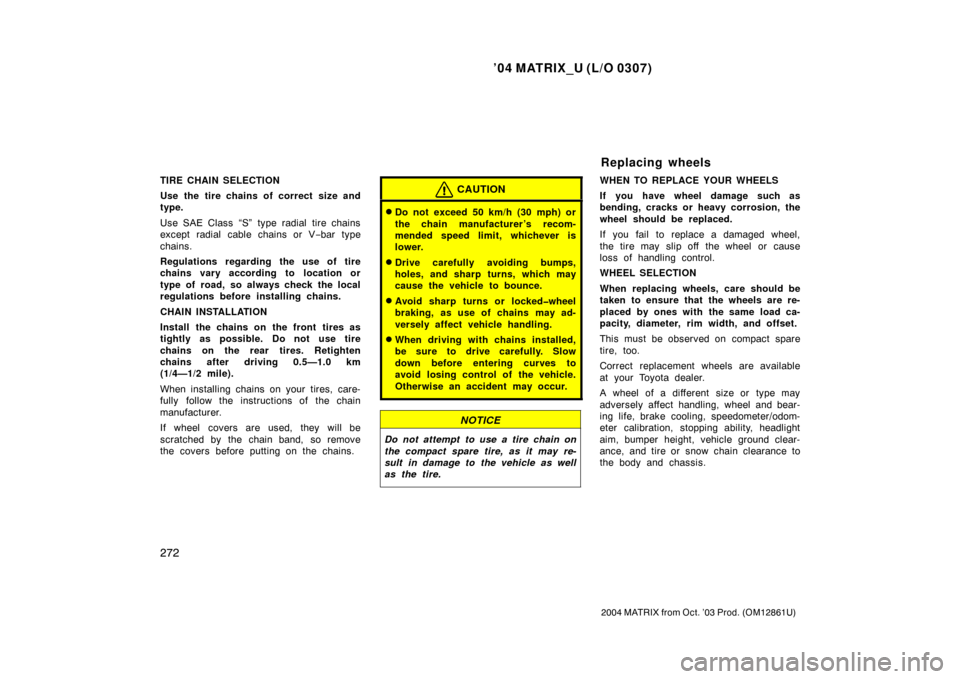

the covers before putting on the chains.CAUTION
Do not exceed 50 km/h (30 mph) or
the chain manufacturer ’s recom-
mended speed limit, whichever is
lower.
Drive carefully avoiding bumps,
holes, and sharp turns, which may
cause the vehicle to bounce.
Avoid sharp turns or lockedwheel
braking, as use of chains may ad-
versely affect vehicle handling.
When driving with chains installed,
be sure to drive carefully. Slow
down before entering curves to
avoid losing control of the vehicle.
Otherwise an accident may occur.
NOTICE
Do not attempt to use a tire chain on
the compact spare tire, as it may re-
sult in damage to the vehicle as well
as the tire.
WHEN TO REPLACE YOUR WHEELS
If you have wheel damage such as
bending, cracks or heavy corrosion, the
wheel should be replaced.
If you fail to replace a damaged wheel,
the tire may slip off the wheel or cause
loss of handling control.
WHEEL SELECTION
When replacing wheels, care should be
taken to ensure that the wheels are re-
placed by ones with the same load ca-
pacity, diameter, rim width, and offset.
This must be observed on compact spare
tire, too.
Correct replacement wheels are available
at your Toyota dealer.
A wheel of a different size or type may
adversely affect handling, wheel and bear-
ing life, brake cooling, speedometer/odom-
eter calibration, stopping ability, headlight
aim, bumper height, vehicle ground clear-
ance, and tire or snow chain clearance to
the body and chassis.
Replacing wheels

’04 MATRIX_U (L/O 0307)
290
2004 MATRIX from Oct. ’03 Prod. (OM12861U)
Model: 1ZZ −FE and 2ZZ −GE
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 1ZZ −FE engine
79.0  91.5 (3.11  3.60)
2ZZ −GE engine
82.0  85.0 (3.23  3.35)
Displacement, cm
3 (cu. in.):
1ZZ −FE engine 1794 (109.5)
2ZZ −GE engine 1796 (109.6)
Dimensions and weights
Overall length mm (in.)
Overall width mm (in.)
Overall height
∗ 1mm (in.)
Wheelbase mm (in.)
Front tread mm (in.)
Rear tread mm (in.)
Vehicle capacity
weight (occupants
+ luggage) kg (lb.) P205/55R16 89H tires
P215/50ZR17
P215/50R17 90H tires
4350 (171.3)
4350 (171.3)
1775 (69.9) 1775 (69.9)
1550 (61.0)
2600 (102.4) 2600 (102.4)
1515 (59.6) 1505 (59.3)
1495 (58.9)
∗ 2
1500 (59.1)∗31485 (58.5)
385 (850) 385 (850)
∗ 1: Unladen vehicle∗2:Two −wheel drive models∗
3: Four −wheel drive models 1540 (60.6)
∗
2
1550 (61.0)∗3
Towing capacity
(trailer weight +
cargo weight) kg (lb.) 680 (1500) 680 (1500)
Engine
