Toyota Maintenance and Repair Support3
Toyota Express Lube
With Toyota Express Lube, you get the
convenience of a quick-lube shop and
the quality and expertise you count on
wh en you go to a Toyota dealership.
Y ou also get the Express Lube guarantee:
in 29 minutes or less from the time
of write-up, a complete oil-and-filter
change using Genu ine Toyota Parts
along with a multi-point inspection,
or the next one is free.
Y ou never need an appointment to use Expr ess Lube at a Toyota dealership.
Y ou’ll be waited on promptly and your oil-and-filt er change will be done while
you wait. Express Lube also delivers outstan ding value, since the service is priced
ve ry competitively with franchised quick-lube centers.
More than 625 Toyota dealerships now offer Express Lube service. Call (800) 331-4331
for the Ex press Lube location nearest you.

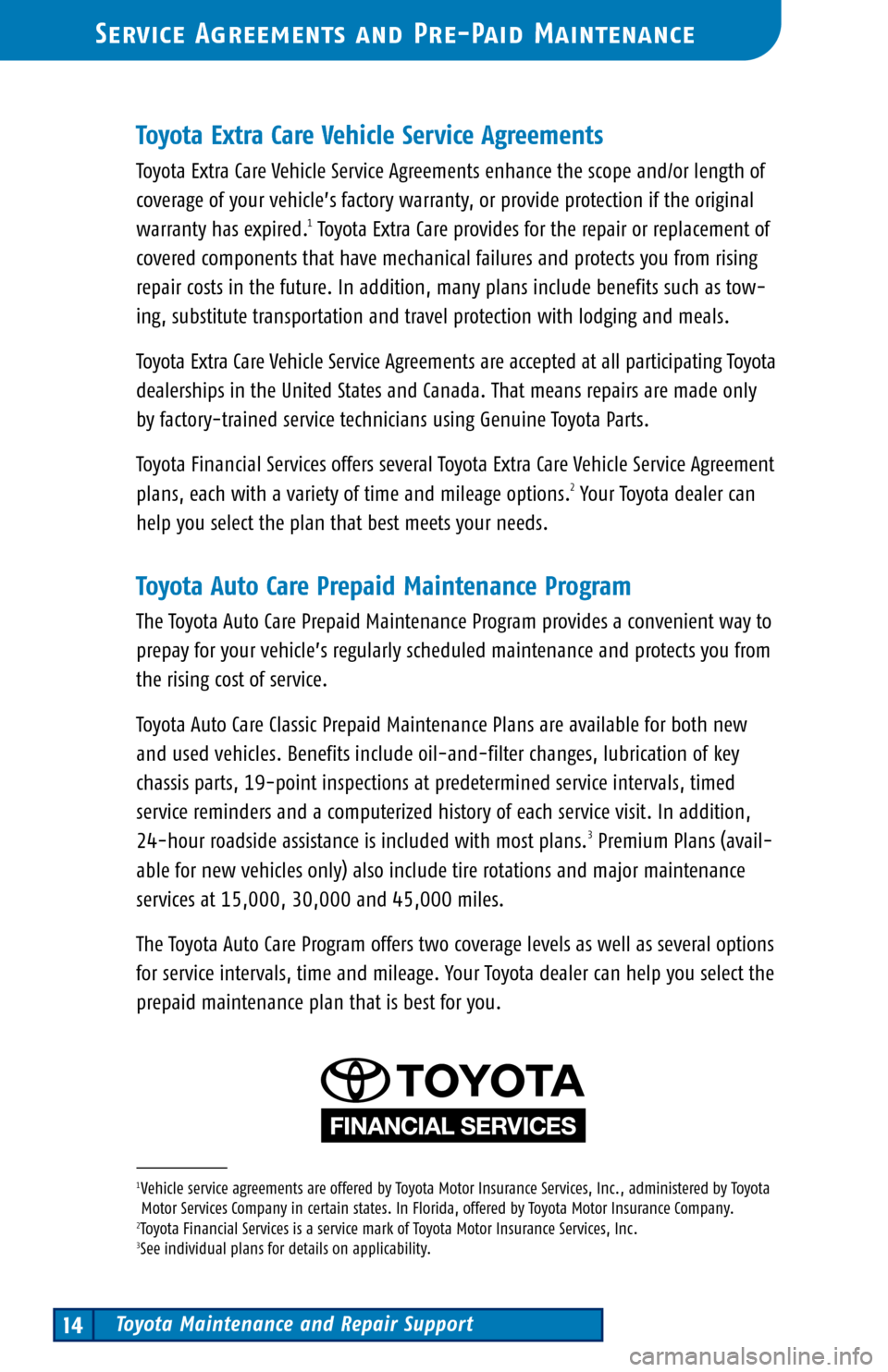

Toyota Maintenance and Repair Support14
Service Agreements and Pre-Paid Maintenance
Toyota Extra Care Vehicle Service Agreements
Toyota Extra Care Vehicle Service Agreements enhance the scope and/or length of
coverage of your vehicle’s factory warranty, or provide protection if the original
warran ty has expired.
1Toyota Extra Care provides for the repair or replacement of
covered components that have mechanical failures and prot ects you from rising
re pa ir costs in the future. In addition, ma ny plans include benefits such as tow-
ing, substitute transportation and travel protection with lodging and meals.
To yota Extra Care Vehicle Service Agreements are accepted at all participating Toyota
dealerships in the United States and Canad a. That means repairs are made only
by factor y-trained service technicians using Genuine Toyota Parts.
To yota Financial Services offers several Toyota Extra Care Vehicle Service Agreement
plans, each with a variet y of time and mileage options.
2Your Toyota dealer can
help you select the plan that best meets your needs.
To yota Auto Care Prepaid Maintenance Program
The Toyota Auto Care Prepaid Maintenance Program provides a convenient way to
prepay for your vehicle’s regularly scheduled maintenance and protects you from
the rising cost of service.
To yota Auto Care Classic Prepaid Mainten ance Plans are available for both new
and used vehicles. Benefits include oil- and-filter changes, lubrication of key
chassis parts, 19-point inspection s at predetermined service intervals, timed
service reminders and a comput erized history of each service visit. In addition,
24-hour roadside assistance is i ncluded with most plans.
3Premium Plans (avail-
able for new vehicles only) also include tire rotations and major maintenance
services at 15,000, 30,000 and 45,000 miles.
The Toyota Auto Care Program offers two co verage levels as well as several options
for service intervals, time and mileage. Your Toyota dealer can help you select the
prepaid maintenance plan that is best for you.
1V ehicle service agreements are offered by Toyota Motor In surance Services, Inc., administered by Toyota
Motor Services Company in certain states. In Florida, offered by Toyota Motor Insurance Company.
2To yota Financial Services is a service mark of Toyota Motor Insurance Services, Inc.3See individual plans ford etails on applicability.

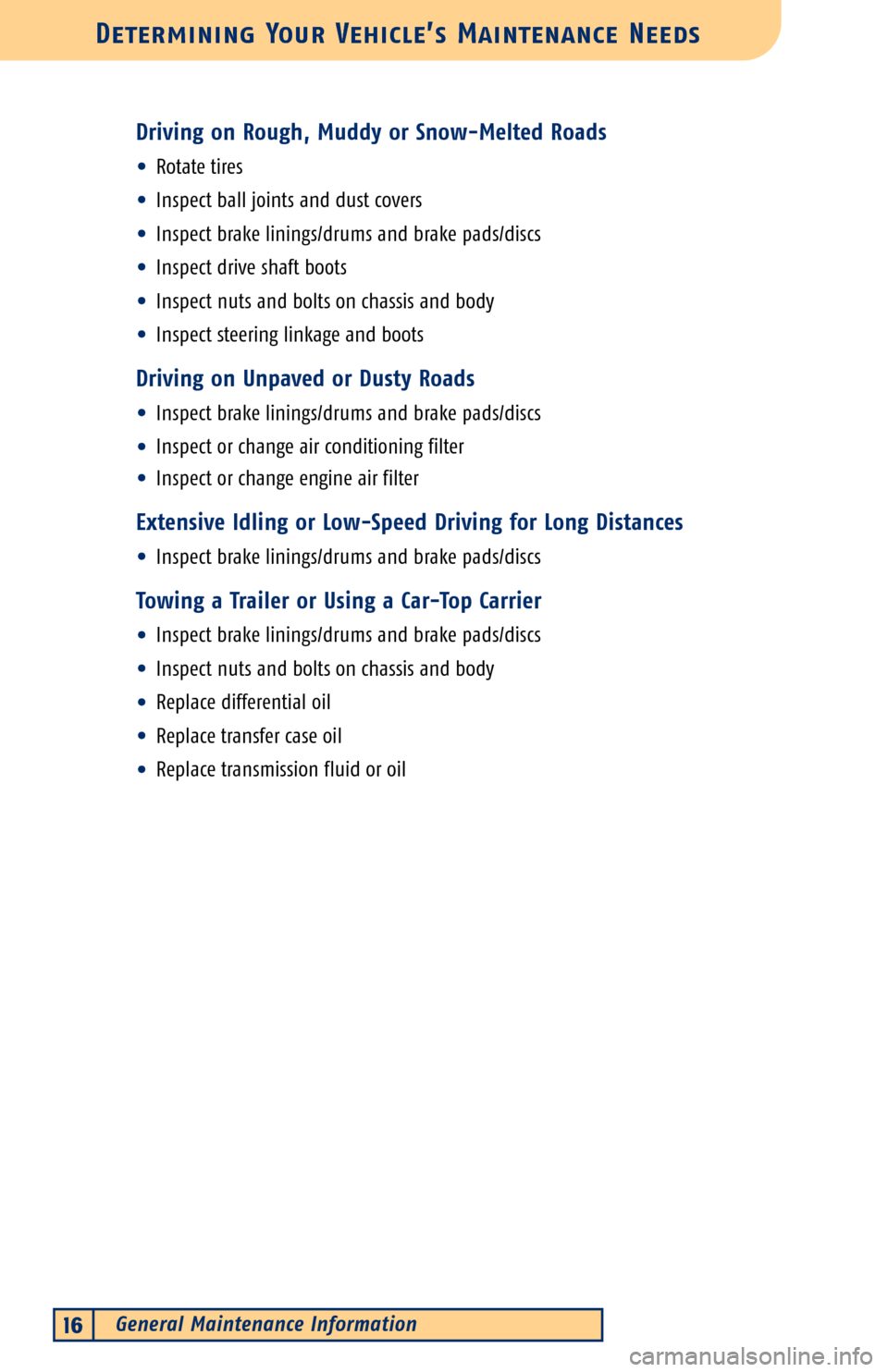

General Maintenance Information16
Determining Your Vehicle’s Maintenance Needs
Driving on Rough, Muddy or Snow-Melted Roads
•Rotate tires
•Inspect ball joints and dust covers
•Inspect brake linings/drums and brake pads/discs
•Inspect drive shaft boots
•Inspect nuts and bolts on chassis and body
•Inspect steering linkage and boots
Driving on Unpaved or Dusty Roads
•Inspect brake linings/drums and brake pads/discs
•Inspect or change air conditioning filter
•Inspect or change engine air filter
Extensive Idling or Low-Speed Driving for Long Distances
•Inspect brake linings/drums and brake pads/discs
Towing a Trailer or Using a Car-Top Carrier
•Inspect brake linings/drums and brake pads/discs
•Inspect nuts and bolts on chassis and body
•Replace differential oil
•Replace tran sfer case oil
•Replace transmission fluid or oil

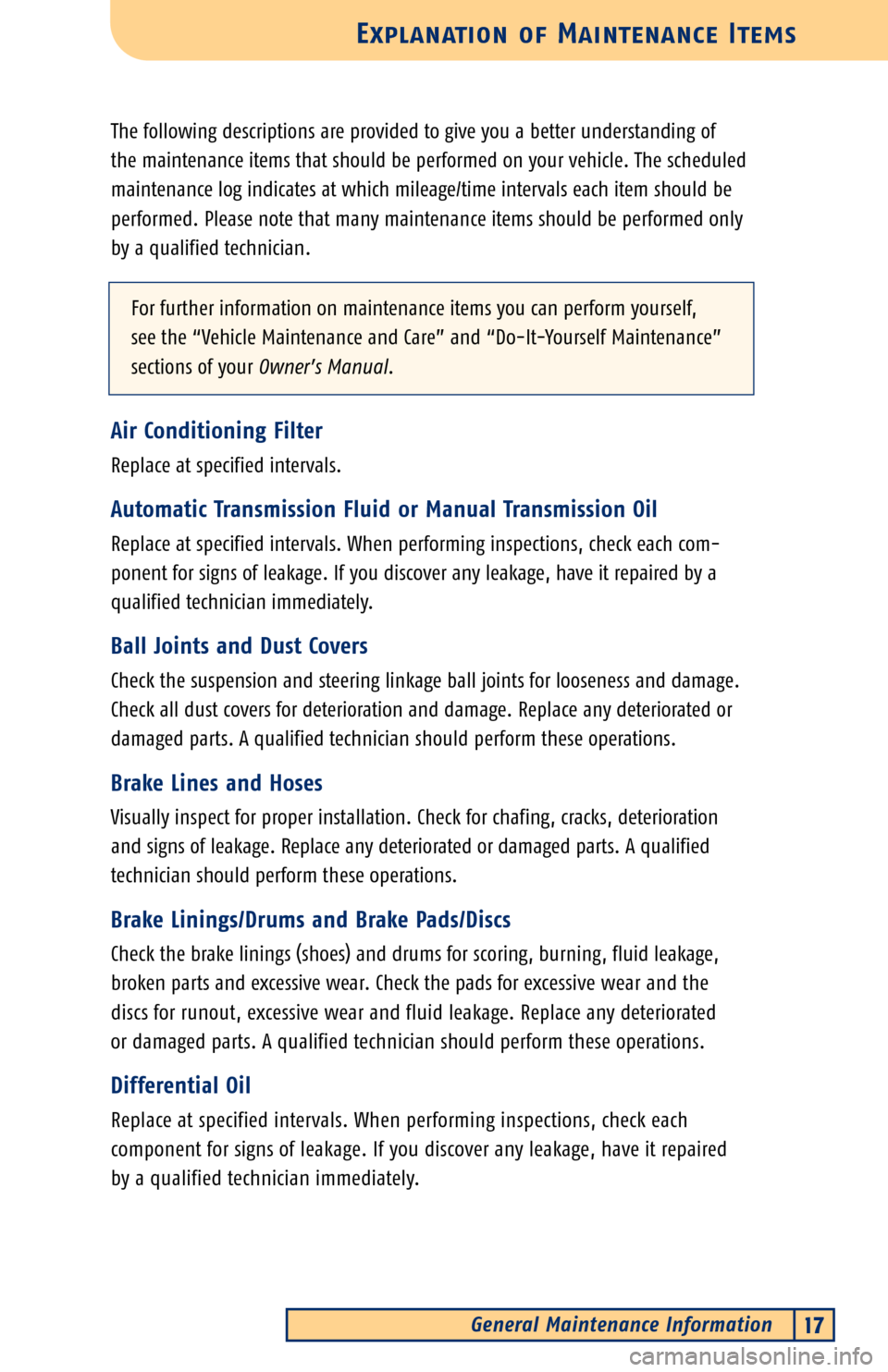

General Maintenance Information17
Explanation of Maintenance Items
The following descriptions are provided to give you a better understanding of
the maintenance items that should be performed on your vehicle. The scheduled
maintenance log indicates at which mileage/time intervals each item should be
performed. Please note that many maintenance items should be performed only
by a qualified technician.
For further information on maintenance items you can perform yourself,
see the “Vehicle Maintenance and Care” and “Do-It-Yourself Maintenance”
sections of your
Owner’s Manual.
Air Conditioning Filter
Re place at specified intervals.
Automatic Transmission Fluid or Manual Transmission Oil
Replace at specified intervals. When perfor ming inspections, check each com-
ponent for signs of leakage. If you discover any leakage, have it repaired by a
qualified technician immediately.
Ball Joints and Dust Covers
Check the suspension and st eering linkage ball joints forl ooseness and damage.
Check all dust covers for deterioration and damage. Replace any deteriorated or
da maged parts. A qualified technici an should perform these operations.
Brake Lines and Hoses
Visually inspect for proper installation. Ch eck for chafing, cracks, deterioration
and signs of leakage. Replace any deteriorated or damaged parts. A qualified
tec hnician should perform these operations.
Brake Linings/Drums and Brake Pads/Discs
Check the brake linings (shoes) and drums for scoring, burning, fluid leakage,
broken parts and excessive wear. Check t he pads fore xcessive wear and the
discs for runout, excessive wear and fluid leakage. Replace any deteriorated
or damaged parts. A qualified techn ician should perform these operations.
Differential Oil
Replace at specified intervals. When per forming inspections, check each
component for signs of leakage. If you discover any leakage, have it repaired
by a qualified technician immediately.

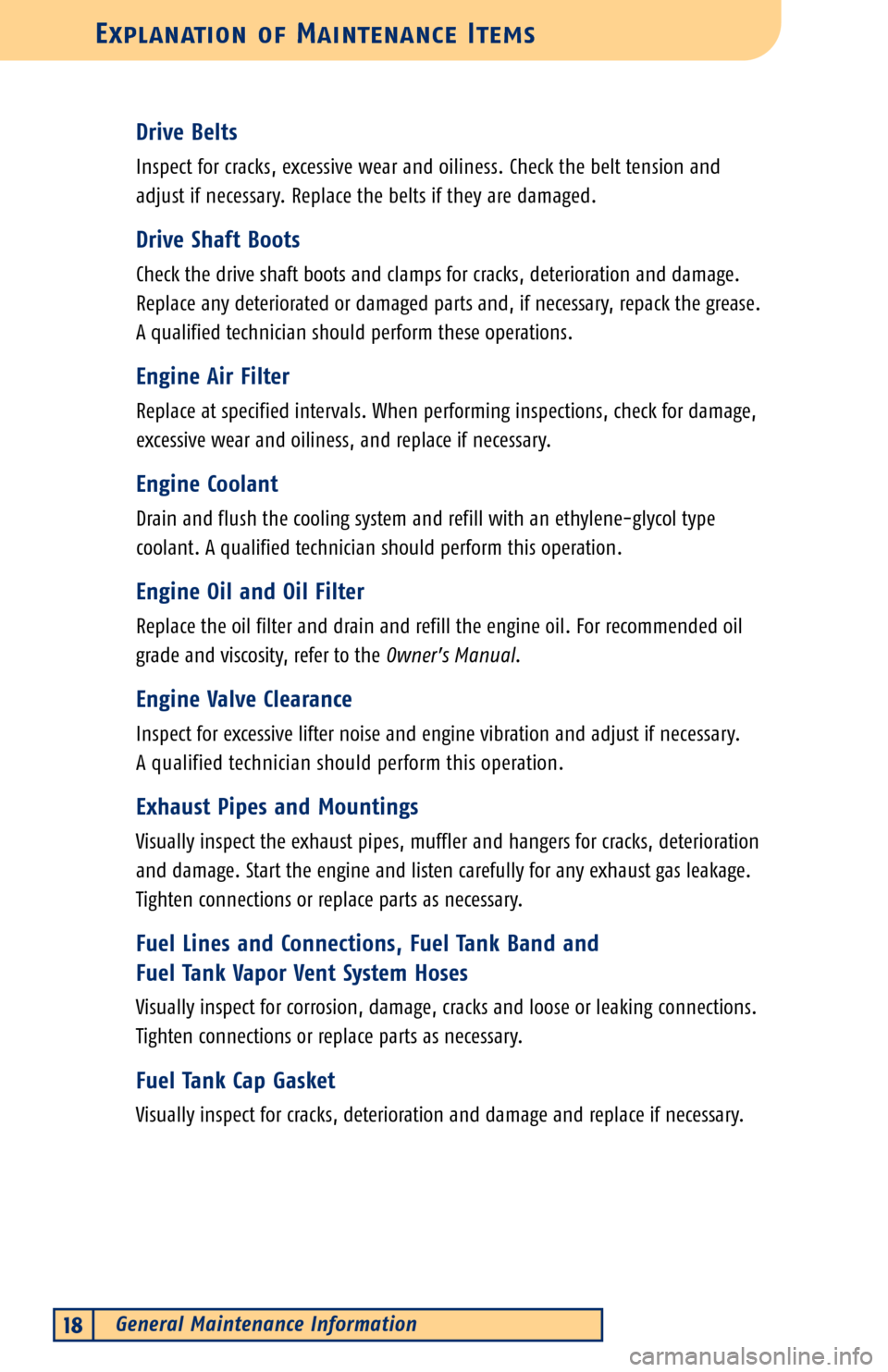

General Maintenance Information18
Explanation of Maintenance Items
Drive Belts
Inspect for cracks, excessive wear and oiliness. Check the belt tension and
adjust if necessary. Replace the belts if they are damaged.
Drive Shaft Boots
Check the drive shaft boots and clamps fo rcrac ks, deterioration and damage.
Re place any deteriorated or damaged par ts and, if necessary, repack the grease.
Aq ualified technician should per form these operations.
Engine Air Filter
Re place at specified intervals. When performi ng inspections, check for damage,
ex cessive wear and oiliness, and replace if necessary.
Engine Coolant
Drain and flush the cool ing system and refill with an ethylene-glycol type
coolant. A qualified technician should perform this operation.
Engine Oil and Oil Filter
Replace the oil filter and drain and r efill the engine oil. For recommended oil
gr ade and viscosity, refert o the
Owner’s Manual.
Engine Valve Clearance
Inspect for excessive lifter noise and engi ne vibration and adjust if necessary.
Aq ualified technician should perform this operation.
Exhaust Pipes and Mountings
Visually inspect the exhaust pipes, muffler and hangers for cracks, deterioration
and damage. Start the engine and listen carefully for any exhaust gas leakage.
Tighten connections or replace parts as necessary.
Fuel Lines and Connections, Fuel Tank Band and
F uel Tank Vapor Vent System Hoses
Visually inspect for corrosion, damage, cr acks and loose or leaking connections.
Tighten connections or replace parts as necessary.
F uel Tank Cap Gasket
Visually inspect for cracks, deterioration an d damage and replace if necessary.

5,000-Mile Maintenance Intervals
7,500-Mile Maintenance IntervalsTo determine the appropriate maintenance
interval for your vehicle, see page 15.
Ma intenance Log: 2004 Corolla and Corolla Matrix
7,500 Miles or 6 Months
❑Replace engine oil and oil filter
❑Rotate tires
Dealer Service Verification:
Date:
Mileage:
5,000 Miles or 4 Months
❑Replace engine oil and oil filter
Additional Maintenanc e Items for Special
Operating Conditions:1
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Rotate tires
10,000 Miles or 8 Months
❑Replace engine oil and oil filter
Additional Maintenanc e Items for Special
Operating Conditions:1
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Re place air conditioning filter
❑Rotate tires
Dealer Service Verification:
Date: Mileage:
Scheduled Maintenance Log22
Dealer Service Verification:
Date: Mileage:

1 Specific services apply to specific operating conditions. See pages 15–16 for details.2 Applies to Corolla Matrix 4WD only.

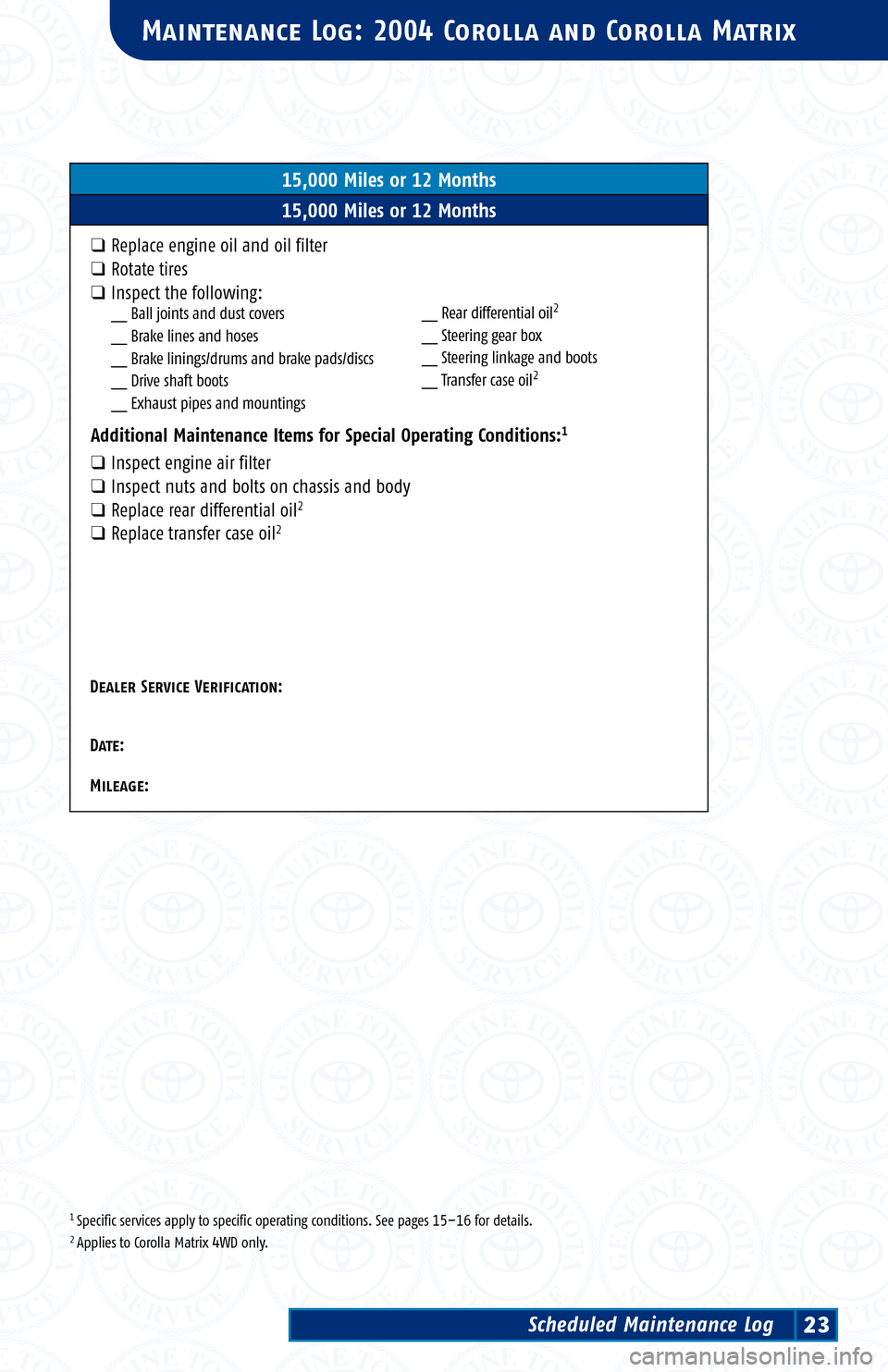

Maintenance Log: 2004 Corolla and Corolla Matrix
15,000 Miles or 12 Months
15,000 Miles or 12 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Exhaust pipes and mountings
Additional Maintenance Items forSpecial Operating Conditions:1
❑Inspect engine air filter
❑Inspect nuts and bolts on chassis and body
❑Repl ace rear differential oil2
❑Replace transfer case oil2
Scheduled Maintenance Log23
Dealer Service Verification:
Date:
Mileage:
__ Rear differential oil2
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
2

5,000-Mile Maintenance Intervals
7,500-Mile Maintenance IntervalsTo determine the appropriate maintenance
interval for your vehicle, see page 15.

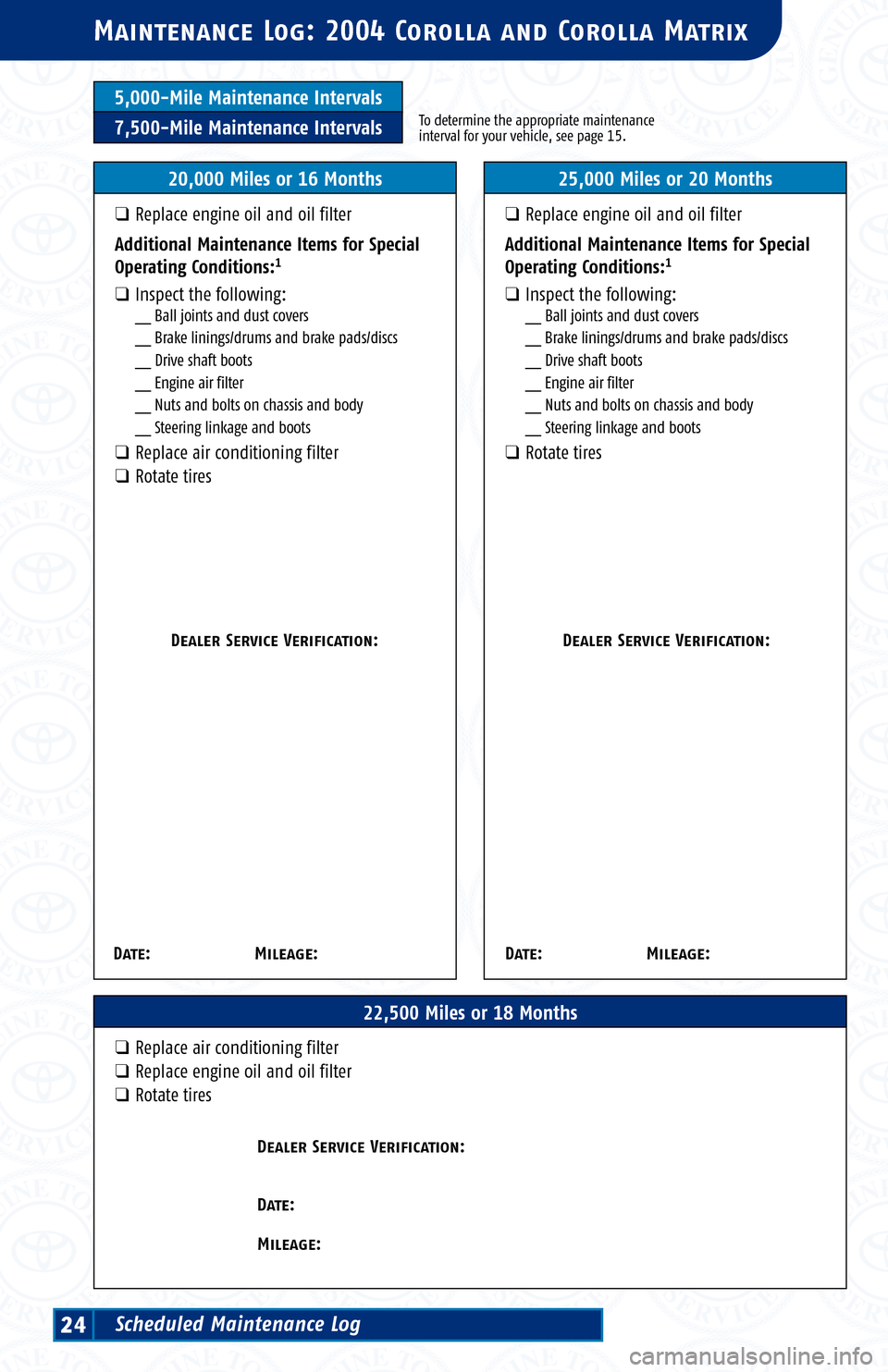

Ma intenance Log: 2004 Corolla and Corolla Matrix
22,500 Miles or 18 Months
❑Replace air conditioning filter
❑Replace engine oil and oil filter
❑Rotate tires
Dealer Service Verification:
Date:
Mileage:
20,000 Miles or 16 Months
❑Replace engine oil and oil filter
Additional Maintenanc e Items for Special
Operating Conditions:1
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Re place air conditioning filter
❑Rotate tires
25,000 Miles or 20 Months
❑Replace engine oil and oil filter
Additional Maintenanc e Items for Special
Operating Conditions:1
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Rotate tires
Dealer Service Verification:
Date: Mileage:
Scheduled Maintenance Log24
Dealer Service Verification:
Date: Mileage:

1 Specific services apply to specific operating conditions. See pages 15–16 for details.2 Applies to Corolla Matrix 4WD only.3 Do not replace if replaced at 22,500 miles.4 Applies to manual transmission models only.

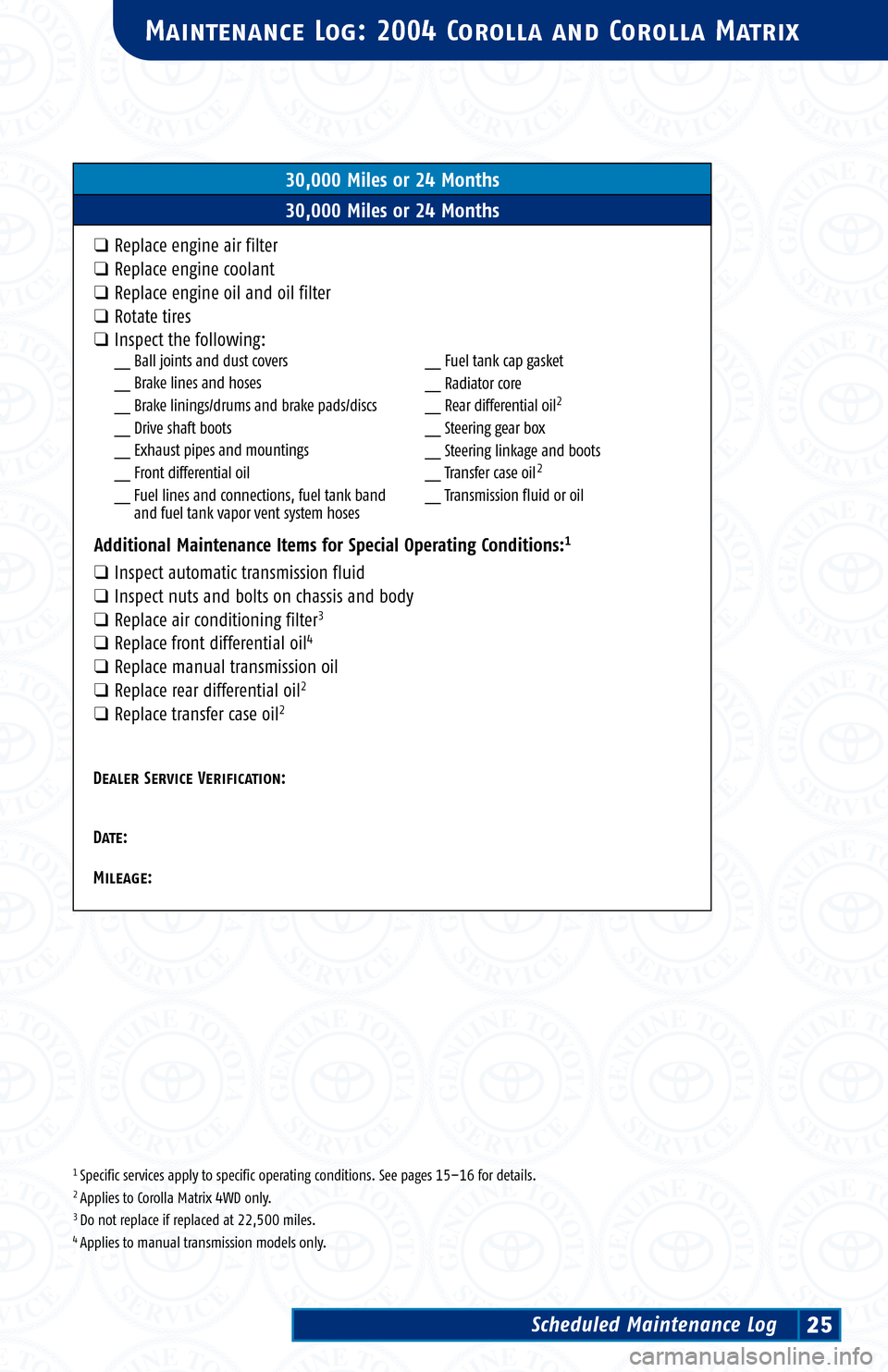

Maintenance Log: 2004 Corolla and Corolla Matrix
30,000 Miles or 24 Months
30,000 Miles or 24 Months
❑Replace engine air filter
❑Repl ace engine coolant
❑Replace engine oil and oil filter
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Exhaust pipes and mountings
__ Front differential oil
__ Fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses
Additional Maintenance Items forSpecial Operating Conditions:1
❑Inspect automatic transmission fluid
❑Inspect nuts and bolts on chassis and body
❑Replace air conditioning filter3
❑Repl ace front differential oil4
❑Replace manual transmission oil
❑Repl ace rear differential oil2
❑Replace transfer case oil2
Scheduled Maintenance Log25
Dealer Service Verification:
Date:
Mileage:
__ Fuel tank cap gasket
__ Radia tor core
__ Rear differential oil
2
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
2
__ Transmission fluid or oil

5,000-Mile Maintenance Intervals
7,500-Mile Maintenance IntervalsTo determine the appropriate maintenance
interval for your vehicle, see page 15.

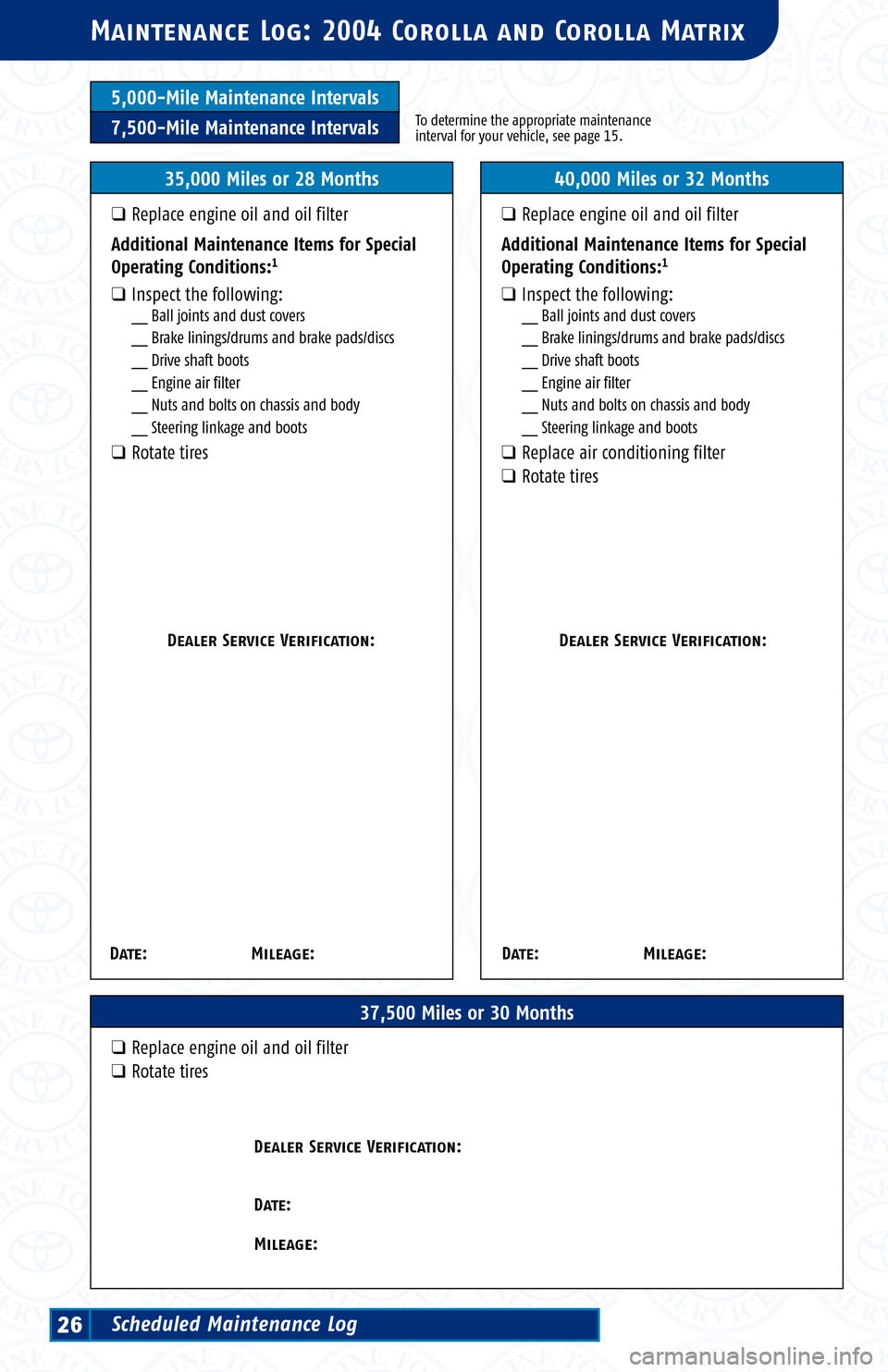

Ma intenance Log: 2004 Corolla and Corolla Matrix
37,500 Miles or 30 Months
❑Replace engine oil and oil filter
❑Rotate tires
Dealer Service Verification:
Date:
Mileage:
35,000 Miles or 28 Months
❑Replace engine oil and oil filter
Additional Maintenanc e Items for Special
Operating Conditions:1
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Rotate tires
40,000 Miles or 32 Months
❑Replace engine oil and oil filter
Additional Maintenanc e Items for Special
Operating Conditions:1
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Re place air conditioning filter
❑Rotate tires
Dealer Service Verification:
Date: Mileage:
Scheduled Maintenance Log26
Dealer Service Verification:
Date: Mileage:
