differential TOYOTA MATRIX 2004 E130 / 1.G Scheduled Maintenance Guide

General Maintenance Information16
Determining Your Vehicle’s Maintenance Needs
Driving on Rough, Muddy or Snow-Melted Roads
•Rotate tires
•Inspect ball joints and dust covers
•Inspect brake linings/drums and brake pads/discs
•Inspect drive shaft boots
•Inspect nuts and bolts on chassis and body
•Inspect steering linkage and boots
Driving on Unpaved or Dusty Roads
•Inspect brake linings/drums and brake pads/discs
•Inspect or change air conditioning filter
•Inspect or change engine air filter
Extensive Idling or Low-Speed Driving for Long Distances
•Inspect brake linings/drums and brake pads/discs
Towing a Trailer or Using a Car-Top Carrier
•Inspect brake linings/drums and brake pads/discs
•Inspect nuts and bolts on chassis and body
•Replace differential oil
•Replace tran sfer case oil
•Replace transmission fluid or oil

General Maintenance Information17
Explanation of Maintenance Items
The following descriptions are provided to give you a better understanding of
the maintenance items that should be performed on your vehicle. The scheduled
maintenance log indicates at which mileage/time intervals each item should be
performed. Please note that many maintenance items should be performed only
by a qualified technician.
For further information on maintenance items you can perform yourself,
see the “Vehicle Maintenance and Care” and “Do-It-Yourself Maintenance”
sections of your
Owner’s Manual.
Air Conditioning Filter
Re place at specified intervals.
Automatic Transmission Fluid or Manual Transmission Oil
Replace at specified intervals. When perfor ming inspections, check each com-
ponent for signs of leakage. If you discover any leakage, have it repaired by a
qualified technician immediately.
Ball Joints and Dust Covers
Check the suspension and st eering linkage ball joints forl ooseness and damage.
Check all dust covers for deterioration and damage. Replace any deteriorated or
da maged parts. A qualified technici an should perform these operations.
Brake Lines and Hoses
Visually inspect for proper installation. Ch eck for chafing, cracks, deterioration
and signs of leakage. Replace any deteriorated or damaged parts. A qualified
tec hnician should perform these operations.
Brake Linings/Drums and Brake Pads/Discs
Check the brake linings (shoes) and drums for scoring, burning, fluid leakage,
broken parts and excessive wear. Check t he pads fore xcessive wear and the
discs for runout, excessive wear and fluid leakage. Replace any deteriorated
or damaged parts. A qualified techn ician should perform these operations.
Differential Oil
Replace at specified intervals. When per forming inspections, check each
component for signs of leakage. If you discover any leakage, have it repaired
by a qualified technician immediately.

1 Specific services apply to specific operating conditions. See pages 15–16 for details.2 Applies to Corolla Matrix 4WD only.
Maintenance Log: 2004 Corolla and Corolla Matrix
15,000 Miles or 12 Months
15,000 Miles or 12 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Exhaust pipes and mountings
Additional Maintenance Items forSpecial Operating Conditions:1
❑Inspect engine air filter
❑Inspect nuts and bolts on chassis and body
❑Repl ace rear differential oil2
❑Replace transfer case oil2
Scheduled Maintenance Log23
Dealer Service Verification:
Date:
Mileage:
__ Rear differential oil2
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
2

1 Specific services apply to specific operating conditions. See pages 15–16 for details.2 Applies to Corolla Matrix 4WD only.3 Do not replace if replaced at 22,500 miles.4 Applies to manual transmission models only.
Maintenance Log: 2004 Corolla and Corolla Matrix
30,000 Miles or 24 Months
30,000 Miles or 24 Months
❑Replace engine air filter
❑Repl ace engine coolant
❑Replace engine oil and oil filter
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Exhaust pipes and mountings
__ Front differential oil
__ Fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses
Additional Maintenance Items forSpecial Operating Conditions:1
❑Inspect automatic transmission fluid
❑Inspect nuts and bolts on chassis and body
❑Replace air conditioning filter3
❑Repl ace front differential oil4
❑Replace manual transmission oil
❑Repl ace rear differential oil2
❑Replace transfer case oil2
Scheduled Maintenance Log25
Dealer Service Verification:
Date:
Mileage:
__ Fuel tank cap gasket
__ Radia tor core
__ Rear differential oil
2
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
2
__ Transmission fluid or oil

1 Specific services apply to specific operating conditions. See pages 15–16 for details.2 Applies to Corolla Matrix 4WD only.
Maintenance Log: 2004 Corolla and Corolla Matrix

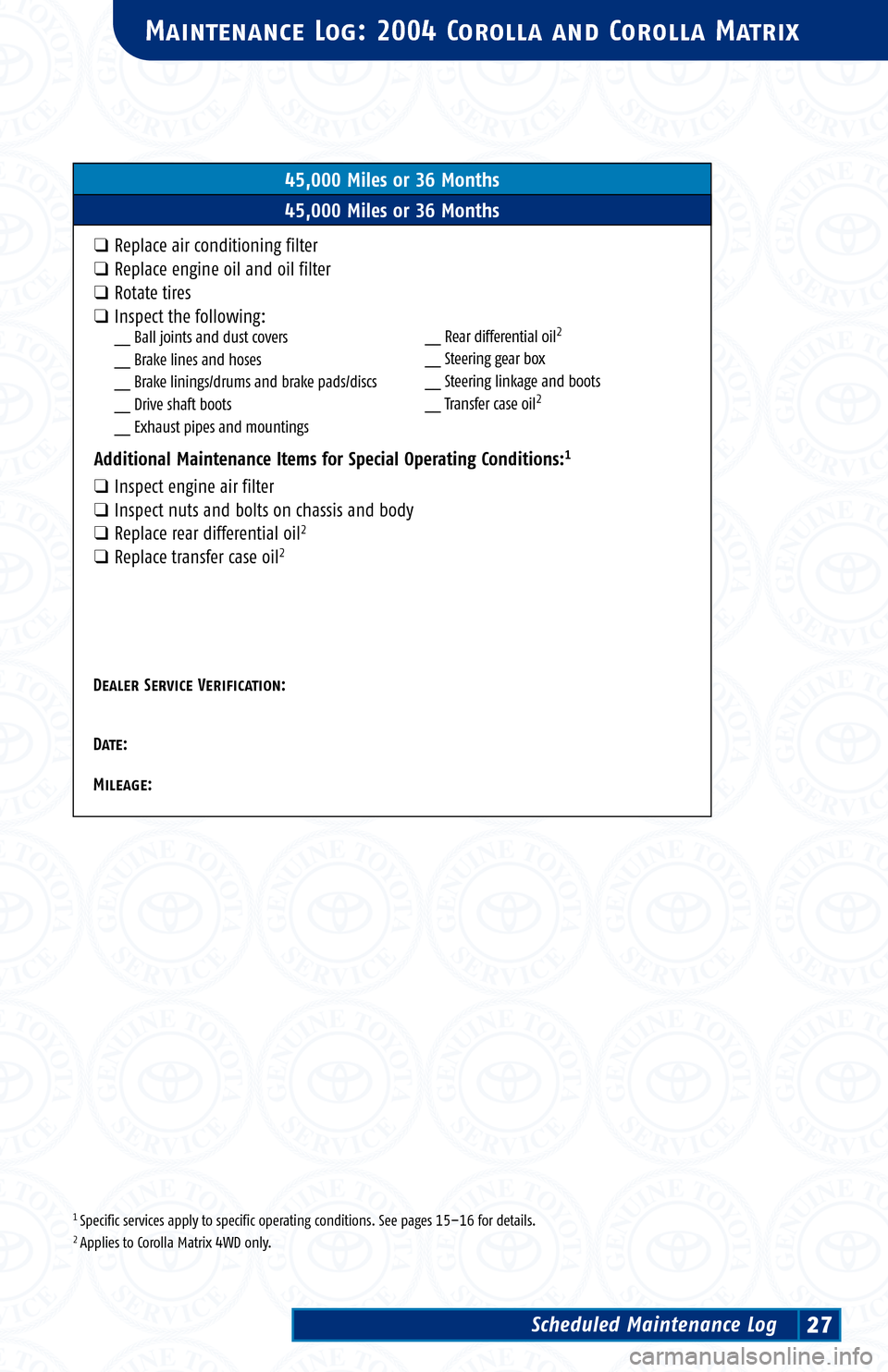

45,000 Miles or 36 Months
45,000 Miles or 36 Months
❑Replace air conditioning filter
❑Replace engine oil and oil filter
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Exhaust pipes and mountings
Additional Maintenance Items forSpecial Operating Conditions:1
❑Inspect engine air filter
❑Inspect nuts and bolts on chassis and body
❑Repl ace rear differential oil2
❑Replace transfer case oil2
Scheduled Maintenance Log27
Dealer Service Verification:
Date:
Mileage:
__ Rear differential oil2
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
2

1 Specific services apply to specific operating conditions. See pages 15–16 for details.2 Initial inspection at 60,000 miles. Inspect every 15,000 miles thereafter.3 Applies to Corolla Matrix 4WD only.
Maintenance Log: 2004 Corolla and Corolla Matrix
60,000 Miles or 48 Months
60,000 Miles or 48 Months
❑Replace engine air filter
❑Repl ace engine coolant
❑Replace engine oil and oil filter
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
__ Drive belts
2
__ Drive shaft boots
__ Engine valve clearance
__ Exhaust pipes and mountings
__ Front differential oil
__ Fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses
Additional Maintenance Items forSpecial Operating Conditions:1
❑Inspect nuts and bolts on chassis and body
❑Replace air conditioning filter
❑Replace automatic transmission fluid
❑Repl ace front differential oil
❑Replace manual transmission oil
❑Repl ace rear differential oil3
❑Replace transfer case oil3
Scheduled Maintenance Log29
Dealer Service Verification:
Date:
Mileage:
__ Fuel tank cap gasket
__ Radia tor core
__ Rear differential oil
3
__ Steering gear box
__ Steering linkage and boots
__ Transmission fluid or oil
__ Transfer case oil
3

1 Specific services apply to specific operating conditions. See pages 15–16 for details.2 Applies to Corolla Matrix 4WD only.
Maintenance Log: 2004 Corolla and Corolla Matrix
75,000 Miles or 60 Months
75,000 Miles or 60 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
__ Drive belts
__ Drive shaft boots
__ Exhaust pipes and mountings
Additional Maintenance Items forSpecial Operating Conditions:1
❑Inspect engine air filter
❑Inspect nuts and bolts on chassis and body
❑Repl ace rear differential oil2
❑Replace transfer case oil2
Scheduled Maintenance Log31
Dealer Service Verification:
Date:
Mileage:
__ Exhaust pipes and mountings
__ Rear differential oil2
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
2

5,000-Mile Maintenance Intervals
7,500-Mile Maintenance IntervalsTo determine the appropriate maintenance
interval for your vehicle, see page 15.
Dealer Service Verification:
Date:
Mileage:
Dealer Service Verification:
Date: Mileage:
Dealer Service Verification:
Date: Mileage:
1 Specific services apply to specific operating conditions. See pages 15–16 for details.2 Applies to Corolla Matrix 4WD only.3 Do not replace if replaced at 82,500 miles.4 Applies to manual transmission models only.
Ma intenance Log: 2004 Corolla and Corolla Matrix
90,000 Miles or 72 Months
90,000 Miles or 72 Months
❑Replace engine air filter
❑Repl ace engine coolant
❑Replace engine oil and oil filter
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
__ Drive belts
__ Drive shaft boots
__ Exhaust pipes and mountings
__ Front differential oil
__ Fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses
Additional Maintenance Items forSpecial Operating Conditions:1
❑Inspect automatic transmission fluid
❑Inspect nuts and bolts on chassis and body
❑Replace air conditioning filter3
❑Repl ace front differential oil4
❑Replace manual transmission oil
❑Repl ace rear differential oil2
❑Replace transfer case oil2
Scheduled Maintenance Log33
Dealer Service Verification:
Date:
Mileage:
__ Fuel tank cap gasket
__ Radia tor core
__ Rear differential oil
2
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
2
__ Transmission fluid or oil

1 Specific services apply to specific operating conditions. See pages 15–16 for details.2 Applies to Corolla Matrix 4WD only.
Maintenance Log: 2004 Corolla and Corolla Matrix
105,000 Miles or 84 Months
105,000 Miles or 84 Months
❑Replace air conditioning filter
❑Replace engine oil and oil filter
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
__ Drive belts
__ Drive shaft boots
__ Exhaust pipes and mountings
Additional Maintenance Items forSpecial Operating Conditions:1
❑Inspect engine air filter
❑Inspect nuts and bolts on chassis and body
❑Repl ace rear differential oil2
❑Replace transfer case oil2
Scheduled Maintenance Log35
Dealer Service Verification:
Date:
Mileage:
__ Exhaust pipes and mountings
__ Rear differential oil2
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
2

1 Specific services apply to specific operating conditions. See pages 15–16 for details.2 Required under the terms of the Emission Control Warranty.3 Applies to Corolla Matrix 4WD only.4 Do not replace if replaced at 112,500 miles.
Maintenance Log: 2004 Corolla and Corolla Matrix
120,000 Miles or 96 Months
120,000 Miles or 96 Months
❑Replace engine air filter
❑Repl ace engine coolant
❑Replace engine oil and oil filter
❑Repl ace spark plugs2
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
__ Drive belts
__ Drive shaft boots
__ Engine valve clearance
__ Exhaust pipes and mountings
__ Front differential oil
__ Fuel lines and connections, fuel tank band and fuel tank vapor vent system hoses
Additional Maintenance Items forSpecial Operating Conditions:1
❑Inspect nuts and bolts on chassis and body
❑Replace air conditioning filter
❑Replace automatic transmission fluid
❑Repl ace front differential oil
❑Replace manual transmission oil
❑Repl ace rear differential oil3
❑Replace transfer case oil3
Scheduled Maintenance Log37
Dealer Service Verification:
Date:
Mileage:
__ Fuel tank cap gasket
__ Radia tor core
__ Rear differential oil
3
__ Steering gear box
__ Steering linkage and boots
__ Transmission fluid or oil
__ Transfer case oil
3
