maintenance schedule TOYOTA MATRIX 2004 E130 / 1.G Scheduled Maintenance Guide

PASSPORT
to p erformance
Scheduled Maintenance Guide
2004 Corollaand
Co rolla Matrix

i
egular maintenance is essential to obtaining the highest level of perfor-
mance from your Toyota. It can also enhance your vehicle’s resale value.
This booklet is designed to help you make sure your vehicle receives
proper and timely maintenance. It includes factory-recommended mainte-
nance guidelines along with informat ion on the extensive maintenance and
re pa ir support available through Toyota and your dealership.
With proper maintenance and care, your v ehicle will run better, last longer
and deliver more economical performance. Follow the recommendations in
this
Scheduled Maintenance Guideand you’ll enjoy reliability and peace of
mind from your Toyota for many years to come.
Documenting Your Investment
To h elp you verify that you’ve invested in proper maintenance, each mainte-
nance log in this booklet includes space fory our Toyota dealership to certify
that you obtained Genuine Toyota Servi ce fory our vehicle. The dealership will
mark the dealer service verification area with the following stamp (which
may be customized with the dealership’s name):
Additional Maintenance
In addition to scheduled maintenance, yo ur Toyota requires ongoing general
maintenance such as fluid checks and visual inspect ions. These procedures
are explained in the “Vehicle Ma intenance and Care” section of the
Owner’s
Man ual
. Be sure to perform these proced ures regularly to ensure the most
trouble-free operation of your vehicle.
Yo ur Passport to Performance
R

ii
Maintenance Records
Maintaining your vehicle according to the recommendations in this booklet is
re quired to ensure that your warranty coverage remains intact. You should keep
detailed records of vehicle maintenance, i ncluding date of service, mileage at
ti me of service and a description of service and/or parts installation performed.
The scheduled maintenance log in t his booklet can help you document this
information. If you sell your vehicle, be sure to give your maintenance records to
the new owner.
To yota will not deny a warrant y claim solely because you do not have records
to show that you maintained your vehicle. However, damage or failures caused
by lack of proper maintenance are not covered under warranty.
Maintenance Providers
Maintenance and repair services may be performed by you or by any automotive
service provider you choose. Toyota w ill not deny a warranty claim solely because
you used a service provider other than a Toyota dealership for maintenance and
re pa irs. However, damage or failures caused by improper maintenance or repairs
are not covered under warranty.
Dealer-Recommended Maintenance
Yo ur dealer may recommend more frequent maintenance intervals or more
maintenance services than those listed in the scheduled maintenance log. These
additional services are not requ ired to maintain your warranty coverage. Ask your
dealer for an explanation of any recommend ed maintenance not included in the
scheduled maintenance log.
For a complete description of Toyota warranty coverages, see the booklet
entitled
2004 Owner’s Warranty Informationlocated in your vehicle’s
glove box.
Main tenance and Toyota Warranty Coverage

1
Toyota Maintenance and Repair Support
Toyota Dealership Service
Toyota Ex press Lube
Genuine Toyota Parts and Accessories
Lifetime Guarantee Replacement Parts
Tr ueStart™ Batteries
C ollision Repair Parts
Do-It-Yourself Products
Toyota Par ts Centers
Toyota Service Manuals
Service Agreements and Pre-Paid Maintenance
General Maintenance Information
Determining Your Vehicle’s Maintenance Needs
Explanation of Maintenance Items
Ve hicle Identification
Scheduled Maintenance Log
Following the Charts
Maintenance Log: 2004 Corolla and Corolla Matrix
Tab le of Con tents
2
3
4
6
7
8
10
12
13
14
15
17
20
21
22

Toyota Maintenance and Repair Support14
Service Agreements and Pre-Paid Maintenance
Toyota Extra Care Vehicle Service Agreements
Toyota Extra Care Vehicle Service Agreements enhance the scope and/or length of
coverage of your vehicle’s factory warranty, or provide protection if the original
warran ty has expired.
1Toyota Extra Care provides for the repair or replacement of
covered components that have mechanical failures and prot ects you from rising
re pa ir costs in the future. In addition, ma ny plans include benefits such as tow-
ing, substitute transportation and travel protection with lodging and meals.
To yota Extra Care Vehicle Service Agreements are accepted at all participating Toyota
dealerships in the United States and Canad a. That means repairs are made only
by factor y-trained service technicians using Genuine Toyota Parts.
To yota Financial Services offers several Toyota Extra Care Vehicle Service Agreement
plans, each with a variet y of time and mileage options.
2Your Toyota dealer can
help you select the plan that best meets your needs.
To yota Auto Care Prepaid Maintenance Program
The Toyota Auto Care Prepaid Maintenance Program provides a convenient way to
prepay for your vehicle’s regularly scheduled maintenance and protects you from
the rising cost of service.
To yota Auto Care Classic Prepaid Mainten ance Plans are available for both new
and used vehicles. Benefits include oil- and-filter changes, lubrication of key
chassis parts, 19-point inspection s at predetermined service intervals, timed
service reminders and a comput erized history of each service visit. In addition,
24-hour roadside assistance is i ncluded with most plans.
3Premium Plans (avail-
able for new vehicles only) also include tire rotations and major maintenance
services at 15,000, 30,000 and 45,000 miles.
The Toyota Auto Care Program offers two co verage levels as well as several options
for service intervals, time and mileage. Your Toyota dealer can help you select the
prepaid maintenance plan that is best for you.
1V ehicle service agreements are offered by Toyota Motor In surance Services, Inc., administered by Toyota
Motor Services Company in certain states. In Florida, offered by Toyota Motor Insurance Company.
2To yota Financial Services is a service mark of Toyota Motor Insurance Services, Inc.3See individual plans ford etails on applicability.

General Maintenance Information15
Determining Your Vehicle’s Maintenance Needs
Determining the Proper Maintenance Interval
Depending on your circumstances, you should obtain maintenance for your
To yota every 5,000 miles or every 7,500 m iles. Follow these guidelines to
determine which interval to use.
5,000-Mile Intervals
Use 5,000-mile intervals if you primarily operate your vehicle under any of
the following conditions:
•Driving on unpaved or dusty roads.
•To wi ng a trailer or using a car-top carrier.
•Repeated trips of less than five miles in temperatures below freezing.
7,500-Mile Intervals
Use 7,500-mile intervals if you primarily o perate your vehicle under conditions
other than those listed above.
Note: If you drive your vehicle under any of the special operating conditions
noted below, you may need to perform specific services at 5,000-mile intervals.
See the 5,000-mile maintenance charts for details.
Special Operating Conditions
In addition to standard maintenance items, the scheduled maintenance log
indicates services that should be performed on vehicles that are driven under
especially demanding cond itions. Specific conditions require specific services,
as indicated on the following page. The scheduled maintenance log indicates
at which mileage/time intervals each service should be performed.
Y ou should perform these additional mainten ance services if you drive primarily
under any of the conditions noted. If y ou drive only occasionally under these
conditions, it is not necessary to perform the additional services.

General Maintenance Information17
Explanation of Maintenance Items
The following descriptions are provided to give you a better understanding of
the maintenance items that should be performed on your vehicle. The scheduled
maintenance log indicates at which mileage/time intervals each item should be
performed. Please note that many maintenance items should be performed only
by a qualified technician.
For further information on maintenance items you can perform yourself,
see the “Vehicle Maintenance and Care” and “Do-It-Yourself Maintenance”
sections of your
Owner’s Manual.
Air Conditioning Filter
Re place at specified intervals.
Automatic Transmission Fluid or Manual Transmission Oil
Replace at specified intervals. When perfor ming inspections, check each com-
ponent for signs of leakage. If you discover any leakage, have it repaired by a
qualified technician immediately.
Ball Joints and Dust Covers
Check the suspension and st eering linkage ball joints forl ooseness and damage.
Check all dust covers for deterioration and damage. Replace any deteriorated or
da maged parts. A qualified technici an should perform these operations.
Brake Lines and Hoses
Visually inspect for proper installation. Ch eck for chafing, cracks, deterioration
and signs of leakage. Replace any deteriorated or damaged parts. A qualified
tec hnician should perform these operations.
Brake Linings/Drums and Brake Pads/Discs
Check the brake linings (shoes) and drums for scoring, burning, fluid leakage,
broken parts and excessive wear. Check t he pads fore xcessive wear and the
discs for runout, excessive wear and fluid leakage. Replace any deteriorated
or damaged parts. A qualified techn ician should perform these operations.
Differential Oil
Replace at specified intervals. When per forming inspections, check each
component for signs of leakage. If you discover any leakage, have it repaired
by a qualified technician immediately.

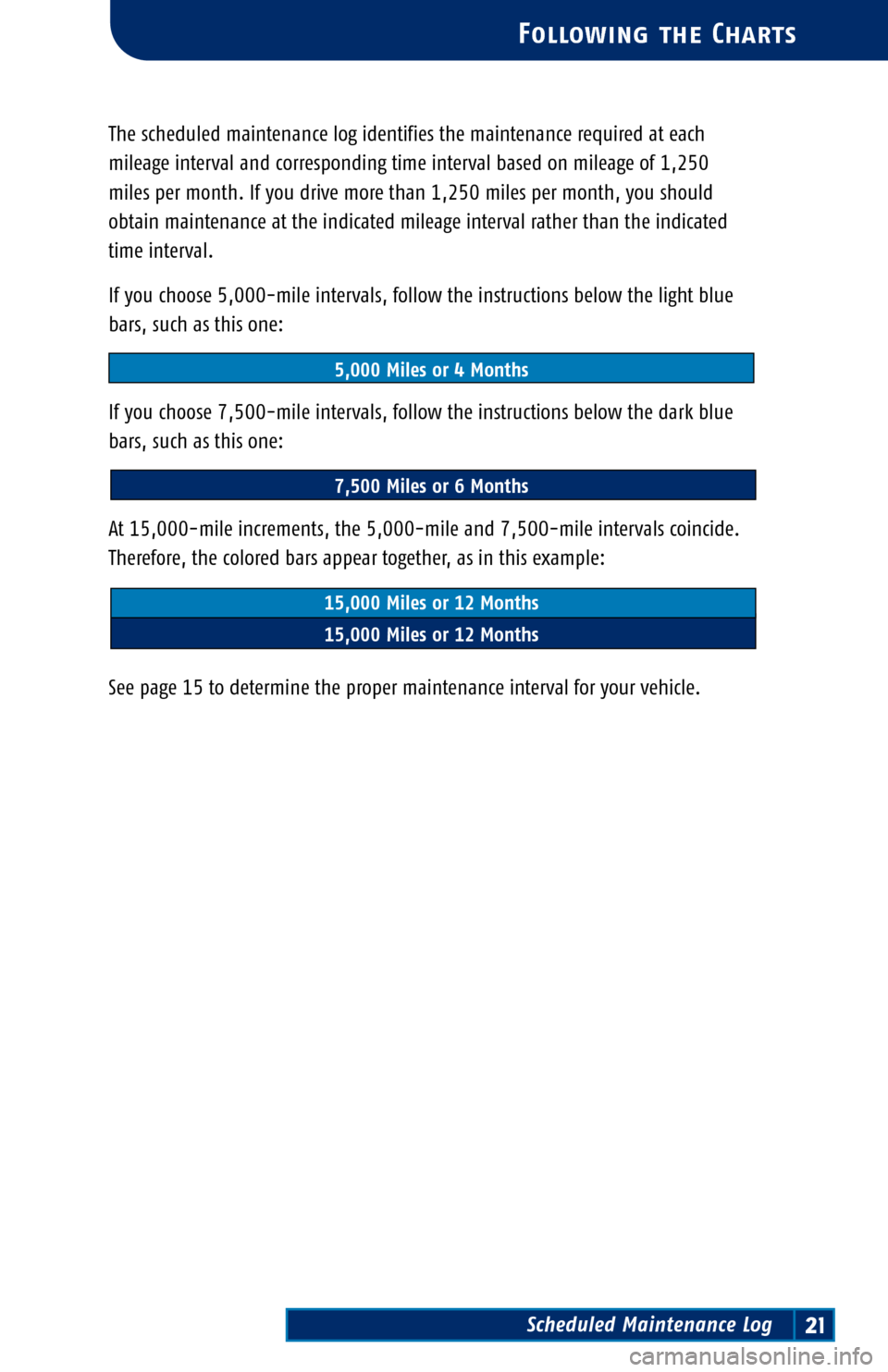

Scheduled Maintenance Log21
Following the Charts
The scheduled maintenance log identifies the maintenance required at each
mileage interval and corresponding time interval based on mileage of 1,250
miles per month. If you drive more than 1,250 miles per month, you should
obtain maintenance at the indicated m ileage interval rather than the indicated
time in terval.
If you choose 5,000-mile intervals, follow the instructions below the light blue
bars, such as this one:
5,000 Miles or 4 Months
If you choose 7,500-mile intervals, follow the instructions below the dark blue
bars, such as this one:
7,500 Miles or 6 Months
At 15,000-mile increments, the 5,000-mile and 7,500-mile intervals coincide.
Therefore, the colored bars appear together, as in this example:
15,000 Miles or 12 Months
15,000 Miles or 12 Months
See page 15 to determine the proper maintenance interval for your vehicle.

5,000-Mile Maintenance Intervals
7,500-Mile Maintenance IntervalsTo determine the appropriate maintenance
interval for your vehicle, see page 15.
Ma intenance Log: 2004 Corolla and Corolla Matrix
7,500 Miles or 6 Months
❑Replace engine oil and oil filter
❑Rotate tires
Dealer Service Verification:
Date:
Mileage:
5,000 Miles or 4 Months
❑Replace engine oil and oil filter
Additional Maintenanc e Items for Special
Operating Conditions:1
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Rotate tires
10,000 Miles or 8 Months
❑Replace engine oil and oil filter
Additional Maintenanc e Items for Special
Operating Conditions:1
❑Inspect the following:__ Ball joints and dust covers
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Engine air filter
__ Nuts and bolts on chassis and body
__ Steering linkage and boots
❑Re place air conditioning filter
❑Rotate tires
Dealer Service Verification:
Date: Mileage:
Scheduled Maintenance Log22
Dealer Service Verification:
Date: Mileage:

1 Specific services apply to specific operating conditions. See pages 15–16 for details.2 Applies to Corolla Matrix 4WD only.
Maintenance Log: 2004 Corolla and Corolla Matrix
15,000 Miles or 12 Months
15,000 Miles or 12 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
__ Drive shaft boots
__ Exhaust pipes and mountings
Additional Maintenance Items forSpecial Operating Conditions:1
❑Inspect engine air filter
❑Inspect nuts and bolts on chassis and body
❑Repl ace rear differential oil2
❑Replace transfer case oil2
Scheduled Maintenance Log23
Dealer Service Verification:
Date:
Mileage:
__ Rear differential oil2
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
2
