TOYOTA MATRIX 2005 E130 / 1.G Navigation Manual

Corolla_MATRIX_Navi_U (L/O 0405)
104
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
5NAN016
(e) Searching for a desired track
Push and hold either side of the “SEEK”
button until a beep sounds.
The compact disc player will play the
next track for 10 seconds, then scan
again. To select a track, push the “SEEK”
button a second time. If the player reach-
es the end of the disc, it will continue
scanning from track 1.
After all the tracks are scanned in one
pass, normal play resumes.
5NAN004
(f) Other compact disc player func-
tions
Repeating a track: Select it for automat-
ic repeat of the track you are currently
listening to.
Push the “Repeat” button while the track
is playing. When the track is finished, the
player will automatically go back to the
beginning of the track and play the track
again. To cancel it, push the button
again.
Random playing for the tracks on a
disc: Select it for automatic random
selection.
Push the “Random” button to make the
system select a track in the disc. To can-
cel it, push the button again.(g) If the player malfunctions
If the player does not operate, check that
the disc surface is not soiled or dam-
aged. If the disc is O.K., the following is
possible.
The temperature of the player’s inter-
nal mechanism may be raised be-
cause of high external temperature.
Remove the disc from the player to
cool it.
If the player still does not operate, have
it checked by your dealer.

Corolla_MATRIX_Navi_U (L/O 0405)
105
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
5NAN020
(a) Inserting compact discs
1. Slide open the cover of the compact disc changer under the front passenger seat. The magazine will come out from
the compact disc changer.
—Compact disc changer
operation

Corolla_MATRIX_Navi_U (L/O 0405)
106
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
5NAN026
2. Pull out the tray while pushing the lock release button.

Corolla_MATRIX_Navi_U (L/O 0405)
107
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)

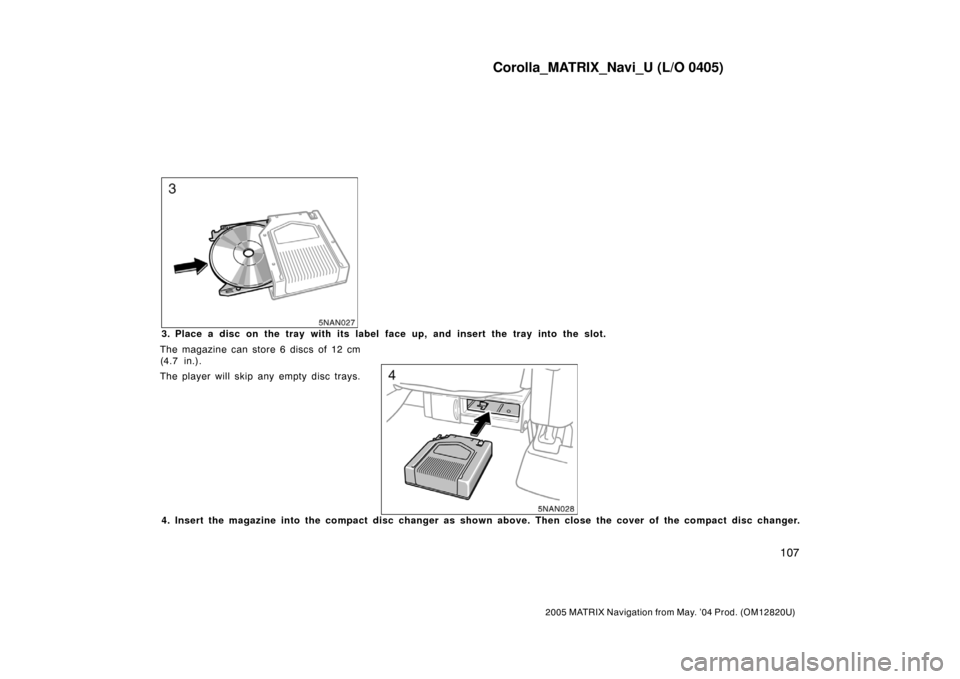

5NAN027
3. Place a disc on the tray with its label face up, and insert the tray into the slot.
The magazine can store 6 discs of 12 cm
(4.7 in.).
The player will skip any empty disc trays.
5NAN028
4. Insert the magazine into the compact disc changer as shown above. Then close the cover of the compact disc changer.

Corolla_MATRIX_Navi_U (L/O 0405)
108
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)

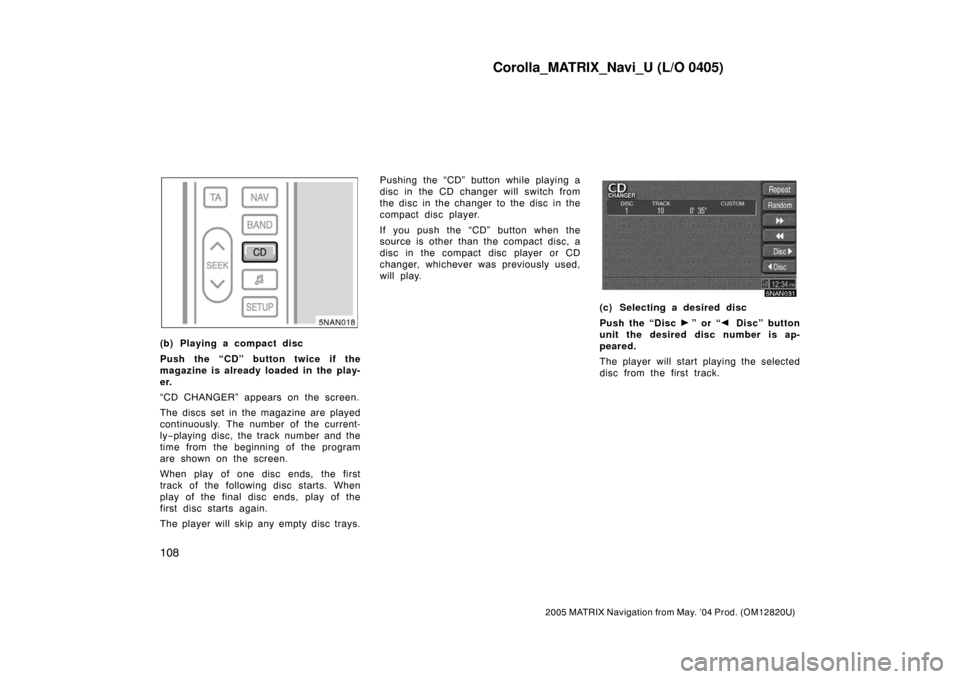

5NAN018
(b) Playing a compact disc
Push the “CD” button twice if the
magazine is already loaded in the play-
er.
“CD CHANGER” appears on the screen.
The discs set in the magazine are played
continuously. The number of the current-
ly−playing disc, the track number and the
time from the beginning of the program
are shown on the screen.
When play of one disc ends, the first
track of the following disc starts. When
play of the final disc ends, play of the
first disc starts again.
The player will skip any empty disc trays.Pushing the “CD” button while playing a
disc in the CD changer will switch from
the disc in the changer to the disc in the
compact disc player.
If you push the “CD” button when the
source is other than the compact disc, a
disc in the compact disc player or CD
changer, whichever was previously used,
will play.
5NAN031
(c) Selecting a desired disc
Push the “Disc
” or “ Disc” button
unit the desired disc number is ap-
peared.
The player will start playing the selected
disc from the first track.

Corolla_MATRIX_Navi_U (L/O 0405)
109
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)

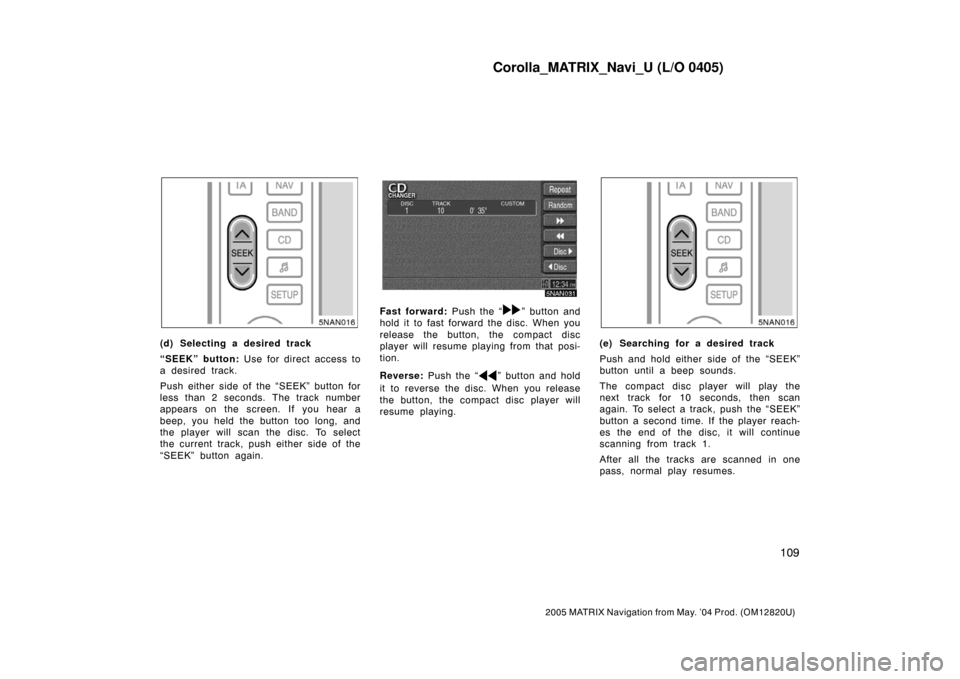

5NAN016
(d) Selecting a desired track
“SEEK” button: Use for direct access to
a desired track.
Push either side of the “SEEK” button for
less than 2 seconds. The track number
appears on the screen. If you hear a
beep, you held the button too long, and
the player will scan the disc. To select
the current track, push either side of the
“SEEK” button again.
5NAN031
Fast forward: Push the “” button and
hold it to fast forward the disc. When you
release the button, the compact disc
player will resume playing from that posi-
tion.
Reverse: Push the “
” button and hold
it to reverse the disc. When you release
the button, the compact disc player will
resume playing.
5NAN016
(e) Searching for a desired track
Push and hold either side of the “SEEK”
button until a beep sounds.
The compact disc player will play the
next track for 10 seconds, then scan
again. To select a track, push the “SEEK”
button a second time. If the player reach-
es the end of the disc, it will continue
scanning from track 1.
After all the tracks are scanned in one
pass, normal play resumes.

Corolla_MATRIX_Navi_U (L/O 0405)
11 0
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
5NAN0315NAN031
(f) Other compact disc changer func-
tions
Repeating a track: Select it for automat-
ic repeat of the track you are currently
listening to.
Push the “Repeat” button for less than 2
seconds while the disc is playing. When
the track is finished, the player will auto-
matically go back to the beginning of the
track and play the track again. To cancel
it, push the button again.Repeating a disc: Select it for automatic
repeat of the disc you are currently lis-
tening to.
Push the “Repeat” button for more than
2 seconds while the disc is playing.
When the disc is finished, the player will
automatically go back to the beginning of
the disc and play it again. To cancel it,
push the button again.
Random playing for the tracks on a
disc: Select it for automatic random
selection.
Push the “Random” button for less than
2 seconds. The player will play the tracks
on a specified disc in random order.
To cancel it, push the button again.
Random playing for all the tracks in
the magazine: Select it for automatic
track selection for all the discs and play
by the system.
Push the “Random” button for more than
2 seconds. The system selects a track
from the discs in all the magazine which
are set and plays it. To cancel it, push
the button again.(g) If the changer malfunctions
If the changer does not operate, check
that the disc surface is not soiled or
damaged. If the disc is O.K., the follow-
ing causes are possible.
Condensation may have occurred on
the internal mechanism of the chang-
er. Open the cover to let the air circu-
late.
The temperature of the player’s inter-
nal mechanism may be raised be-
cause of high external temperature.
Remove the magazine from the player
to cool it.
If the player still does not operate, have
it checked by your dealer.

Corolla_MATRIX_Navi_U (L/O 0405)
111
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
NOTICE
To ensure the correct audio system
operation:
Be careful not to spill beverages
over the audio system.
Do not put anything other than a
Compact Disc into the slot.
The use of cellular phone inside or
near the vehicle may cause a noise
from the speakers of the audio
system which you are listening to.
However, this does not indicate a
malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range. The farther you are
from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves.Here are some common reception prob-
lems that probably do not indicate a
problem with your radio:
FM
Fading and drifting stations—Generally,
the effective range of FM is about 40 km
(25 miles). Once outside this range, you
may notice fading and drifting, which in-
crease with the distance from the radio
transmitter. They are often accompanied
by distortion.
Multi−path—FM signals are reflective,
making it possible for two signals to
reach your antenna at the same time. If
this happens, the signals will cancel each
other out, causing a momentary flutter or
loss of reception.
Static and fluttering—These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping—If the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again.AM
Fading—AM broadcasts are reflected by
the upper atmosphere—especially at
night. These reflected signals can inter-
fere with those received directly from the
radio station, causing the radio station to
sound alternately strong and weak.
Station interference—When a reflected
signal and a signal received directly from
a radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the
broadcast.
Static—AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.
Car audio system operating
hints

Corolla_MATRIX_Navi_U (L/O 0405)
11 2
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
CARING FOR YOUR COMPACT DISC
PLAYER AND DISCS
Your compact disc player is intended
for use with 12 cm (4.7 in.) discs only.
Extremely high temperatures can keep
your compact disc player from work-
ing. On hot days, use the air condi-
tioning to cool the vehicle interior be-
fore you listen to a disc.
Bumpy roads or other vibrations may
make your compact disc player skip.
If moisture gets into your compact
disc player, you may not hear any
sound even though your compact disc
player appears to be working. Remove
the disc from the player and wait until
it dries.

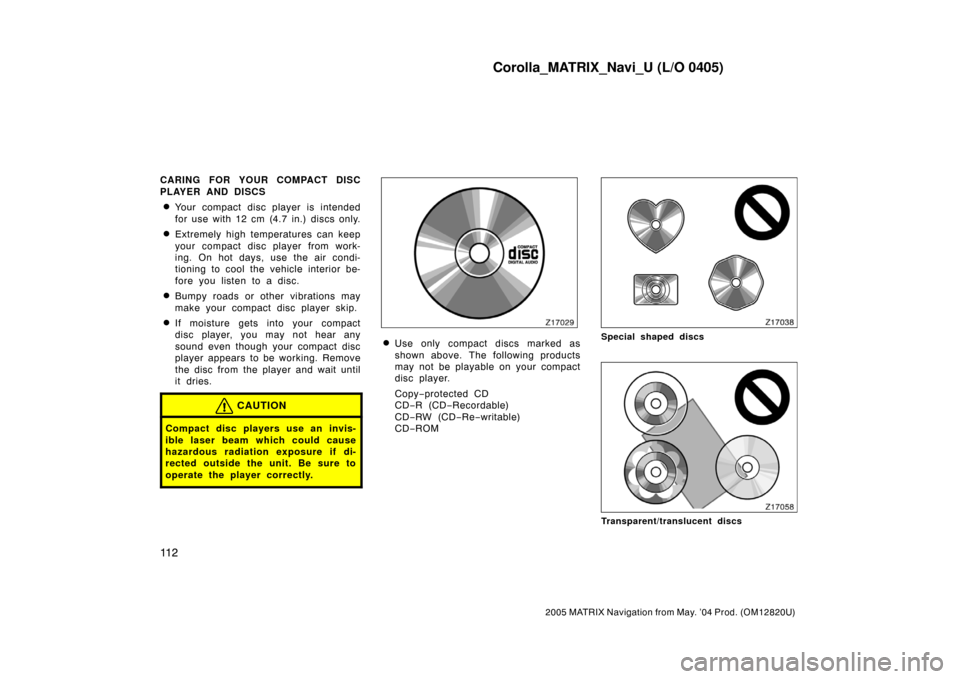

CAUTION
Compact disc players use an invis-
ible laser beam which could cause
hazardous radiation exposure if di-
rected outside the unit. Be sure to
operate the player correctly.
Use only compact discs marked as
shown above. The following products
may not be playable on your compact
disc player.
Copy−protected CD
CD−R (CD−Recordable)
CD−RW (CD−Re−writable)
CD−ROMSpecial shaped discs
Transparent/translucent discs

Corolla_MATRIX_Navi_U (L/O 0405)
11 3
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)

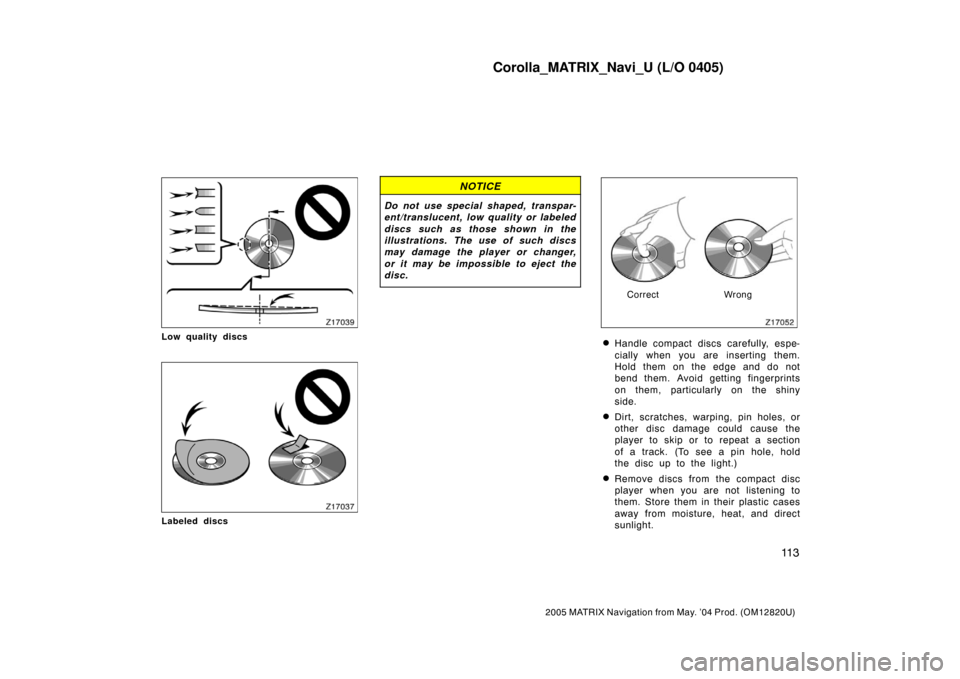

Low quality discs
Labeled discs
NOTICE
Do not use special shaped, transpar-
ent/translucent, low quality or labeled
discs such as those shown in the
illustrations. The use of such discs
may damage the player or changer,
or it may be impossible to eject the
disc.
Correct Wrong
Handle compact discs carefully, espe-
cially when you are inserting them.
Hold them on the edge and do not
bend them. Avoid getting fingerprints
on them, particularly on the shiny
side.
Dirt, scratches, warping, pin holes, or
other disc damage could cause the
player to skip or to repeat a section
of a track. (To see a pin hole, hold
the disc up to the light.)
Remove discs from the compact disc
player when you are not listening to
them. Store them in their plastic cases
away from moisture, heat, and direct
sunlight.
