After you input that information, select the
“OK” switch. The screen then returns to
the “Maintenance“ screen. The icon’s color
will change to light blue after the date or
driving distance is inputted. The icon’s
color will change to orange when your ve-
hicle needs to be serviced. The following
switches appear on the screen.
“Del. All”: Cancel all conditions which
have been inputted.
“Reset all”: Reset all items which satisfy
either condition.
Select the
“Off” switch at the top of the
“Maintenance” screen, and the “Informa-
tion” screen will no longer be displayed.
INFORMATION
For scheduled maintenance informa-
tion, please refer to the “Scheduled
Maintenance Guide” or “Owner’s
Manual Supplement”.
Depending on your driving or the
road conditions, the system may
have a timelag between the data
which has been inputted and the ac-
tual date and driving distance.
Information items
Oil change
Replace oil filter
Rotate tires
Replace tires
Replace battery
Replace brake lining
Replace wiper blades
Replace engine coolant
Replace brake fluid
Replace ATF
Scheduled maintenance
Replace air filter
Personal

Corolla_MATRIX_Navi_U (L/O 0405)
84
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
3NAN039
This system has a function which in-
forms you the memo you entered. When
the system begins operating after
reaching the memo’s date, the “Informa-
tion” screen will be displayed.
The “Information” screen will not be dis-
played again by selecting the
“Do not
display this message again”
switch.

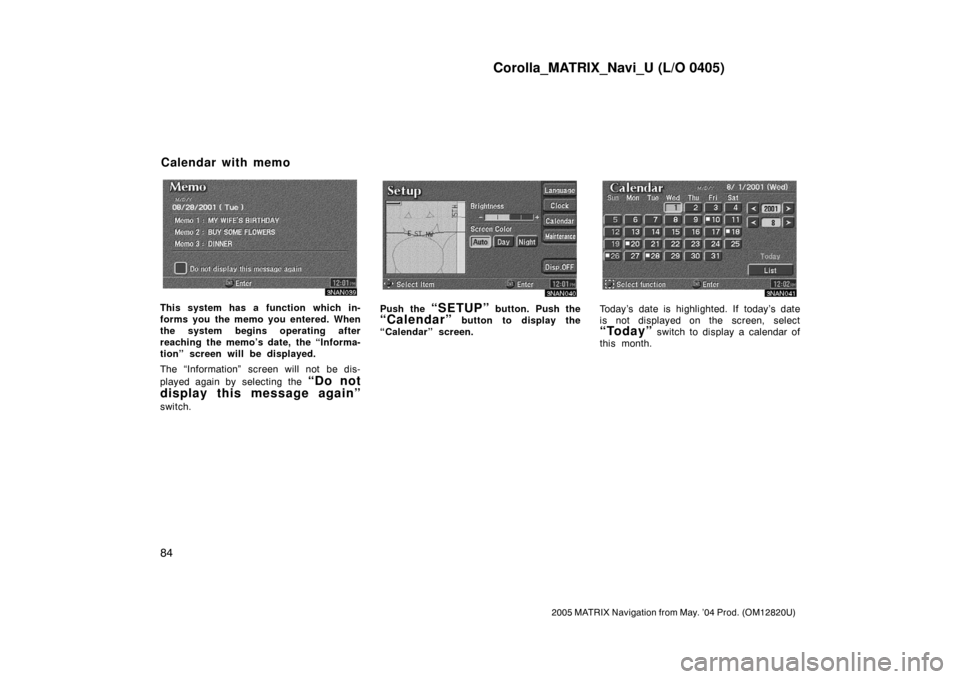

3NAN040
Push the “SETUP” button. Push the
“Calendar” button to display the
“Calendar” screen.
3NAN041
Today’s date is highlighted. If today’s date
is not displayed on the screen, select
“Today” switch to display a calendar of
this month.
Calendar with memo

Corolla_MATRIX_Navi_U (L/O 0405)
90
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
The clock in this system can be cor-
rected manually or by using signals
from the GPS. Daylight Saving Time
setting or your desired time setting is
available.
1. Push the
“SETUP” button.
4NAN003
2. Push the “Clock” button.CLOCK SETTING
4NAN008
Select your desired switch you want to
set.
“12Hr/24Hr”: You can select standard 12
hour AM/PM time,
“12Hr”, or 24 hour
military time,
“24Hr”.
“Auto GPS Update”: If you select the
“ON” switch, the time is automatically
adjusted by the GPS clock. If you select
the
“OFF” switch, you can adjust the
clock manually. (For the method of how to
adjust the clock, see manual clock adjust-
ment.)
“Daylight Savings”: Daylight savings time
can be set or canceled.
“Time Zone”: You can select the time
zone. Selected switch is highlighted in
green.MANUAL CLOCK ADJUSTMENT
4NAN008
Push the “Adjust” button and select
hour or minute. The highlighted num-
bers may then be adjusted by moving
the select and scroll lever up or down.
Push the
“Adjust” button once again,
and return to clock setting mode.
If you push the
“Adjust” button, “Auto
GPS Update” will turn to
“OFF” auto-
matically.
After making any changes on the “Ad-
just Clock” screen, push the
“OK”
button so that the previous screen will
be displayed. You can also display the
previous screen by pushing the
“Back” button.
Clock adjustment

Corolla_MATRIX_Navi_U (L/O 0405)
91
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
AUDIO SYSTEM
Audio system
Quick reference for your audio system92 . . . . . . . . . . . . . . . . . . . . . . . . .
Using your audio system93 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Car audio system operating hints111 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION V

Corolla_MATRIX_Navi_U (L/O 0405)
92
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
5NAN033
“BAND” button
Push this button to choose an audio control mode, FM1,
FM2 or AM station. For details, see pages 94 and 97.
Function buttons
Push the button on the
screen to control the radio
or compact disc player. For
details, see pages 98,
104 and 109.
“ ” button
Push this button to display the sound control mode.
For details, see page 95.
“ENT” button/select and scroll lever
In case of selecting a function and letter or moving cursor,
move the lever. In case of deciding after selecting it on the
screen, push the lever. For details, see page 97.“PWR/VOL” knob
Push this knob to turn the
audio system on and off, and
turn it to adjust the volume.
For details, see page 93.
“TA” button
Push this button to seek a
station that broadcasts traffic
information regularly. For
details, see page 101.
“CD” button
Push this button to turn on the
compact disc player or
compact disc changer. For
details, see pages 103 and
108.
“SEEK” button
Radio: Push either side of this
button to seek up or down for
a station, or scan for a
station. For details, see page
98.
Compact disc player: Push
either side of this button to
seek up or down for a track,
or scan for a track. For
details, see pages 103 and
109.
Eject button
Push this button to
eject a compact disc.Compact disc slot
Push a compact disc
into the slot.
Quick reference for your audio system

Corolla_MATRIX_Navi_U (L/O 0405)
93
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
This section describes some of the basic
features of the Toyota audio system.
Some information may not pertain to your
system.
INFORMATION
This audio unit has a thermal shut
down system. When the temperature
of the unit becomes extremely high,
the unit automatically shuts down
with a beep and warning message.
When the unit cools down enough, it
automatically returns to operation.
Your audio system works when the igni-
tion switch is in the “ACC” or “ON” posi-
tion.
NOTICE
To prevent the battery from being
discharged, do not leave the car au-
dio on longer than necessary when
the engine is not running.
5NAN030
(a) Turning the system on and off
POWER/VOL: Push this knob to turn the
audio system on and off. Turn this knob
to adjust the volume. The system turns
on in the last mode used.
5NAN014
Push “BAND” (FM1, FM2 or AM) or
“CD” button to turn on the desired
mode. The selected mode turns on im-
mediately and the screen turns to each
audio control mode.
Push these buttons if you want to switch
from one mode to another.
If a disc is not inserted, the compact disc
player does not start playing.
You can turn off the compact disc player
by ejecting the compact disc or pressing
“BAND” button. The previous audio mode
will come on again.
Using your audio system—
—Some basics

Corolla_MATRIX_Navi_U (L/O 0405)
99
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
To scan all frequencies: Push and hold
either side of the “SEEK” button for more
than 2 seconds and less than 4 seconds
until you hear a beep. “SCAN” appears
on the screen. The radio will find the
next station and stay there for a few
seconds, and then scan again. To select
a station, push the “SEEK” button again.
To scan preset stations: Push and hold
either side of the “SEEK” button for more
than 4 seconds until you hear two beeps.
“P.SCAN” appears on the screen. The ra-
dio will tune in the next preset station,
stay there for a few seconds, and then
move to the next preset station. To select
a station, push the “SEEK” button again.(d) Radio Data System
Your audio system is equipped with Radio
Data Systems (RDS). RDS mode pro-
vides you to receive text messages from
radio stations that utilize RDS transmit-
ters.
When RDS is on, the radio can
—select only stations of a particular pro-
gram type,
—display messages from radio stations,
—search for a stronger signal station,
—search for local stations broadcasting
the same network as the vehicle travels,
—receive announcements concerning lo-
cal and national emergencies (even if
RDS function is turned off).
RDS features are available for the use
only on FM stations which broadcast RDS
information.
5NAN005
5NAN006
“RDS SEEK”
This button allows you to search all avail-
able RDS stations out of the entire FM
band and sort them by program type
(See following “PTY” button for details on
program types).

Corolla_MATRIX_Navi_U (L/O 0405)
104
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
5NAN016

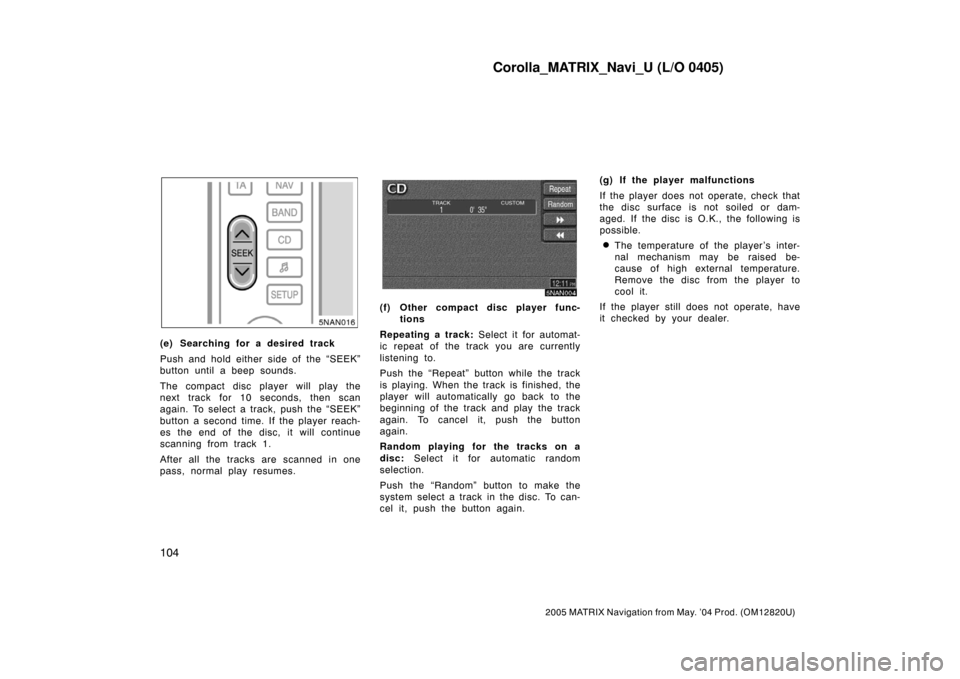

(e) Searching for a desired track
Push and hold either side of the “SEEK”
button until a beep sounds.
The compact disc player will play the
next track for 10 seconds, then scan
again. To select a track, push the “SEEK”
button a second time. If the player reach-
es the end of the disc, it will continue
scanning from track 1.
After all the tracks are scanned in one
pass, normal play resumes.
5NAN004
(f) Other compact disc player func-
tions
Repeating a track: Select it for automat-
ic repeat of the track you are currently
listening to.
Push the “Repeat” button while the track
is playing. When the track is finished, the
player will automatically go back to the
beginning of the track and play the track
again. To cancel it, push the button
again.
Random playing for the tracks on a
disc: Select it for automatic random
selection.
Push the “Random” button to make the
system select a track in the disc. To can-
cel it, push the button again.(g) If the player malfunctions
If the player does not operate, check that
the disc surface is not soiled or dam-
aged. If the disc is O.K., the following is
possible.
The temperature of the player’s inter-
nal mechanism may be raised be-
cause of high external temperature.
Remove the disc from the player to
cool it.
If the player still does not operate, have
it checked by your dealer.

Corolla_MATRIX_Navi_U (L/O 0405)
11 0
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
5NAN0315NAN031

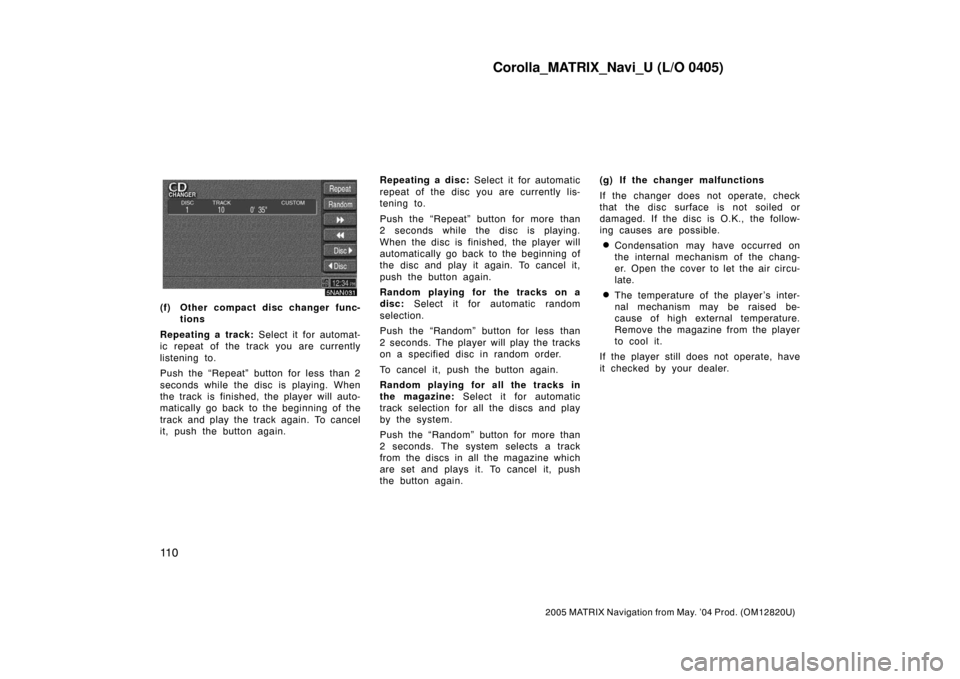

(f) Other compact disc changer func-
tions
Repeating a track: Select it for automat-
ic repeat of the track you are currently
listening to.
Push the “Repeat” button for less than 2
seconds while the disc is playing. When
the track is finished, the player will auto-
matically go back to the beginning of the
track and play the track again. To cancel
it, push the button again.Repeating a disc: Select it for automatic
repeat of the disc you are currently lis-
tening to.
Push the “Repeat” button for more than
2 seconds while the disc is playing.
When the disc is finished, the player will
automatically go back to the beginning of
the disc and play it again. To cancel it,
push the button again.
Random playing for the tracks on a
disc: Select it for automatic random
selection.
Push the “Random” button for less than
2 seconds. The player will play the tracks
on a specified disc in random order.
To cancel it, push the button again.
Random playing for all the tracks in
the magazine: Select it for automatic
track selection for all the discs and play
by the system.
Push the “Random” button for more than
2 seconds. The system selects a track
from the discs in all the magazine which
are set and plays it. To cancel it, push
the button again.(g) If the changer malfunctions
If the changer does not operate, check
that the disc surface is not soiled or
damaged. If the disc is O.K., the follow-
ing causes are possible.
Condensation may have occurred on
the internal mechanism of the chang-
er. Open the cover to let the air circu-
late.
The temperature of the player’s inter-
nal mechanism may be raised be-
cause of high external temperature.
Remove the magazine from the player
to cool it.
If the player still does not operate, have
it checked by your dealer.

Corolla_MATRIX_Navi_U (L/O 0405)
111
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
NOTICE
To ensure the correct audio system
operation:
Be careful not to spill beverages
over the audio system.
Do not put anything other than a
Compact Disc into the slot.
The use of cellular phone inside or
near the vehicle may cause a noise
from the speakers of the audio
system which you are listening to.
However, this does not indicate a
malfunction.
RADIO RECEPTION
Usually, a problem with radio reception
does not mean there is a problem with
your radio—it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain
can interfere with FM reception. Power
lines or telephone wires can interfere with
AM signals. And of course, radio signals
have a limited range. The farther you are
from a station, the weaker its signal will
be. In addition, reception conditions
change constantly as your vehicle moves.Here are some common reception prob-
lems that probably do not indicate a
problem with your radio:
FM
Fading and drifting stations—Generally,
the effective range of FM is about 40 km
(25 miles). Once outside this range, you
may notice fading and drifting, which in-
crease with the distance from the radio
transmitter. They are often accompanied
by distortion.
Multi−path—FM signals are reflective,
making it possible for two signals to
reach your antenna at the same time. If
this happens, the signals will cancel each
other out, causing a momentary flutter or
loss of reception.
Static and fluttering—These occur when
signals are blocked by buildings, trees, or
other large objects. Increasing the bass
level may reduce static and fluttering.
Station swapping—If the FM signal you
are listening to is interrupted or weak-
ened, and there is another strong station
nearby on the FM band, your radio may
tune in the second station until the origi-
nal signal can be picked up again.AM
Fading—AM broadcasts are reflected by
the upper atmosphere—especially at
night. These reflected signals can inter-
fere with those received directly from the
radio station, causing the radio station to
sound alternately strong and weak.
Station interference—When a reflected
signal and a signal received directly from
a radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the
broadcast.
Static—AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static.
Car audio system operating
hints
