buttons TOYOTA MATRIX 2005 E130 / 1.G Navigation Manual

Corolla_MATRIX_Navi_U (L/O 0405)
vi
Symbols, Switches and Buttons
Northup symbol and scale of map
Indicates north on the map. The
figure also indicates the map scale.
For details, see pages 42 through
43.
“PWR/VOL” knob
Push this knob to turn the
navigation system on and off. For
details, see page 2.
“NAV” button
Push this button to turn the
navigation screen on. When this
button is pressed while the
navigation screen is displayed, it
functions in the same way as the
“MAP” button.
“GPS” mark
(Global Positioning System)
Whenever your vehicle is receiving
signals from the GPS, this mark is
displayed. For details, see page 45.
“SETUP” button
Push this button to display the
“Setup” screen. This screen allows
you to make adjustments or correct
settings of various options and
functions.
“ENT” button/select and scroll
lever
In case of selecting the function and
letters or moving cursor, press the
lever to one direction out of 8
directions. In case of deciding the
function after selecting it on the
screen, push the lever as a button.Eject button
Push this button to eject a
DVD−ROM.DVDROM slot
Put a map data DVD−ROM into
the slot.
“MAP” button
Push this button to repeat a
guidance voice, cancel the map
scroll and start a guidance. For
details, see page 30.
“DEST” button
Push this button to display the
“Destinations” screen. For details,
see page 4.
“MENU” button
Push this button to display the
“Menu” screen. This screen allows
you to make adjustments or
correct settings of various options
and functions.
Zoom in button
This button magnifies the map
scale. For details, see page 42.
Zoom out button
This button reduces the map scale.
For details, see page 42.
“BACK” button
Push this button when to call out
the previous screen.
Clock
The digital clock indicates the time.
For details, see page 90. Distance and time to destination
Displays the distance and the
estimated travel time to the
destination. The direction will be
indicated when your vehicle is off
the route. For details, see page 26.
Operation guide
To display the switch
function on each screen.
Current vehicle position mark
To indicate the current position.
For details, see page 30.

Corolla_MATRIX_Navi_U (L/O 0405)
3
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
The navigation system can be operated
by buttons on the bezel. To input let-
ters and/or numbers, move the select
and scroll lever to the 8 directions, and
when the letter or number you wish to
input is lit up, push the
“ENT” but-
ton. A beep sound is heard, and the
letter or number is input. Repeat this
procedure to input the name or number,
etc.
1MAN001
If you type a wrong letter, delete it using
the
switch. Selecting the switch
erases one letter.Selecting the
“List” switch on the
screen, the screen will be changed to dis-
play the database items that match the
name or address that you have entered
on the screen. The number of matching
items is shown to the right side of the
screen.
Selecting the
“À” switch to display
the diacritics input screen, the
“09”
switch to display the numeral input
screen.
1NAN002
Selecting the “AZ” switch changes the
screen back to the alphabet input screen.
1NAN003
When a list is displayed, you can scroll
the list by using select and scroll lever.
This expresses a displayed
screen position.
If a or a appears to the right
or left of the item name, the
complete name is too long for
the display. Select the or
switch, and the name will scroll
to the end or beginning of its
name.
Inputting letters and numbers

Corolla_MATRIX_Navi_U (L/O 0405)
74
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)

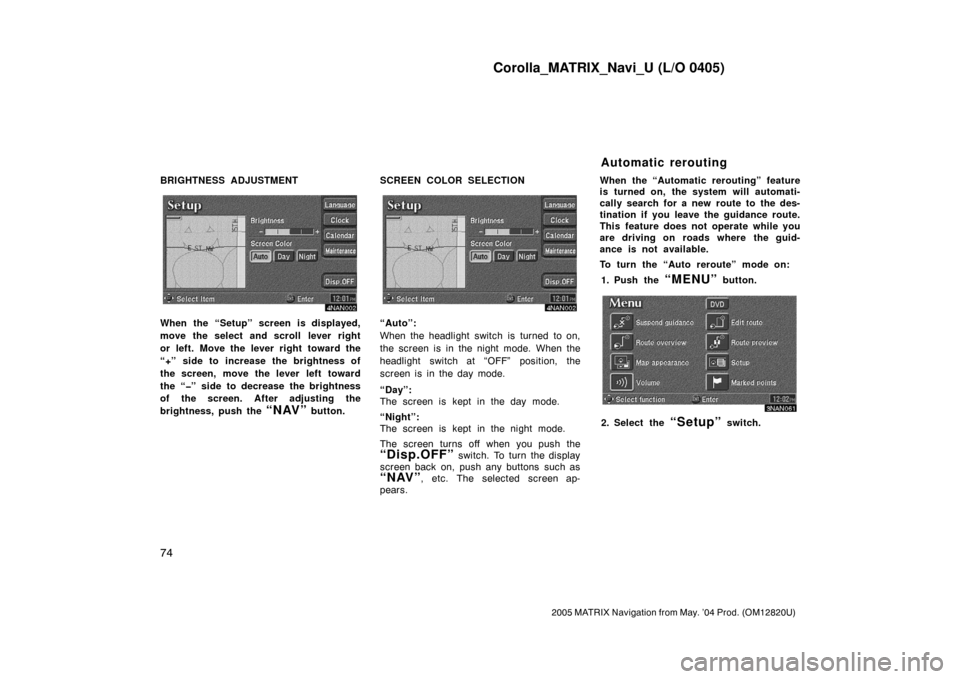

BRIGHTNESS ADJUSTMENT
4NAN002
When the “Setup” screen is displayed,
move the select and scroll lever right
or left. Move the lever right toward the
“+” side to increase the brightness of
the screen, move the lever left toward
the “” side to decrease the brightness
of the screen. After adjusting the
brightness, push the
“NAV” button.SCREEN COLOR SELECTION
4NAN002
“Auto”:
When the headlight switch is turned to on,
the screen is in the night mode. When the
headlight switch at “OFF” position, the
screen is in the day mode.
“Day”:
The screen is kept in the day mode.
“Night”:
The screen is kept in the night mode.
The screen turns off when you push the
“Disp.OFF” switch. To turn the display
screen back on, push any buttons such as
“NAV”, etc. The selected screen ap-
pears.When the “Automatic rerouting” feature
is turned on, the system will automati-
cally search for a new route to the des-
tination if you leave the guidance route.
This feature does not operate while you
are driving on roads where the guid-
ance is not available.
To turn the “Auto reroute” mode on:
1. Push the
“MENU” button.
3NAN061
2. Select the “Setup” switch.
Automatic rerouting

Corolla_MATRIX_Navi_U (L/O 0405)
92
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)

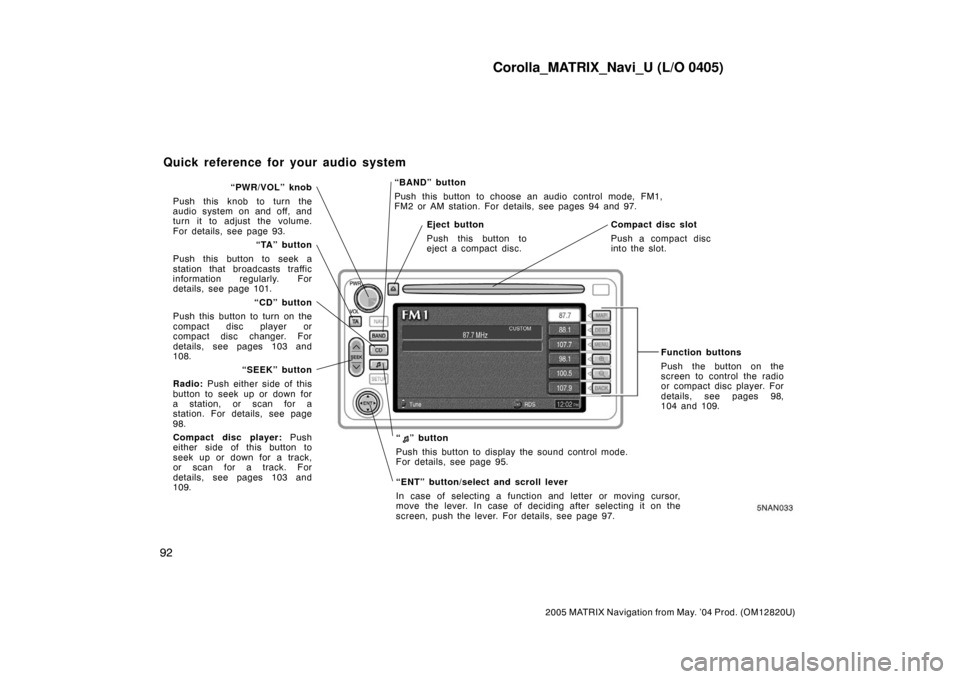

5NAN033
“BAND” button
Push this button to choose an audio control mode, FM1,
FM2 or AM station. For details, see pages 94 and 97.
Function buttons
Push the button on the
screen to control the radio
or compact disc player. For
details, see pages 98,
104 and 109.
“ ” button
Push this button to display the sound control mode.
For details, see page 95.
“ENT” button/select and scroll lever
In case of selecting a function and letter or moving cursor,
move the lever. In case of deciding after selecting it on the
screen, push the lever. For details, see page 97.“PWR/VOL” knob
Push this knob to turn the
audio system on and off, and
turn it to adjust the volume.
For details, see page 93.
“TA” button
Push this button to seek a
station that broadcasts traffic
information regularly. For
details, see page 101.
“CD” button
Push this button to turn on the
compact disc player or
compact disc changer. For
details, see pages 103 and
108.
“SEEK” button
Radio: Push either side of this
button to seek up or down for
a station, or scan for a
station. For details, see page
98.
Compact disc player: Push
either side of this button to
seek up or down for a track,
or scan for a track. For
details, see pages 103 and
109.
Eject button
Push this button to
eject a compact disc.Compact disc slot
Push a compact disc
into the slot.
Quick reference for your audio system

Corolla_MATRIX_Navi_U (L/O 0405)
93
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
This section describes some of the basic
features of the Toyota audio system.
Some information may not pertain to your
system.
INFORMATION
This audio unit has a thermal shut
down system. When the temperature
of the unit becomes extremely high,
the unit automatically shuts down
with a beep and warning message.
When the unit cools down enough, it
automatically returns to operation.
Your audio system works when the igni-
tion switch is in the “ACC” or “ON” posi-
tion.
NOTICE
To prevent the battery from being
discharged, do not leave the car au-
dio on longer than necessary when
the engine is not running.

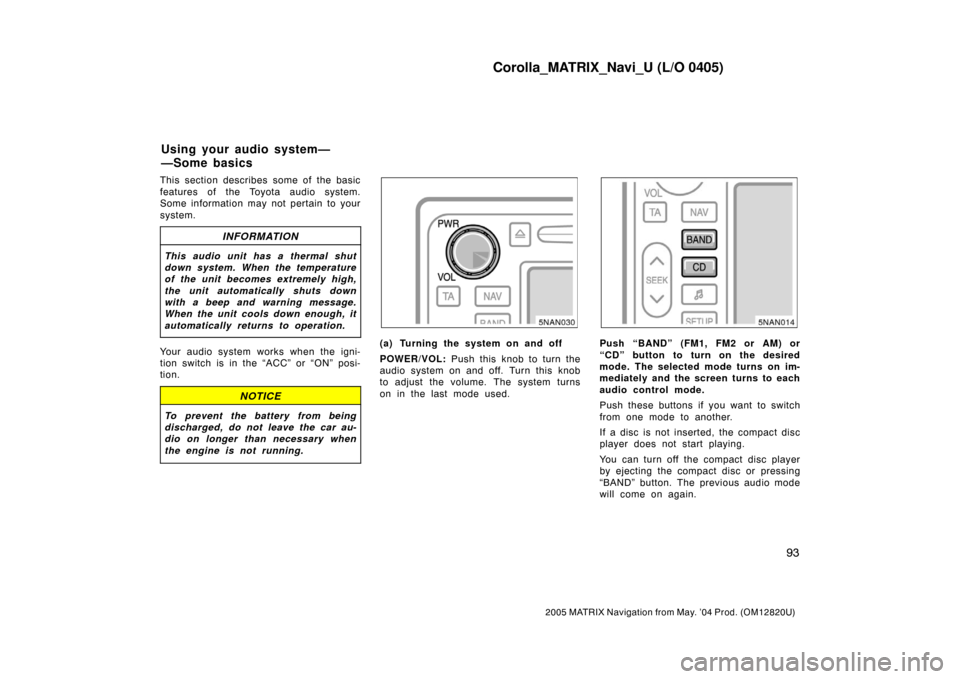

5NAN030
(a) Turning the system on and off
POWER/VOL: Push this knob to turn the
audio system on and off. Turn this knob
to adjust the volume. The system turns
on in the last mode used.
5NAN014
Push “BAND” (FM1, FM2 or AM) or
“CD” button to turn on the desired
mode. The selected mode turns on im-
mediately and the screen turns to each
audio control mode.
Push these buttons if you want to switch
from one mode to another.
If a disc is not inserted, the compact disc
player does not start playing.
You can turn off the compact disc player
by ejecting the compact disc or pressing
“BAND” button. The previous audio mode
will come on again.
Using your audio system—
—Some basics

Corolla_MATRIX_Navi_U (L/O 0405)
96
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)
EQ (Equalization) presets: This function
is designed to select the preset EQ set-
tings. Settings consist of the treble, mid−
range and bass control positions which
can be stored in the custom setting.
To use a preset EQ setting: Push the
“
” button when the radio or the com-
pact disc player is on. You can choose
from 5 presets and custom setting using
the buttons: “EQ1”, “EQ2”, “EQ3”, “EQ4”,
“EQ5” and “CUSTOM”. In radio mode,
pressing the selected preset button for 2
seconds or more after selecting an EQ
setting will store the EQ setting for each
station.
To set “CUSTOM”: Push the “
” button
and the “CUSTOM” button. Then you can
manually adjust the treble, mid−range or
bass using the select and scroll lever.
This will overwrite any previous custom
setting that was saved with a station pre-
set.When a tuner preset is saved, the EQ
preset name is saved along with the tun-
er settings. Additionally, the current EQ
setting is saved with the current mode
(AM, FM1, FM2 or CD).
(c) Your radio antenna
Your vehicle has a mast type antenna.
To remove the antenna, carefully turn it
counterclockwise.
NOTICE
To prevent damage to the antenna,
make sure it is removed before driv-
ing your vehicle through an automat-
ic car wash.
(d) Your compact disc player
When you insert a compact disc, insert
it with the label side up. The compact
disc player will play from track 1 through
the end of the disc. Then it will play from
track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
The player is intended for use with 12
cm (4.7 in.) discs only.

Corolla_MATRIX_Navi_U (L/O 0405)
98
2005 MATRIX Navigation from May. ’04 Prod. (OM12820U)

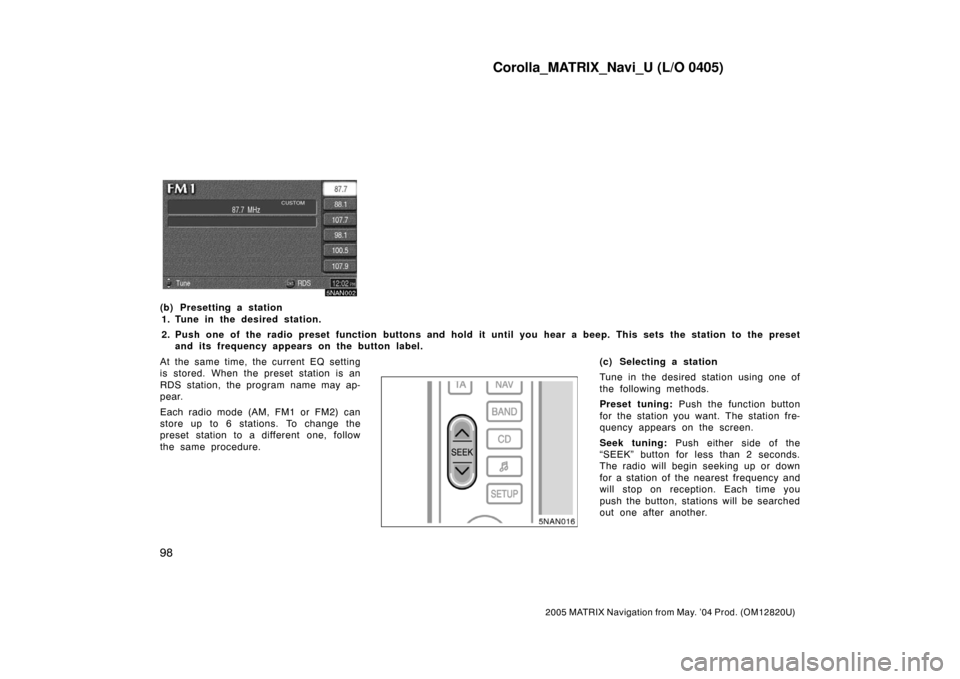

5NAN002
(b) Presetting a station
1. Tune in the desired station.
2. Push one of the radio preset function buttons and hold it until you hear a beep. This sets the station to the preset
and its frequency appears on the button label.
At the same time, the current EQ setting
is stored. When the preset station is an
RDS station, the program name may ap-
pear.
Each radio mode (AM, FM1 or FM2) can
store up to 6 stations. To change the
preset station to a different one, follow
the same procedure.
5NAN016
(c) Selecting a station
Tune in the desired station using one of
the following methods.
Preset tuning: Push the function button
for the station you want. The station fre-
quency appears on the screen.
Seek tuning: Push either side of the
“SEEK” button for less than 2 seconds.
The radio will begin seeking up or down
for a station of the nearest frequency and
will stop on reception. Each time you
push the button, stations will be searched
out one after another.
