After calibration, leaving the system for
several seconds returns it to the compass
mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Samoa: 5 Guam: 8 Saipan: 8

’05 MATRIX_U (L/O 0409)
172
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
CALIBRATING THE COMPASS (circling
calibration)
Sometimes the direction display on the
compass may not change after a turn. To
rectify this, stop the vehicle and push and
hold the both personal light switches until
“C” appears on the display.
If “C” appears on the display because of
a drastic change in the magnetic field,
perform circling calibration.Drive the vehicle in a circle at 8 km/h (5
mph) or less. If there is not enough space
to drive in a circle, drive around the
block.
After driving 1 to 3 circles in the above
method, calibration is completed when the
direction is shown on the display.
If calibration cannot be performed because
of the magnetized vehicle etc., take your
vehicle to Toyota dealer.Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the battery has been removed, re-
placed or disconnected.
Do not perform circling calibration of
the compass in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (moon roof, power win-
dows, etc.) as they may interfere with
the calibration.

’05 MATRIX_U (L/O 0409)
173
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and watch out for people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.

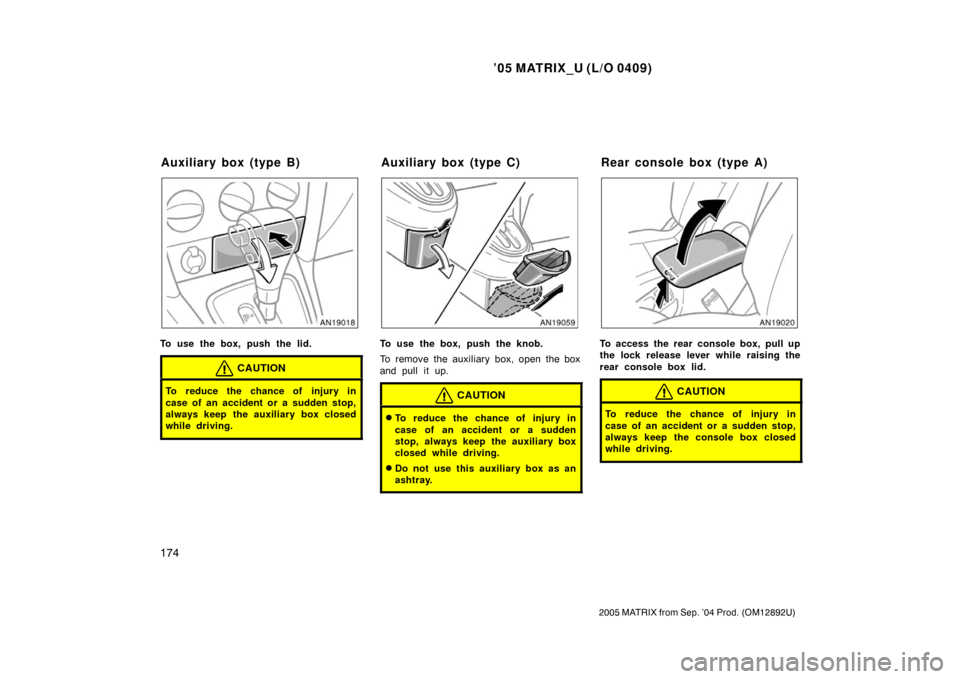

To open the glove box door, pull the
lever.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the glove box door
closed while driving.
To use the box, pull on the handle.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
Do not use this auxiliary box as an
ashtray.
Glove boxAuxiliary box (type A)

’05 MATRIX_U (L/O 0409)
174
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
To use the box, push the lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
To use the box, push the knob.
To remove the auxiliary box, open the box
and pull it up.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the auxiliary box
closed while driving.
Do not use this auxiliary box as an
ashtray.

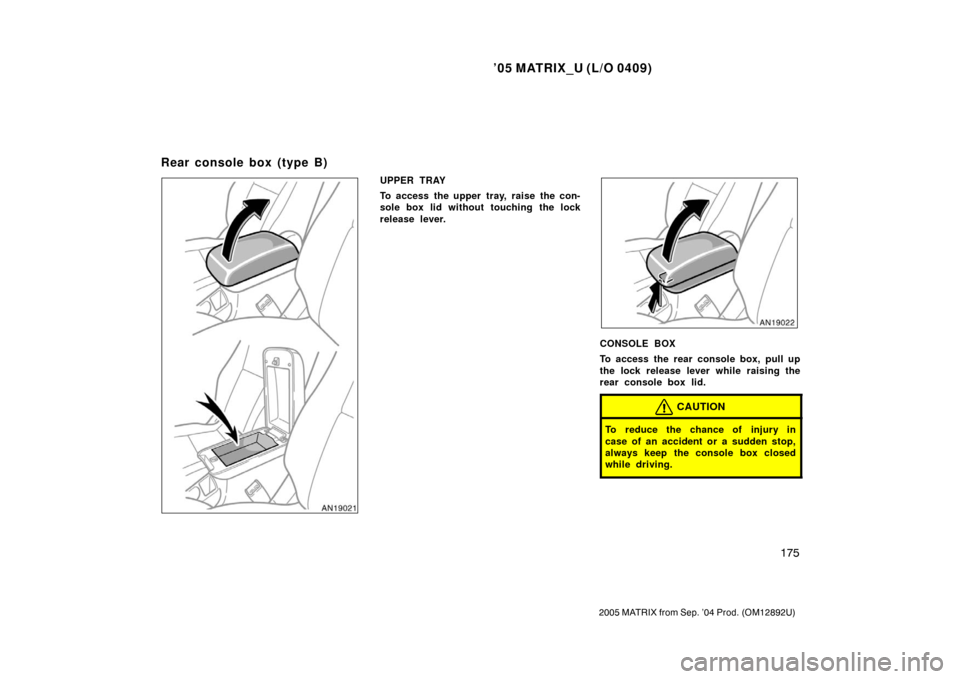

To access the rear console box, pull up
the lock release lever while raising the
rear console box lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
Auxiliary box (type B)Auxiliary box (type C) Rear console box (type A)

’05 MATRIX_U (L/O 0409)
175
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
UPPER TRAY
To access the upper tray, raise the con-
sole box lid without touching the lock
release lever.
CONSOLE BOX
To access the rear console box, pull up
the lock release lever while raising the
rear console box lid.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the console box closed
while driving.
Rear console box (type B)

’05 MATRIX_U (L/O 0409)
176
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
Front
Rear

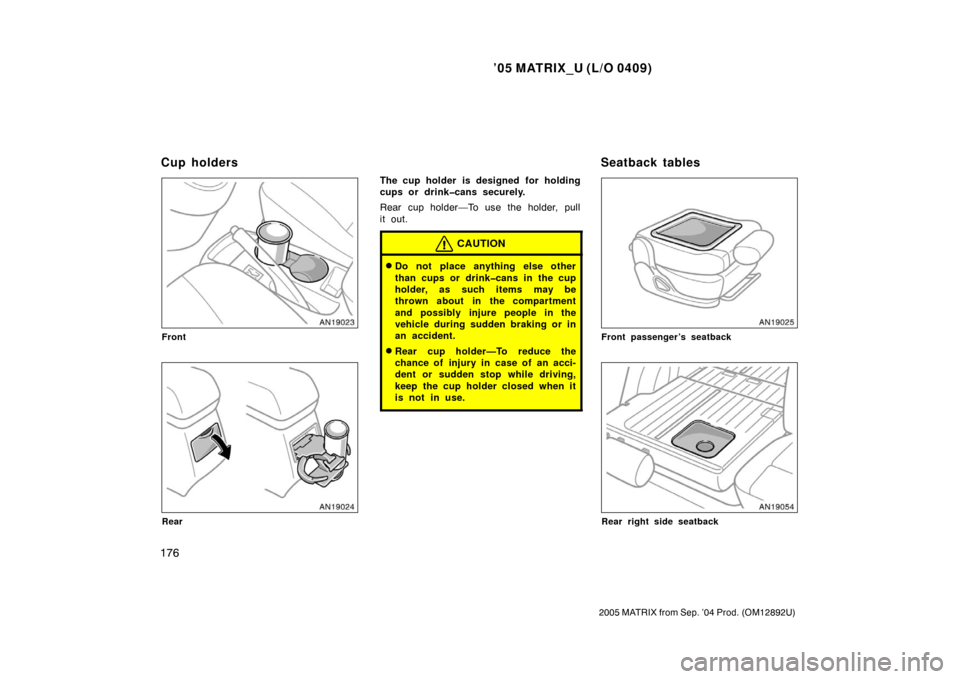

The cup holder is designed for holding
cups or drinkcans securely.
Rear cup holder—To use the holder, pull
it out.
CAUTION
Do not place anything else other
than cups or drinkcans in the cup
holder, as such items may be
thrown about in the compartment
and possibly injure people in the
vehicle during sudden braking or in
an accident.
Rear cup holder—To reduce the
chance of injury in case of an acci-
dent or sudden stop while driving,
keep the cup holder closed when it
is not in use.
Front passenger’s seatback
Rear right side seatback
Cup holdersSeatback tables

’05 MATRIX_U (L/O 0409)
177
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
You can use the front passenger ’s seat-
back and rear right side seatback as a
temporary table only when the vehicle
is stopped.
To use the seatback table, fold the seat-
back down. For detailed information, see
“—Fold−down front passenger ’s seat” on
page 39 or “Fold −down rear seat” on page
40 in Section 1 −3.
CAUTION
To avoid serious injury:
Do not set up the seatback table
while the vehicle is moving.
Do not sit on the seatback table.
NOTICE
To prevent damage to the seat, avoid
putting heavy loads on the temporary
table.
Front
Rear

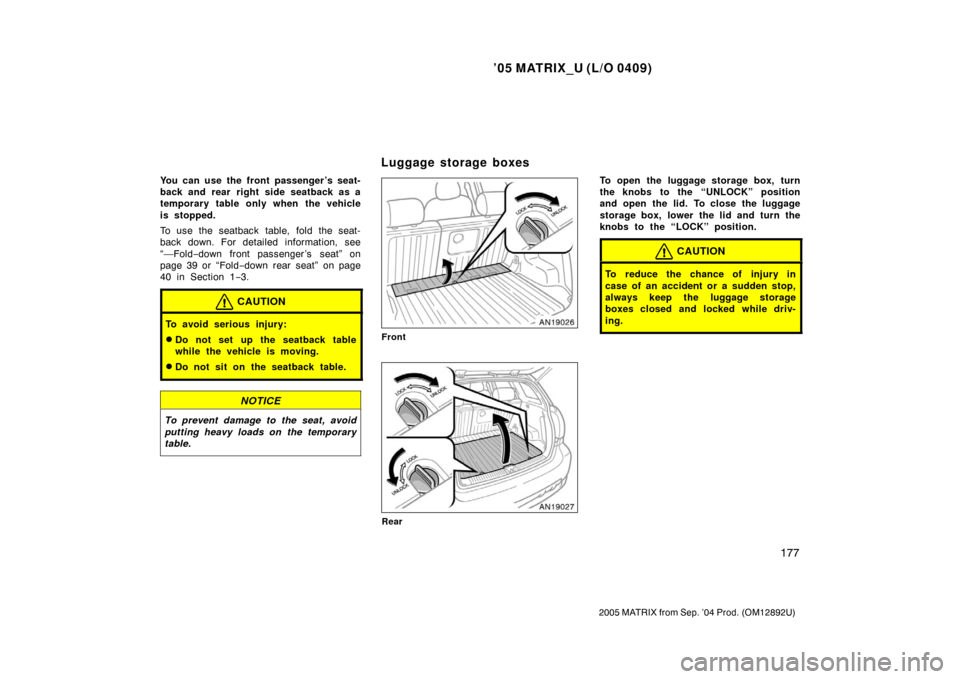

To open the luggage storage box, turn
the knobs to the “UNLOCK” position
and open the lid. To close the luggage
storage box, lower the lid and turn the
knobs to the “LOCK” position.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the luggage storage
boxes closed and locked while driv-
ing.
Luggage storage boxes

’05 MATRIX_U (L/O 0409)
178
2005 MATRIX from Sep. ’04 Prod. (OM12892U)

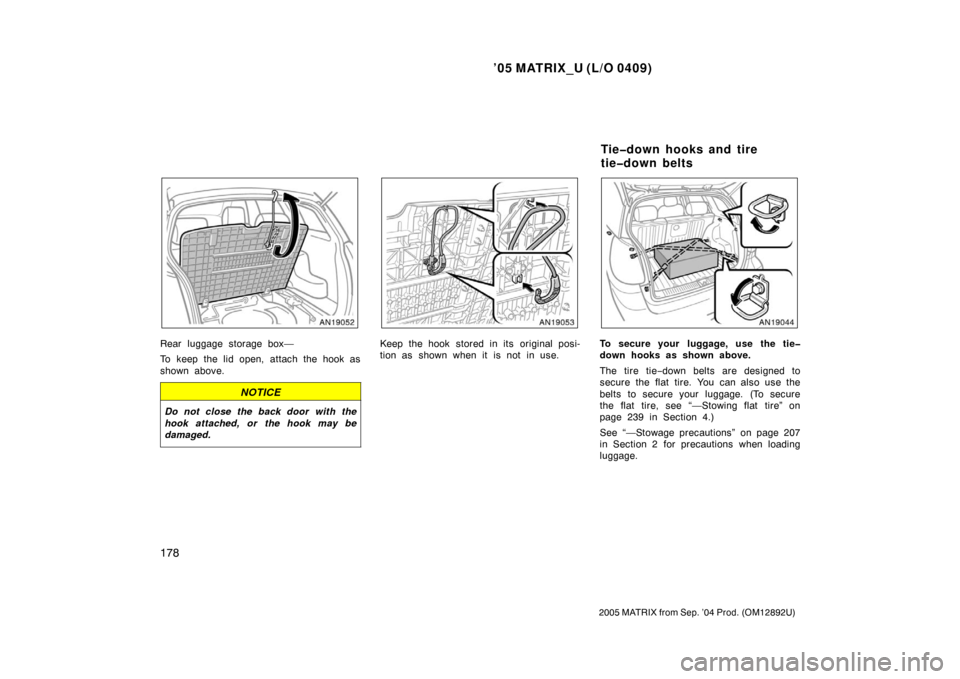

Rear luggage storage box—
To keep the lid open, attach the hook as
shown above.
NOTICE
Do not close the back door with the
hook attached, or the hook may be
damaged.
Keep the hook stored in its original posi-
tion as shown when it is not in use.To secure your luggage, use the tie
down hooks as shown above.
The tire tie−down belts are designed to
secure the flat tire. You can also use the
belts to secure your luggage. (To secure
the flat tire, see “—Stowing flat tire” on
page 239 in Section 4.)
See “—Stowage precautions” on page 207
in Section 2 for precautions when loading
luggage.
Tiedown hooks and tire
tiedown belts

’05 MATRIX_U (L/O 0409)
179
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
To tighten
To loosenTo hook
To unhook

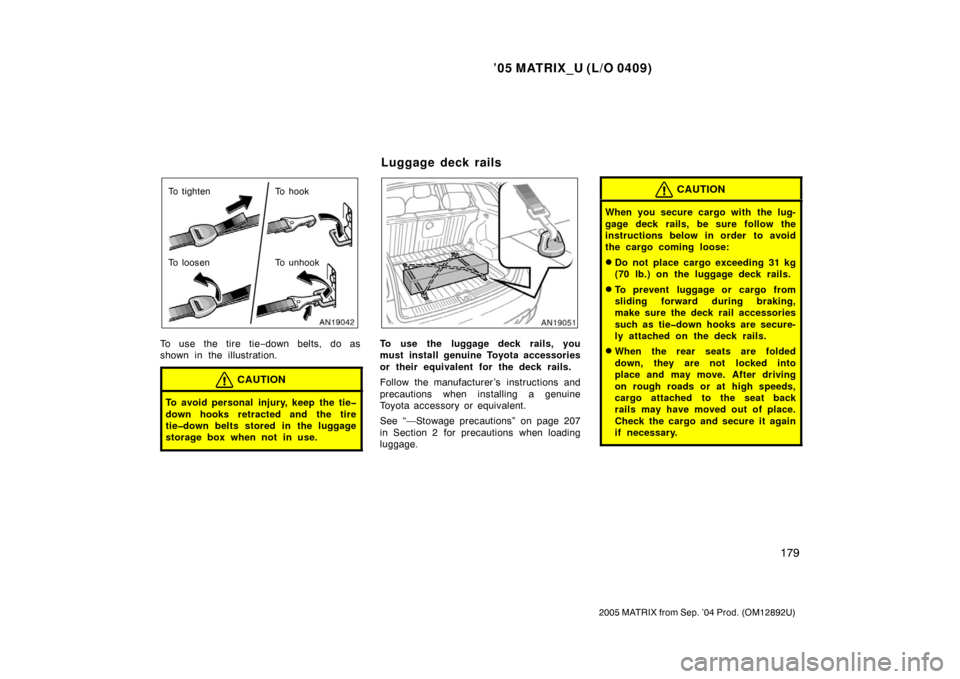

To use the tire tie
−down belts, do as
shown in the illustration.
CAUTION
To avoid personal injury, keep the tie
down hooks retracted and the tire
tiedown belts stored in the luggage
storage box when not in use.
To use the luggage deck rails, you
must install genuine Toyota accessories
or their equivalent for the deck rails.
Follow the manufacturer ’s instructions and
precautions when installing a genuine
Toyota accessory or equivalent.
See “—Stowage precautions” on page 207
in Section 2 for precautions when loading
luggage.
CAUTION
When you secure cargo with the lug-
gage deck rails, be sure follow the
instructions below in order to avoid
the cargo coming loose:
Do not place cargo exceeding 31 kg
(70 lb.) on the luggage deck rails.
To prevent luggage or cargo from
sliding forward during braking,
make sure the deck rail accessories
such as tiedown hooks are secure-
ly attached on the deck rails.
When the rear seats are folded
down, they are not locked into
place and may move. After driving
on rough roads or at high speeds,
cargo attached to the seat back
rails may have moved out of place.
Check the cargo and secure it again
if necessary.
Luggage deck rails

’05 MATRIX_U (L/O 0409)
180
2005 MATRIX from Sep. ’04 Prod. (OM12892U)

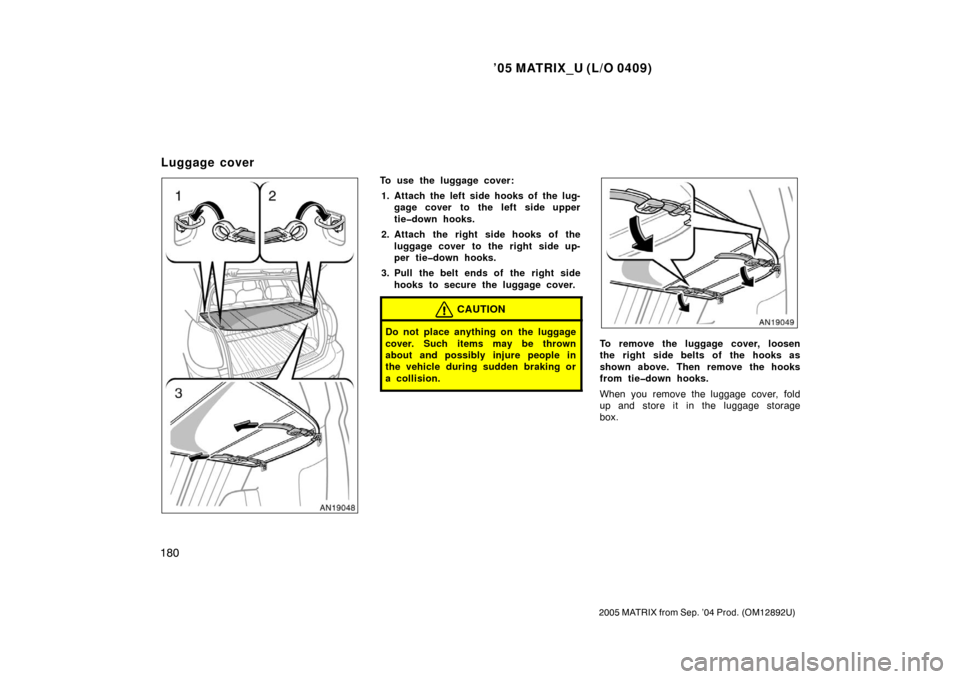

To use the luggage cover:1. Attach the left side hooks of the lug- gage cover to the left side upper
tiedown hooks.
2. Attach the right side hooks of the luggage cover to the right side up-
per tiedown hooks.
3. Pull the belt ends of the right side hooks to secure the luggage cover.
CAUTION
Do not place anything on the luggage
cover. Such items may be thrown
about and possibly injure people in
the vehicle during sudden braking or
a collision.
To remove the luggage cover, loosen
the right side belts of the hooks as
shown above. Then remove the hooks
from tiedown hooks.
When you remove the luggage cover, fold
up and store it in the luggage storage
box.
Luggage cover
