TOYOTA MATRIX 2005 E130 / 1.G User Guide

’05 MATRIX_U (L/O 0409)
1
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Instrument cluster overview 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument panel 8
. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1

’05 MATRIX_U (L/O 0409)
2
2005 MATRIX from Sep. ’04 Prod. (OM12892U)

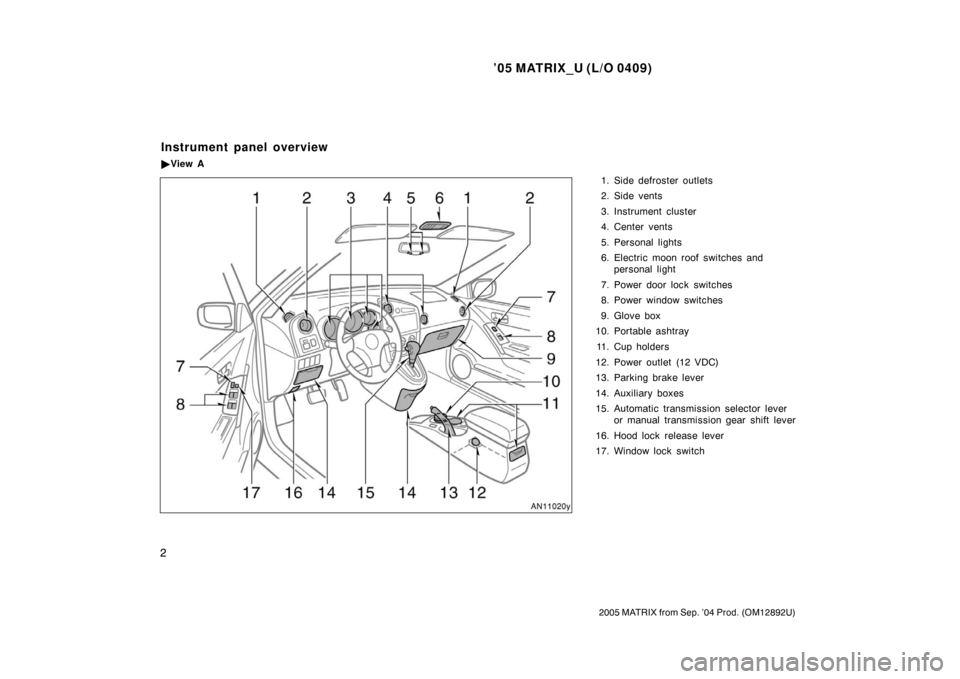

1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Personal lights
6. Electric moon roof switches andpersonal light
7. Power door lock switches
8. Power window switches
9. Glove box
10. Portable ashtray
11. Cup holders
12. Power outlet (12 VDC)
13. Parking brake lever
14. Auxiliary boxes
15. Automatic transmission selector lever or manual transmission gear shift lever
16. Hood lock release lever
17. Window lock switch
Instrument panel overview
 View A

’05 MATRIX_U (L/O 0409)
3
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
1. Power rear view mirror control switches
2. Interior/instrument panel light controldial
3. Headlight, turn signal and front fog light switches
4. Wiper and washer switches
5. Air conditioning controls
6. Rear window defogger switch
7. Emergency flasher switch
8. Clock
9. Front passenger ’s seat belt reminder light/front pass enger occupant
classification indicator light
10. Car audio 11. Auxiliary box or power outlet (115 VAC)
12. Power outlet (12 VDC) or cigarette lighter
13. Ignition switch
14. Cruise control switch
15. Tilt steering lock release lever
16. “TRAC OFF” (traction control system off) switch
17. Engine immobilizer system/Toyota vehicle intrusion protection system
indicator light

View B (vehicles without navigation system)

’05 MATRIX_U (L/O 0409)
4
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
18. Tire pressure warning system resetswitch
19. Glass hatch opener switch

’05 MATRIX_U (L/O 0409)
5
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
1. Power rear view mirror control switches
2. Interior/instrument panel light controldial
3. Headlight, turn signal and front fog light switches
4. Wiper and washer switches
5. Air conditioning controls
6. Emergency flasher switch
7. Rear window defogger switch
8. Front passenger ’s seat belt reminder light/front pass enger occupant
classification indicator light
9. Navigation system
10. Auxiliary box or power outlet (115 VAC) 11. Power outlet (12 VDC) or cigarette lighter
12. Ignition switch
13. Cruise control switch
14. Tilt steering lock release lever
15. “TRAC OFF” (traction control system off) switch
16. Engine immobilizer system/Toyota vehicle intrusion protection system
indicator light

View B (vehicles with navigation system)

’05 MATRIX_U (L/O 0409)
6
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
17. Tire pressure warning system resetswitch
18. Glass hatch opener switch

’05 MATRIX_U (L/O 0409)
7
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
1. Tachometer
2. Service reminder indicators andindicator lights
3. Speedometer 4. Fuel gauge
5. Low fuel level warning light
6. Engine coolant temperature gauge
7. Trip meter reset knob
8. Odometer, two trip meters and outside
temperature display
Instrument cluster overview

’05 MATRIX_U (L/O 0409)
8
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
Brake system warning light∗1
Discharge warning light∗1
Low engine oil pressure warning light∗1
Malfunction indicator lamp∗1
SRS warning light∗1
Driver ’s seat belt reminder light∗1Open door warning light∗1
Anti −lock brake system warning light∗
1or
Low windshield washer fluid level warning light∗1
or Front passenger ’s seat belt reminder light
∗
1
or
Vehicle stability control system/traction control
system warning light∗1
Low tire pressure warning light∗1
Engine oil replacement reminder light∗1
Front passenger occupant classification indicator
light
Indicator symbols on the instrument panel

’05 MATRIX_U (L/O 0409)
9
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 107 in Section 1 −6.
∗
2: If this light flashes, see “Cruise control” on page 132 in
Section 1 −7.Cruise control indicator light
∗
2
Overdrive −off indicator light
Turn signal indicator lights
Headlight high beam indicator light
Headlight low beam indicator light
Tail light indicator light
Slip indicator light/traction control system off
indicator light

’05 MATRIX_U (L/O 0409)
10
2005 MATRIX from Sep. ’04 Prod. (OM12892U)
