TOYOTA MATRIX 2005 E130 / 1.G Scheduled Maintenance Guide

1 Perform these service items only if you drive primarily under the conditions indicated.2 Applies to Corolla Matrix 4WD only.
Scheduled Maintenance Log
45,000 Miles or 54 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Tighten drive shaft bolt (Corolla and Corolla Matrix)
❑Visually inspect brake linings/drums and brake pads/discs
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive shaft boots
__ Engine coolant
__ Exhaust pipes and mountings
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heateror if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items forSpecial Operating Conditions1
Driving in desert or on dirt roads:
❑Inspect engine air filter
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace rear differential oil2
❑Replace transfer case oil2
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
9
__ Rear differential oil2
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
2

Scheduled Maintenance Log
50,000 Miles or 60 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions1
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Tighten drive shaft bolt (Corolla and
Corolla Matrix)
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Tighten nuts and bolts on chassis
55,000 Miles or 66 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions1
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Tighten drive shaft bolt (Corolla and
Corolla Matrix)
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage: Dealer Service Verification:
Date: Mileage:
10

1 Perform these service items only if you drive primarily under the conditions indicated.2 Required under the terms of the Emission Control Warranty.3 Inspect thickness measurement and disc runout.4 Initial inspection at 60,000 miles/72 months. Inspect every 15,000 miles/18 months thereafter.5 Applies to Corolla Matrix 4WD only.
Scheduled Maintenance Log

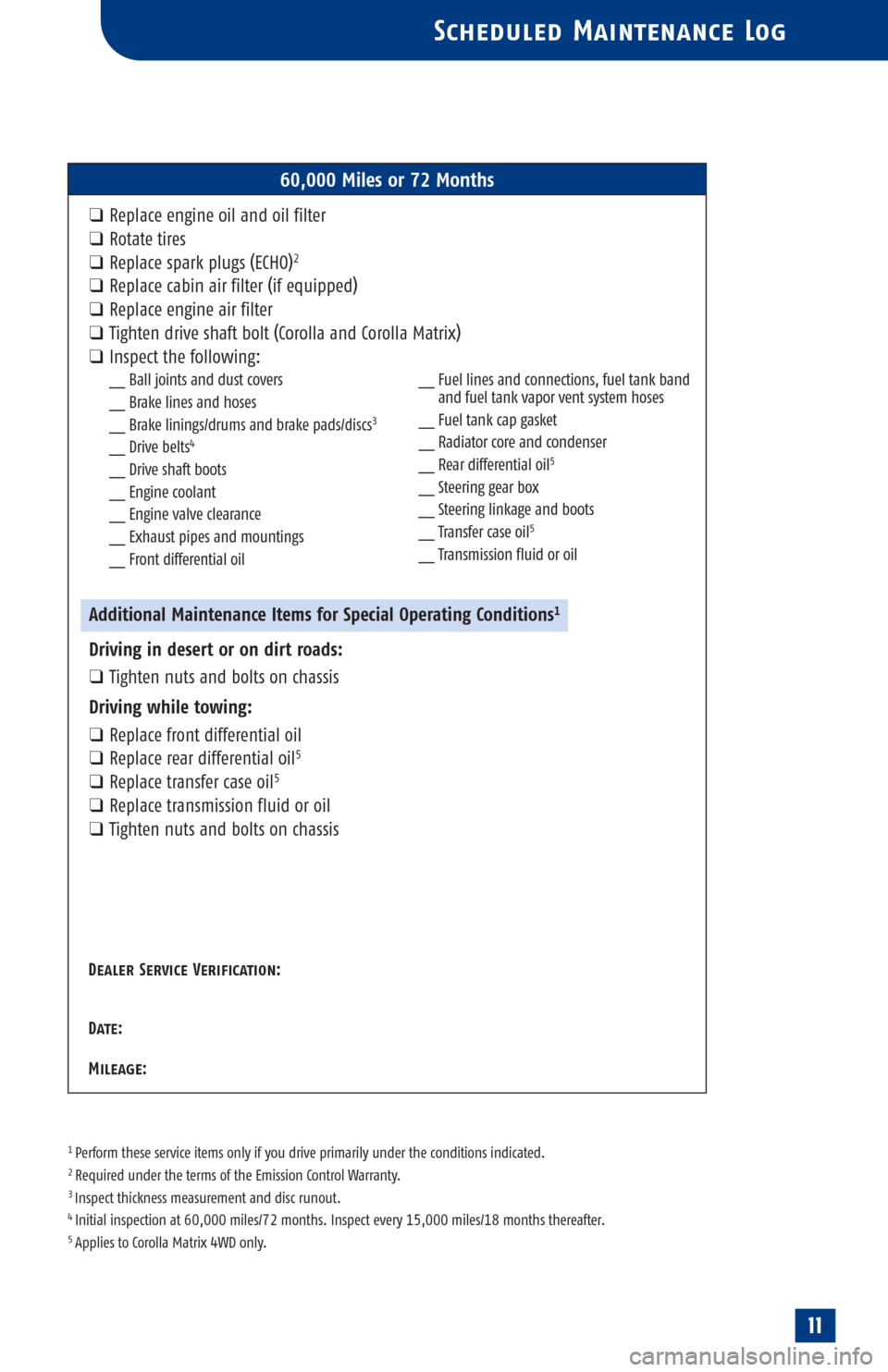

60,000 Miles or 72 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Replace spark plugs (ECHO)2
❑Replace cabin air filter (if equipped)
❑Replace engine air filter
❑Tighten drive shaft bolt (Corolla and Corolla Matrix)
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Drive belts4
__ Drive shaft boots
__ Engine coolant
__ Engine valve clearance
__ Exhaust pipes and mountings
__ Front differential oil
Additional Maintenance Items forSpecial Operating Conditions1
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace front differential oil
❑Replace rear differential oil5
❑Replace transfer case oil5
❑Replace transmission fluid or oil
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
11
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Rear differential oil
5
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
5
__ Transmission fluid or oil

Scheduled Maintenance Log

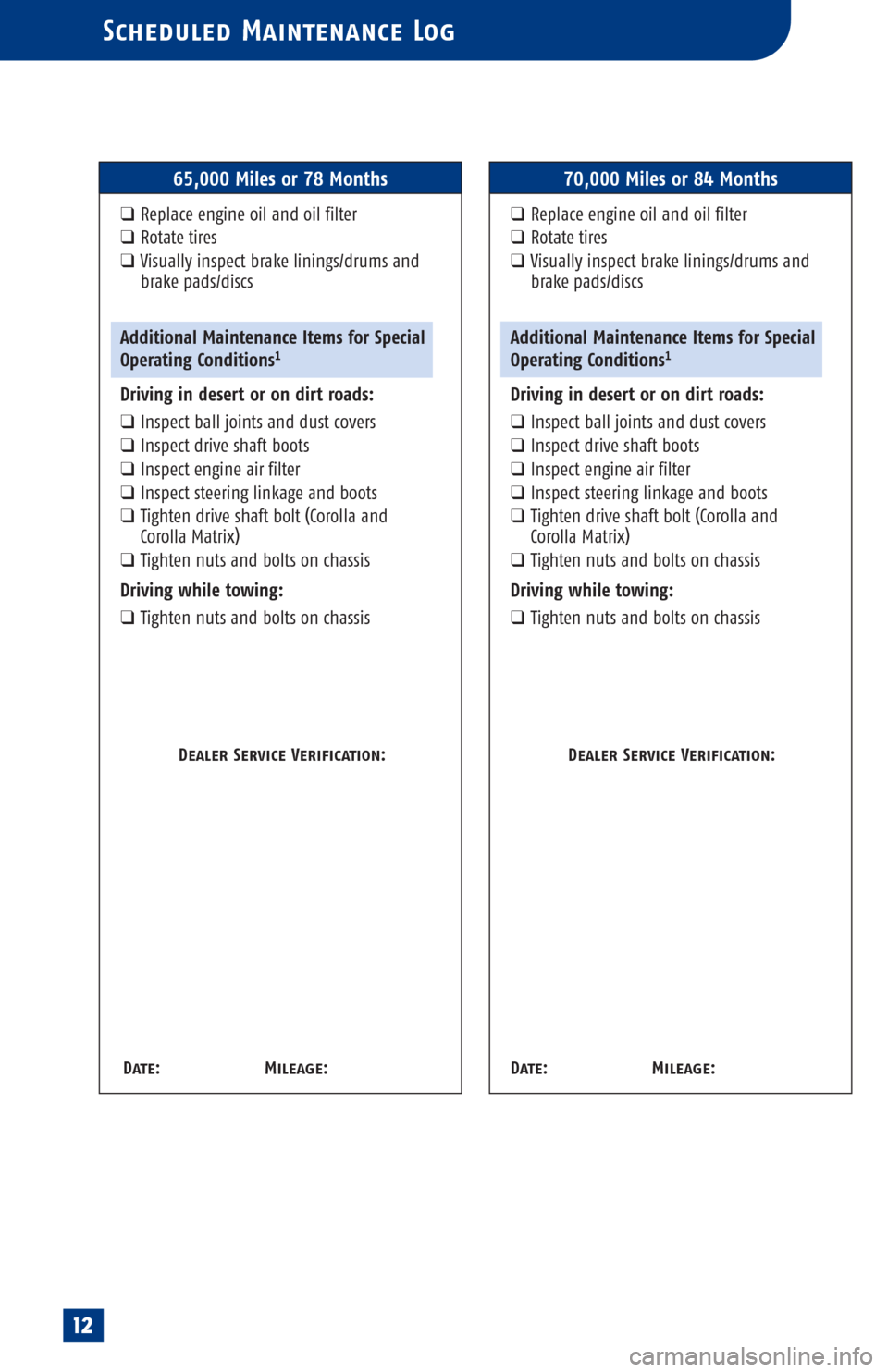

65,000 Miles or 78 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions1
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Tighten drive shaft bolt (Corolla and
Corolla Matrix)
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Tighten nuts and bolts on chassis
70,000 Miles or 84 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions1
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Tighten drive shaft bolt (Corolla and
Corolla Matrix)
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage: Dealer Service Verification:
Date: Mileage:
12

1 Perform these service items only if you drive primarily under the conditions indicated.2 Applies to Corolla Matrix 4WD only.
Scheduled Maintenance Log

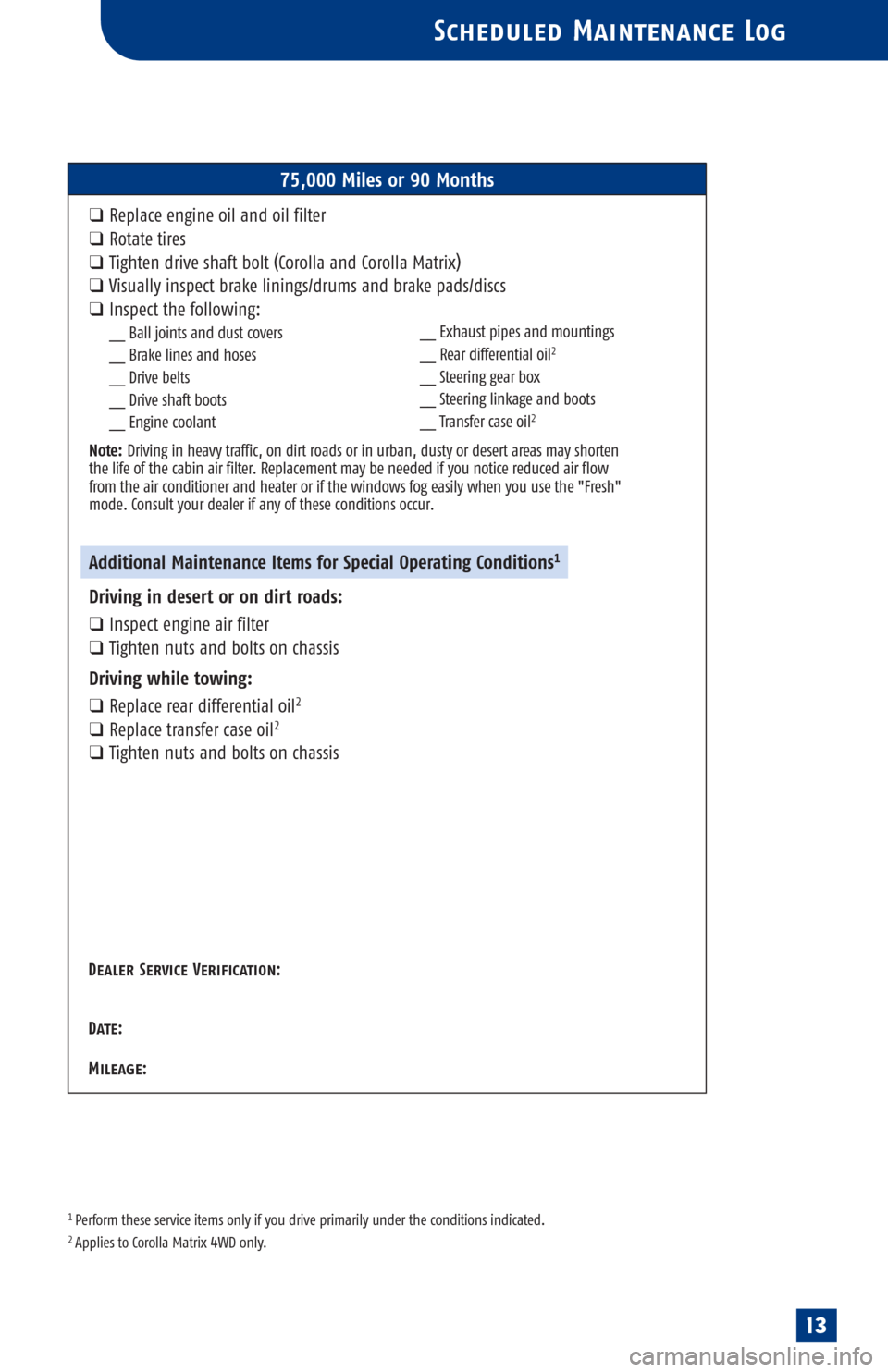

75,000 Miles or 90 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Tighten drive shaft bolt (Corolla and Corolla Matrix)
❑Visually inspect brake linings/drums and brake pads/discs
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots
__ Engine coolant
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heateror if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items forSpecial Operating Conditions1
Driving in desert or on dirt roads:
❑Inspect engine air filter
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace rear differential oil2
❑Replace transfer case oil2
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
13
__ Exhaust pipes and mountings
__ Rear differential oil2
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
2

Dealer Service Verification:
Date: Mileage: Dealer Service Verification:
Date: Mileage:
14
Scheduled Maintenance Log

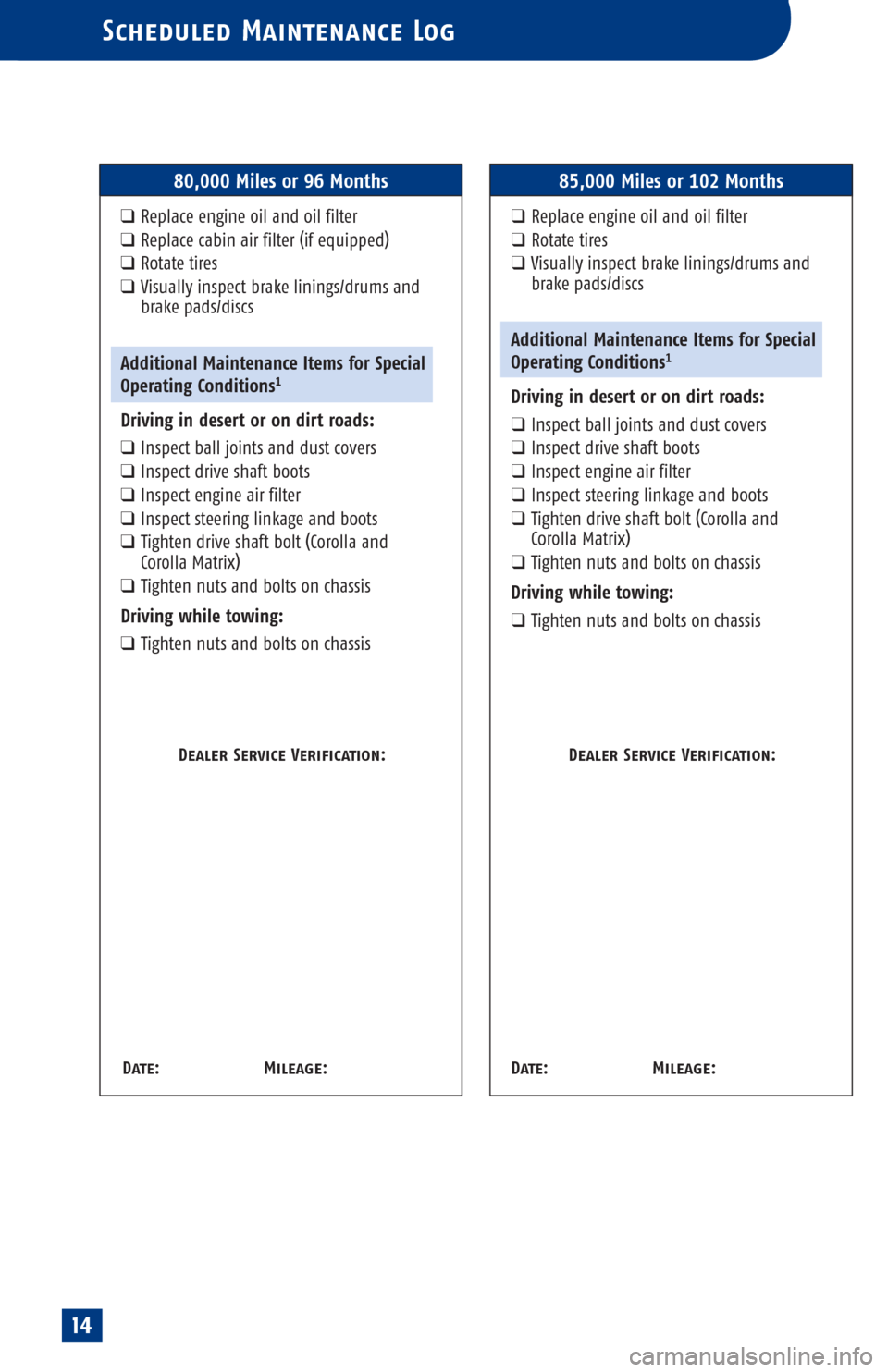

80,000 Miles or 96 Months
❑Replace engine oil and oil filter
❑Replace cabin air filter (if equipped)
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions1
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Tighten drive shaft bolt (Corolla and
Corolla Matrix)
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Tighten nuts and bolts on chassis
85,000 Miles or 102 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions1
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Tighten drive shaft bolt (Corolla and
Corolla Matrix)
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage: Dealer Service Verification:
Date: Mileage:

1 Perform these service items only if you drive primarily under the conditions indicated.2Required under the terms of the Emission Control Warranty.3Inspect thickness measurement and disc runout.4 Applies to Corolla Matrix 4WD only.5 Applies to vehicles equipped with manual transmission.
Scheduled Maintenance Log

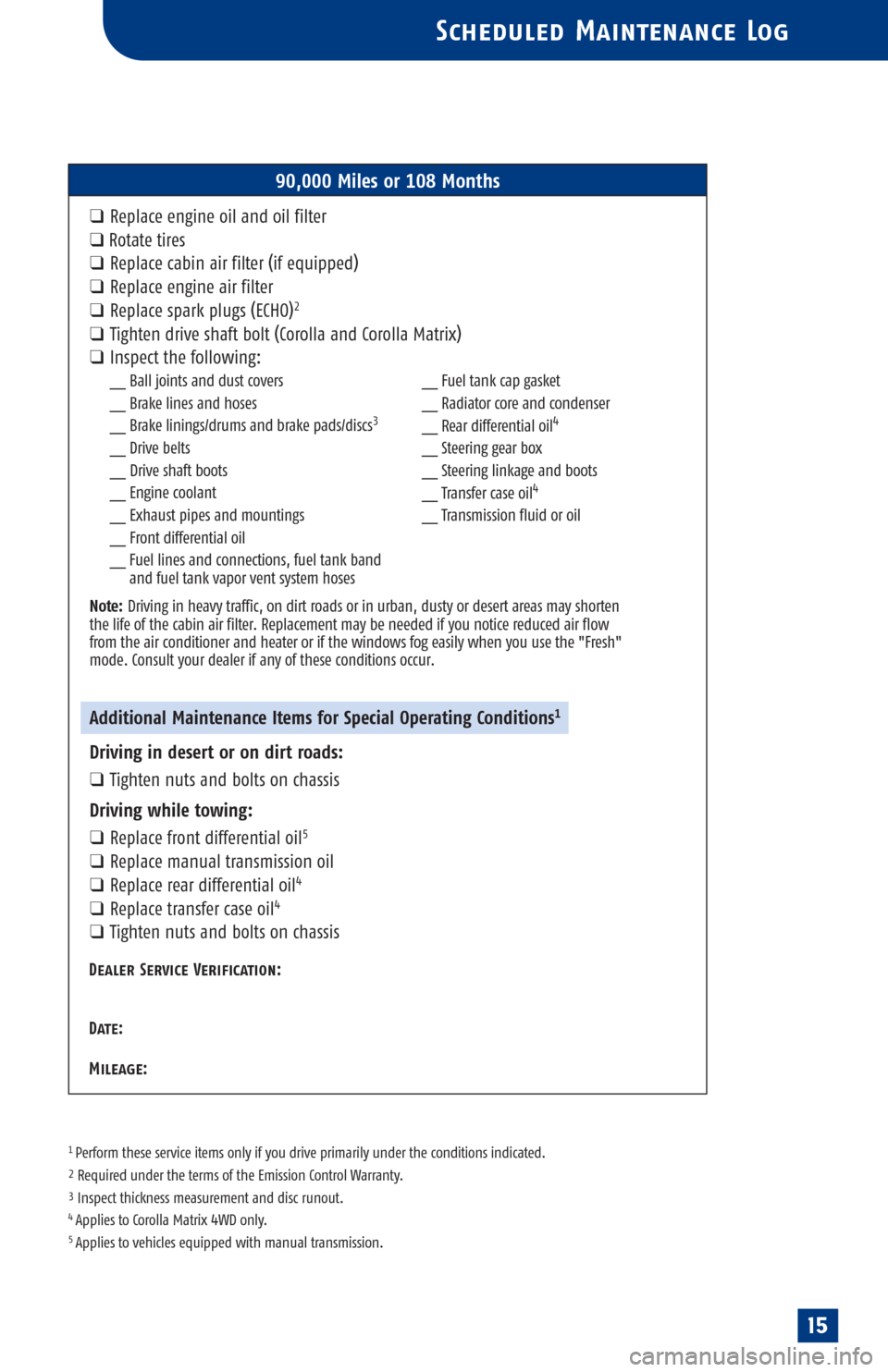

90,000 Miles or 108 Months
❑ Replace engine oil and oil filter
❑Rotate tires
❑ Replace cabin air filter (if equipped)
❑Replace engine air filter
❑ Replace spark plugs (ECHO)2
❑ Tighten drive shaft bolt (Corolla and Corolla Matrix)
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Brake linings/drums and brake pads/discs
3
__ Drive belts
__ Drive shaft boots
__ Engine coolant
__ Exhaust pipes and mountings
__ Front differential oil
__ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heateror if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items forSpecial Operating Conditions1
Driving in desert or on dirt roads:
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace front differential oil5
❑Replace manual transmission oil
❑Replace rear differential oil4
❑Replace transfer case oil4
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
__ Fuel tank cap gasket
__ Radiator core and condenser
__ Rear differential oil
4
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
4
__ Transmission fluid or oil
15

Scheduled Maintenance Log
95,000 Miles or 114 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions1
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Tighten drive shaft bolt (Corolla and
Corolla Matrix)
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Tighten nuts and bolts on chassis
100,000 Miles or 120 Months
❑Replace engine oil and oil filter
❑Replace cabin air filter (if equipped)
❑Replace engine coolant2
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions1
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Tighten drive shaft bolt (Corolla and
Corolla Matrix)
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage: Dealer Service Verification:
Date: Mileage:
16

1 Perform these service items only if you drive primarily under the conditions indicated.2Initial replacement at 100,000 miles/120 months. Replace every 50,000 miles/60 months thereafter. See page 21
foradditional information.
3Applies to Corolla Matrix 4WD only.
Scheduled Maintenance Log
105,000 Miles or 126 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Tighten drive shaft bolt (Corolla and Corolla Matrix)
❑Visually inspect brake linings/drums and brake pads/discs
❑Inspect the following:__ Ball joints and dust covers
__ Brake lines and hoses
__ Drive belts
__ Drive shaft boots
__ Engine coolant
Note: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced air flow
from the air conditioner and heateror if the windows fog easily when you use the "Fresh"
mode. Consult your dealer if any of these conditions occur.
Additional Maintenance Items forSpecial Operating Conditions1
Driving in desert or on dirt roads:
❑Inspect engine air filter
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Replace rear differential oil3
❑Replace transfer case oil3
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date:
Mileage:
17
__ Exhaust pipes and mountings
__ Rear differential oil3
__ Steering gear box
__ Steering linkage and boots
__ Transfer case oil
3

Scheduled Maintenance Log
110,000 Miles or 132 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions1
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Tighten drive shaft bolt (Corolla and
Corolla Matrix)
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage:
115,000 Miles or 138 Months
❑Replace engine oil and oil filter
❑Rotate tires
❑Visually inspect brake linings/drums and
brake pads/discs
Additional Maintenance Items for Special
Operating Conditions1
Driving in desert or on dirt roads:
❑Inspect ball joints and dust covers
❑Inspect drive shaft boots
❑Inspect engine air filter
❑Inspect steering linkage and boots
❑Tighten drive shaft bolt (Corolla and
Corolla Matrix)
❑Tighten nuts and bolts on chassis
Driving while towing:
❑Tighten nuts and bolts on chassis
Dealer Service Verification:
Date: Mileage:
18
