clock TOYOTA MATRIX 2006 E130 / 1.G User Guide

’06 MATRIX_U (L/O 0508)
236

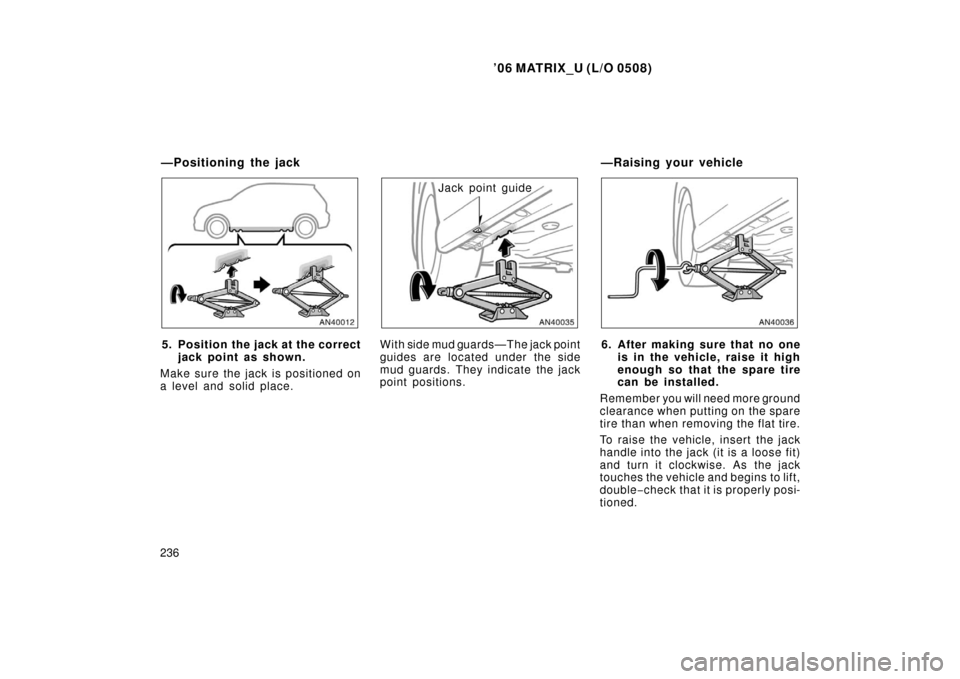

5. Position the jack at the correctjack point as shown.
Make sure the jack is positioned on
a level and solid place.
Jack point guide
With side mud guards—The jack point
guides are located under the side
mud guards. They indicate the jack
point positions.6. After making sure that no one is in the vehicle, raise it high
enough so that the spare tire
can be installed.
Remember you will need more ground
clearance when putting on the spare
tire than when removing the flat tire.
To raise the vehicl e, insert the jack
handle into the jack (it is a loose fit)
and turn it clockwise. As the jack
touches the vehicle and begins to lift,
double −check that it is properly posi-
tioned.
—Positioning the jack —Raising your vehicle

’06 MATRIX_U (L/O 0508)
238

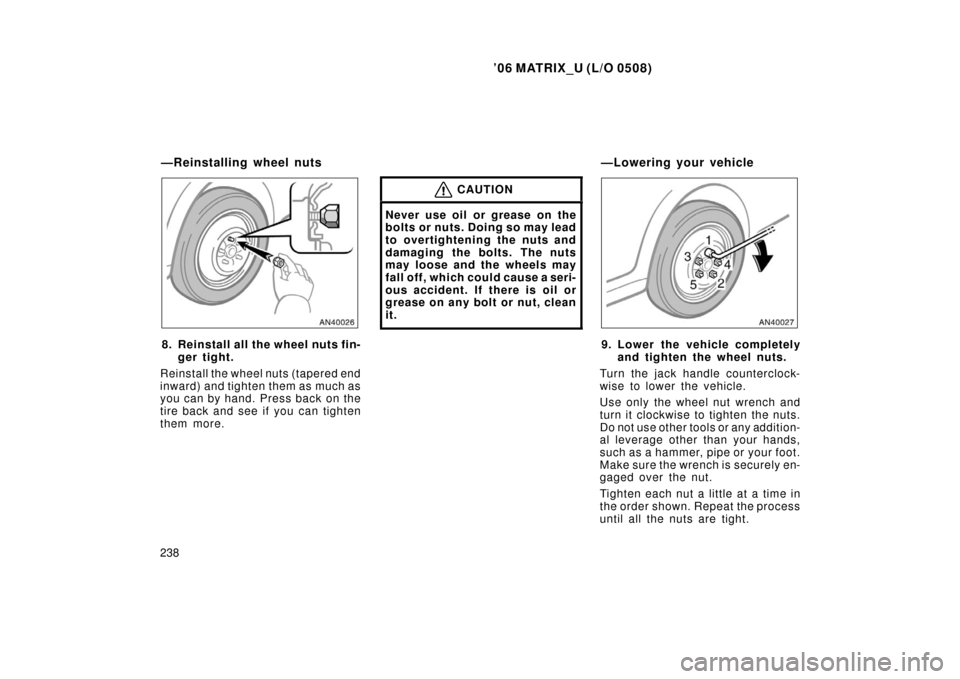

8. Reinstall all the wheel nuts fin-ger tight.
Reinstall the wheel nuts (tapered end
inward) and tighten them as much as
you can by hand. Press back on the
tire back and see if you can tighten
them more.
CAUTION
Never use oil or grease on the
bolts or nuts. Doing so may lead
to overtightening the nuts and
damaging the bolts. The nuts
may loose and the wheels may
fall off, which could cause a seri-
ous accident. If there is oil or
grease on any bolt or nut, clean
it.
9. Lower the vehicle completely and tighten the wheel nuts.
Turn the jack handle counterclock-
wise to lower the vehicle.
Use only the wheel nut wrench and
turn it clockwise to tighten the nuts.
Do not use other tools or any addition-
al leverage other than your hands,
such as a hammer, pipe or your foot.
Make sure the wrench is securely en-
gaged over the nut.
Tighten each nut a little at a time in
the order shown. Repeat the process
until all the nuts are tight.
—Reinstalling wheel nuts —Lowering your vehicle

’06 MATRIX_U (L/O 0508)
276
Remove and replace the reservoir cap by
hand. Fill the brake fluid to the dotted
line. This brings the fluid to the correct
level when you put the cap back on.
Use only newly opened brake fluid. Once
opened, brake fluid absorbs moisture from
the air, and excess moisture can cause a
dangerous loss of braking.
CAUTION
Take care when filling the reservoir
because brake fluid can harm your
hands or eyes. If fluid gets on your
hands or in your eyes, flush the af-
fected area with clean water immedi-
ately. If you still feel uncomfortable
with your hands or eyes, go to the
doctor.
NOTICE
If you spill some of the fluid, be sure
to wipe it off to prevent it from dam-
aging the parts or paintwork.
If cold
O.K.
Close OpenIf hot
O.K.
If cold
add If hot
add
Check the fluid level through the reser-
voir. If necessary, add automatic trans-
mission fluid DEXRON
II or III.
If the vehicle has been driven around 80
km/h (50 mph) for 20 minutes (a little
more in frigid temperatures), the fluid is
hot (60 C—80 C or 140 F—175 F). You
may also check the level when the fluid
is cold (about room temperature,
10 C—30 C or 50 F—85 F) if the engine
has not been run for about five hours. Clean all dirt from the outside of the res-
ervoir tank and look at the fluid level. If
the fluid is cold, the level should be in the
“COLD” range. Similarly, if it is hot, the
fluid level should be in the “HOT” range.
If the level is at the low side of either
range, add automatic transmission fluid
DEXRON
II or III to bring the level within
the range.
To remove the reservoir cap, turn it coun-
terclockwise and lift up. To reinstall it,
turn it clockwise. After replacing the reser-
voir cap, visually check the steering box
case, vane pump and hose connections
for leaks or damage.
CAUTION
The reservoir tank may be hot so be
careful not to burn yourself.
NOTICE
Avoid overfilling, or the power steer-
ing could be damaged.
Checking power steering fluid

’06 MATRIX_U (L/O 0508)
293
Light bulbsBulbNo.WTy p e
Interior lights—8D
Personal lights
(on the inside
rear view mirror
without compass)
1924.3D
Personal lights
(on the switch
panel of the
electric moon
roof)
—10C
A: HB4 halogen bulbs
B: HB3 halogen bulbs
C: Single end bulbs
D: Wedge base bulbs (clear)
E: Wedge base bulbs (amber)1. Open the hood. Turn the bulb base counterclockwise to the front of the
vehicle as shown.2. Unplug the connector.
If the connector is tight, wiggle it.
—Headlights (low beam)

’06 MATRIX_U (L/O 0508)
295
2. Turn the bulb base counterclockwiseto the front of the vehicle.3. Unplug the connector.
If the connector is tight, wiggle it.4. Install a new bulb and connector into the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.

’06 MATRIX_U (L/O 0508)
307
Engine compartment
Instrument panel
Fuses (type A)1. FOG 15 A: Front fog lights
2. HEAD LH UPR 10 A: Left−hand head-
light (high beam)
3. HEAD RH UPR 10 A: Right−hand
headlight (high beam), headlight high
beam indicator light
4. SPARE 30 A: Spare fuse
5. SPARE 15 A: Spare fuse
6. SPARE 10 A: Spare fuse 7. ETCS 10 A (1.8 L 4cylinder [1ZZ
FE] engine with twowheel drive
models only): Electronic throttle con-
trol system
8. AMP 30 A: Audio system
9. MAIN 30 A: Starting system, “AM2”
fuse
10. DOME 15 A: Audio system, navigation
system, clock, pers onal lights, interior
lights, open door warning light, wireless
remote control system
11. HORN 10 A: Horn
12. HAZARD 10 A: Emergency flashers,
turn signal lights
13. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, emission control system, “EFI”
fuse
14. ALTS 5 A: Charging system
15. HEAD LH LWR 10 A: Left−hand head-
light (low beam)
16. HEAD RH LWR 10 A: Right−hand
headlight (low beam)
17. EFI2 15 A: (1.8 L 4cylinder [1ZZFE] engine with twowheel drive models
only): Multiport fuel injection system/
sequential multiport fuel injection sys-
tem, emission control system
Fuses

’06 MATRIX_U (L/O 0508)
308
18. TAIL 15 A: Tail lights, license plate
lights, instrument panel lights, instru-
ment cluster lights, clock
19. OBD 7.5 A: On−board diagnosis sys-
tem
20. WIPER 25 A: Windshield wipers
21. AM2 15 A: Charging system, multiport
fuel injection system/sequential multi-
port fuel injection system, starting sys-
tem, SRS airbag system
22. STOP 15 A: Stop lights, high mounted
stoplight, anti −lock brake system, shift
lock control system, multiport fuel in-
jection system/sequential multiport fuel
injection system, cruise control system
23. DOOR 25 A: Power door lock system,
glass hatch opener switch
24. AM1 25 A: “CIG” fuse
25. ECUIG 10 A: Electric cooling fan,
anti −lock brake system, traction control
system, vehicle stability control system,
brake assist system, shift lock control
system, cruise control system
26. RR WIPER 15 A: Rear window wiper
27. A/C 10 A: Air conditioning system
28. INV 15 A: Power outlet (115 VAC)
29. P/POINT 15 A: Power outlet (12 VDC/
in the rear console box) 30. ECUB 10 A:
Daytime running light
system
31. CIG 15 A: Power outlet (12 VDC/on
the instrument panel) or cigarette light-
er, audio system, clock, shift lock con-
trol system
32. GAUGE 10 A: Gauges and meters, air
conditioning system, daytime running
light system, charging system, auto
anti −glare inside rear view mirror, pow-
er windows, cruise control system, rear
window defogger, back −up lights, front
passenger ’s seat belt reminder light,
emergency flasher
33. WASHER 15 A: Windshield washer,
rear window washer
34. MHTR/DEF IUP 10 A: Engine control
system
Fuses (type B)
35. ABS NO.1 30 A: Anti−lock brake sys-
tem, traction control system, vehicle
stability control system, brake assist
system
36. RDI FAN 40 A: Electric cooling fan 37. ABS NO.2 40 A (without vehicle sta-
bility control system): Anti−lock brake
system
ABS NO.2 50 A (with vehicle stability
control system): Anti−lock brake sys-
tem, traction control system, vehicle
stability control system, brake assist
system
38. HEAD MAIN 40 A: “HEAD LH UPR”,
“ H

EAD RH UPR”, “HEAD LH LWR” and
“HEAD RH LWR” fuses
39. AIR PUMP 50 A (1.8 L 4cylinder [1ZZFE] engine with fourwheel
drive models and 1.8 L 4cylinder
[2ZZGE] engine only): Emission con-
trol system
40. HTR 40 A: Air conditioning system
41. DEF 30 A: Rear window defogger,
“M −HTR/DEF I −UP” fuse
42. POWER 30 A: Power windows, electric
moon roof
Fuses (type C)
43. ALT 100 A: “ABS NO.1”, “ABS NO.2”,
“RDI FAN”, “FOG”, “HTR”, “AM1”,
“POWER”, “DOOR”, “ECU −B”, “TAIL”,
“STOP”, “P/POINT”, “INV” and “OBD”
fuses, charging system
