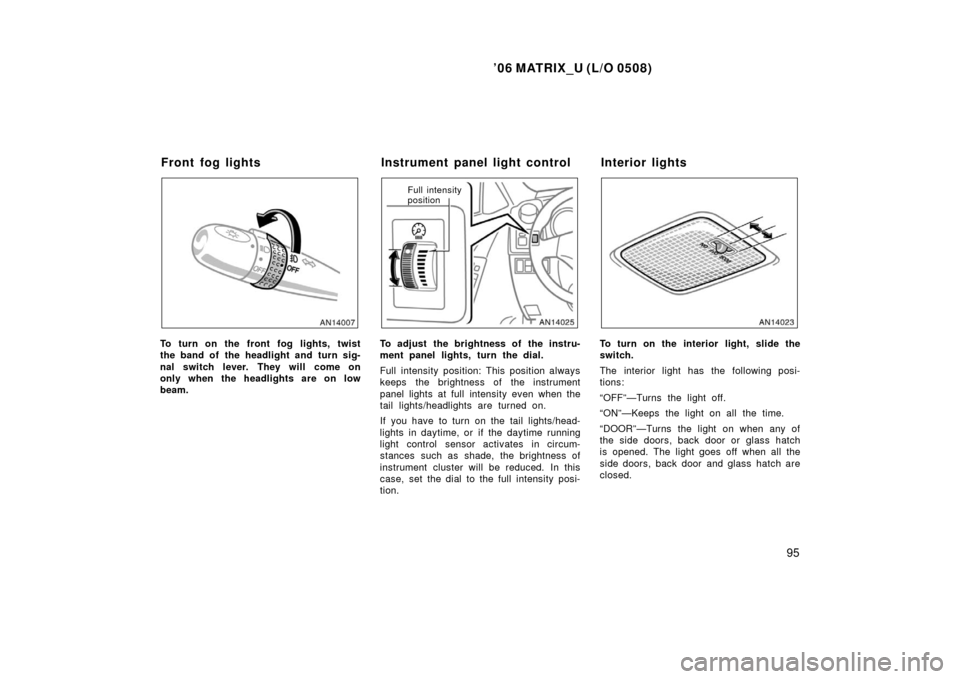

To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.
Full intensity
position
To adjust the brightness of the instru-
ment panel lights, turn the dial.
Full intensity position: This position always
keeps the brightness of the instrument
panel lights at full intensity even when the
tail lights/headlights are turned on.
If you have to turn on the tail lights/head-
lights in daytime, or if the daytime running
light control sensor activates in circum-
stances such as shade, the brightness of
instrument cluster will be reduced. In this
case, set the dial to the full intensity posi-
tion.To turn on the interior light, slide the
switch.
The interior light has the following posi-
tions:
“OFF”—Turns the light off.
“ON”—Keeps the light on all the time.
“DOOR”—Turns the light on when any of
the side doors, back door or glass hatch
is opened. The light goes off when all the
side doors, back door and glass hatch are
closed.
Front fog lightsInstrument panel light control Interior lights

’06 MATRIX_U (L/O 0508)
11 3
If the light comes on while driving, adjust
tire inflation pressure to the specified lev-
el. (See “Tires” on page 306 in Section 8.)
After the tire inflation pressure is adjusted,
push the tire pressure warning system
reset switch for a few seconds and make
sure the warning light goes off. If the light
still remains or blinks once a second,
have the low tire pressure warning system
checked at your Toyota dealer.
If the light blinks once every three sec-
onds, the low tire pressure warning sys-
tem needs to be initialized.
For details, see “Tire pressure warning
system” on page 126 in Section 1−7.
(m) Low Windshield Washer Fluid Level Warning Light (for vehicles sold in
Canada)
The light warns that the windshield washer
fluid level is too low. Add washer fluid at
your earliest opportunity. (For instructions,
see “Adding washer fluid” on page 291 in
Section 7 −3.) (n) Engine Oil Replacement Reminder
Light (for vehicles sold in U.S.A.)
This light reminds you when to replace
the engine oil.
This light will come on when the ignition
key is turned to “ON” and will go off after
about a few seconds.
When you drive for about 7200 km (4500
miles) after the engine oil replacement,
this light illuminates for about 3 seconds
and then flashes for about 12 seconds
with the ignition key turned to the “ON”
position. If you continue driving without
replacing the engine oil, and if the dis-
tance driven exceeds 8000 km (5000
miles), the light will come on after the
ignition key is turned to “ON” position.
The light will remain on thereafter.
If the light is flashing, we recommend that
you replace the engine oil at an early
opportunity depending on the driving and
road conditions. If the light comes on,
replace it as soon as possible. The system must be reset after the en-
gine oil replacement. Reset the system by
the following procedure:
1. Turn the ignition key to the “ACC” or “LOCK” position with the odometer
reading shown. (For details, see
“Odometer and two trip meters” on
page 104 in this Section.)
2. Turn the ignition key to the “ON” posi- tion while holding down the trip meter
reset knob.
Hold down the knob for at least 5 sec-
onds. The odometer indicates “000000”
and the light goes off.
If the system fails to reset, the light will
continue flashing.
(o) Key Reminder Buzzer
This buzzer reminds you to remove the
key when you open the driver’s door with
the ignition key in the “ACC” or “LOCK”
position.
(p) Light Reminder Buzzer
This buzzer will sound if the headlight
switch is left on and the driver’s door is
opened with the key removed from the
ignition switch.

’06 MATRIX_U (L/O 0508)
260
Power steering fluid level
Check the level through the reservoir. The
level should be in the “HOT” or “COLD”
range depending on the fluid temperature.
See page 276 in Section 7−2 for addition-
al information.
Exhaust system
If you notice any change in the sound of
the exhaust or smell exhaust fumes, have
the cause located and corrected immedi-
ately. (See “Engine exhaust cautions” on
page 186 in Section 2.)
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working.
Service reminder indicators and warning
buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Check that it has the specified free play.
Be alert for changes in steering condition,
such as hard steering or strange noise. Seats
Check that all front seat controls such as
seat adjusters, seatback recliner, etc. op-
erate smoothly and that all latches lock
securely in any position. Check that the
head restraints move up and down
smoothly and that the locks hold securely
in any latched position. For folding
−down
rear seatbacks, check that the latches
lock securely.
Seat belts
Check that the seat belt system such as
buckles, retractors and anchors operate
properly and smoothly. Make sure the belt
webbing is not cut, frayed, worn or dam-
aged.
Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Clutch pedal
Check the pedal for smooth operation.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function.
Brakes
In a safe place, check that the brakes do
not pull to one side when applied. Parking brake
Check that the lever has the proper travel
and that, on a safe incline, your vehicle
is held securely with only the parking
brake applied.
Automatic transmission “Park” mecha-
nism
Check the lock release button of the se-
lector lever for proper and smooth opera-
tion. On a safe incline, check that your
vehicle is held securely with the selector
lever in “P” position and all brakes re-
leased.
OUTSIDE THE VEHICLE
Items listed below should be performed
from time to time, unless otherwise
specified.
Fluid leaks
Check underneath for leaking fuel, oil, wa-
ter or other fluid after the vehicle has
been parked for a while. If you smell fuel
fumes or notice any leak, have the cause
found and corrected immediately.

’06 MATRIX_U (L/O 0508)
285
TIRE CHAIN SELECTION
Use the tire chains of correct size and
type.
Use SAE Class “S” type radial tire chains
except radial cable chains or V−bar type
chains.
Regulations regarding the use of tire
chains vary according to location or
type of road, so always check local reg-
ulations before installing chains.
CHAIN INSTALLATION
Install the chains on the front tires as
tightly as possible. Do not use tire
chains on the rear tires. Retighten
chains after driving 0.5—1.0 km
(1/4—1/2 mile).
When installing chains on your tires, care-
fully follow the instructions of the chain
manufacturer.
If wheel covers are used, they will be
scratched by the chain band, so remove
the covers before putting on the chains.CAUTION
Do not exceed 50 km/h (30 mph) or
the chain manufacturer ’s recom-
mended speed limit, whichever is
lower.
Drive carefully avoiding bumps,
holes, and sharp turns, which may
cause the vehicle to bounce.
Avoid sharp turns or lockedwheel
braking, as use of chains may ad-
versely affect vehicle handling.
When driving with chains installed,
be sure to drive carefully. Slow
down before entering curves to
avoid losing control of the vehicle.
Otherwise an accident may occur.
NOTICE
Do not attempt to use a tire chain on
the compact spare tire, as it may re-
sult in damage to the vehicle as well
as the tire.
WHEN TO REPLACE YOUR WHEELS
If you have wheel damage such as
bending, cracks or heavy corrosion, the
wheel should be replaced.
If you fail to replace a damaged wheel,
the tire may slip off the wheel or cause
loss of handling control.
WHEEL SELECTION
When replacing wheels, care should be
taken to ensure that the wheels are re-
placed by ones with the same load ca-
pacity, diameter, rim width, and offset.
This must be observed on compact spare
tire, too.
Correct replacement wheels are available
at your Toyota dealer.
A wheel of a different size or type may
adversely affect handling, wheel and bear-
ing life, brake cooling, speedometer/odom-
eter calibration, stopping ability, headlight
aim, bumper height, vehicle ground clear-
ance, and tire or snow chain clearance to
the body and chassis.
Replacing wheels

’06 MATRIX_U (L/O 0508)
290
Ty p e A
Ty p e B
Ty p e CGood Blown
Good
Good
Blown
Blown

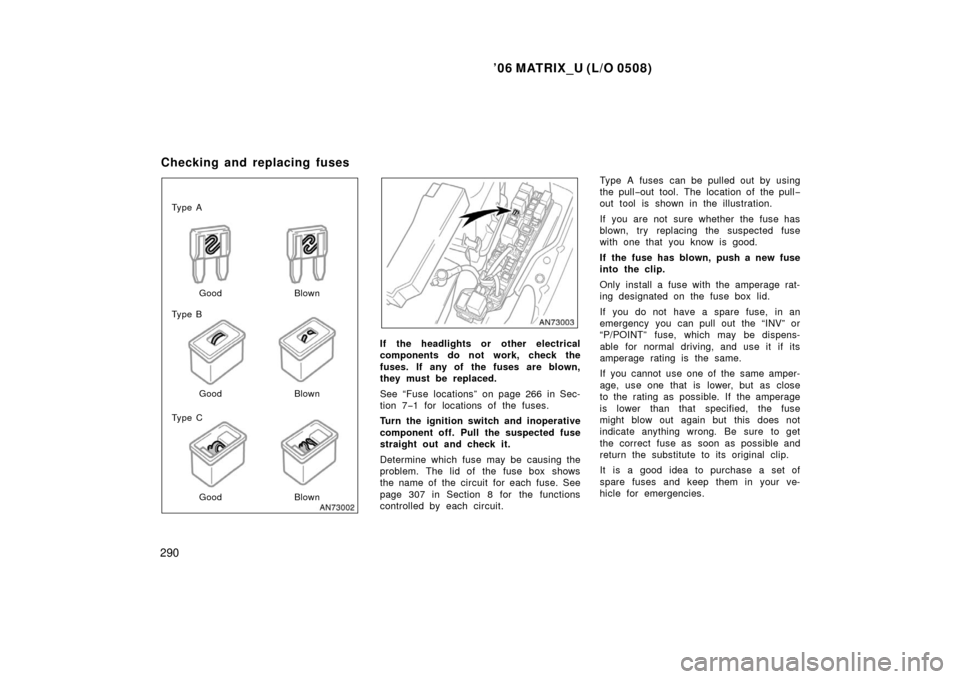

If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 266 in Sec-
tion 7
−1 for locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull the suspected fuse
straight out and check it.

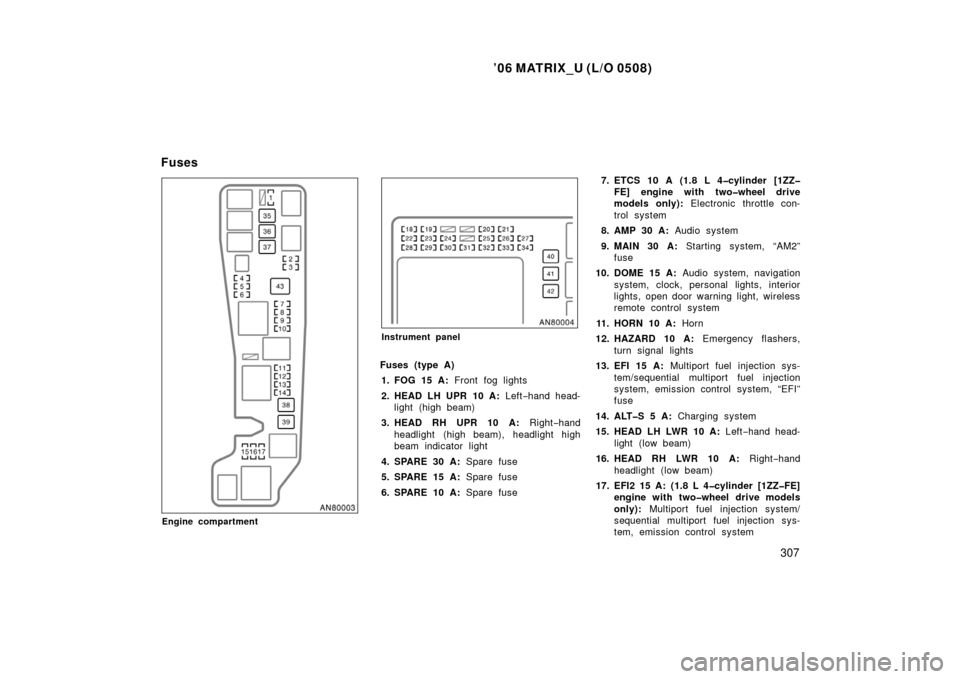

Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 307 in Section 8 for the functions
controlled by each circuit. Type A fuses can be pulled out by using
the pull
−out tool. The location of the pull −
out tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “INV” or
“P/POINT” fuse, which may be dispens-
able for normal driving, and use it if its
amperage rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.
Checking and replacing fuses

’06 MATRIX_U (L/O 0508)
292

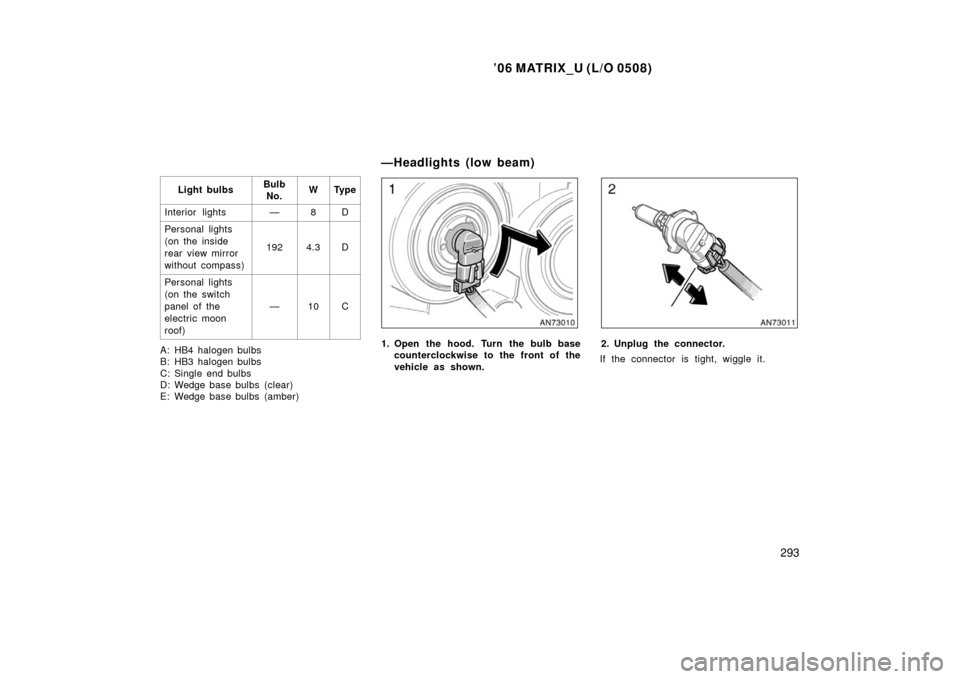

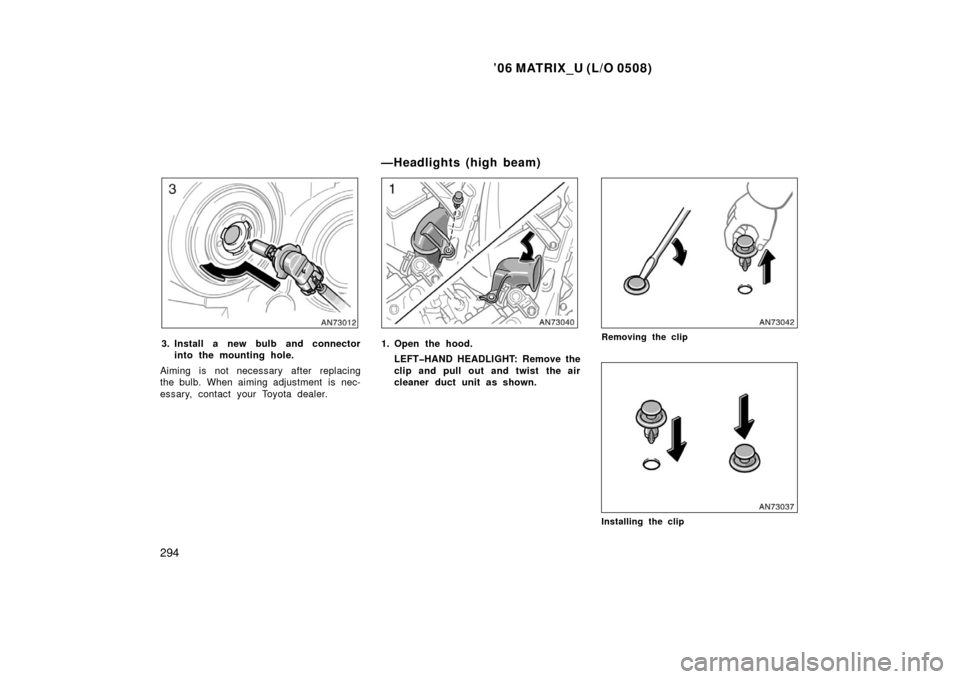

The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
Headlights (low)900655A
Headlights (high)900565B
Front fog lights900655A
Parking, front
side marker and
front turn signal
lights
11 5 7 N A27/8C
Stop/tail and rear
side marker
lights
744321/5D
Rear turn signal
lights—21E
Back −up lights92116D
High mounted
stop light92116D
License plate
light—5D
Replacing light bulbs—

’06 MATRIX_U (L/O 0508)
293
Light bulbsBulbNo.WTy p e
Interior lights—8D
Personal lights
(on the inside
rear view mirror
without compass)
1924.3D
Personal lights
(on the switch
panel of the
electric moon
roof)
—10C
A: HB4 halogen bulbs
B: HB3 halogen bulbs
C: Single end bulbs
D: Wedge base bulbs (clear)
E: Wedge base bulbs (amber)1. Open the hood. Turn the bulb base counterclockwise to the front of the
vehicle as shown.2. Unplug the connector.
If the connector is tight, wiggle it.
—Headlights (low beam)

’06 MATRIX_U (L/O 0508)
294
3. Install a new bulb and connectorinto the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.1. Open the hood. LEFTHAND HEADLIGHT: Remove the
clip and pull out and twist the air
cleaner duct unit as shown.Removing the clip
Installing the clip
—Headlights (high beam)

’06 MATRIX_U (L/O 0508)
307
Engine compartment
Instrument panel
Fuses (type A)1. FOG 15 A: Front fog lights
2. HEAD LH UPR 10 A: Left−hand head-
light (high beam)
3. HEAD RH UPR 10 A: Right−hand
headlight (high beam), headlight high
beam indicator light
4. SPARE 30 A: Spare fuse
5. SPARE 15 A: Spare fuse
6. SPARE 10 A: Spare fuse 7. ETCS 10 A (1.8 L 4cylinder [1ZZ
FE] engine with twowheel drive
models only): Electronic throttle con-
trol system
8. AMP 30 A: Audio system
9. MAIN 30 A: Starting system, “AM2”
fuse
10. DOME 15 A: Audio system, navigation
system, clock, pers onal lights, interior
lights, open door warning light, wireless
remote control system
11. HORN 10 A: Horn
12. HAZARD 10 A: Emergency flashers,
turn signal lights
13. EFI 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, emission control system, “EFI”
fuse
14. ALTS 5 A: Charging system
15. HEAD LH LWR 10 A: Left−hand head-
light (low beam)
16. HEAD RH LWR 10 A: Right−hand
headlight (low beam)
17. EFI2 15 A: (1.8 L 4cylinder [1ZZFE] engine with twowheel drive models
only): Multiport fuel injection system/
sequential multiport fuel injection sys-
tem, emission control system
Fuses
