set clock TOYOTA MATRIX 2006 E130 / 1.G Owners Manual

’06 MATRIX_U (L/O 0508)
25

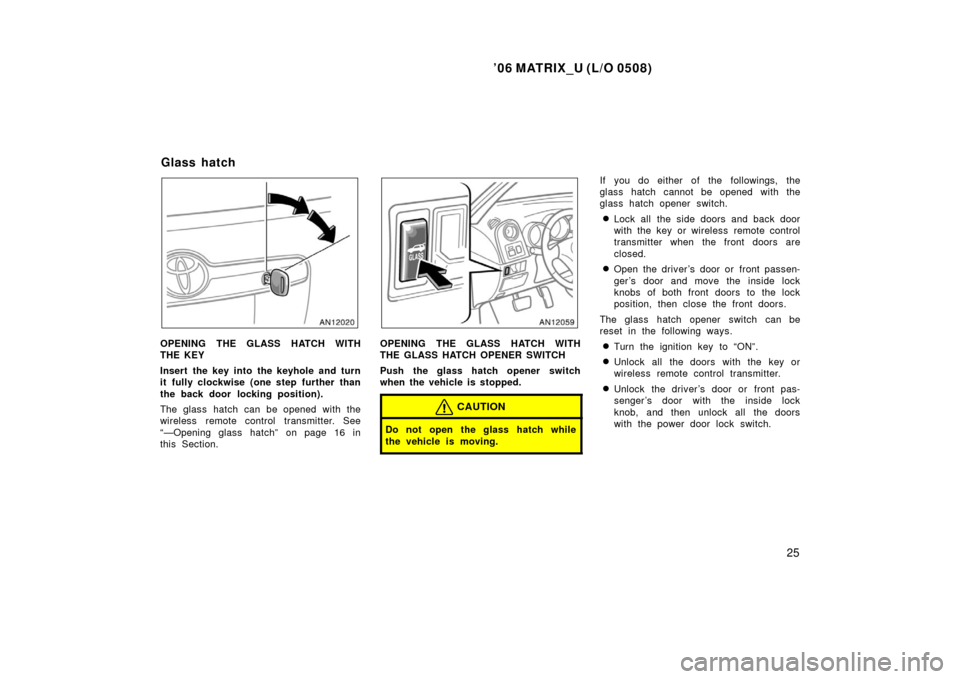

OPENING THE GLASS HATCH WITH
THE KEY
Insert the key into the keyhole and turn
it fully clockwise (one step further than
the back door locking position).
The glass hatch can be opened with the
wireless remote control transmitter. See
“—Opening glass hatch” on page 16 in
this Section.OPENING THE GLASS HATCH WITH
THE GLASS HATCH OPENER SWITCH
Push the glass hatch opener switch
when the vehicle is stopped.
CAUTION
Do not open the glass hatch while
the vehicle is moving.
If you do either of the followings, the
glass hatch cannot be opened with the
glass hatch opener switch.
Lock all the side doors and back door
with the key or wireless remote control
transmitter when the front doors are
closed.
Open the driver ’s door or front passen-
ger’s door and move the inside lock
knobs of both front doors to the lock
position, then close the front doors.
The glass hatch opener switch can be
reset in the following ways.
Turn the ignition key to “ON”.
Unlock all the doors with the key or
wireless remote control transmitter.
Unlock the driver’s door or front pas-
senger ’s door with the inside lock
knob, and then unlock all the doors
with the power door lock switch.
Glass hatch

’06 MATRIX_U (L/O 0508)
164

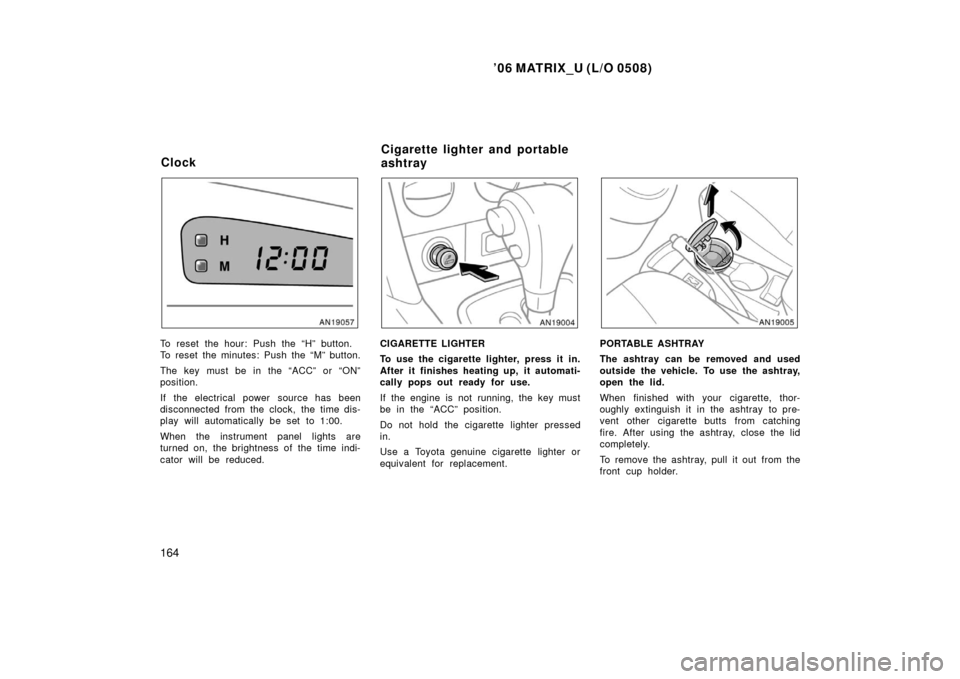

To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
The key must be in the “ACC” or “ON”
position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00.
When the instrument panel lights are
turned on, the brightness of the time indi-
cator will be reduced.CIGARETTE LIGHTER
To use the cigarette lighter, press it in.
After it finishes heating up, it automati-
cally pops out ready for use.
If the engine is not running, the key must
be in the “ACC” position.
Do not hold the cigarette lighter pressed
in.
Use a Toyota genuine cigarette lighter or
equivalent for replacement.PORTABLE ASHTRAY
The ashtray can be removed and used
outside the vehicle. To use the ashtray,
open the lid.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, close the lid
completely.
To remove the ashtray, pull it out from the
front cup holder.
ClockCigarette lighter and portable
ashtray

’06 MATRIX_U (L/O 0508)
295

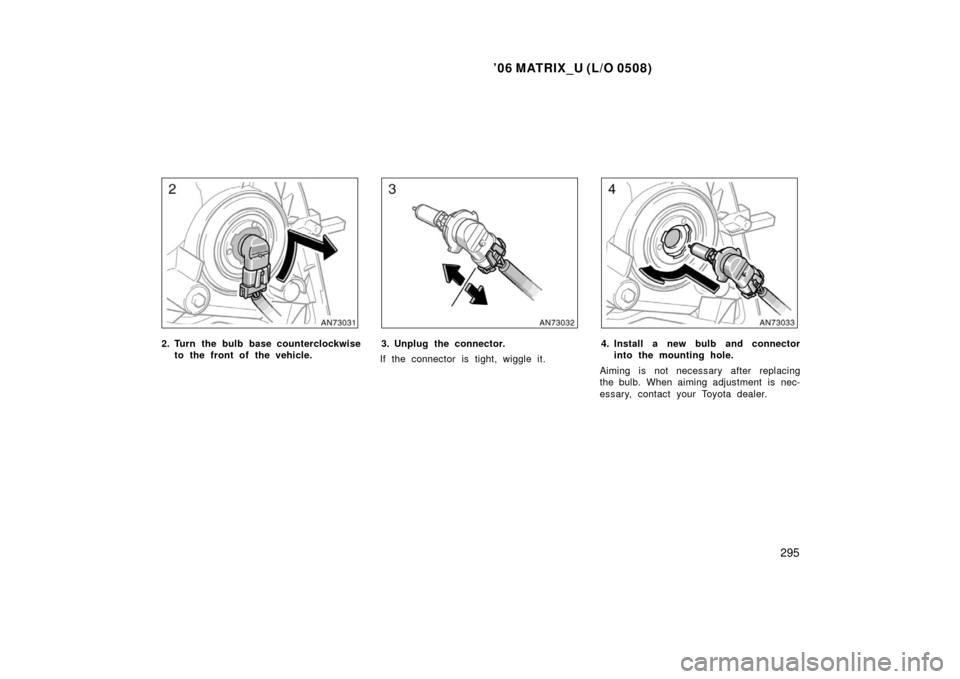

2. Turn the bulb base counterclockwiseto the front of the vehicle.3. Unplug the connector.
If the connector is tight, wiggle it.4. Install a new bulb and connector into the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.
