TOYOTA MATRIX 2007 E130 / 1.G Owners Manual

291
a: Stop/tail and rear side marker light
b: Rear turn signal light
c: Backup lightRemove the clips and the cover.Removing the clips
Installing the clips

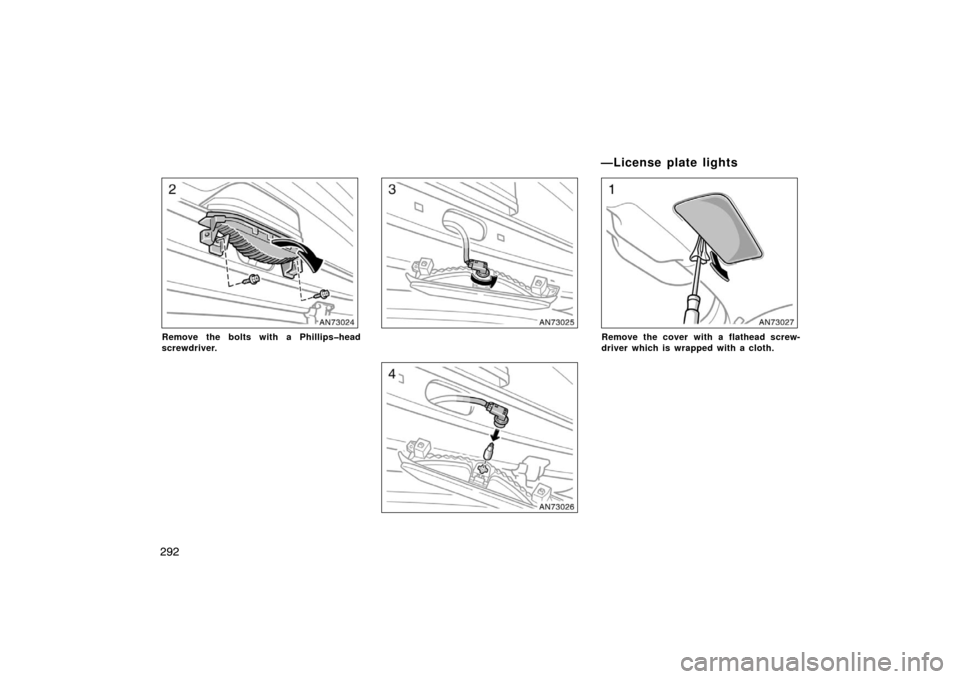

—High mounted stoplight

292
Remove the bolts with a Phillipshead
screwdriver.Remove the cover with a flathead screw-
driver which is wrapped with a cloth.
—License plate lights

293

294

295
SPECIFICATIONS
Specifications
Dimensions and weights296
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine 296
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . .
Fuel 297
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . .
Service specifications 297
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . .
Tires 300
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . .
Fuses 301
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . .
SECTION 8

296
Model: 1ZZ −FE
Type: 4 cylinder in line, 4 cycle, gasoline
Bore and stroke, mm (in.): 79.0  91.5 (3.11  3.60)
Displacement, cm
3 (cu. in.):
1794 (109.5)
Dimensions and weights
Overall length mm (in.)
Overall width mm (in.)
Overall height
∗mm (in.)
Wheelbase mm (in.)
Front tread mm (in.)
Rear tread mm (in.)
Vehicle capacity
weight (occupants
+ luggage) kg (lb.) P205/55R16 89H tires
P215/50ZR17
P215/50R17 90H tires
4350 (171.3)
4350 (171.3)
1775 (69.9) 1775 (69.9) 1550 (61.0)
2600 (102.4) 2600 (102.4)
1515 (59.6) 1505 (59.3)
1495 (58.9) 1485 (58.5)
385 (850) 385 (850)
∗: Unladen vehicle 1540 (60.6)
Towing capacity
(trailer weight +
cargo weight) kg (lb.)
680 (1500) 680 (1500)
Engine

297
Fuel type:Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher
Fuel tank capacity, L (gal., Imp. gal.): 50 (13.2, 11.0) ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type:
DENSO SK16R11
NGK IFR5A11
Spark plug gap, mm (in.): 1.1 (0.043)
ENGINE LUBRICATION
Oil capacity (drain and refill),
L (qt., Imp. qt.): With filter 4.2 (4.4, 3.7)
Without filter 4.0 (4.2, 3.5)
“Toyota Genuine Motor Oil” is used in
your Toyota vehicle. Use Toyota approved
“Toyota Genuine Motor Oil” or equivalent
to satisfy the following grade and
viscosity. Oil grade:
ILSAC multigrade engine oil
Recommended oil viscosity: SAE 5W −30
Outside temperature
Please contact your Toyota dealer for fur-
ther details.
Fuel Service specifications

298
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):6.5 (6.9, 5.7)
Coolant type: “Toyota Super Long Life Coolant” is
used in your Toyota vehicle at factory
fill. In order to avoid technical problems,
only use “Toyota Super Long Life
Coolant” or similar high quality ethylene
glycol based non −silicate, non −amine,
non− nitrite, and non− borate coolant with
long− life hybrid organic acid technology.
(Coolant with long −life hybrid organic
acid technology is a combination of low
phosphates and organic acids.)
Do not use plain water alone.
Please contact your Toyota dealer for
further details. BATTERY
Open voltage
∗
at 20 C (68 F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the lights
turned off
Charging rates: 5 A max.
CLUTCH
Pedal free play, mm (in.): 5—15 (0.2—0.6)
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
MANUAL TRANSAXLE
Oil capacity, L (qt., Imp. qt.): 1.9 (2.0, 1.7)
Oil type: Gear oil API GL −4 or GL −5
Recommended oil viscosity: SAE 75W −90 AUTOMATIC TRANSAXLE
Fluid capacity (drain and refill),
L (qt., Imp. qt.):
Up to 3.0 (3.2, 2.6)
Fluid type: Toyota Genuine ATF Type T −IV
Change automatic transmission fluid only
as necessary.
Generally, it is necessary to change
automatic transmission fluid only if your
vehicle is driven under one of the Special
Operating Conditions listed in your
“Scheduled Maintenance Guide” or
“Owner ’s Manual Supplement”. When
changing the automatic transmission fluid,
use only “Toyota Genuine ATF Type T −IV”
(ATF JWS3309 or NWS6500) to aid in
assuring optimum transaxle performance.
Notice: Using automatic transmission
fluid other than “Toyota Genuine ATF
Type TIV” may cause deterioration in
shift quality, locking up of your trans-
mission accompanied by vibration, and
ultimately damage the automatic trans-
mission of your vehicle.
Please contact your Toyota dealer for fur-
ther details.

299
BRAKES
Minimum pedal clearance when depressed
with the force of 294 N (30 kgf, 66 lbf)
with the engine running, mm (in.):Without anti −lock brake system
78 (3.07)
With anti −lock brake system
76 (2.99)
Pedal free play, mm (in.): 1—6 (0.04—0.24)
Pad wear limit, mm (in.): 1.0 (0.04)
Lining wear limit, mm (in.): 1.0 (0.04)
Parking brake adjustment when pulled with
the force of 196 N (20 kgf, 44 lbf): 5—8 clicks
Fluid type: SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play: Less than 30 mm (1.2 in.)
Power steering fluid type: Automatic transmission fluid DEXRON II
or III

300 Tire size and cold tire inflation pressure:
Front and rearkPa (kgf/cm
2 or bar, psi)
Ti r e siz e
FrontRearWheel size
P205/55R16 89H220 (2.2, 32)220 (2.2, 32)16 61/2JJ
P215/50ZR17220 (2.2, 32)220 (2.2, 32)17 7JJ
P215/50R17 90H220 (2.2, 32)220 (2.2, 32)17 7JJ
Spare
Ti r e siz e k P a (k gf / c m2 or bar, psi) Wheel size
T135/70R16 420 (4.2, 60) 164T
T135/80R16 420 (4.2, 60) 164T
Wheel nut torque, N·m (kgf·m, ft·lbf): 103 (10.5, 77)
NOTE: For a complete information on tires (e.g. replacing ti res or replacing wheels), see “Checking tire inflation pres-
sure” through “Aluminum wheel precautions”, pages 272 through 280, in Section 7 −2.
Tires
