OPERATION OF INSTRUMENTS AND
CONTROLS
Overview of instruments and controls
Instrument panel overview2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Instrument cluster overview 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Indicator symbols on the instrument panel 6
. . . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1

2
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Personal lights
6. Electric moon roof switches andpersonal light
7. Power door lock switches
8. Power window switches
9. Glove box
10. Portable ashtray
11. Cup holders
12. Power outlet (12 VDC)
13. Parking brake lever
14. Auxiliary boxes
15. Automatic transmission selector lever or manual transmission gear shift lever
16. Hood lock release lever
17. Window lock switch
Instrument panel overview
 View A

5

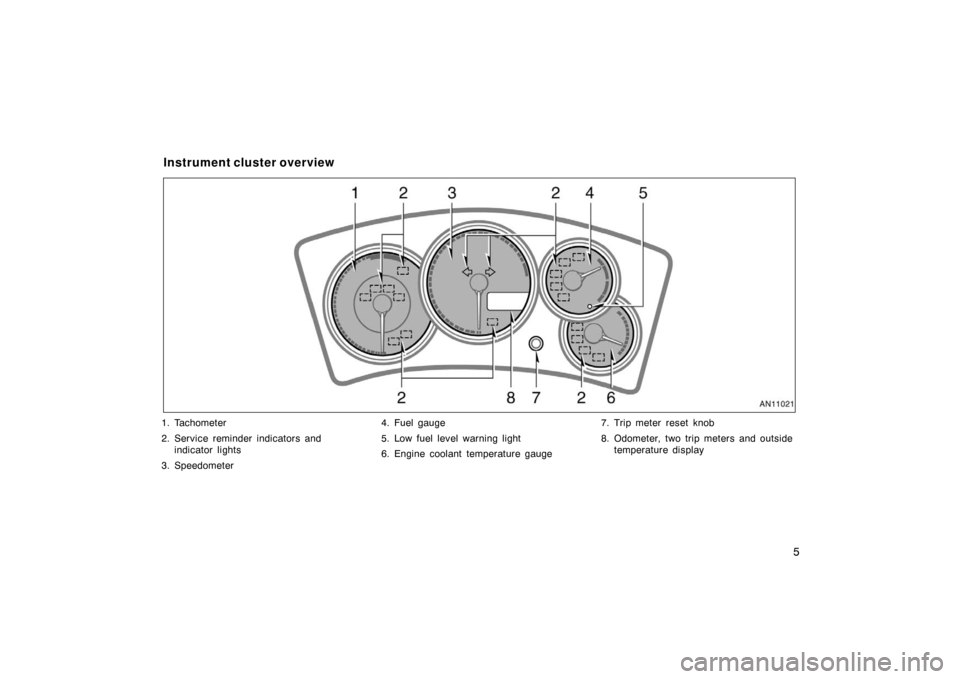

1. Tachometer
2. Service reminder indicators andindicator lights
3. Speedometer 4. Fuel gauge
5. Low fuel level warning light
6. Engine coolant temperature gauge
7. Trip meter reset knob
8. Odometer, two trip meters and outside
temperature display
Instrument cluster overview

92
For the U.S.A.
For Canada
HEADLIGHTS

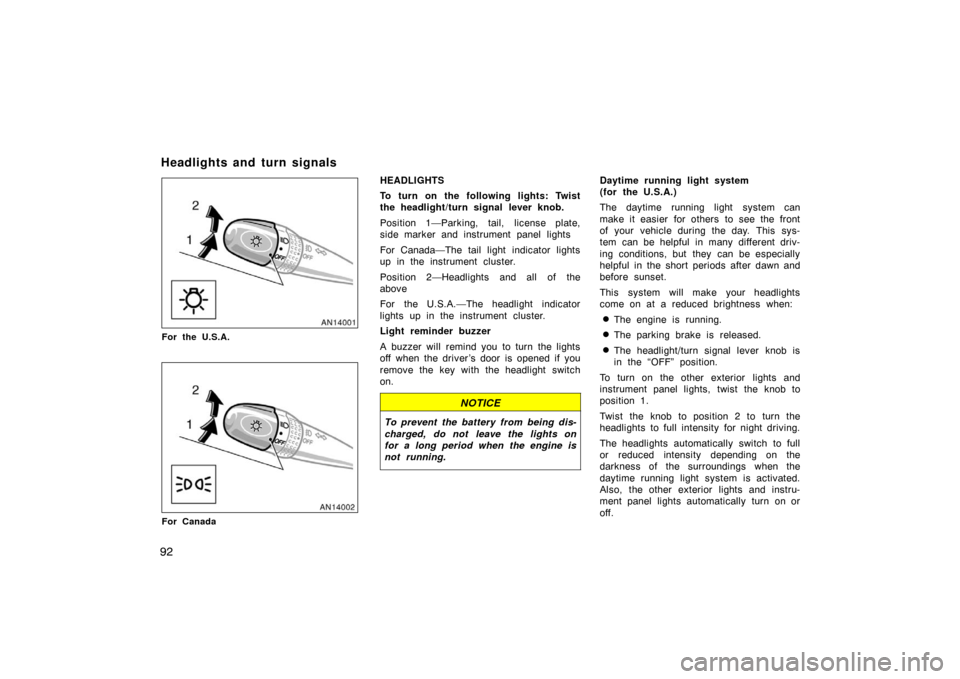

To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
For Canada—The tail light indicator lights
up in the instrument cluster.
Position 2—Headlights and all of the
above
For the U.S.A.—The headlight indicator
lights up in the instrument cluster.
Light reminder buzzer
A buzzer will remind you to turn the lights
off when the driver ’s door is opened if you
remove the key with the headlight switch
on.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system
(for the U.S.A.)
The daytime running light system can
make it easier for others to see the front
of your vehicle during the day. This sys-
tem can be helpful in many different driv-
ing conditions, but they can be especially
helpful in the short periods after dawn and
before sunset.
This system will make your headlights
come on at a reduced brightness when:
The engine is running.
The parking brake is released.
The headlight/turn signal lever knob is
in the “OFF” position.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
position 1.
Twist the knob to position 2 to turn the
headlights to full intensity for night driving.
The headlights automatically switch to full
or reduced intensity depending on the
darkness of the surroundings when the
daytime running light system is activated.
Also, the other exterior lights and instru-
ment panel lights automatically turn on or
off.
Headlights and turn signals

95
To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.
Full intensity
position

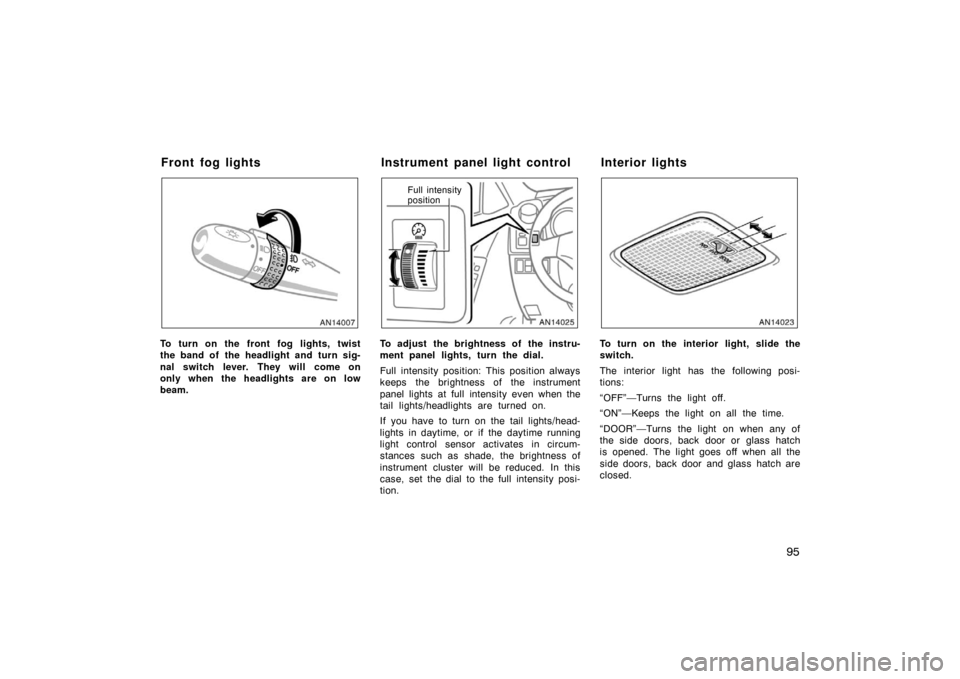

To adjust the brightness of the instru-
ment panel lights, turn the dial.
Full intensity position: This position always
keeps the brightness of the instrument
panel lights at full intensity even when the
tail lights/headlights are turned on.
If you have to turn on the tail lights/head-
lights in daytime, or if the daytime running
light control sensor activates in circum-
stances such as shade, the brightness of
instrument cluster will be reduced. In this
case, set the dial to the full intensity posi-
tion.To turn on the interior light, slide the
switch.
The interior light has the following posi-
tions:
“OFF”—Turns the light off.
“ON”—Keeps the light on all the time.
“DOOR”—Turns the light on when any of
the side doors, back door or glass hatch
is opened. The light goes off when all the
side doors, back door and glass hatch are
closed.
Front fog lightsInstrument panel light control Interior lights

301
Engine compartment
Instrument panel

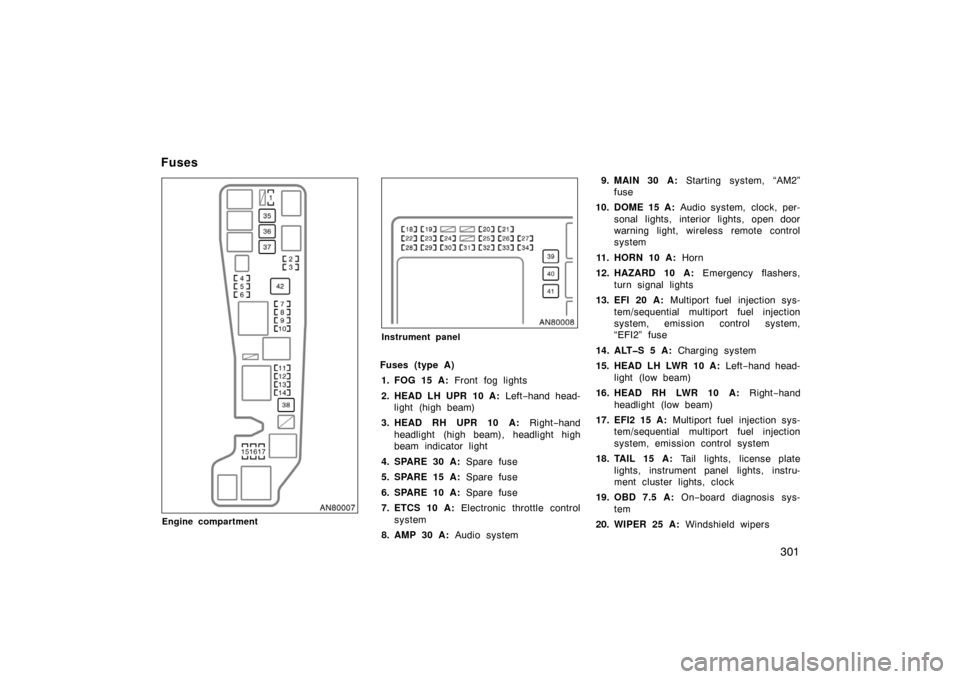

Fuses (type A)1. FOG 15 A: Front fog lights
2. HEAD LH UPR 10 A: Left−hand head-
light (high beam)
3. HEAD RH UPR 10 A: Right−hand
headlight (high beam), headlight high
beam indicator light
4. SPARE 30 A: Spare fuse
5. SPARE 15 A: Spare fuse
6. SPARE 10 A: Spare fuse
7. ETCS 10 A: Electronic throttle control
system
8. AMP 30 A: Audio system 9. MAIN 30 A:
Starting system, “AM2”
fuse
10. DOME 15 A: Audio system, clock, per-
sonal lights, interior lights, open door
warning light, wireless remote control
system
11. HORN 10 A: Horn
12. HAZARD 10 A: Emergency flashers,
turn signal lights
13. EFI 20 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, emission control system,
“EFI2” fuse
14. ALTS 5 A: Charging system
15. HEAD LH LWR 10 A: Left−hand head-
light (low beam)
16. HEAD RH LWR 10 A: Right−hand
headlight (low beam)
17. EFI2 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system, emission control system
18. TAIL 15 A: Tail lights, license plate
lights, instrument panel lights, instru-
ment cluster lights, clock
19. OBD 7.5 A: On−board diagnosis sys-
tem
20. WIPER 25 A: Windshield wipers
Fuses
