HEADLIGHTS

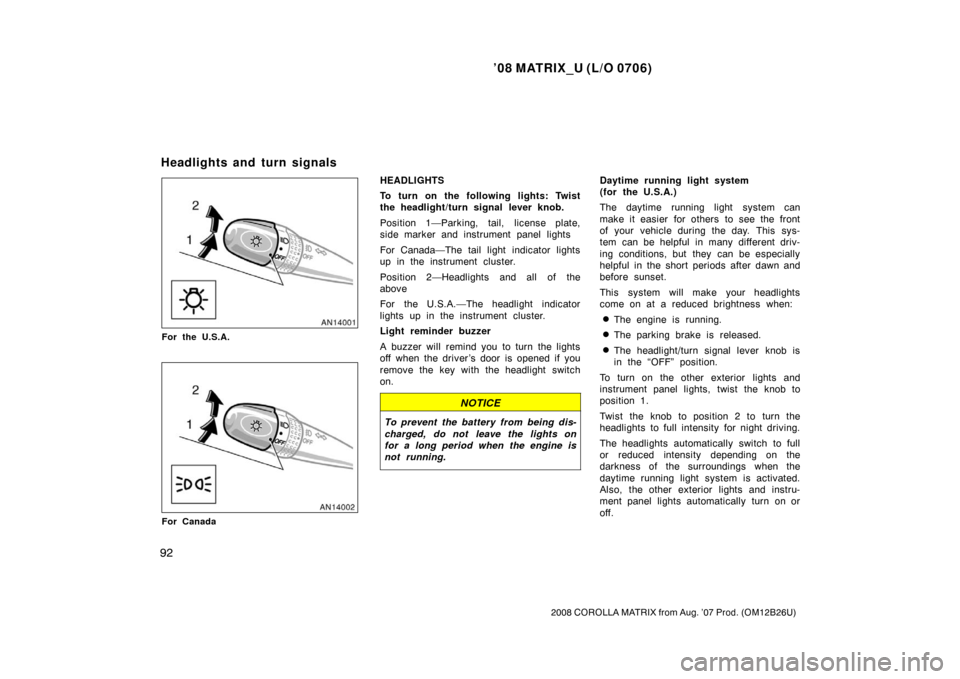

To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
For Canada—The tail light indicator lights
up in the instrument cluster.
Position 2—Headlights and all of the
above
For the U.S.A.—The headlight indicator
lights up in the instrument cluster.
Light reminder buzzer
A buzzer will remind you to turn the lights
off when the driver ’s door is opened if you
remove the key with the headlight switch
on.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system
(for the U.S.A.)
The daytime running light system can
make it easier for others to see the front
of your vehicle during the day. This sys-
tem can be helpful in many different driv-
ing conditions, but they can be especially
helpful in the short periods after dawn and
before sunset.
This system will make your headlights
come on at a reduced brightness when:
The engine is running.
The parking brake is released.
The headlight/turn signal lever knob is
in the “OFF” position.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
position 1.
Twist the knob to position 2 to turn the
headlights to full intensity for night driving.
The headlights automatically switch to full
or reduced intensity depending on the
darkness of the surroundings when the
daytime running light system is activated.
Also, the other exterior lights and instru-
ment panel lights automatically turn on or
off.
Headlights and turn signals

’08 MATRIX_U (L/O 0706)
93
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

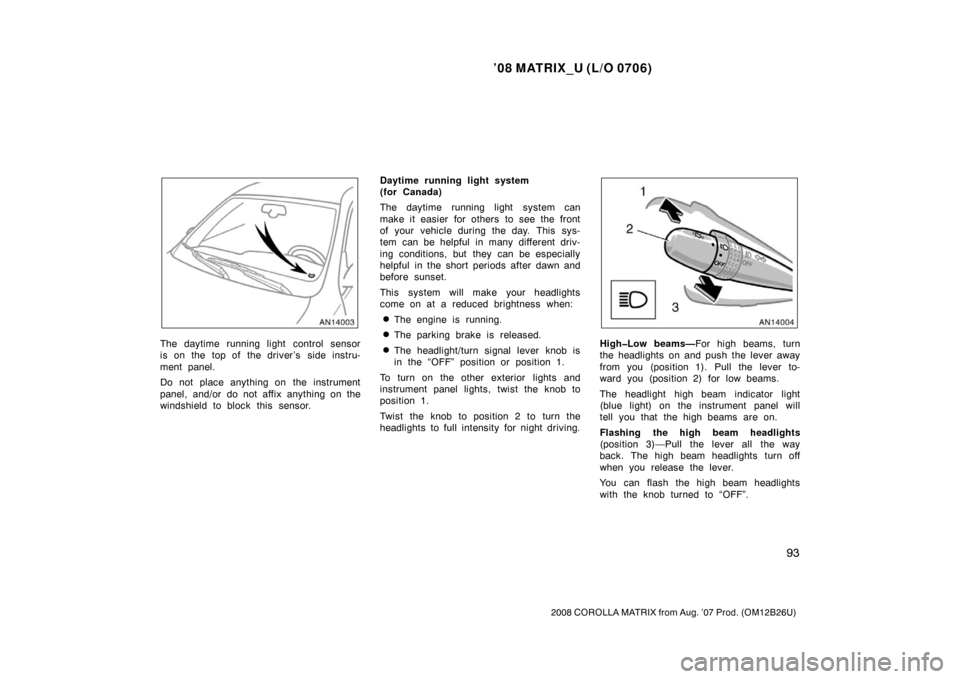

The daytime running light control sensor
is on the top of the driver’s side instru-
ment panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.Daytime running light system
(for Canada)
The daytime running light system can
make it easier for others to see the front
of your vehicle during the day. This sys-
tem can be helpful in many different driv-
ing conditions, but they can be especially
helpful in the short periods after dawn and
before sunset.
This system will make your headlights
come on at a reduced brightness when:
The engine is running.
The parking brake is released.
The headligh
t/turn signal lever knob is
in the “OFF” position or position 1.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
position 1.
Twist the knob to position 2 to turn the
headlights to full intensity for night driving.HighLow beams— For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.

’08 MATRIX_U (L/O 0706)
94
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out. See “Replacing light
bulbs” on page 294 in Section 7−3.To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
NOTICE
To prevent the battery from being dis-
charged, do not leave the switch on
longer than necessary when the en-
gine is not running.
Emergency flashers

’08 MATRIX_U (L/O 0706)
95
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
To turn on the front fog lights, twist
the band of the headlight and turn sig-
nal switch lever. They will come on
only when the headlights are on low
beam.
Full intensity
position
To adjust the brightness of the instru-
ment panel lights, turn the dial.
Full intensity position: This position always
keeps the brightness of the instrument
panel lights at full intensity even when the
tail lights/headlights are turned on.
If you have to turn on the tail lights/head-
lights in daytime, or if the daytime running
light control sensor activates in circum-
stances such as shade, the brightness of
instrument cluster will be reduced. In this
case, set the dial to the full intensity posi-
tion.To turn on the interior light, slide the
switch.
The interior light has the following posi-
tions:
“OFF”—Turns the light off.
“ON”—Keeps the light on all the time.
“DOOR”—Turns the light on when any of
the side doors, back door or glass hatch
is opened. The light goes off when all the
side doors, back door and glass hatch are
closed.
Front fog lightsInstrument panel light control Interior lights

’08 MATRIX_U (L/O 0706)
96
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
ILLUMINATED ENTRY SYSTEM (with
power door lock system)
When the switch is in the “DOOR” posi-
tion, the light comes on when any side
door, back door or glass hatch is opened.
After all the side doors, back door and
glass hatch are closed, the light remains
on for about 15 seconds before fading
out.
However, in the following cases, the light
goes out immediately:
All the side doors, back door and glass
hatch are closed when the ignition key
is in the “ON” position.
The ignition key is turned to the “ON”
position after all the side doors, back
door and glass hatch are closed.
All the side doors and back door are
locked when the glass hatch is closed
and the light is still on.
When the switch is in the “DOOR” posi-
tion and the side doors are unlocked, the
light comes on and remains on for about
15 seconds before fading out.
To prevent the battery being discharged,
the light will automatically turn off when
the key is removed and the door is left
opened with the switch in the “DOOR”
position for 20 minutes or more.
Ty p e A
Ty p e B
Ty p e C

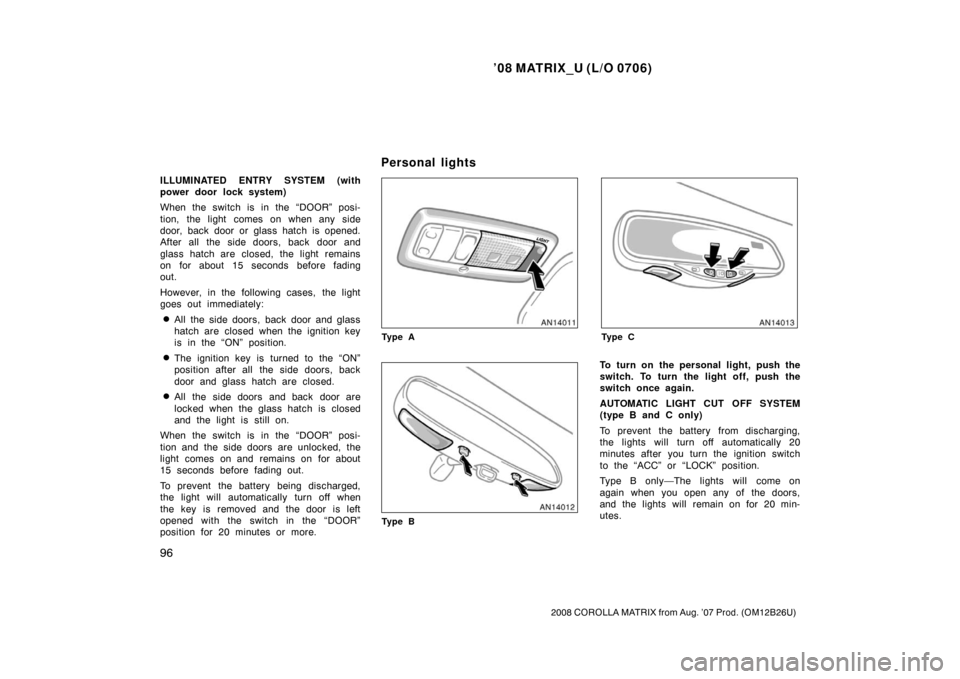

To turn on the personal light, push the
switch. To turn the light off, push the
switch once again.
AUTOMATIC LIGHT CUT OFF SYSTEM
(type B and C only)
To prevent the battery from discharging,
the lights will turn off automatically 20
minutes after you turn the ignition switch
to the “ACC” or “LOCK” position.
Type B only—The lights will come on
again when you open any of the doors,
and the lights will remain on for 20 min-
utes.
Personal lights

’08 MATRIX_U (L/O 0706)
97
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
This function will be cancelled when you
turn the ignition switch to the “ON” posi-
tion.

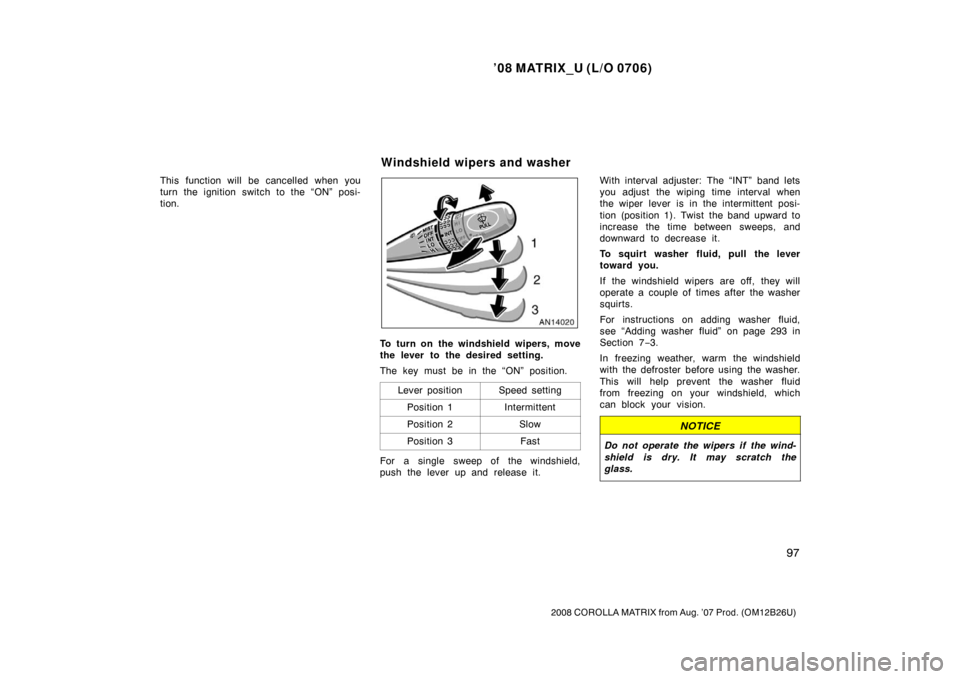

To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it. With interval adjuster: The “INT” band lets
you adjust the wiping time interval when
the wiper lever is in the intermittent posi-
tion (position 1). Twist the band upward to
increase the time between sweeps, and
downward to decrease it.
To squirt washer fluid, pull the lever
toward you.
If the windshield wipers are off, they will
operate a couple of times after the washer
squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 293 in
Section 7
−3.
In freezing weather, warm the windshield
with the defroster before using the washer.
This will help prevent the washer fluid
from freezing on your windshield, which
can block your vision.
NOTICE
Do not operate the wipers if the wind-
shield is dry. It may scratch the
glass.
Windshield wipers and washer

’08 MATRIX_U (L/O 0706)
98
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

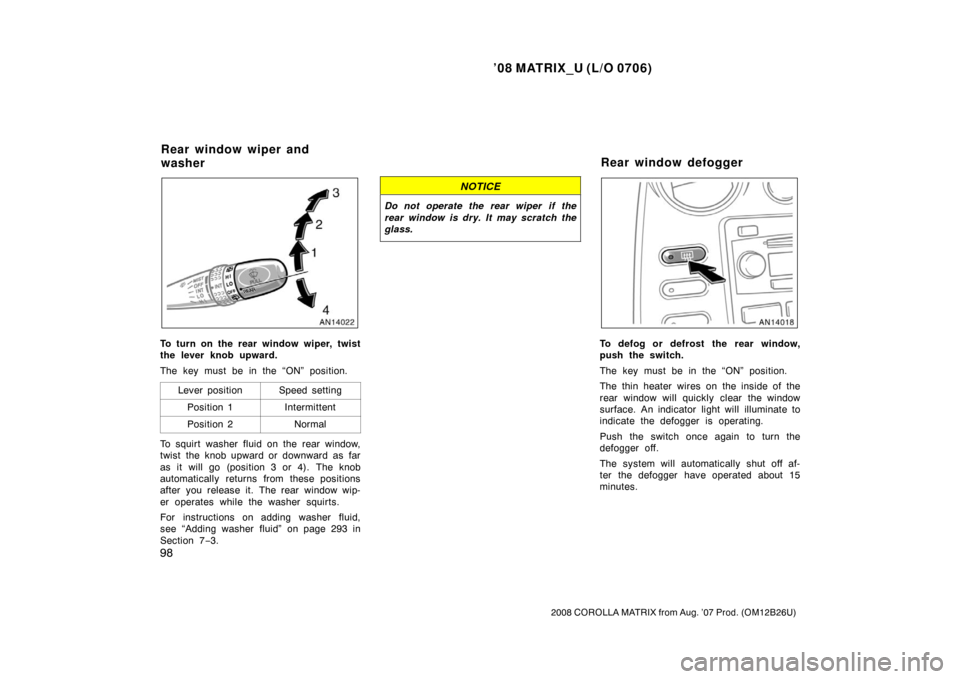

To turn on the rear window wiper, twist
the lever knob upward.
The key must be in the “ON” position.Lever position
Speed setting
Position 1Intermittent
Position 2Normal
To squirt washer fluid on the rear window,
twist the knob upward or downward as far
as it will go (position 3 or 4). The knob
automatically returns from these positions
after you release it. The rear window wip-
er operates while the washer squirts.
For instructions on adding washer fluid,
see “Adding washer fluid” on page 293 in
Section 7 −3.
NOTICE
Do not operate the rear wiper if the
rear window is dry. It may scratch the
glass.
To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the window
surface. An indicator light will illuminate to
indicate the defogger is operating.
Push the switch once again to turn the
defogger off.
The system will automatically shut off af-
ter the defogger have operated about 15
minutes.
Rear window wiper and
washer Rear window defogger

’08 MATRIX_U (L/O 0706)
99
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
Make sure you turn the defogger off when
the window is clear. Leaving the defogger
on for a long time could cause the battery
to discharge, especially during stop−and−
go driving. The defogger is not designed
for drying rain water or for melting snow.
NOTICE
When cleaning the inside of the rear
window, be careful not to scratch or
damage the heater wires or connec-
tors.
