TOYOTA MATRIX 2008 E130 / 1.G Owners Manual

’08 MATRIX_U (L/O 0706)
291
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
NOTICE
Be sure the engine and all accesso-
ries are off before performing main-
tenance.
 When checking the battery, remove
the ground cable from the negative
terminal (“” mark) first and rein-
stall it last.
 Be careful not to cause a short cir-
cuit with tools.
 Take care no solution gets into the
battery when washing it.
Ty p e A
Green Dark Clear or
light yellow
Ty p e B Blue White Red
CHECKING BY INDICATOR
Check the battery condition by the indi-
cator color.
Indicator color
ConditionTy p e ATy p e B
GreenBlueGood
DarkWhite
Charging necessary.
Have battery
checked by your
Toyota dealer.
Clear orlight
yellow
Red
Have battery
checked by your
Toyota dealer.
During recharging, the battery is pro-
ducing hydrogen gas.
Therefore, before recharging:
1. If recharging with the battery installed on the vehicle, be sure to disconnect
the ground cable.
2. Be sure the power switch on the re- charger is off when connecting the
charger cables to the battery and when
disconnecting them.
CAUTION
Always charge the battery in an un-
confined area. Do not charge the
battery in a garage or closed room
where there is not sufficient ventila-
tion.
Only do a slow charge (5 A or
less). Charging at a quicker rate is
dangerous. The battery may ex-
plode, causing personal injuries.
NOTICE
Never recharge the battery while the
engine is running. Also, be sure all
accessories are turned off.
—Checking battery c ondition Battery recharging pr ecautions

’08 MATRIX_U (L/O 0706)
292
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

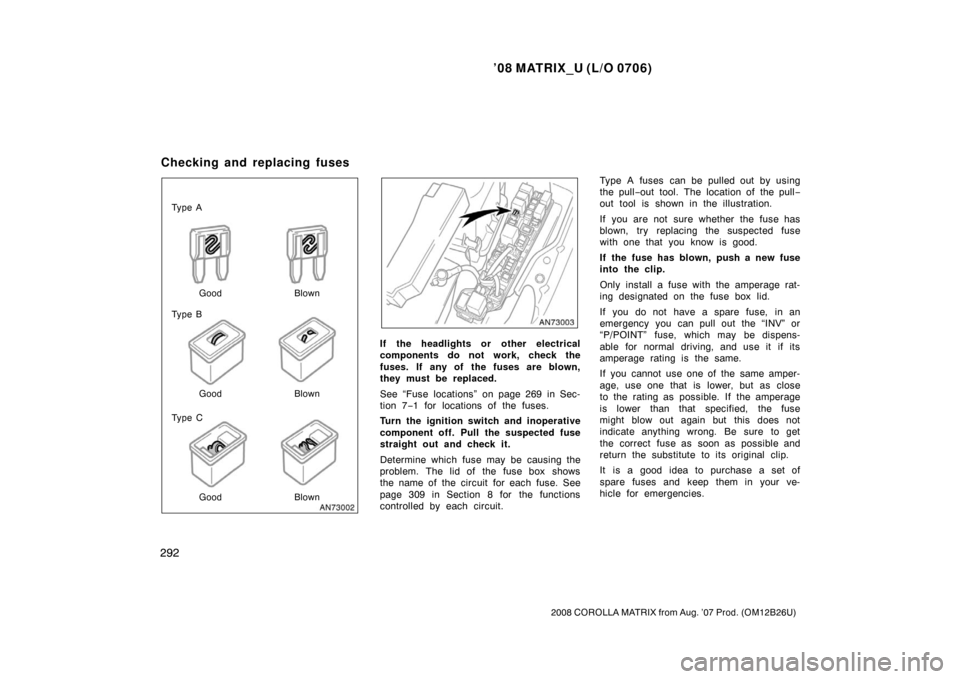

Ty p e A
Ty p e B
Ty p e CGood Blown
Good
Good
Blown
Blown
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See “Fuse locations” on page 269 in Sec-
tion 7
−1 for locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 309 in Section 8 for the functions
controlled by each circuit. Type A fuses can be pulled out by using
the pull
−out tool. The location of the pull −
out tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the “INV” or
“P/POINT” fuse, which may be dispens-
able for normal driving, and use it if its
amperage rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.
Checking and replacing fuses

’08 MATRIX_U (L/O 0706)
293
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
If the new fuse immediately blows out,
there is a problem with the electrical sys-
tem. Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.

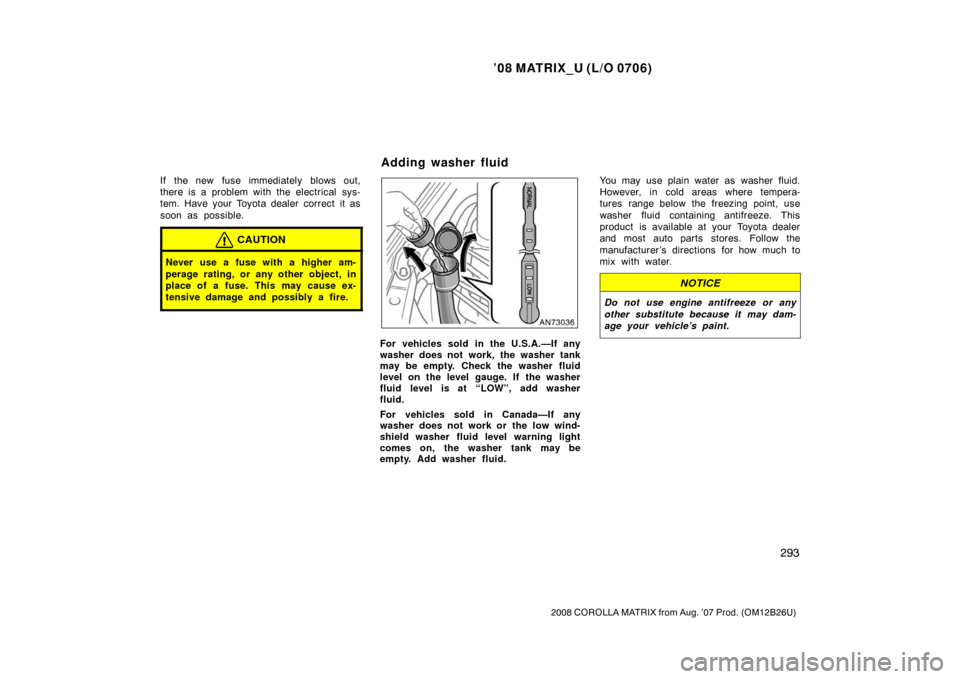

For vehicles sold in the U.S.A.—If any
washer does not work, the washer tank
may be empty. Check the washer fluid
level on the level gauge. If the washer
fluid level is at “LOW”, add washer
fluid.
For vehicles sold in Canada—If any
washer does not work or the low wind-
shield washer fluid level warning light
comes on, the washer tank may be
empty. Add washer fluid.You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer ’s directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle’s paint.
Adding washer fluid

’08 MATRIX_U (L/O 0706)
294
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.
CAUTION
To prevent burning yourself, do not
replace the light bulbs while they
are hot.
Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
Headlights (low)900655A
Headlights (high)900565B
Front fog lights900655A
Parking, front
side marker and
front turn signal
lights
11 5 7 N A27/8C
Stop/tail and rear
side marker
lights
744321/5D
Rear turn signal
lights—21E
Back −up lights92118D
High mounted
stop light92118D
License plate
light—5D
Replacing light bulbs—

’08 MATRIX_U (L/O 0706)
295
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
Light bulbsBulbNo.WTy p e
Interior lights—8D
Personal lights
(on the inside
rear view mirror
without compass)
1924.3D
Personal lights
(on the switch
panel of the
electric moon
roof)
—10C
A: HB4 halogen bulbs
B: HB3 halogen bulbs
C: Single end bulbs
D: Wedge base bulbs (clear)
E: Wedge base bulbs (amber)1. Open the hood. Turn the bulb base counterclockwise to the front of the
vehicle as shown.2. Unplug the connector.
If the connector is tight, wiggle it.
—Headlights (low beam)

’08 MATRIX_U (L/O 0706)
296
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
3. Install a new bulb and connectorinto the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.1. Open the hood. LEFTHAND HEADLIGHT: Remove the
clip and pull out and twist the air
cleaner duct unit as shown.Removing the clip
Installing the clip
—Headlights (high beam)

’08 MATRIX_U (L/O 0706)
297
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

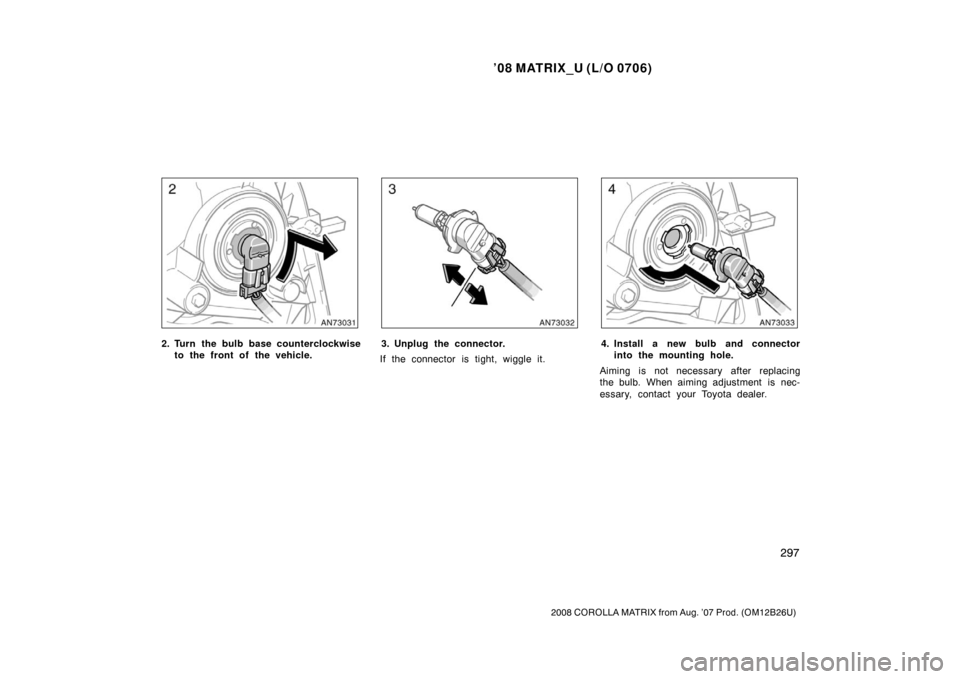

2. Turn the bulb base counterclockwiseto the front of the vehicle.3. Unplug the connector.
If the connector is tight, wiggle it.4. Install a new bulb and connector into the mounting hole.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.

’08 MATRIX_U (L/O 0706)
298
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)

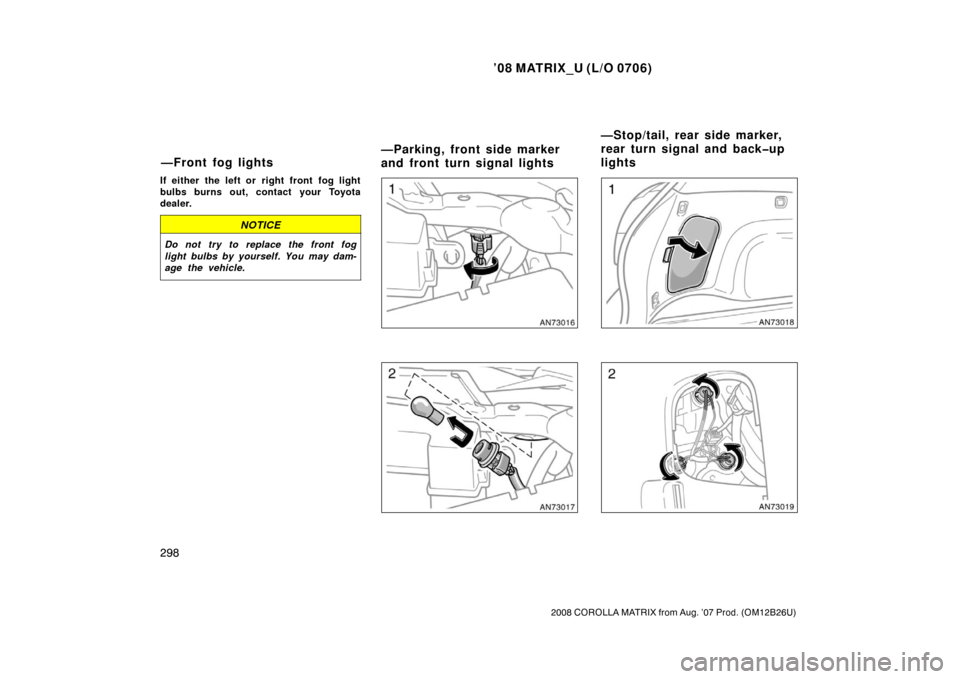

If either the left or right front fog light
bulbs burns out, contact your Toyota
dealer.
NOTICE
Do not try to replace the front fog
light bulbs by yourself. You may dam-
age the vehicle.
—Front fog lights—Parking, front side marker
and front turn signal lights—Stop/tail, rear side marker,
rear turn signal and backup
lights

’08 MATRIX_U (L/O 0706)
299
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
a: Stop/tail and rear side marker light
b: Rear turn signal light
c: Backup lightRemove the clips and the cover.Removing the clips
Installing the clips

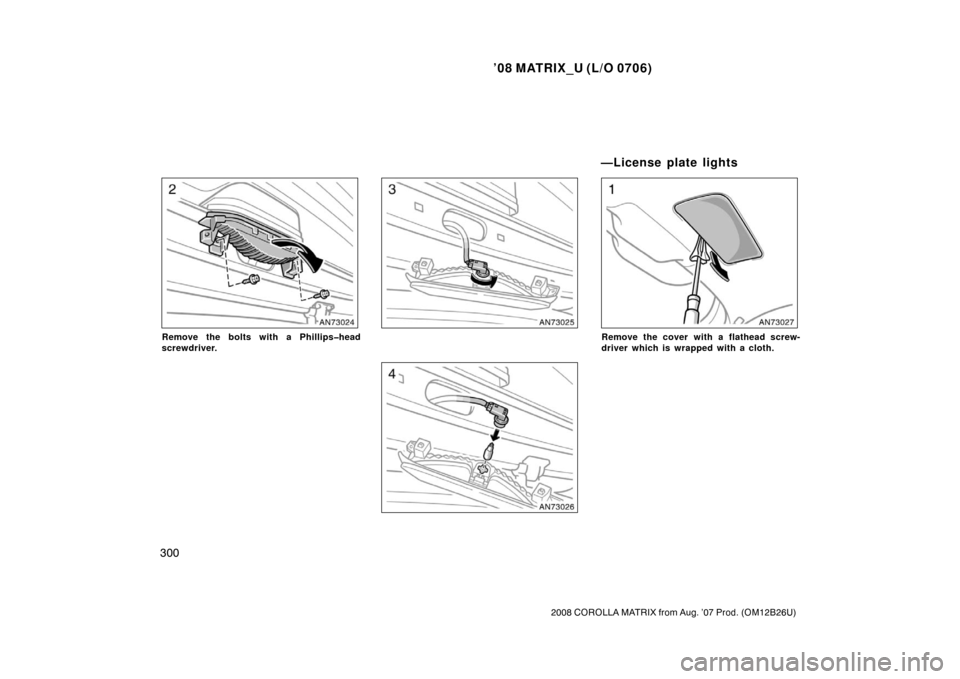

—High mounted stoplight

’08 MATRIX_U (L/O 0706)
300
2008 COROLLA MATRIX from Aug. ’07 Prod. (OM12B26U)
Remove the bolts with a Phillipshead
screwdriver.Remove the cover with a flathead screw-
driver which is wrapped with a cloth.
—License plate lights
