key TOYOTA MATRIX 2009 E140 / 2.G Navigation Manual

OTHER FUNCTIONS
134
If a memo is added, the system informs of
the memo entry when the system is started
on the memo date. (See page 25.)

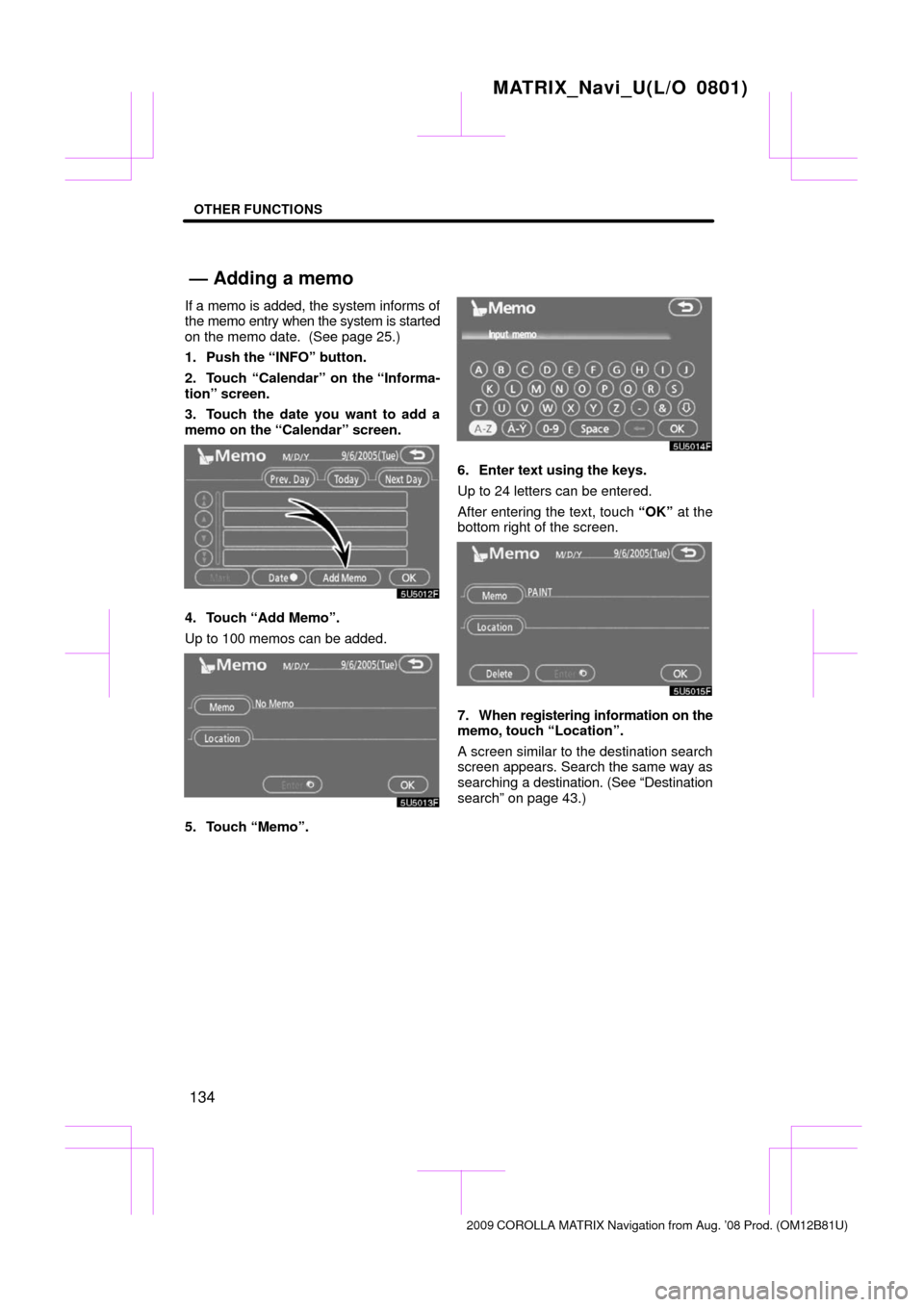

1. Push the “INFO” button.
2. Touch “Calendar” on the “Informa-
tion” screen.
3. Touch the date you want to add a
memo on the “Calendar” screen.
4. Touch “Add Memo”.
Up to 100 memos can be added.
5. Touch “Memo”.
6. Enter text using the keys.
Up to 24 letters can be entered.
After entering the text, touch “OK” at the
bottom right of the screen.
7. When registering information on the
memo, touch “Location”.
A screen similar to the destination search
screen appears. Search the same way as
searching a destination. (See “Destination
search” on page 43.)
MATRIX_Navi_U(L/O 0801)
2009 COROLLA MA TRIX Navigation from Aug. ’08 Prod. (OM12B81U)
— Adding a memo

OTHER FUNCTIONS
136

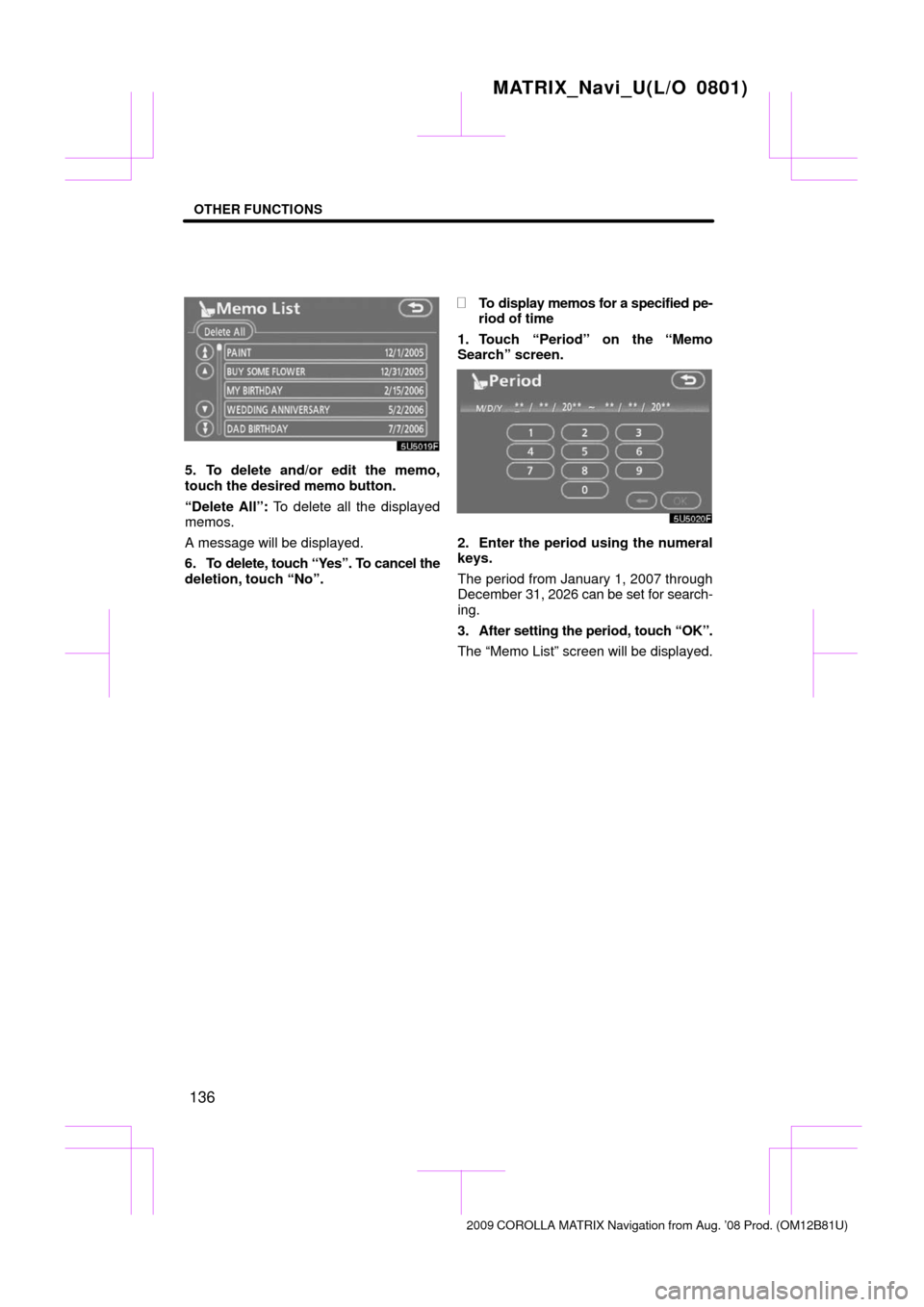

5. To delete and/or edit the memo,
touch the desired memo button.
“Delete All”: To delete all the displayed
memos.
A message will be displayed.
6. To delete, touch “Yes”. To cancel the
deletion, touch “No”.
To display memos for a specified pe-
riod of time
1. Touch “Period” on the “Memo
Search” screen.
2. Enter the period using the numeral
keys.
The period from January 1, 2007 through
December 31, 2026 can be set for search-
ing.
3. After setting the period, touch “OK”.
The “Memo List” screen will be displayed.
MATRIX_Navi_U(L/O 0801)
2009 COROLLA MA TRIX Navigation from Aug. ’08 Prod. (OM12B81U)

INDEX
194
Numbers/Symbols
? button
42,90,91
. . . . . . . . . . . . . . . . . . . . . .
3 Routes selection 67 . . . . . . . . . . . . . . . . . .
A
Adding a memo 134
. . . . . . . . . . . . . . . . . . . .
Adding destinations 76 . . . . . . . . . . . . . . . . .
Address button 42. . . . . . . . . . . . . . . . . . . . .
Alphabet key 26 . . . . . . . . . . . . . . . . . . . . . . .
AM·SAT button 144. . . . . . . . . . . . . . . . . . . .
Area to avoid 105 . . . . . . . . . . . . . . . . . . . . . .
Arrow screen 34,72 . . . . . . . . . . . . . . . . . . . . .
AUDIO button 144. . . . . . . . . . . . . . . . . . . . .
Audio remote controls 169 . . . . . . . . . . . . . .
Auto avoid traffic 120,123 . . . . . . . . . . . . . . . .
Auto voice guidance 91,117
. . . . . . . . . . . . . .
Automatic transition 139 . . . . . . . . . . . . . . . .
AUX adapter 149 . . . . . . . . . . . . . . . . . . . . . .
B
BASS 148
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Beep setting 141
. . . . . . . . . . . . . . . . . . . . . .
Brightness 137
. . . . . . . . . . . . . . . . . . . . . . . .
Building information 38
. . . . . . . . . . . . . . . . .
C
Calendar with memo 132 . . . . . . . . . . . . . . .
Calibration 91 . . . . . . . . . . . . . . . . . . . . . . . . .
Categories 54 . . . . . . . . . . . . . . . . . . . . . . . . .
CAUTION screen 23 . . . . . . . . . . . . . . . . . . .
CD player operation 158 . . . . . . . . . . . . . . . .
Change “Area Size” 109 . . . . . . . . . . . . . . . .
Change “Icon” 99 . . . . . . . . . . . . . . . . . . . . . .
Change “Location” 102,108
. . . . . . . . . . . . . .
Change “Name” 101,107
. . . . . . . . . . . . . . . .
Change “Phone #” 103
. . . . . . . . . . . . . . . . .
Change “Quick Access” 100 . . . . . . . . . . . . .
Change button 42
. . . . . . . . . . . . . . . . . . . . .
Change the route 66
. . . . . . . . . . . . . . . . . . .
Changing the map DVDROM 189 . . . . . . .
City center 55
. . . . . . . . . . . . . . . . . . . . . . . . .
City name 49,53
. . . . . . . . . . . . . . . . . . . . . . .
City to search 49,52
. . . . . . . . . . . . . . . . . . . .
Compass mode 36
. . . . . . . . . . . . . . . . . . . . .
Compass mode screen 34
. . . . . . . . . . . . . .
Contrast 137
. . . . . . . . . . . . . . . . . . . . . . . . . .
Coordinates button 42
. . . . . . . . . . . . . . . . . .
Current position as the search
point 56
. . . . . . . . . . . . . . . . . . . . . . . . . . . . Current
position display 30
. . . . . . . . . . . . . .
Current position/tire change
calibration 118
. . . . . . . . . . . . . . . . . . . . . . .
Cursor position as a destination 31 . . . . . . .
Cursor position as a memory point 31 . . . .
D
Database version 191
. . . . . . . . . . . . . . . . . .
Dealer setting 130
. . . . . . . . . . . . . . . . . . . . .
Default 91
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Del. Dest. button 42
. . . . . . . . . . . . . . . . . . . .
Delete personal data 140
. . . . . . . . . . . . . . .
Deleting “Quick Access” 101
. . . . . . . . . . . .
Deleting area to avoid 109
. . . . . . . . . . . . . .
Deleting destinations 77
. . . . . . . . . . . . . . . .
Deleting home 105
. . . . . . . . . . . . . . . . . . . . .
Deleting memory points 103
. . . . . . . . . . . . .
Deleting previous points 60,110
. . . . . . . . . .
Deleting set d estinations 64
. . . . . . . . . . . . .
DEST button 10,42,43
. . . . . . . . . . . . . . . . . .
Destination information 34
. . . . . . . . . . . . . .
Destination screen 42
. . . . . . . . . . . . . . . . . .
Destination search 43
. . . . . . . . . . . . . . . . . .
Destination search by “Address” 47. . . . . .
Destination search by
“Coordinates” 63
. . . . . . . . . . . . . . . . . . . .
Destination search by “Emergency” 59
. . . . . . . . . . . . . . . . . . . . .
Destination search by
“Freeway Ent./Exit” 62
. . . . . . . . . . . . . . .
Destination search by “Intersection” 61
. . . . . . . . . . . . . . . . . . . . .
Destination search by “Map” 61
. . . . . . . . . .
Destination search by “Memory” 59. . . . . .
Destination search by “Phone #” 58 . . . . . .
Destination search by “POI” 51
. . . . . . . . . .
Destination search by “Previous” 60. . . . . .
Destination se arch by home 46
. . . . . . . . . .
Destination search by
quick access 46
. . . . . . . . . . . . . . . . . . . . .
Detour setting 79
. . . . . . . . . . . . . . . . . . . . . .
Disc coverage area 191
. . . . . . . . . . . . . . . .
DISC·AUX button 144
. . . . . . . . . . . . . . . . . .
DISP/TILT button 10,22,137
. . . . . . . . . . . . .
Display building shapes 91
. . . . . . . . . . . . . .
Display of building shape 115
. . . . . . . . . . . . .
Display operation 22
. . . . . . . . . . . . . . . . . . .
Display POI icons 82,91,114
. . . . . . . . . . . . .
Displaying

the title and name 155
. . . . . . . .
Distance and time to destination 10,75
. . . .
Dual map 36
. . . . . . . . . . . . . . . . . . . . . . . . . .
Dual map screen 34
. . . . . . . . . . . . . . . . . . .
MATRIX_Navi_U(L/O 0801)
2009 COROLLA MA TRIX Navigation from Aug. ’08 Prod. (OM12B81U)

INDEX
195
E
Edit “Dealer” or “Contact”
131
. . . . . . . . . . .
Edit “Location” 131
. . . . . . . . . . . . . . . . . . . . .
Edit “Phone #” 132
. . . . . . . . . . . . . . . . . . . . .
Editing a memo 135
. . . . . . . . . . . . . . . . . . . .
Editing area to avoid 106
. . . . . . . . . . . . . . .
Editing memory points 98
. . . . . . . . . . . . . . .
Eject button 144
. . . . . . . . . . . . . . . . . . . . . . .
Ejecting disc 160
. . . . . . . . . . . . . . . . . . . . . .
Emergency button 42
. . . . . . . . . . . . . . . . . .
Estimated arrival time 75
. . . . . . . . . . . . . . .
Estimated travel time 75,91,111
. . . . . . . . . .
F
FILE button 165 . . . . . . . . . . . . . . . . . . . . . . .
FM button 144 . . . . . . . . . . . . . . . . . . . . . . . .
FOLDER LIST button 164
. . . . . . . . . . . . . . .
Foot print map 37 . . . . . . . . . . . . . . . . . . . . . .
Foot print map button 10
. . . . . . . . . . . . . . . .
Freeway Ent./Exit button 42
. . . . . . . . . . . . .
Freeway exit information screen 70 . . . . . . .
Freeway information screen 34
. . . . . . . . . .
Function help 29
. . . . . . . . . . . . . . . . . . . . . .
Function menu display screen 144 . . . . . . .
G
GPS 178
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GPS mark 10
. . . . . . . . . . . . . . . . . . . . . . . . .
Guidance screen for the freeway 71 . . . . . .
Guidance screen on the freeway 34 . . . . . .
Guiding the route 16
. . . . . . . . . . . . . . . . . . .
H
Headingup 10
. . . . . . . . . . . . . . . . . . . . . . . .
Headingup symbol 39
. . . . . . . . . . . . . . . . .
Help 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Home 12,104
. . . . . . . . . . . . . . . . . . . . . . . . . .
Home touchscreen button 42
. . . . . . . . . . .
House number 47
. . . . . . . . . . . . . . . . . . . . .
I
If the player malfunctions 168
. . . . . . . . . . .
INFO button 10
. . . . . . . . . . . . . . . . . . . . . . . .
Information about the icon 32
. . . . . . . . . . . .
Information items 129
. . . . . . . . . . . . . . . . . . Initial screen
23
. . . . . . . . . . . . . . . . . . . . . . .
Inputting letters and numbers 26
. . . . . . . . .
Inserting disc 158
. . . . . . . . . . . . . . . . . . . . . .
Intersection button 42
. . . . . . . . . . . . . . . . . .
Intersection guidance screen 34,71
. . . . . . .
K
Key layout 112
. . . . . . . . . . . . . . . . . . . . . . . . .
Keyboard layout 91
. . . . . . . . . . . . . . . . . . . .
L
Last 5 cities 50,54
. . . . . . . . . . . . . . . . . . . . . .
Limitations of the navigation
system 178
. . . . . . . . . . . . . . . . . . . . . . . . .
List 27
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
List all categories button 54,57
. . . . . . . . . . .
Listening to satellite radio 152
. . . . . . . . . . .
Listening to the radio 149
. . . . . . . . . . . . . . .
Local POI list 83
. . . . . . . . . . . . . . . . . . . . . . .
M
Maintenance information 24,128
. . . . . . . . . .
Maintenance information setting 128 . . . . . .
Map button 42 . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 180 . . . . . . . . . . . . . . . . . . . . . . . .
Map DVD button 90 . . . . . . . . . . . . . . . . . . . .
Map scale 37 . . . . . . . . . . . . . . . . . . . . . . . . .
Map screen operation 30 . . . . . . . . . . . . . . .
Map view 82 . . . . . . . . . . . . . . . . . . . . . . . . . .
Map View button 10 . . . . . . . . . . . . . . . . . . . .
MAP/VOICE button 10,30
. . . . . . . . . . . . . . .
Mark button 10 . . . . . . . . . . . . . . . . . . . . . . . .
Memo information 25 . . . . . . . . . . . . . . . . . . .
Memo list 135 . . . . . . . . . . . . . . . . . . . . . . . . .
Memory button 42. . . . . . . . . . . . . . . . . . . . .
Memory point information 33
. . . . . . . . . . . .
Memory point names 102
. . . . . . . . . . . . . . .
Memory point screen 97
. . . . . . . . . . . . . . . .
Memos for a specified period of time 136
. . . . . . . . . . . . . . . . . . .
MENU button 10,90,91
. . . . . . . . . . . . . . . . .
Menu screen 90
. . . . . . . . . . . . . . . . . . . . . . .
MP3/WMA 164
. . . . . . . . . . . . . . . . . . . . . . . .
My places 96
. . . . . . . . . . . . . . . . . . . . . . . . .
My Places button 90
. . . . . . . . . . . . . . . . . . .
MATRIX_Navi_U(L/O 0801)
2009 COROLLA MA TRIX Navigation from Aug. ’08 Prod. (OM12B81U)
