navigation system TOYOTA MATRIX 2009 E140 / 2.G Navigation Manual

MATRIX_Navi_U(L/O 0801)
1
Introduction
Thank you for your purchase of the Navigation System. Please read
this manual carefully to ensure proper use. Keep this manual in your
vehicle at all times.
The Navigation System is one of the most technologically advanced
vehicle accessories ever developed. The system receives satellite sig-
nals from the Global Positioning System (GPS) operated by the U.S.
Department of Defense. Using these signals and other vehicle sen-
sors, the system indicates your present position and assists in locating
a desired destination.
The navigation system is designed to select efficient routes from your
present starting location to your destination. The system is also designed
to direct you to a destination that is unfamiliar to you in an efficient manner.
The system uses DENSO maps. The calculated routes may not be the
shortest nor the least traffic congested. Your own personal local knowl-
edge or “short cut” may at times be faster than the calculated rou\
tes.
The navigation system’s database includes about 75 Point of Interest
categories to allow you to easily select destinations such as restaurant\
s
and banks. If a destination is not in the database, you can enter the stre\
et
address or a major intersection close to it and the system will guide yo\
u
there.
The system will provide both a visual map and audio instructions. The au-
dio instructions will announce the distance remaining and the direction to
turn in approaching an intersection. These voice instructions will help you
keep your eyes on the road and are timed to provide enough time to allow
you to maneuver, change lanes or slow down.
2009 COROLLA MATRIX Navigation from Aug. ’08 Prod. (OM12B81U)

MATRIX_Navi_U(L/O 0801)
2
Please be aware that all current vehicle navigation systems have
certain limitations that may affect their ability to perform properly.
The accuracy of the vehicle’s position depends on the satellite con-
dition, road configuration, vehicle condition or other circumstan-
ces. For more information on the limitations of the system, refer to
pages 178 through 179.
2009 COROLLA MATRIX Navigation from Aug. ’08 Prod. (OM12B81U)

MATRIX_Navi_U(L/O 0801)
3
For safety reasons, this manual indicates
items requiring particular attention with the
following marks.
CAUTION
This is a warning against anything
which may cause injury to people if
the warning is ignored. You are in-
formed about what you must or must
not do in order to reduce the risk of
injury to yourself and others.
NOTICE
This is a warning against anything
which may cause damage to the ve-
hicle or its equipment if the warning
is ignored. You are informed about
what you must or must not do in or-
der to avoid or reduce the risk of dam-
age to your vehicle and its equip-
ment.
INFORMATION
This provides additional information.
To use this system in the safest possible
manner, follow all the safety tips shown be-
low.
This system is intended to assist in reach-
ing the destination and, if used properly,
can do so. The driver is solely responsible
for the safe operation of your vehicle and
the safety of your passengers.
Do not use any feature of this system to the
extent it becomes a distraction and pre-
vents safe driving. The first priority while
driving should always be the safe opera-
tion of the vehicle. While driving, be sure
to observe all traffic regulations.
Prior to the actual use of this system, learn
how to use it and become thoroughly famil-
iar with it. Read the entire Navigation Sys-
tem Owner’s Manual to make sure you un-
derstand the system. Do not allow other
people to use this system until they have
read and understood the instructions in
this manual.
For your safety, some functions may be-
come inoperable when driving. Unavail-
able touch screen buttons are dimmed.
Only when the vehicle is not moving, can
the destination and route selection be
done.
2009 COROLLA MATRIX Navigation from Aug. ’08 Prod. (OM12B81U)
Important information about
this manualSafety Instruction

MATRIX_Navi_U(L/O 0801)
4
CAUTION
For safety, the driver should not
operate the navigation system
while he/she is driving.
Insufficient attention to the road
and traffic may cause an accident.
 While driving, be sure to obey the
traffic regulations and maintain
awareness of the road conditions.
If a traffic sign on the road has
been changed, route guidance
may provide wrong information
such as the direction of a one way
street.
While driving, listen to the voice instruc-
tions as much as possible and glance at
the screen briefly and only when it is safe.
However, do not totally rely on voice guid-
ance. Use it just for reference. If the sys-
tem cannot determine the current vehicle
position correctly, there is a possibility of
incorrect, late, or nonvoice guidance.
The data in the system may occasionally
be incomplete. Road conditions, including
driving restrictions (no left turns, street clo-
sures, etc.) frequently change. Therefore,
before following any instruction from the
system, look to see whether the instruction
can be done safely and legally.
This system cannot warn about such
things as the safety of an area, condition of
streets, and availability of emergency ser-
vices. If unsure about the safety of an
area, do not drive into it. Under no cir-
cumstances is this system a substitute
for the driver’s personal judgement.
Use this system only in locations where it
is legal to do so. Some states/provinces
may have laws prohibiting the use of video
and navigation screens next to the driver.
2009 COROLLA MATRIX Navigation from Aug. ’08 Prod. (OM12B81U)

MATRIX_Navi_U(L/O 0801)
5
Table of Contents
Quick guide —
— Overview buttons and guidance screen 10. . . . . . . . . . .
— Registering home 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— Registering preset memory points (Quick access) 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
— Operation flow: guiding the route 16 . . . . . . . . . . . . . . . . .
— Setting home as the destination 17 . . . . . . . . . . . . . . . . . .
Navigation system function index 18 . . . . . . . . . . . . . . . . . . .
1 Basic Functions 〈Basic information before operation〉
Display operation 22
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Initial screen 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Touch screen operation 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Inputting letters and numbers/List screen operation 26
. . . . . . . . . . . . .
Function help 29
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Map screen operation 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Current position display 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen scroll operation 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching the screens 34
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Map scale 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Foot print map 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Orientation of the map 39
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2009 COROLLA MATRIX Navigation from Aug. ’08 Prod. (OM12B81U)
Quick
Guide
1
2
3
4
5
6
7
Index

MATRIX_Navi_U(L/O 0801)
8
6 Audio System
Quick reference144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Using your audio system 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Some basics 145
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Radio operation 149
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
CD player operation 158
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio remote controls 169
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Audio system operating hints 170
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 Appendix
Limitations of the navigation system 178
. . . . . . . . . . . . . . . . . . . . . . . . .
Map database information and updates 180
. . . . . . . . . . . . . . . . . . . . . .
Index 193
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
2009 COROLLA MATRIX Navigation from Aug. ’08 Prod. (OM12B81U)

11
No.NameFunctionPage
7“INFO” buttonPush this button to display the “Informa-
tion” screen.128, 132, 138, 141
8Zoom out buttonTouch this button to reduce the map
scale.37
9“Mark”
Touch this button to register the current
position or the cursor position as a
memory point.
31
10“Route”Touch this button to change the route.76, 78
11“Map View”
Touch this button to browse information
about guidance route, to set the Points
of Interest to be displayed on the
screen, or to record the route.
82, 84, 85, 86
12“ OFF”
Touch this button to obtain a broader
view. Some of the buttons on the screen
are not displayed. They are displayed
again by touching “ON ”.
11 4
13Zoom in buttonTouch this button to magnify the map
scale.37
14Foot print map
buttonTouch this button to display the foot print
map and the building information.37
15
Screen
configuration
buttonTouch this button to change the screen
mode.34
16Distance and time
to destinationDisplays the distance, the estimated
travel time to the destination, and the
estimated arrival time at the destination.
75
17XM NavTraffic
markThis mark is displayed when XM Nav-
Traffic information is received.120
18
“GPS” mark
(Global
Positioning
System)Whenever the vehicle is receiving sig-
nals from the GPS, this mark is dis-
played.
178
MATRIX_Navi_U(L/O 0801)
2009 COROLLA MA TRIX Navigation from Aug. ’08 Prod. (OM12B81U)

16

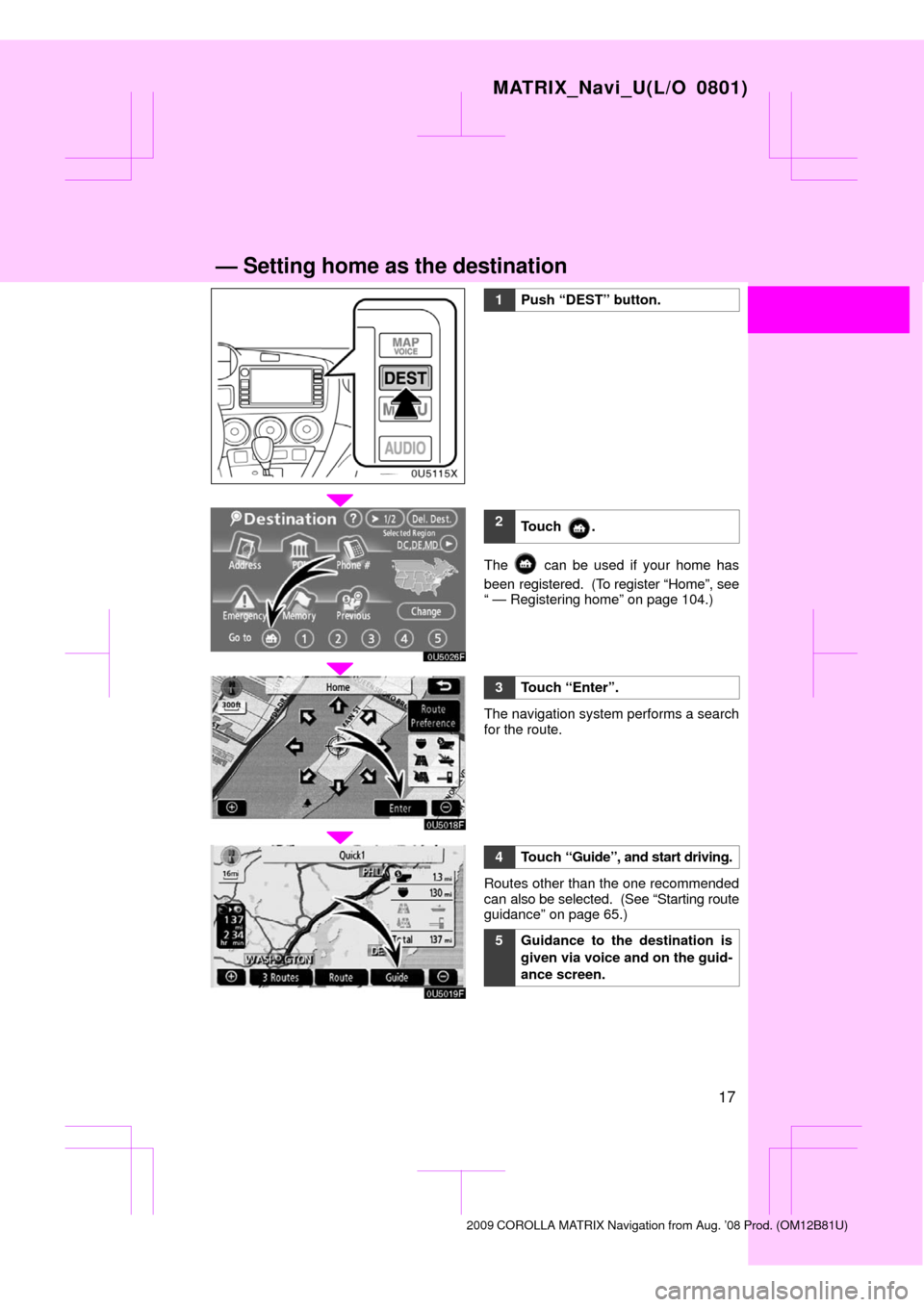

0U5115X
1Push “DEST” button.
2There are 12 different methods to
search destinations.
See “Destination search” on page 43.
3Touch “Enter”.
The navigation system performs a search
for the route.
4Touch “Guide”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 65.)
5Guidance to the destination is
given via voice and on the guid-
ance screen.
MATRIX_Navi_U(L/O 0801)
2009 COROLLA MA TRIX Navigation from Aug. ’08 Prod. (OM12B81U)
— Operation flow: guiding the route

17
0U5115X
1Push “DEST” button.
2Touch .
The can be used if your home has
been registered. (To register “Home”, see
“ — Registering home” on page 104.)
3Touch “Enter”.
The navigation system performs a search
for the route.
4Touch “Guide”, and start driving.
Routes other than the one recommended
can also be selected. (See “Starting route
guidance” on page 65.)
5Guidance to the destination is
given via voice and on the guid-
ance screen.
MATRIX_Navi_U(L/O 0801)
2009 COROLLA MA TRIX Navigation from Aug. ’08 Prod. (OM12B81U)
— Setting home as the destination

MATRIX_Navi_U(L/O 0801)
18
Map
Displaying mapsPage
Viewing the map screen10
Displaying the current vehicle position30
Viewing the current position vicinity map30
Changing the scale37
Changing the map orientation39
Displaying POIs∗82
Displaying the estimated travel/arrival time to the destination75
Selecting the dual map screen34
Viewing foot print map37
Deleting map screen touch screen buttons11 4
Searching destinationPage
Searching the destination (by home, POI∗, phone #, etc.)43
Changing the selected region44
Operating the map location of the selected destination65
Route guidance
Before starting route guidancePage
Setting the destination65
Viewing alternative routes65
Starting route guidance65
Before starting or during route guidancePage
Viewing the route65
Adding destinations76
Changing the route78
Displaying the estimated travel/arrival time to the destination75
∗: Point(s) of Interest
2009 COROLLA MATRIX Navigation from Aug. ’08 Prod. (OM12B81U)
Navigation system function index
