111 2-1. Driving procedures
2
When driving
■Shift position uses
*1: To improve fuel consumption and reduce noises, set the shift lever in
the D position for normal driving.
*2: Selecting shift ranges using S mode restricts the upper limit of the
possible gear ranges, controls engine braking forces, and prevents
unnecessary upshifting.
Shift positionFunction
Standard typeMulti-mode type
P Parking the vehicle or starting the engine
R Reversing
N Neutral
D Normal driving
*1
SS mode driving*2
(→P. 112)
3Position for engine
braking
2Position for more
powerful engine braking
LPosition for maximum
engine braking

112 2-1. Driving procedures

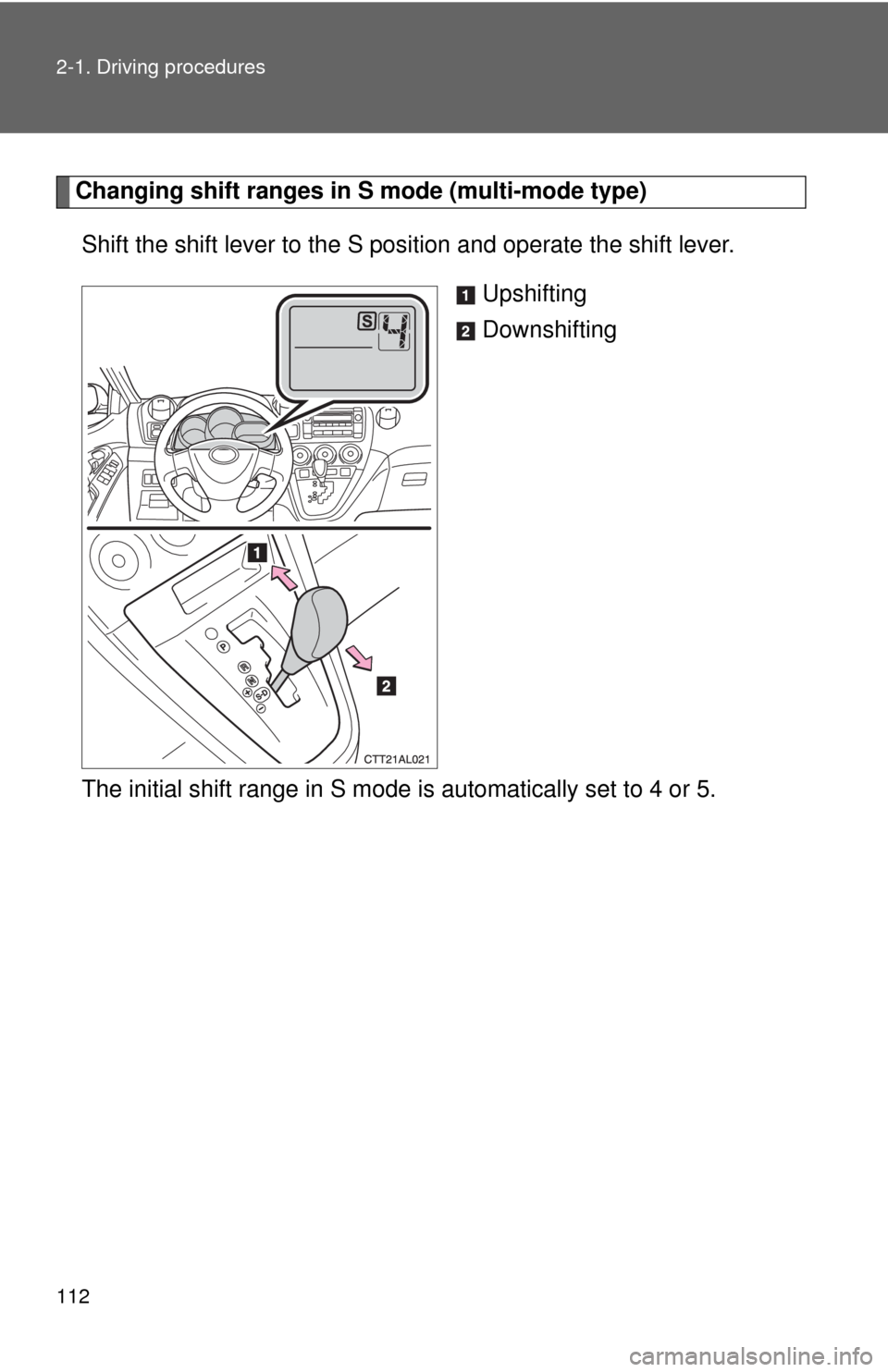

Changing shift ranges in S mode (multi-mode type)
Shift the shift lever to the S position and operate the shift lever.
Upshifting
Downshifting
The initial shift range in S mode is automatically set to 4 or 5.

113 2-1. Driving procedures
2
When driving
■Shift ranges and their functions
A lower shift range will provide greater engine braking forces than a
higher shift range.
■Downshifting restrictions (standard type)
The shift lever cannot be downshifted if the following speeds are exceeded.
2.4 L 4-cylinder (2AZ-FE) engine
mph (km/h)
1.8 L 4-cylinder (2ZR-FE) engine
mph (km/h)
Shift rangeFunction
5A gear between 1 and 5 is automatically selected
according to vehicle speed and driving conditions.
4A gear between 1 and 4 is automatically selected
according to vehicle speed and driving conditions.
3A gear between 1 and 3 is automatically selected
according to vehicle speed and driving conditions.
2A gear between 1 and 2 is automatically selected
according to vehicle speed and driving conditions.
1 Setting the gear at 1.
DownshiftingMaximum speed
3→2 64 (104)
2→L 32 (52)
DownshiftingMaximum speed
3→2 57 (92)
2→L 27 (44)

114 2-1. Driving procedures
■Downshifting restrictions (multi-mode type)
To help ensure safety and driving performance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever is operated. (The warning buzzer will
sound twice.)
■When driving with the cruise control system (if equipped)
Standard type
Engine braking will not occur when downshifting from D to 3. (→P. 132)
Multi-mode type
Engine braking will not occur when downshifting from D to 4 range of S, or
from 5 to 4 range of S. (→P. 132)
■If the shift lever cannot be shifted from P
→P. 377
■If the “S” indicator does not come on even after shifting the shift lever
to S (multi-mode type)
This may indicate a malfunction in the automatic transmission system. Have
the vehicle inspected by your Toyota dealer immediately.
(In this situation, the vehicle will operate as if the shift lever is in D.)

115
2-1. Driving procedures
2
When driving
Manual transmission (if equipped)

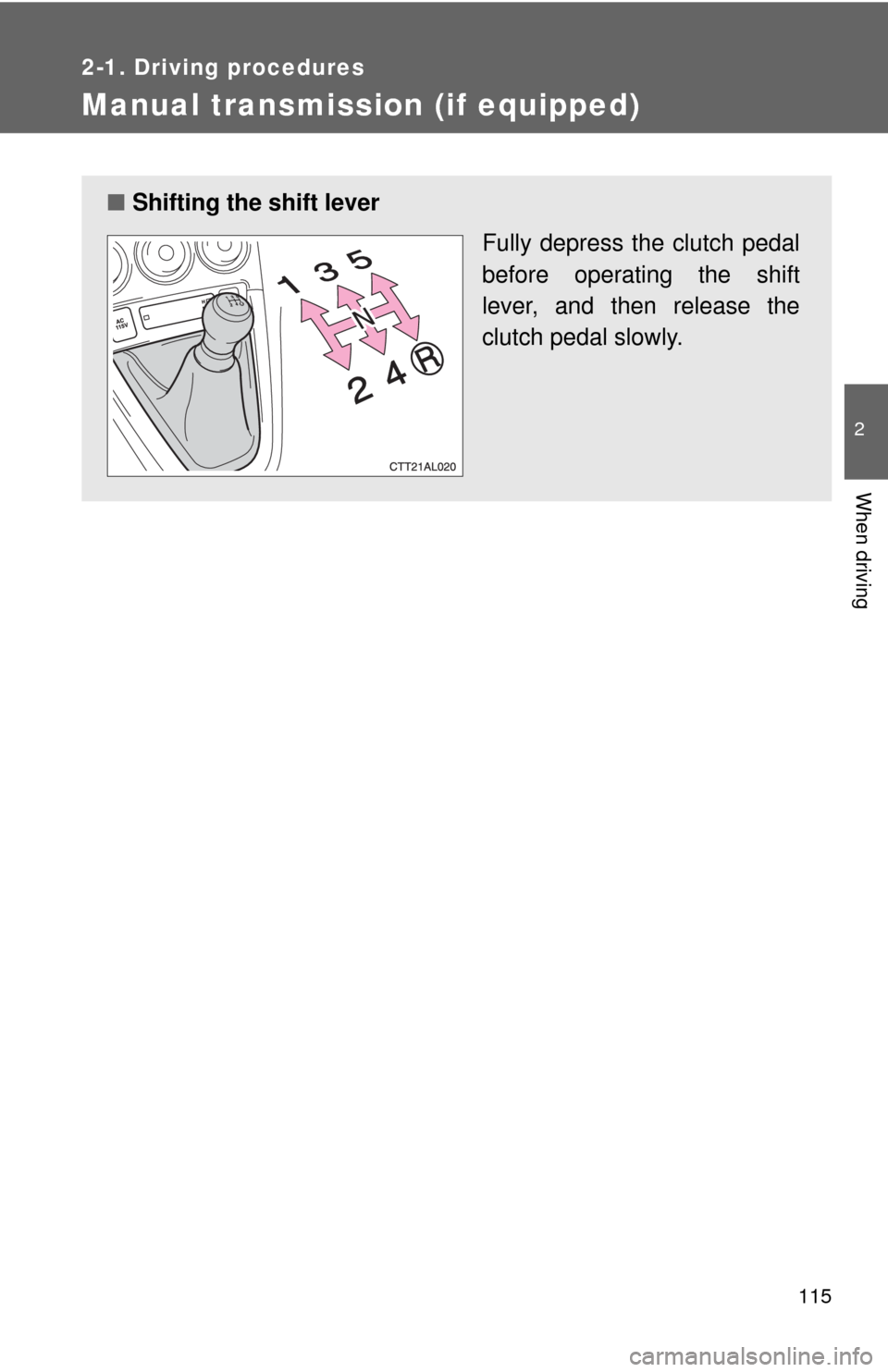

■Shifting the shift lever
Fully depress the clutch pedal
before operating the shift
lever, and then release the
clutch pedal slowly.

116 2-1. Driving procedures
■Maximum allowable speeds
Observe the following maximum allowable speeds in each gear when maxi-
mum acceleration is necessary.
2.4 L 4-cylinder (2AZ-FE) engine (without double wishbone rear suspen-
sion)
mph (km/h)
2.4 L 4-cylinder (2AZ-FE) engine (with double wishbone rear suspension)
mph (km/h)
1.8 L 4-cylinder (2ZR-FE) engine
mph (km/h)
Shift positionMaximum speed
1 31 (50)
2 53 (86)
3 82 (132)
4 112 (181)
Shift positionMaximum speed
1 31 (50)
2 54 (87)
3 83 (134)
4 113 (183)
Shift positionMaximum speed
1 34 (55)
2 56 (91)
3 82 (132)
4 121 (195)

117
2-1. Driving procedures
2
When driving
Turn signal lever
■Turn signals can be operated when
The engine switch is in the “ON” position.
■If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Left turn
Right turn
Move and hold the lever
partway to signal a lane
change.
The left hand signal will flash
until you release the lever.
Move and hold the lever
partway to signal a lane
change.
The right hand signal will flash
until you release the lever.

118
2-1. Driving procedures
Parking brake
NOTICE
■Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
Sets the parking brake
Fully set the parking brake
while depressing the brake
pedal.
Releases the parking brake
Slightly raise the lever and
lower it completely while press-
ing the button.
U.S.A. Canada

119
2
When driving
2-2. Instrument cluster
Gauges and meters
The following gauges, meters and displays illuminate when the
engine switch is in the “ON” position.
Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Outside temperature display
Displays the outside air temperature.
The temperature range that can be displayed is from -40°F (-40°C) to
122°F (50°C).
Odometer/trip meter/instrument panel light control and trip meter
reset button
Switches between odometer and trip meter displays. Pressing and
holding the button will reset the trip meter when the trip meter is being
displayed.
To adjust the brightness of the instrument panel light, turn the button.
(→P. 1 2 1 )

120 2-2. Instrument cluster
Engine coolant temperature gauge
Displays the engine coolant temperature.
Automatic transmission shift position indicator lights (if
equipped)
→P. 1 1 0
Odometer and trip meter
Odometer: Displays the total distance the vehicle has been driven.
Trip meter: Displays the distance the vehicle has been driven since the
meter was last reset. Trip meters A and B can be used to record and
display different distances independently.
Low fuel level warning light
→P. 355
