key TOYOTA MATRIX 2009 E140 / 2.G Owner's Manual

211 3-3. Using the hands-free phone system (for cellular phone)
3
Interior features
■Automatic adjustment of volume
When vehicle speed is 50 mph (80 km/h) or more, the volume automatically
increases. The volume returns to the previous volume setting when vehicle
speed drops to 43 mph (70 km/h) or less.
■When using a voice command
For numbers, say a combination of single digits from zero to nine, # (pound),
∗ (star), and + (plus).
Say a command correctly and clearly.
■The system may not recognize your voice in the following situations:
●When driving on a rough road
●When driving at high speeds
●When air is blowing out of the vents onto the microphone
●When the air conditioning fan emits a loud noise
■The following cannot be performed while driving:
●Operating the system with
●Registering a cellular phone to the system
■Changing the passkey
→P. 220

216
3-3. Using the hands-free phone system (for cellular phone)
Setting a cellular phone
Registering a cellular phone
Select “Pair Phone” by using a voice command or , and do the
procedure for registering a cellular phone. (→P. 207)
Registering a cellular phone in the hands-free phone system allows
the system to function. The following functions can be used for reg-
istered cellular phones:
■Functions and operation procedures
To enter the menu for each function, follow the steps below by
using a voice command or :
●Registering a cellular phone
1. “Setup” → 2. “Phone Setup” → 3. “Pair Phone”
●Selecting the cellular phone to be used
1. “Setup” → 2. “Phone Setup” → 3. “Select Phone”
●Changing a registered name
1. “Setup” → 2. “Phone Setup” → 3. “Change Name”
●Listing the registered cellular phones
1. “Setup” → 2. “Phone Setup” → 3. “List Phones”
●Deleting a cellular phone
1. “Setup” → 2. “Phone Setup” → 3. “Delete”
●Changing the passkey
1. “Setup” → 2. “Phone Setup” → 3. “Set Passkey”

220 3-3. Using the hands-free phone system (for cellular phone)
Changing the passkey
Select “Set Passkey” by using a voice command or .
Pattern A
Press the talk switch, say a 4 to 8-digit number, and select
“Confirm” by using a voice command or .
Pattern B
Select a 4 to 8-digit number by using .
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has
been input, press once again.
■The number of cellular phones that can be registered
Up to 6 cellular phones can be registered in the system.
STEP1
STEP2
STEP2
STEP3

Maintenance and care4
267
4-1. Maintenance and
care ............................... 268
Cleaning and protecting
the vehicle exterior......... 268
Cleaning and protecting
the vehicle interior.......... 270
4-2. Maintenance ................... 273
Maintenance
requirements .................. 273
General maintenance....... 275
Emission inspection and
maintenance (I/M)
programs........................ 2784-3. Do-it-yourself
maintenance ................. 279
Do-it-yourself service
precautions .................... 279
Hood ................................ 283
Positioning a floor jack ..... 285
Engine compartment ........ 288
Tires ................................. 303
Tire inflation pressure ...... 312
Wheels ............................. 316
Air conditioning filter......... 318
Key battery
(vehicles with wireless
remote control)............... 320
Checking and replacing
fuses .............................. 323
Light bulbs........................ 332

320

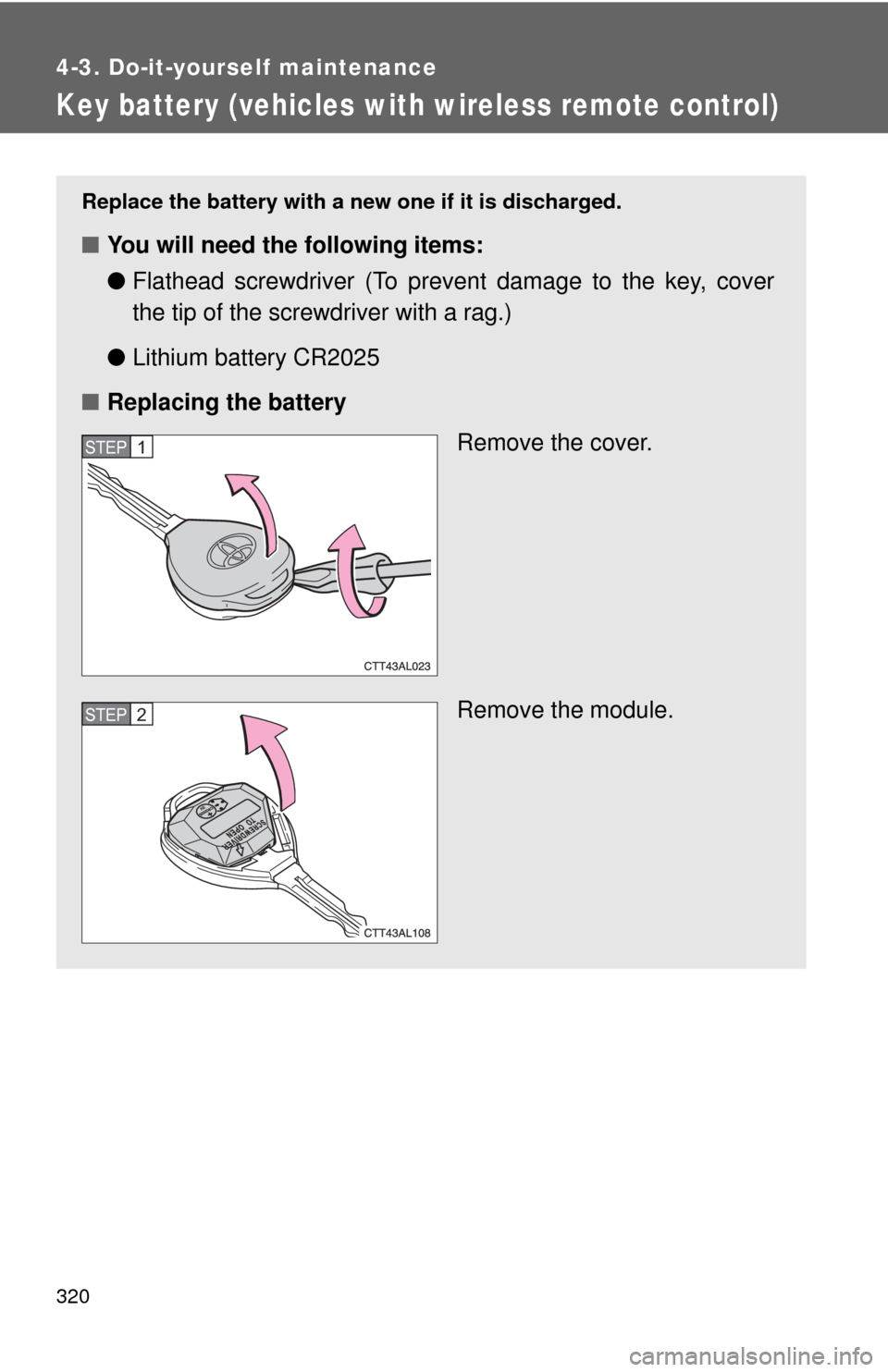

4-3. Do-it-yourself maintenance
Key battery (vehicles with wireless remote control)
Replace the battery with a new one if it is discharged.
■You will need the following items:
●Flathead screwdriver (To prevent damage to the key, cover
the tip of the screwdriver with a rag.)
●Lithium battery CR2025
■Replacing the battery
Remove the cover.
Remove the module.
STEP1
STEP2

321 4-3. Do-it-yourself maintenance
4
Maintenance and care
■If the key battery is discharged
The following symptoms may occur.
●The wireless remote control will not function properly.
●The operational range is reduced.
■Use CR2025 lithium battery
●Batteries can be purchased at your Toyota dealer, jewelers, or camera
stores.
●Replace only with the same or equivalent type recommended by your
Toyota dealer.
●Dispose of used batteries according to the local laws.
CAUTION
■Removed battery and other parts
Keep away from children.
These parts are small and if swallowed by a child they can cause choking.
Open the case cover using a
flathead screwdriver pro-
tected with tape etc. and
remove the depleted battery.
Insert a new battery with the
“+” terminal facing up.
STEP3

When trouble arises5
341
5-1. Essential information .... 342
If your vehicle needs to
be towed ........................ 342
If you think something
is wrong ......................... 348
Fuel pump shut off
system ........................... 349
Event data recorder ......... 350
5-2. Steps to take in an
emergency .................... 352
If a warning light turns on
or a warning buzzer
sounds... ....................... 352
If you have a flat tire......... 362
If the engine will not
start ................................ 376
If the shift lever cannot be
shifted from P (automatic
transmission) ................. 377
If you lose your keys ........ 378
If the battery is
discharged ..................... 379
If your vehicle
overheats ....................... 385
If the vehicle becomes
stuck .............................. 388

5
When trouble arises
347 5-1. Essential information
Using a flat bed truck
If you use chains or cables to tie
down your vehicle, the angles
shaded in black must be 45°.
Do not overly tighten the tie
downs or the vehicle may be
damaged.
NOTICE
■To prevent causing serious damage to the transmission
(vehicles with an automatic transmission)
Never tow this vehicle from the rear with the front wheels on the ground.
■To prevent damaging the vehicle (vehicles with a manual transmission)
Do not tow the vehicle when the engine switch is in the “LOCK” position or
the key is removed.
The steering lock mechanism is not strong enough to hold the front wheels
straight.

378
5-2. Steps to take in an emergency
If you lose your keys
New genuine keys can be made by your Toyota dealer. Bring a mas-
ter key and the key number stamped on the key number plate.

421 6-2. Customization
6
Vehicle specifications
Door lock
(vehicles
with power
door lock
system)
(
→P. 29)Unlocking using a keyDriver's door
unlocked in one
step, all doors
unlocked in two
stepsAll doors
unlocked in one
step
Opening driver's door
unlocks all doorsOff On
Shifting gears to P
unlocks all doors. (vehi-
cles with an automatic
transmission)On Off
Shifting gears to posi-
tion other than P locks
all doors. (vehicles with
an automatic transmis-
sion)On Off
Illumination
(
→P. 232)Time elapsed before
lights turn off15 seconds7.5 seconds
30 seconds
Operation when the
doors are unlocked
(vehicles with power
door lock system)On Off
Operation after the
engine switch is turned
to the “LOCK” positionOn Off
Seat belt
reminder
(
→P. 355)Vehicle speed linked
seat belt reminder
buzzerOn Off
ItemFunctionDefault settingCustomized
setting
