Power windows .................... 51
Moon roof ............................. 53
1-5. Refueling ............................. 56 Opening the fuel tank cap .... 56
1-6. Theft deterrent system ...... 60 Engine immobilizer system ................................ 60
Theft prevention labels (for U.S.A.) ......................... 62 1-7. Safety information .............. 63
Correct driving posture ......... 63
SRS airbags ......................... 65
Front passenger occupant classification system ........... 77
Child restraint systems ......... 82
Installing child restraints ....... 86
2-1. Driving procedures............. 96 Driving the vehicle ................ 96
Engine (ignition) switch....... 106
Automatic transmission ...... 110
Manual transmission........... 115
Turn signal lever ................. 117
Parking brake ..................... 118
2-2. Instrument cluster ............ 119 Gauges and meters ............ 119
Indicators and warning lights ................................. 122
2-3. Operating the li
ghts and
wipers
.............................. 125
Headlight switch ................. 125
Fog light switch ................... 128
Windshield wipers and washer .............................. 129
Rear window wiper and washer .............................. 131
2-4. Using other driving systems ........................... 132
Cruise control ..................... 132
Driving assist systems ........ 135
1Before driving
2When driving
Page 4 of 440
TABLE OF CONTENTSIndex
4
Compass ............................ 262
4-1. Maintenance and care...... 268
Cleaning and protecting the
vehicle exterior ................. 268
Cleaning and protecting the
vehicle interior .................. 270
4-2. Maintenance ..................... 273
Maintenance
requirements .................... 273
General maintenance ......... 275
Emission inspection and
maintenance (I/M)
programs .......................... 278
4-3. Do-it-yourself
maintenance ................... 279
Do-it-yourself service
precautions ...................... 279
Hood................................... 283
Positioning a floor jack ....... 285
Engine compartment .......... 288
Tires ................................... 303
Tire inflation pressure......... 312
Wheels ............................... 316
Air conditioning filter ........... 318
Key battery (vehicles with
wireless remote control) ... 320
Checking and replacing
fuses ................................ 323
Light bulbs .......................... 3325-1. Essential information ....... 342
If your vehicle needs to
be towed ........................... 342
If you think something
is wrong ............................ 348
Fuel pump shut off
system .............................. 349
Event data recorder ............ 350
5-2. Steps to take in an
emergency ...................... 352
If a warning light turns on
or a warning buzzer
sounds... .......................... 352
If you have a flat tire ........... 362
If the engine will not start .... 376
If the shift lever cannot be
shifted from P (automatic
transmission) .................... 377
If you lose your keys ........... 378
If the battery is
discharged ........................ 379
If your vehicle overheats..... 385
If the vehicle becomes
stuck ................................. 388
4Maintenance and care
5When trouble arises
Page 15 of 440
15
B
Cruise control switch ∗ P. 132
Talk switch ∗ P. 204
Engine (ignition) switch P. 106
Telephone switches ∗
P. 204
Audio remote control
switches *2 ∗ P. 197
∗: If equipped
*2: For vehicles with a navigation system, refer to “Navigation System Owner’s Manual”.
Page 23 of 440
Before driving1
23

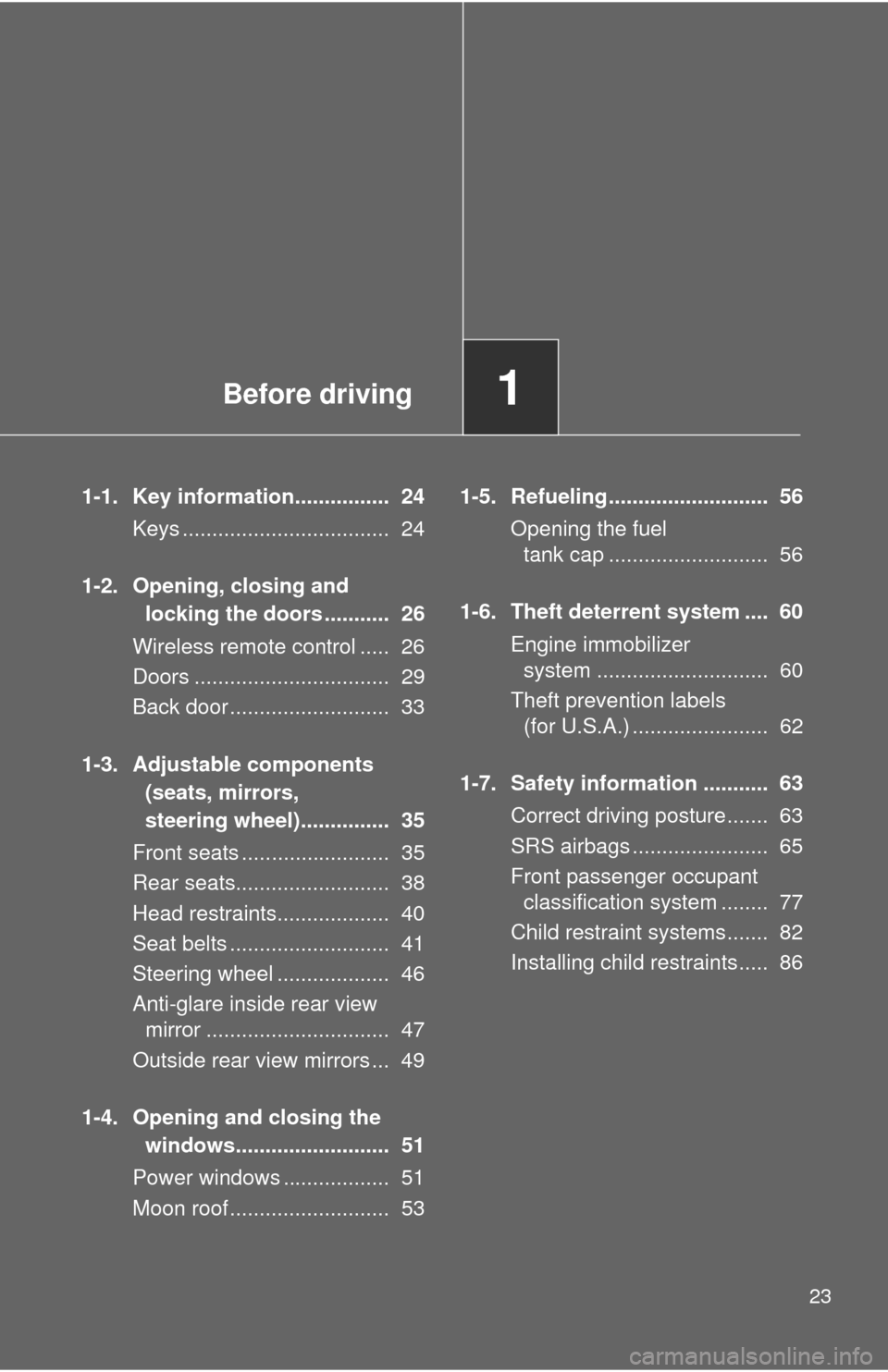

1-1. Key information................ 24
Keys ................................... 24
1-2. Opening, closing and
locking the doors ........... 26
Wireless remote control ..... 26
Doors ................................. 29
Back door ........................... 33
1-3. Adjustable components
(seats, mirrors,
steering wheel)............... 35
Front seats ......................... 35
Rear seats.......................... 38
Head restraints................... 40
Seat belts ........................... 41
Steering wheel ................... 46
Anti-glare inside rear view
mirror ............................... 47
Outside rear view mirrors ... 49
1-4. Opening and closing the
windows.......................... 51
Power windows .................. 51
Moon roof ........................... 531-5. Refueling........................... 56
Opening the fuel
tank cap ........................... 56
1-6. Theft deterrent system .... 60
Engine immobilizer
system ............................. 60
Theft prevention labels
(for U.S.A.) ....................... 62
1-7. Safety information ........... 63
Correct driving posture....... 63
SRS airbags ....................... 65
Front passenger occupant
classification system ........ 77
Child restraint systems....... 82
Installing child restraints..... 86
Page 30 of 440
30 1-2. Opening, closing and locking the doors
Rear door child-protector lock
The door cannot be opened from
inside the vehicle when the locks
are set.
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.
Automatic door locking and unlocking systems (vehicles with power door lock system)
The following functions can be set or cancelled:
*: Vehicles with an automatic transmission only
The shift position linked door locking function works when all doors
are closed.
FunctionOperation
Shift position linked
door locking function
*
Shifting the shift lever out of P locks all
doors.
Shift position linked
door unlocking func-
tion
*
Shifting the shift lever to P unlocks all doors.
Driver's door linked door
unlocking functionAll doors are unlocked when the driver's door
is opened within 10 seconds after turning the
engine switch to “ACC” or “LOCK”.
Page 31 of 440
31 1-2. Opening, closing and locking the doors
1
Before driving
■Setting and canceling the functions
To switch between set and canceled, follow the procedure below:
Close all the doors and switch the engine switch to the “ON”
position. (Perform step 2 within 10 seconds.)
Shift the shift lever to P or N, and
press and hold the driver's door
lock switch (
or ) for approx-
imately 5 seconds and then
release.
The shift lever and switch posi-
tions corresponding to the
desired function to be set or can-
celed are shown as follows.
*: Vehicles with an automatic transmission only
When the setting or canceling operation is complete, all doors are
locked and then unlocked.
STEP1
STEP2
FunctionShift lever
positionSwitch position
Shift position linked door lock-
ing function*
P
Shift position linked door
unlocking function*
Driver's door linked door unlock-
ing functionN
Page 32 of 440
32 1-2. Opening, closing and locking the doors
■When all the doors are locked with the wireless remote control or key
The doors cannot be unlocked with the door lock switch.
The door lock switch can be reset by unlocking all the doors with the wire-
less remote control or key.
■The doors cannot be locked when
The key is in the engine switch and either of the front door is open.
■Customization that can be configured at Toyota dealer
Settings (e.g. unlocking function using a key) can be changed. (Customiz-
able features →P. 420)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
●Always use a seat belt.
●Always lock the doors.
●Ensure that all doors are properly closed.
●Do not pull the inside handle of either of the front doors while driving.
●Set the rear door child protector locks when children are seated in the rear
seat.
Page 47 of 440
47
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
Anti-glare inside rear view mirror

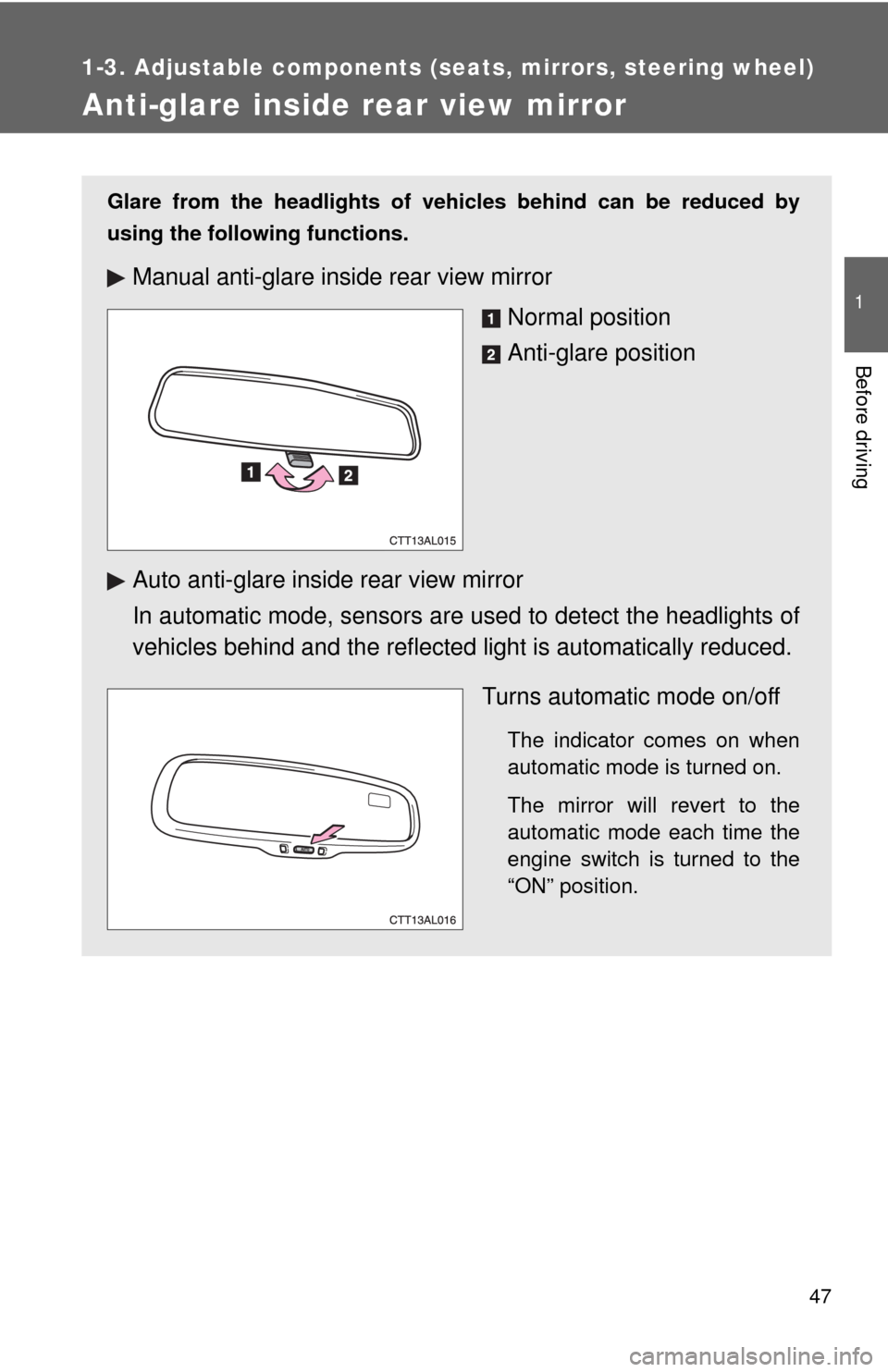

Glare from the headlights of vehicles behind can be reduced by
using the following functions.
Manual anti-glare inside rear view mirror
Normal position
Anti-glare position
Auto anti-glare inside rear view mirror
In automatic mode, sensors are used to detect the headlights of
vehicles behind and the reflected light is automatically reduced.
Turns automatic mode on/off
The indicator comes on when
automatic mode is turned on.
The mirror will revert to the
automatic mode each time the
engine switch is turned to the
“ON” position.
Page 50 of 440
50 1-3. Adjustable components (seats, mirrors, steering wheel)
■Mirror angle can be adjusted when
The engine switch is in the “ACC” or “ON” position.
■When the mirrors are fogged up (vehicles with outside rear view mirror
defoggers)
Turn on the mirror defoggers to defog the mirrors. (→P. 168)
CAUTION
■When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an acci-
dent, resulting in death or serious injury.
●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded back.
●Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■When the mirror defoggers are operating (vehicles with outside rear
view mirror defoggers)
Do not touch the surface of the mirror, as it may be hot.
Page 51 of 440
51
1
Before driving
1-4. Opening and closing the windows
Power windows (if equipped)
Lock switch
Press the switch down to lock
the passenger window switches.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.
The power windows can be opened and closed using the following
switches.
Closing
Opening
One-touch opening (driver’s
window only)
*
*:Pressing the switch in the
opposite direction will stop win-
dow travel partway.
■The power windows can be operated when
The engine switch is in the “ON” position.
■Operating the power windows after turning the engine OFF
The power windows can be operated for approximately 45 seconds after the
engine switch is turned to the “ACC” or “LOCK” position. They cannot, how-
ever, be operated once either front door is opened.
